SPECjbb2015 Report for jbb2015-20200227-00512 : 182143 max-jOPS ; 72034 critical-jOPS

SUT Description

Hardware hw_1
Name	ThinkSystem SR655
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Jun-2020
Model	ThinkSystem SR655
Form Factor	2U
CPU Name	AMD EPYC 7H12
CPU Characteristics	64 core, 2.6GHz, 256 MB L3 Cache (Turbo Boost Technology up to 3.30 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	64
Cores Per Chip	64
Threads Per System	128
Threads Per Core	2
Version	CFE111A
CPU Frequency (MHz)	2600
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	512 KB I+D on chip per core
Tertiary Cache	16 MB I+D on chip per chip
Other Cache	None
Disk	1x 960GB SATA SSD
File System	ext4
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64 GB
Memory Details	64GB 2Rx4 PC4-2933Y-R
# and type of Network Interface Cards (NICs)	1x 10/25GbE OCP NIC
Power Supply Quantity and Rating (W)	1 x 1600W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	None
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP1
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	4.12.14-195-default
Available	Jun-2019
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	OpenJDK 13.0.2
Vendor	OpenJDK
Vendor URL	http://openjdk.java.net/
Version	OpenJDK 64-bit Server VM, version 13.0.2
Available	Dec-2019
Bitness	64
Notes	Community Support
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode = Maximum Performance Memory Speed = 2933 Memory Scrub = Disable LLC as NUMA Node = Enable NUMA nodes per sockert = NPS4 cTDP = 280
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description	os_1
Tuning	ulimit -n 655350 tuned-adm profile throughput-performance echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 80000000 > /proc/sys/kernel/sched_min_granularity_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 16 > /proc/sys/kernel/sched_nr_migrate echo 10 > /proc/sys/vm/swappiness echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-showversion -server -Xmx29g -Xms29g -Xmn28g -XX:+UseParallelOldGC -XX:ParallelGCThreads=32 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+AggressiveOpts -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28
Tuning	numactl used to affinitize each Backend JVM to a single memory node, eg: numactl --cpunodebind=$gnum --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=3 -XX:CICompilerCount=2
Tuning	numactl used to affinitize each Backend JVM to a single memory node, eg: numactl --cpunodebind=$gnum --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	180245	182143	184040	185937	187835

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	42689	70833	78738	88225	92336	72034

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	3795 / 5692	- / 1897	- / 1897	- / 1897	- / 1897	- / 1897
1000us	13281 / 15179	7589 / 9487	3795 / 5692	1897 / 3795	- / 1897	- / 1897
5000us	132812 / 134710	49330 / 51228	32254 / 34152	28460 / 30357	24665 / 26562	- / 1897
10000us	144196 / 146094	110045 / 111942	68304 / 70201	60714 / 62612	43638 / 41741	- / 1897
25000us	147991 / 149888	140402 / 142299	119531 / 121428	110045 / 111942	72098 / 68304	28460 / 9487
50000us	149888 / 151786	144196 / 146094	129018 / 130915	121428 / 123326	79687 / 77790	28460 / 9487
75000us	151786 / 153683	147991 / 149888	136607 / 138504	127120 / 129018	87277 / 89174	28460 / 9487
100000us	153683 / 155580	147991 / 149888	138504 / 140402	132812 / 134710	94866 / 91071	28460 / 9487
200000us	157478 / 159375	153683 / 155580	147991 / 149888	142299 / 144196	115737 / 117634	28460 / 9487
500000us	178348 / 180245	166964 / 168861	159375 / 161272	155580 / 157478	153683 / 155580	111942 / 9487
1000000us	182143 / -	178348 / 180245	174553 / 176451	174553 / 176451	170759 / 172656	153683 / 149888

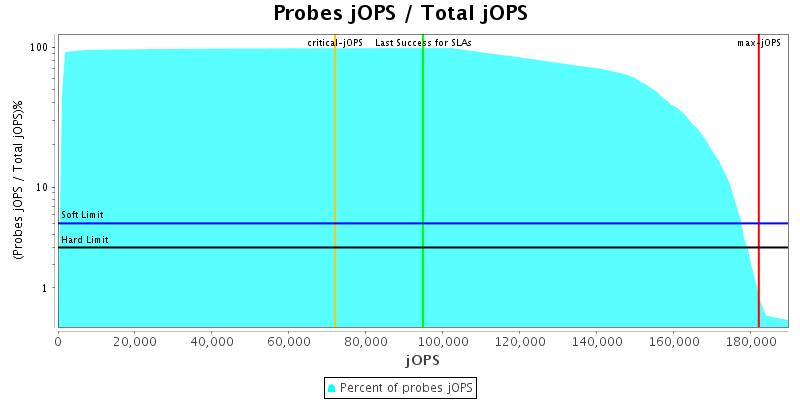

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

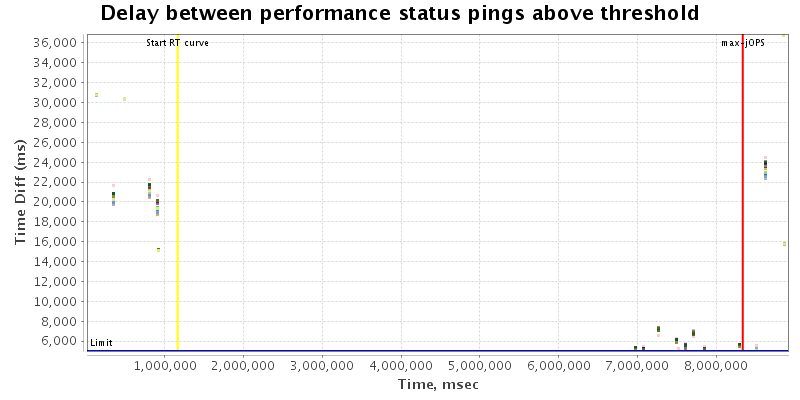

Delay between performance status pings during RT Curve (Response-Throughput Curve)

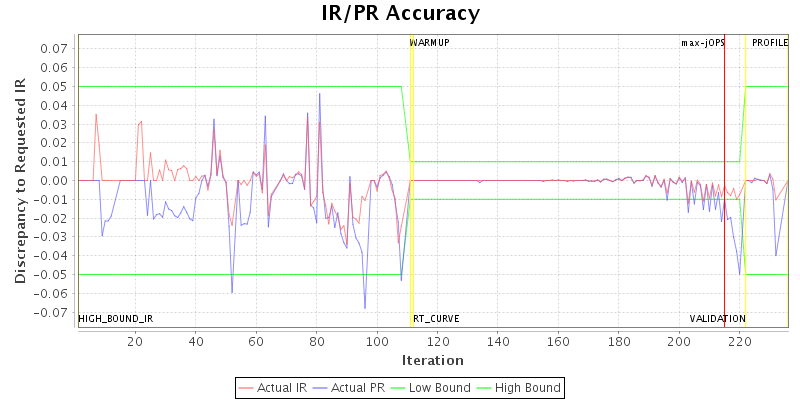

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	128
specjbb.comm.connect.selector.runner.count	0	2
specjbb.comm.connect.timeouts.connect	60000	700000
specjbb.comm.connect.timeouts.read	60000	700000
specjbb.comm.connect.timeouts.write	60000	700000
specjbb.comm.connect.worker.pool.max	256	128
specjbb.comm.connect.worker.pool.min	1	64
specjbb.customerDriver.threads	64	{=64, probe=64, saturate=64}
specjbb.forkjoin.workers	8	{Tier1=128, Tier2=1, Tier3=18}
specjbb.group.count	1	16
specjbb.mapreducer.pool.size	8	2

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 189732 IR

High-bound (settled) is 183816 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Lenovo Global Technology ThinkSystem SR655	182143 SPECjbb2015-MultiJVM max-jOPS 72034 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Lenovo Global Technology	Test Sponsor: Lenovo Global Technology	Test location: Beijing, China	Test date: Feb 10, 2020
SPEC license #: 9017	Hardware Availability: Jun-2020	Software Availability: Dec-2019	Publication: Mon Mar 16 10:06:42 EDT 2020


SPECjbb2015-MultiJVM: Multiple JVMs/Single Host (# of groups: 16) Overall SUT Description SUT Description max-jOPS and critical-jOPS Details Number of probes Request Mix Accuracy Rate Of Non-Critical Failures Delay between performance status pings IR/PR Accuracy Topology SUT Configuration Properties Validation Details Link to Full Disclosure	Overall Throughput RT curve
