SPECjbb2015 Report for jbb2015-20200325-00518 : 194164 max-jOPS ; 78466 critical-jOPS

SUT Description

Hardware hw_1
Name	Supermicro A+ AS-1124US-TNRP Server
Vendor	Super Micro Computer, Inc
Vendor URL	https://www.supermicro.com
Available	Apr-2020
Model	H12DSU-iN
Form Factor	1U
CPU Name	AMD EPYC 7F72
CPU Characteristics	24 core, 3.2GHz, 192MB L3 Cache (Turbo Boost Technology up to 3.7GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	48
Cores Per Chip	24
Threads Per System	96
Threads Per Core	2
Version	T20200130193235 01/30/2020
CPU Frequency (MHz)	3200
Primary Cache	32KB(I)+32KB(D) per core
Secondary Cache	512KB (I+D) per core
Tertiary Cache	192MB (I+D) on chip per chip
Other Cache	None
Disk	6 x Micron 9300 Pro 7.6TB
File System	btrfs
Memory Amount (GB)	4096
# and size of DIMM(s)	16 x 256GB
Memory Details	256GB 2S4Rx4 PC4-2933-Y-LA0-12-MH1
# and type of Network Interface Cards (NICs)	1 x 1 GbE NIC
Power Supply Quantity and Rating (W)	2 x 1000w
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP1
Vendor	SUSE
Vendor URL	http://suse.com/
Version	4.12.14-197.29-default
Available	May-2019
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 13.0.2
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 13.0.2
Available	Jan-2020
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Settings: NUMA nodes per socket = NPS2 Determinism Control = Manual Determinism Slider = Power cTDP Control = Manual cTDP = 240 Package Power Limit Control = Manual Package Power Limit = 240 Memory Clock Speed = 1467MHz L1 Stream HW Prefetcher = Disable L2 Stream HW Prefetcher = Disable
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(12), jvm_TxInjector_1(12)
OS Image Description	os_1
Tuning	cpupower -c all frequency-set -g performance tuned-adm profile throughput-performance echo 10000000 > /proc/sys/kernel/sched_min_granularity_ns echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 3000 > /proc/sys/kernel/sched_migration_cost_ns echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 100000 > /proc/sys/kernel/sched_latency_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled Add cgroup_disable=memory,cpu,cpuacct,blkio,hugetlb,pids,cpuset,perf_event,freezer,devices,net_cls,net_prio to GRUB_CMDLINE_LINUX_DEFAULT ulimit -n 1024000 UserTasksMax=970000 DefaultTasksMax=970000
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelOldGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	None
Notes	Used numactl to interleave memory on all NUMA nodes numactl --interleave=all
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms31g -Xmx31g -Xmn29g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -XX:SurvivorRatio=23 -XX:TargetSurvivorRatio=98 -XX:ParallelGCThreads=8 -XX:MaxTenuringThreshold=5 -XX:InitialCodeCacheSize=25m -XX:MaxInlineSize=900 -XX:FreqInlineSize=900 -XX:LoopUnrollLimit=30 -XX:LoopMaxUnroll=6 -XX:CICompilerCount=2 -XX:+UseGCTaskAffinity -XX:+UseTransparentHugePages -XX:ParGCArrayScanChunk=3584 -XX:InlineSmallCode=3000 -XX:AutoBoxCacheMax=5000
Tuning	None
Notes	Used numactl to affinitize each Backend JVM to 4Core/8Threads --physcpubind=0-3,48-51 --localalloc --physcpubind=4-7,52-55 --localalloc --physcpubind=8-11,56-59 --localalloc --physcpubind=12-15,60-63 --localalloc --physcpubind=16-19,64-67 --localalloc --physcpubind=20-23,68-71 --localalloc --physcpubind=24-27,72-75 --localalloc --physcpubind=28-31,76-79 --localalloc --physcpubind=32-35,80-83 --localalloc --physcpubind=36-39,84-87 --localalloc --physcpubind=40-43,88-91 --localalloc --physcpubind=44-47,92-95 --localalloc
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelOldGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	None
Notes	Used numactl to affinitize each Transaction Injector JVM to 4Core/8Threads --physcpubind=0-3,48-51 --localalloc --physcpubind=4-7,52-55 --localalloc --physcpubind=8-11,56-59 --localalloc --physcpubind=12-15,60-63 --localalloc --physcpubind=16-19,64-67 --localalloc --physcpubind=20-23,68-71 --localalloc --physcpubind=24-27,72-75 --localalloc --physcpubind=28-31,76-79 --localalloc --physcpubind=32-35,80-83 --localalloc --physcpubind=36-39,84-87 --localalloc --physcpubind=40-43,88-91 --localalloc --physcpubind=44-47,92-95 --localalloc

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	192120	194164	196208	198252	200295

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	56205	74600	78687	90950	99126	78466

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	4088 / 6131	2044 / 4088	- / 2044	- / 2044	- / 2044	- / 2044
1000us	20438 / 22482	6131 / 8175	4088 / 6131	2044 / 4088	- / 2044	- / 2044
5000us	134893 / 136937	63359 / 65403	38833 / 40877	36789 / 38833	28614 / 30657	- / 2044
10000us	141024 / 143068	118542 / 120586	77666 / 79709	71534 / 73578	55183 / 57227	16351 / 2044
25000us	145112 / 147156	136937 / 138980	118542 / 120586	108323 / 110367	73578 / 75622	16351 / 10219
50000us	147156 / 149200	141024 / 143068	128761 / 130805	118542 / 120586	77666 / 79709	16351 / 10219
75000us	149200 / 151243	145112 / 147156	132849 / 134893	126717 / 124674	89929 / 91972	16351 / 10219
100000us	153287 / 155331	145112 / 147156	136937 / 138980	130805 / 132849	100148 / 98104	16351 / 10219
200000us	173726 / 167594	153287 / 155331	145112 / 147156	145112 / 147156	136937 / 138980	38833 / 10219
500000us	190076 / 192120	173726 / 175769	161463 / 163506	159419 / 161463	153287 / 155331	122630 / 20438
1000000us	194164 / -	194164 / -	188032 / 190076	183945 / 185989	173726 / 175769	147156 / 149200

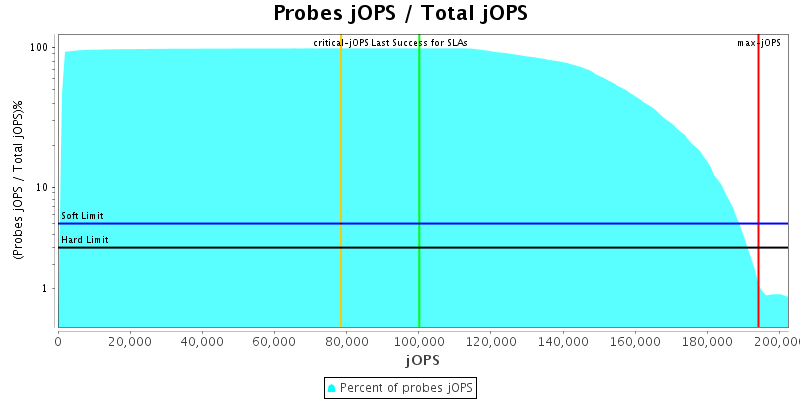

Number of probes

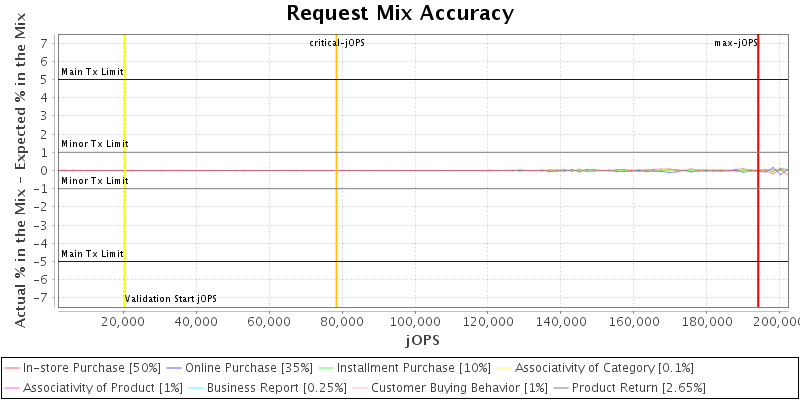

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

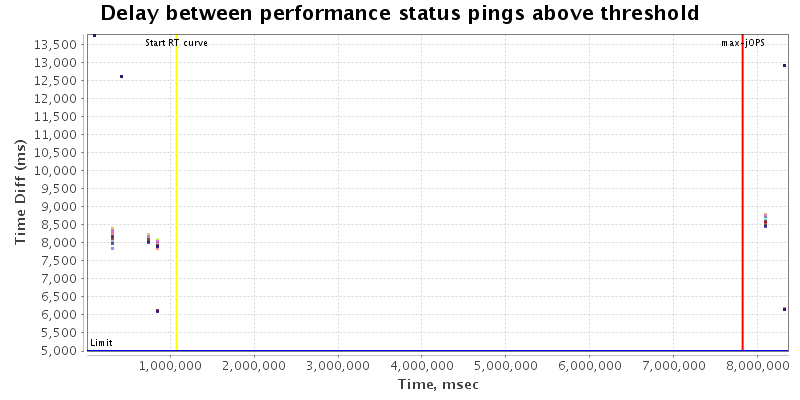

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	16	24	32	24	32	24	32	24	32	24	32	24	32	24	32	24	32	24	32	24	32	24	32	24	32
specjbb.comm.connect.selector.runner.count	0	1
specjbb.comm.connect.timeouts.connect	60000	90000
specjbb.comm.connect.timeouts.read	60000	90000
specjbb.comm.connect.timeouts.write	60000	90000
specjbb.comm.connect.worker.pool.max	256	16	32	32	32	32	32	32	32	32	32	32	32	32	32	32	32	32	32	32	32	32	32	32	32	32
specjbb.controller.handshake.period	5000	20000
specjbb.controller.handshake.timeout	600000	90000
specjbb.customerDriver.threads	64	{probe=95, saturate=350, service=64}
specjbb.forkjoin.workers	96	{Tier1=64, Tier2=4, Tier3=8}
specjbb.group.count	1	12
specjbb.heartbeat.period	10000	2000
specjbb.heartbeat.threshold	100000	90000
specjbb.mapreducer.pool.size	96	4
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 204383 IR

High-bound (settled) is 197993 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Super Micro Computer, Inc Supermicro A+ AS-1124US-TNRP Server	194164 SPECjbb2015-MultiJVM max-jOPS 78466 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Super Micro Computer, Inc	Test Sponsor: Super Micro Computer, Inc	Test location: San Jose, California	Test date: February 29, 2020
SPEC license #: 001176	Hardware Availability: Apr-2020	Software Availability: Jan-2020	Publication: Wed Apr 15 14:02:19 EDT 2020
