Lenovo Global Technology ThinkSystem SR655 162355 SPECjbb2015-Distributed max-jOPS
130747 SPECjbb2015-Distributed critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: Mar 10, 2020
SPEC license #: 9017 Hardware Availability: Jun-2020 Software Availability: Dec-2019 Publication: Mon Apr 13 12:03:37 EDT 2020
Benchmark Results Summary

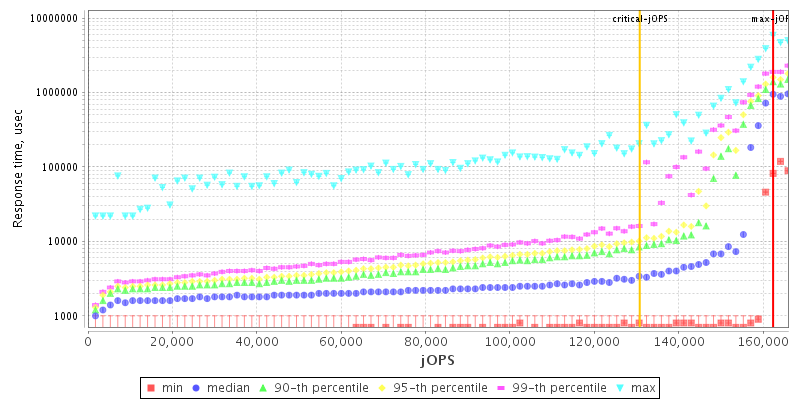

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores64
Total Threads128
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameThinkSystem SR655
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableJun-2020
ModelThinkSystem SR655
Form Factor2U
CPU NameAMD EPYC 7H12
CPU Characteristics64 core, 2.6GHz, 256 MB L3 Cache (Turbo Boost Technology up to 3.30 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System64
Cores Per Chip64
Threads Per System128
Threads Per Core2
VersionCFE111A
CPU Frequency (MHz)2600
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache512 KB I+D on chip per core
Tertiary Cache256 MB I+D on chip per chip
Other CacheNone
Disk1x 960GB SATA SSD
File Systemext4
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64GB 2Rx4 PC4-2933Y-R
# and type of Network Interface Cards (NICs)1x 10/25GbE OCP NIC
Power Supply Quantity and Rating (W)1 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP1
VendorSUSE
Vendor URLhttps://www.suse.com/
Version4.12.14-195-default
AvailableJun-2019
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOpenJDK 13.0.2
VendorOpenJDK
Vendor URLhttp://openjdk.java.net/
VersionOpenJDK 64-bit Server VM, version 13.0.2
AvailableDec-2019
Bitness64
NotesCommunity Support
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware hw_2
NameThinkSystem SR650
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableAug-2017
ModelThinkSystem SR650
Form Factor2U
CPU NameIntel Xeon Platinum 8180M
CPU Characteristics28 core, 2.50GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System56
Cores Per Chip28
Threads Per System112
Threads Per Core2
VersionIVE113U
CPU Frequency (MHz)2500
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1 MB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk1x 800GB SATA SSD
File Systemxfs
Memory Amount (GB)768
# and size of DIMM(s)24 x 32GB
Memory Details32GB 2Rx4 PC4-2666V-R
# and type of Network Interface Cards (NICs)1x 10 Gbit NICs
Power Supply Quantity and Rating (W)2 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameRedHat Linux Enterprise Server 8
VendorRed Hat
Vendor URLhttp://www.redhat.com/
Version4.18.0-80.el8.x86_64
AvailableMay-2019
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOpenJDK 13.0.2
VendorOpenJDK
Vendor URLhttp://openjdk.java.net/
VersionOpenJDK 64-bit Server VM, version 13.0.2
AvailableDec-2019
Bitness64
NotesNone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode = Maximum Performance
  • Memory Speed = 2933
  • Memory Scrub = Disable
  • NUMA nodes per sockert = NPS1
  • cTDP = 280
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(1)
OS Image Description os_1
Tuning
  • ulimit -n 655350
  • tuned-adm profile throughput-performance
  • echo 100000000 > /proc/sys/kernel/sched_latency_ns
  • echo 600000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 1500000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 10 > /proc/sys/vm/swappiness
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xmx950g -Xms950g -Xmn900g -XX:+UseParallelOldGC -XX:ParallelGCThreads=128 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+AggressiveOpts -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=200
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$gnum --localalloc
Notes None
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance
  • SNC set to Enable
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(1)
OS Image Description os_2
Tuning
  • SELINUX=disabled
  • ulimit -n 32768
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning numactl --interleave=all
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=28
Tuning numactl used to affinitize the TxInjector JVM to a single memory node:
  • TX0: numactl --cpunodebind=0 --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 158826 160590 162355 164120 165885
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 106766 133237 136892 138405 141767 130747
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1765 - / 1765 - / 1765 - / 1765 - / 1765 - / 1765
1000us 21177 / 22941 1765 / 3529 - / 1765 - / 1765 - / 1765 - / 1765
5000us 157061 / 158826 144708 / 146473 97060 / 95295 79413 / 81178 58236 / 60001 - / 1765
10000us 157061 / 158826 153532 / 155296 135884 / 137649 128825 / 130590 107649 / 105884 - / 1765
25000us 158826 / 160590 155296 / 157061 146473 / 148237 142943 / 144708 134119 / 132355 10588 / 7059
50000us 158826 / 160590 155296 / 157061 146473 / 148237 146473 / 148237 142943 / 132355 19412 / 7059
75000us 158826 / 160590 155296 / 157061 148237 / 150002 146473 / 148237 142943 / 132355 60001 / 7059
100000us 158826 / 160590 155296 / 157061 153532 / 150002 146473 / 148237 146473 / 132355 88236 / 67060
200000us 158826 / 160590 157061 / 158826 153532 / 155296 153532 / 150002 146473 / 148237 128825 / 121766
500000us 160590 / 162355 158826 / 160590 155296 / 157061 153532 / 155296 153532 / 155296 146473 / 139414
1000000us 162355 / - 162355 / - 158826 / 160590 158826 / 160590 157061 / 158826 153532 / 151767
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 12
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 64
specjbb.controller.host localhost 192.168.0.1
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.forkjoin.workers 22 {Tier1=200, Tier2=1, Tier3=23}
specjbb.group.count 1 1
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 176473 IR
High-bound (settled) is 170815 IR
