SPECjbb2015 Report for jbb2015-20200423-00550 : 315663 max-jOPS ; 248942 critical-jOPS

SUT Description

Hardware hw_1
Name	ThinkSystem SR665
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Jun-2020
Model	ThinkSystem SR665
Form Factor	2U
CPU Name	AMD EPYC 7H12
CPU Characteristics	64 core, 2.6GHz, 256 MB L3 Cache (Turbo Boost Technology up to 3.30 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	128
Cores Per Chip	64
Threads Per System	256
Threads Per Core	2
Version	D8E105J
CPU Frequency (MHz)	2600
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	512 KB I+D on chip per core
Tertiary Cache	256MB (I+D) on chip per chip
Other Cache	None
Disk	1x 960GB SATA SSD
File System	ext4
Memory Amount (GB)	2048
# and size of DIMM(s)	32 x 64 GB
Memory Details	64GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)	1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)	1 x 1800W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP1
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	4.12.14-195-default
Available	Jun-2019
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	OpenJDK 14.0.1
Vendor	OpenJDK
Vendor URL	http://openjdk.java.net/
Version	OpenJDK 64-bit Server VM, version 14.0.1
Available	Apr-2020
Bitness	64
Notes	Community Support
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance and then set to Custom Mode SOC P-states set to P0 NUMA Nodes per sockert = NPS2 L1 Stream HW Prefetcher set to Disable L2 Stream HW Prefetcher set to Disable cTDP = 280
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description	os_1
Tuning	ulimit -n 655350 tuned-adm profile throughput-performance echo 100000000 > /proc/sys/kernel/sched_latency_ns echo 600000 > /proc/sys/kernel/sched_min_granularity_ns echo 10000 > /proc/sys/kernel/sched_migration_cost_ns echo 1500000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 950000 > /proc/sys/kernel/sched_rt_runtime_us echo 10 > /proc/sys/vm/swappiness echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=2
Tuning	numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-showversion -server -Xmx118g -Xms118g -Xmn116g -XX:+UseParallelOldGC -XX:ParallelGCThreads=32 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseBiasedLocking -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -verbose:gc -XX:MaxGCPauseMillis=200 -XX:ThreadStackSize=1m -XX:ObjectAlignmentInBytes=32 -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:-UsePerfData -XX:+UseTransparentHugePages
Tuning	Used numactl to affinitize two Transaction Injector JVM (2 Groups) to one NUMA node : Group1: numactl --cpunodebind=0 --localalloc Group2: numactl --cpunodebind=0 --localalloc Group3: numactl --cpunodebind=1 --localalloc Group4: numactl --cpunodebind=1 --localalloc Group5: numactl --cpunodebind=2 --localalloc Group6: numactl --cpunodebind=2 --localalloc Group7: numactl --cpunodebind=3 --localalloc Group8: numactl --cpunodebind=3 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=2
Tuning	Used numactl to affinitize two Transaction Injector JVM (2 Groups) to one NUMA node : Group1: numactl --cpunodebind=0 --localalloc Group2: numactl --cpunodebind=0 --localalloc Group3: numactl --cpunodebind=1 --localalloc Group4: numactl --cpunodebind=1 --localalloc Group5: numactl --cpunodebind=2 --localalloc Group6: numactl --cpunodebind=2 --localalloc Group7: numactl --cpunodebind=3 --localalloc Group8: numactl --cpunodebind=3 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	311717	315663	319609	323555	327501

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	215045	242666	254503	266341	270287	248942

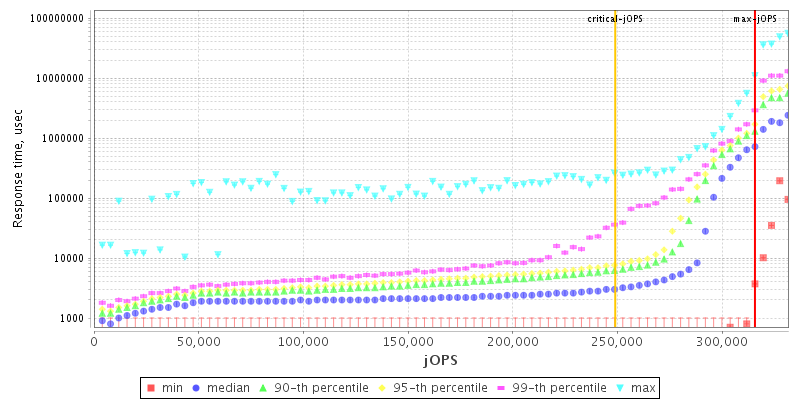

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 3946	- / 3946	- / 3946	- / 3946	- / 3946	- / 3946
1000us	118374 / 122319	11837 / 15783	- / 3946	- / 3946	- / 3946	- / 3946
5000us	291988 / 295934	276205 / 280151	217018 / 220964	189398 / 193344	126265 / 130211	- / 3946
10000us	295934 / 299880	288043 / 291988	272260 / 276205	264368 / 268314	213073 / 217018	- / 3946
25000us	299880 / 303826	288043 / 291988	280151 / 284097	272260 / 276205	240693 / 244639	59187 / 11837
50000us	299880 / 303826	291988 / 295934	284097 / 288043	280151 / 284097	252531 / 256476	59187 / 11837
75000us	299880 / 303826	291988 / 295934	284097 / 288043	280151 / 284097	264368 / 268314	59187 / 11837
100000us	303826 / 307772	291988 / 295934	288043 / 291988	284097 / 288043	268314 / 272260	142048 / 35512
200000us	307772 / 311717	295934 / 299880	291988 / 295934	288043 / 291988	280151 / 284097	244639 / 86807
500000us	315663 / -	307772 / 311717	295934 / 299880	295934 / 299880	291988 / 295934	284097 / 288043
1000000us	315663 / -	315663 / -	307772 / 311717	307772 / 311717	303826 / 307772	291988 / 295934

Number of probes

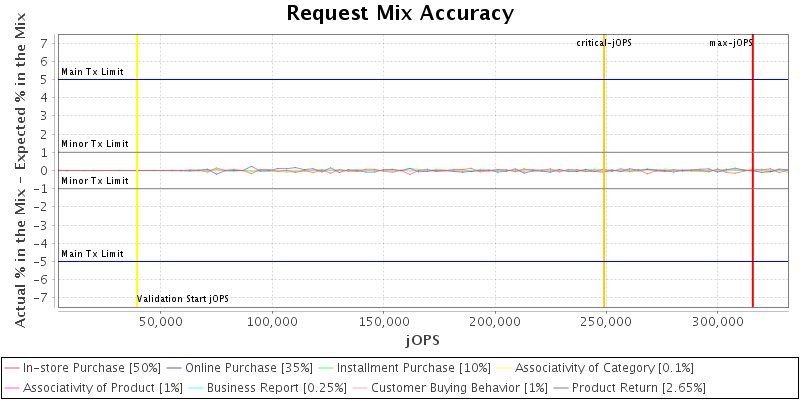

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

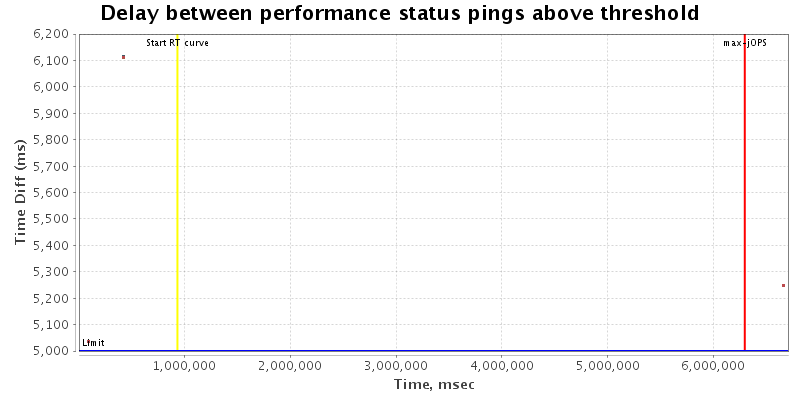

Delay between performance status pings during RT Curve (Response-Throughput Curve)

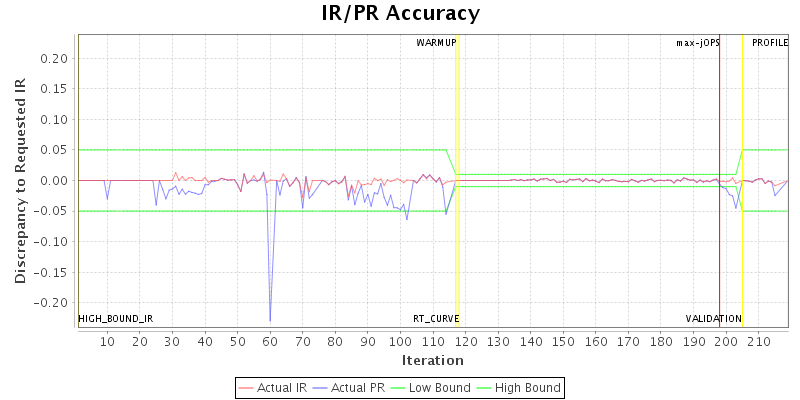

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.controller.handshake.period	5000	20000
specjbb.controller.handshake.timeout	600000	800000
specjbb.forkjoin.workers	64	{Tier1=64, Tier2=1, Tier3=12}
specjbb.group.count	1	8
specjbb.heartbeat.period	10000	2000
specjbb.heartbeat.threshold	100000	900000

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 394579 IR

High-bound (settled) is 339220 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Lenovo Global Technology ThinkSystem SR665	315663 SPECjbb2015-MultiJVM max-jOPS 248942 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Lenovo Global Technology	Test Sponsor: Lenovo Global Technology	Test location: Beijing, China	Test date: Apr 22, 2020
SPEC license #: 9017	Hardware Availability: Jun-2020	Software Availability: Apr-2020	Publication: Thu May 7 20:08:57 EDT 2020
