SPECjbb2015 Report for jbb2015-20200506-00554 : 159805 max-jOPS ; 109822 critical-jOPS

SUT Description

Hardware hw_1
Name	ThinkSystem SR655
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Jun-2020
Model	ThinkSystem SR655
Form Factor	1U
CPU Name	AMD EPYC 7H12
CPU Characteristics	64 core, 2.60GHz, 256MB L3 Cache (Turbo Boost Technology up to 3.30 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	1
Cores Per System	64
Cores Per Chip	64
Threads Per System	128
Threads Per Core	2
Version	CFE111A
CPU Frequency (MHz)	2600
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	512 KB I+D on chip per core
Tertiary Cache	256 MB I+D on chip per chip
Other Cache	None
Disk	1 x 960GB SATA SSD
File System	NTFS
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64 GB
Memory Details	64GB 2Rx4 PC4-2933Y-R
# and type of Network Interface Cards (NICs)	1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)	1 x 750W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Windows Server 2019 Datacenter
Vendor	Microsoft
Vendor URL	https://www.microsoft.com/
Version	Version 1809(OS Build 17763.1192)
Available	Apr-2020
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 14.0.1
Vendor	Oracle Corporation
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-Bit Server VM, version 14.0.1
Available	Apr-2020
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	ThinkSystem SR645
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Jun-2020
Model	ThinkSystem SR645
Form Factor	1U
CPU Name	AMD EPYC 7742
CPU Characteristics	64 core, 2.25GHz, 256MB L3 Cache (Turbo Boost Technology up to 3.40 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	128
Cores Per Chip	64
Threads Per System	256
Threads Per Core	2
Version	D8E105J
CPU Frequency (MHz)	2250
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	512 KB I+D on chip per core
Tertiary Cache	256MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 960GB SATA SSD
File System	NTFS
Memory Amount (GB)	1024
# and size of DIMM(s)	32 x 32 GB
Memory Details	32 GB 2Rx4 PC4-3200AA-R, running at 2933
# and type of Network Interface Cards (NICs)	1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)	1 x 1800W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	Windows Server 2019 Datacenter
Vendor	Microsoft
Vendor URL	https://www.microsoft.com/
Version	Version 1809(OS Build 17763.1192)
Available	Apr-2020
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 14.0.1
Vendor	Oracle Corporation
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-Bit Server VM, version 14.0.1
Available	Apr-2020
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance L1 Stream HW Prefetcher set to Disable L2 Stream HW Prefetcher set to Disable Memory Speed set to 2933 NUMA Nodes per socket = NPS4 cTDP = 280
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(4)
OS Image Description	os_1
Tuning	Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534 Power Options is set to High performance Processor scheduling is set to Programs Visual Effects Adjust for best performance Lock Pages in Memory is Enabled
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-server -Xms123g -Xmx123g -Xmn121g -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:-UseBiasedLocking -XX:+UseLargePages -XX:+UseParallelOldGC -XX:SurvivorRatio=50 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=32 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:ThreadStackSize=1m -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:+BindGCTaskThreadsToCPUs
Tuning	affinitize each Backend JVM to a single memory node. start /b /NODE 0 start /b /NODE 1 start /b /NODE 2 start /b /NODE 3
Notes	None

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance and then set to Custom Mode SOC P-states set to P0 L1 Stream HW Prefetcher set to Disable L2 Stream HW Prefetcher set to Disable NUMA Nodes per socket = NPS2 cTDP = 240
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(4)
OS Image Description	os_2
Tuning	Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534 Power Options is set to High performance Processor scheduling is set to Programs Visual Effects Adjust for best performance Lock Pages in Memory is Enabled
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	None
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelOldGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	None
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	157832	159805	161778	163751	165724

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	81875	109495	115414	121333	127252	109822

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 1973	- / 1973	- / 1973	- / 1973	- / 1973	- / 1973
1000us	53268 / 55241	5919 / 1973	- / 1973	- / 1973	- / 1973	- / 1973
5000us	149940 / 151913	120347 / 114428	78916 / 80889	67079 / 65106	45377 / 43404	- / 1973
10000us	149940 / 151913	145995 / 147967	110482 / 112455	104564 / 106537	80889 / 82862	1973 / 3946
25000us	153886 / 155859	147967 / 149940	142049 / 144022	136130 / 138103	108509 / 110482	25648 / 7892
50000us	153886 / 155859	149940 / 151913	144022 / 145995	140076 / 142049	114428 / 116401	25648 / 7892
75000us	153886 / 155859	149940 / 151913	144022 / 145995	142049 / 144022	122320 / 120347	25648 / 7892
100000us	153886 / 155859	149940 / 151913	145995 / 147967	144022 / 145995	126266 / 128238	25648 / 7892
200000us	155859 / 157832	151913 / 153886	147967 / 149940	145995 / 147967	142049 / 144022	112455 / 13810
500000us	159805 / -	155859 / 157832	149940 / 151913	149940 / 151913	149940 / 151913	145995 / 147967
1000000us	159805 / -	159805 / -	155859 / 157832	155859 / 157832	153886 / 155859	149940 / 151913

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

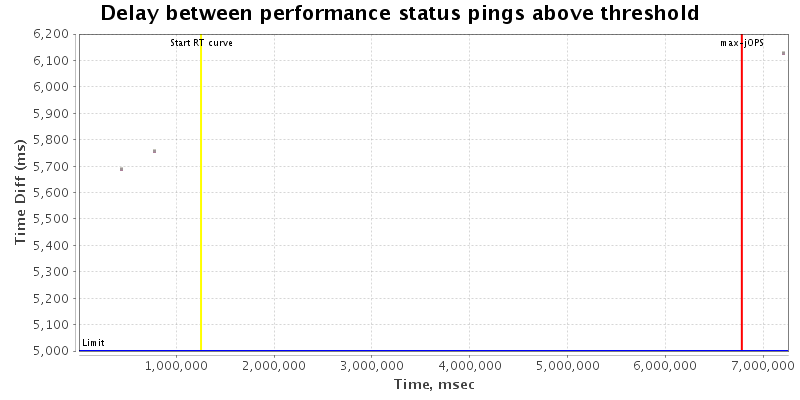

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group2.Backend.beJVM	Group3.Backend.beJVM	Group4.Backend.beJVM
specjbb.comm.connect.client.pool.size	256	196
specjbb.comm.connect.selector.runner.count	0	1
specjbb.comm.connect.timeouts.connect	60000	800000
specjbb.comm.connect.timeouts.read	60000	800000
specjbb.comm.connect.timeouts.write	60000	800000
specjbb.comm.connect.worker.pool.max	256	65	45	45	45	45
specjbb.comm.connect.worker.pool.min	1	60	45	45	45	45
specjbb.controller.host	localhost	192.168.5.4
specjbb.customerDriver.threads	64	{probe=64, saturate=64, service=64}
specjbb.forkjoin.workers	64	{Tier1=64, Tier2=1, Tier3=12}
specjbb.group.count	1	4
specjbb.heartbeat.threshold	100000	600000
specjbb.mapreducer.pool.size	64	196
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 197290 IR

High-bound (settled) is 167389 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Lenovo Global Technology ThinkSystem SR655	159805 SPECjbb2015-Distributed max-jOPS 109822 SPECjbb2015-Distributed critical-jOPS
Tested by: Lenovo Global Technology	Test Sponsor: Lenovo Global Technology	Test location: Beijing, China	Test date: May 4, 2020
SPEC license #: 9017	Hardware Availability: Jun-2020	Software Availability: Apr-2020	Publication: Fri May 29 10:57:30 EDT 2020
