SPECjbb2015 Report for jbb2015-20201020-00572 : 745690 max-jOPS ; 401277 critical-jOPS

SUT Description

Hardware hw_1
Name	Superdome Flex 280
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Nov-2020
Model	Superdome Flex 280
Form Factor	2 x 5U Rack
CPU Name	Intel Xeon Platinum 8380H CPU
CPU Characteristics	28 Core, 2.9 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.3 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	8
Cores Per System	224
Cores Per Chip	28
Threads Per System	448
Threads Per Core	2
Version	1.0.140
CPU Frequency (MHz)	2900
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1024 KB I+D on chip per core
Tertiary Cache	38.5 MB I+D on chip per chip
Other Cache	None
Disk	2 x 480 GB SSD SATA
File System	XFS
Memory Amount (GB)	6144
# and size of DIMM(s)	48 x 128 GB
Memory Details	128 GB 4Rx4 PC4-3200AA-L
# and type of Network Interface Cards (NICs)	HPE Ethernet 1Gb 4-port
Power Supply Quantity and Rating (W)	8 x 1600
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux release 8.2 (Ootpa)
Vendor	RedHat
Vendor URL	http://redhat.com/
Version	4.18.0-193.el8.x86_64
Available	April-2020
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	OpenJDK 15
Vendor	OpenJDK (openjdk.java.net)
Vendor URL	http://openjdk.java.net/
Version	OpenJDK 64-bit Server VM, version 15
Available	Sep-2020
Bitness	64
Notes	Community Support: Community URL: http://openjdk.java.net/projects/jdk/ Support URL:http://bugs.openjdk.java.net/secure/Dashboard.jspa/
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	Workload Profile=High Performance Compute(HPC) Sub-NUMA Clustering=Enabled Memory Patrol Scrubbing=Disabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description	os_1
Tuning	SELinux=disabled tuned-adm profile=accelerator-performance ulimit -n 65535 echo 16 > /proc/sys/kernel/sched_nr_migrate echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 30000000 > /proc/sys/kernel/sched_min_granularity_ns echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 10000 > /proc/sys/vm/dirty_expire_centisecs
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-showversion -server -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=28 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -Xms30g -Xmx30g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -Xnoclassgc -XX:+UseRTMLocking -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=300 -XX:+UseRTMDeopt -XX:UseAVX=0 -XX:LoopUnrollLimit=100 -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2
Tuning	Used numactl to affinitize each Backend JVM to each NUMA node numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc numactl --cpunodebind=4 --localalloc numactl --cpunodebind=5 --localalloc numactl --cpunodebind=6 --localalloc numactl --cpunodebind=7 --localalloc numactl --cpunodebind=8 --localalloc numactl --cpunodebind=9 --localalloc numactl --cpunodebind=10 --localalloc numactl --cpunodebind=11 --localalloc numactl --cpunodebind=12 --localalloc numactl --cpunodebind=13 --localalloc numactl --cpunodebind=14 --localalloc numactl --cpunodebind=15 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC
Tuning	Used numactl to affinitize each Transaction Injector JVM to each NUMA node numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc numactl --cpunodebind=4 --localalloc numactl --cpunodebind=5 --localalloc numactl --cpunodebind=6 --localalloc numactl --cpunodebind=7 --localalloc numactl --cpunodebind=8 --localalloc numactl --cpunodebind=9 --localalloc numactl --cpunodebind=10 --localalloc numactl --cpunodebind=11 --localalloc numactl --cpunodebind=12 --localalloc numactl --cpunodebind=13 --localalloc numactl --cpunodebind=14 --localalloc numactl --cpunodebind=15 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	729480	737585	745690	753796	761901

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	271528	320160	425529	506583	555215	401277

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	8105 / 16211	- / 8105	- / 8105	- / 8105	- / 8105	- / 8105
1000us	56737 / 64843	8105 / 16211	- / 8105	- / 8105	- / 8105	- / 8105
5000us	672742 / 680848	607900 / 616005	437688 / 445793	283687 / 291792	121580 / 129685	24316 / 16211
10000us	680848 / 688953	632216 / 640321	518741 / 526846	437688 / 445793	267476 / 275581	24316 / 16211
25000us	688953 / 697058	656532 / 664637	583584 / 591689	543057 / 551162	316108 / 324213	24316 / 16211
50000us	697058 / 705164	664637 / 672742	607900 / 616005	567373 / 575478	421477 / 429582	24316 / 16211
75000us	697058 / 705164	672742 / 680848	624110 / 632216	583584 / 591689	502530 / 510636	24316 / 16211
100000us	705164 / 713269	680848 / 688953	632216 / 640321	616005 / 624110	551162 / 559268	145896 / 32421
200000us	713269 / 721374	688953 / 697058	656532 / 664637	648426 / 656532	632216 / 640321	470109 / 453898
500000us	737585 / 745690	721374 / 729480	697058 / 705164	688953 / 697058	672742 / 680848	632216 / 640321
1000000us	745690 / -	745690 / -	729480 / 737585	729480 / 737585	721374 / 729480	672742 / 648426

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

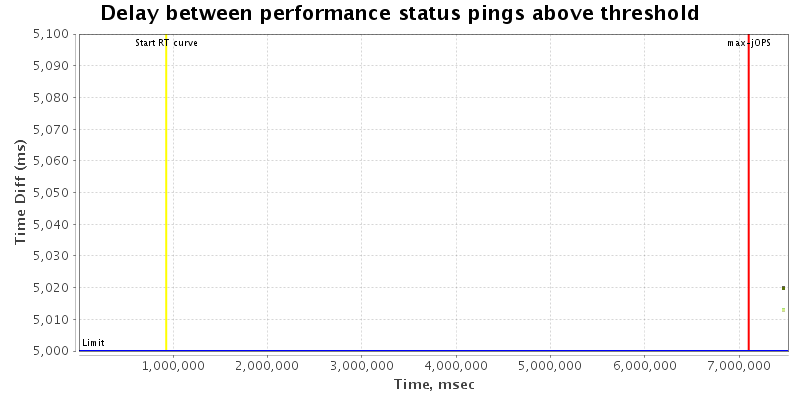

Delay between performance status pings during RT Curve (Response-Throughput Curve)

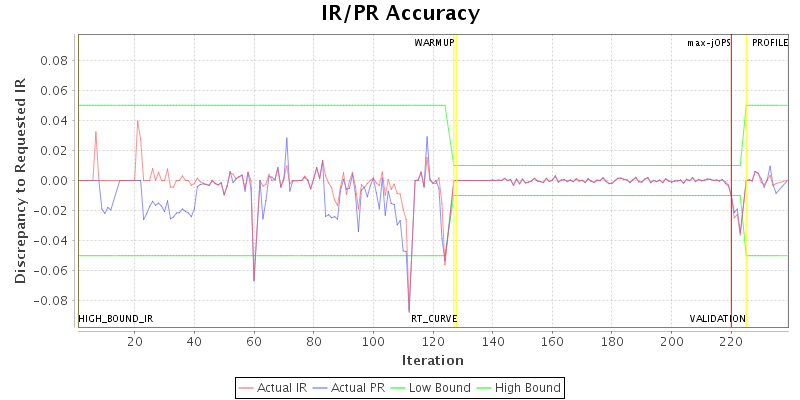

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.selector.runner.count	0	12
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	64
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.forkjoin.workers	448	{Tier1=198, Tier2=53, Tier3=23}
specjbb.group.count	1	16
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 810533 IR

High-bound (settled) is 785094 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Hewlett Packard Enterprise Superdome Flex 280	745690 SPECjbb2015-MultiJVM max-jOPS 401277 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise	Test Sponsor: Hewlett Packard Enterprise	Test location: Fort Collins, Colorado	Test date: October 13, 2020
SPEC license #: 3	Hardware Availability: Nov-2020	Software Availability: Sep-2020	Publication: Fri Nov 6 14:33:41 EST 2020
