Inspur Corporation NF5468A5 319609 SPECjbb2015-MultiJVM max-jOPS
133173 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Jinan, China Test date: Jan 24, 2021
SPEC license #: 3358 Hardware Availability: Jan-2021 Software Availability: Jan-2021 Publication: Fri Feb 19 11:15:53 EST 2021
Benchmark Results Summary

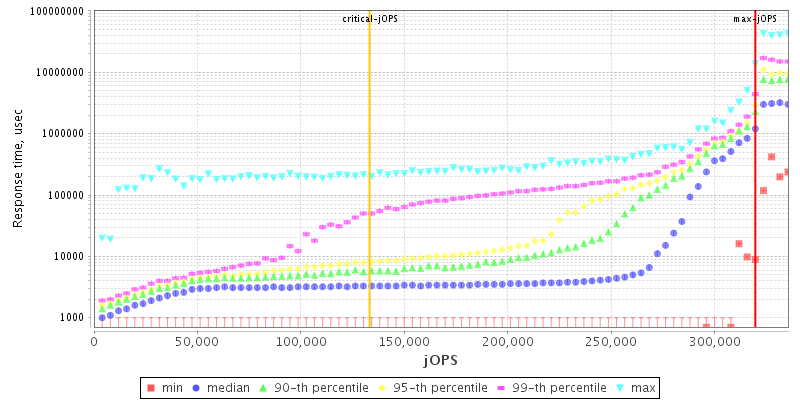

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores128
Total Threads256
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameInspur NF5468A5
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableJan-2021
ModelInspur NF5468A5
Form Factor4U
CPU NameAMD EPYC 7742
CPU Characteristics64 core, 2.25GHz, 256MB L3 Cache (Turbo Boost Technology up to 3.40 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
Version1.00.01
CPU Frequency (MHz)2250
Primary Cache32 KB(I)+32 KB(D)on chip per core
Secondary Cache512KB (I+D) per core
Tertiary Cache256MB (I+D) on chip per chip
Other CacheNone
Disk1x 1TB NVMe SSD
File Systemxfs
Memory Amount (GB)1024
# and size of DIMM(s)32 x 32GB
Memory Details32 x 32GB 2Rx4 PC4-3200AA-R; each slot populated
# and type of Network Interface Cards (NICs)1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 8.2 (Ootpa)
VendorRed Hat
Vendor URLhttp://redhat.com/
Version4.18.0-193
AvailableApr-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 15.0.2
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 15.0.2
AvailableJan-2021
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • IOMMU enabled
  • Cstates enabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • ulimit -n 655350
  • tuned-adm profile throughput-performance
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xmx29g -Xms29g -Xmn27g -XX:+UseParallelGC -XX:ParallelGCThreads=32 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+AlwaysPreTouch -XX:InlineSmallCode=10k -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:MaxTenuringThreshold=15 -XX:TargetSurvivorRatio=95 -XX:AllocatePrefetchInstr=2
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 315663 319609 323555 327501 331446
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 92726 108509 136130 159804 191371 133173
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 3946 - / 3946 - / 3946 - / 3946 - / 3946 - / 3946
1000us 27621 / 31566 3946 / 7892 - / 3946 - / 3946 - / 3946 - / 3946
5000us 284097 / 288043 260422 / 264368 106536 / 102591 71024 / 74970 43404 / 47349 - / 3946
10000us 288043 / 291988 268314 / 272260 209127 / 213073 161777 / 165723 90753 / 94699 - / 3946
25000us 291988 / 295934 280151 / 284097 248585 / 252531 220964 / 224910 106536 / 110482 7892 / 11837
50000us 291988 / 295934 284097 / 288043 256476 / 260422 224910 / 228856 134157 / 138103 7892 / 11837
75000us 295934 / 299880 284097 / 288043 260422 / 264368 236747 / 240693 157832 / 161777 7892 / 11837
100000us 295934 / 299880 288043 / 291988 268314 / 272260 248585 / 252531 189398 / 193344 7892 / 11837
200000us 303826 / 307772 291988 / 295934 280151 / 284097 276205 / 280151 260422 / 264368 110482 / 31566
500000us 315663 / 319609 303826 / 307772 295934 / 299880 291988 / 295934 288043 / 291988 268314 / 272260
1000000us 319609 / - 315663 / 319609 307772 / 311717 307772 / 311717 303826 / 307772 288043 / 291988
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 224
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.worker.pool.max 256 112
specjbb.comm.connect.worker.pool.min 1 64
specjbb.forkjoin.workers 256 {Tier1=200, Tier2=100, Tier3=64}
specjbb.group.count 1 8
specjbb.mapreducer.pool.size 256 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 394579 IR
High-bound (settled) is 341275 IR
