Hewlett Packard Enterprise Superdome Flex 280 411801 SPECjbb2015-Distributed max-jOPS
206667 SPECjbb2015-Distributed critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Fort Collins, Colorado Test date: January 28, 2021
SPEC license #: 3 Hardware Availability: Dec-2020 Software Availability: Jan-2021 Publication: Thu Feb 25 14:36:03 EST 2021
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
System SourceSingle Supplier
System DesignationRack Mount Chassis
Total Systems1
All SUT Systems IdenticalYes
Total Nodes1
All Nodes IdenticalYes
Nodes Per System1
Total Chips4
Total Cores112
Total Threads224
Total Memory Amount (GB)3072
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSuperdome Flex 280
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableDec-2020
ModelSuperdome Flex 280
Form Factor5U Rack
CPU NameIntel Xeon Platinum 8380H CPU
CPU Characteristics28 Core, 2.9 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.3 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
Version1.0.176
CPU Frequency (MHz)2900
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1024 KB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk2 x 480 GB SSD SATA
File SystemXFS
Memory Amount (GB)3072
# and size of DIMM(s)24 x 128 GB
Memory Details128 GB 4Rx4 PC4-3200AA-L
# and type of Network Interface Cards (NICs)HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)4 x 1600
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 8.2 (Ootpa)
VendorRedHat
Vendor URLhttp://redhat.com/
Version4.18.0-193.el8.x86_64
AvailableApril-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOpenJDK 15.0.2
VendorOpenJDK (openjdk.java.net)
Vendor URLhttp://openjdk.java.net/
VersionOpenJDK 64-bit Server VM, version 15.0.2
AvailableJan-2021
Bitness64
Notes

Community Support:

Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware hw_2
NameSuperdome Flex 280
VendorNone
Vendor URLhttp://hpe.com/
AvailableDec-2020
ModelSuperdome Flex 280
Form Factor5U Rack
CPU NameIntel Xeon Platinum 8380H CPU
CPU Characteristics28 Core, 2.9 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.3 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
Version1.0.176
CPU Frequency (MHz)2900
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1024 KB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk2 x 1 TB 7200 RPM HDD SATA
File SystemXFS
Memory Amount (GB)1536
# and size of DIMM(s)24 x 64 GB
Memory Details64 GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)4 x 1600
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameRed Hat Enterprise Linux release 8.2 (Ootpa)
VendorRedHat
Vendor URLhttp://redhat.com/
Version4.18.0-193.el8.x86_64
AvailableApril-2020
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOpenJDK 15.0.2
VendorOpenJDK (openjdk.java.net)
Vendor URLhttp://openjdk.java.net/
VersionOpenJDK 64-bit Server VM, version 15.0.2
AvailableJan-2021
Bitness64
Notes

Community Support:

Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Workload Profile=High Performance Compute(HPC)
  • Sub-NUMA Clustering=Enabled
  • Memory Patrol Scrubbing=Disabled
  • Snoop Throttle Configuration=Disabled
  • Enhanced Processor Performance=Enabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(8)
OS Image Description os_1
Tuning
  • SELinux=disabled
  • tuned-adm profile=throughput-performance
  • ulimit -n 655350
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 30000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 16 > /proc/sys/kernel/sched_nr_migrate
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-server -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=28 -XX:LargePageSizeInBytes=2m -XX:+AlwaysPreTouch -XX:+UseLargePages -Xms30g -Xmx30g -Xmn27g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -Xnoclassgc -XX:+UseRTMLocking -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=300 -XX:+UseRTMDeopt -XX:UseAVX=0 -XX:LoopUnrollLimit=100 -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2

Tuning
    Used numactl to affinitize each Backend JVM to each NUMA node
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
  • numactl --cpunodebind=4 --localalloc
  • numactl --cpunodebind=5 --localalloc
  • numactl --cpunodebind=6 --localalloc
  • numactl --cpunodebind=7 --localalloc
Notes None
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment non-virtual
Tuning
  • Workload Profile=High Performance Compute(HPC)
  • Sub-NUMA Clustering=Enabled
  • Memory Patrol Scrubbing=Disabled
  • Enhanced Processor Performance=Enabled
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(8)
OS Image Description os_2
Tuning
  • SELinux=disabled
  • tuned-adm profile=throughput-performance
  • ulimit -n 655350
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 30000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 16 > /proc/sys/kernel/sched_nr_migrate
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line

-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC

Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line

-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC

Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 407068 411801 416535 421268 426001
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 138055 163301 209450 261518 305301 206667
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 4733 - / 4733 - / 4733 - / 4733 - / 4733 - / 4733
1000us 37867 / 33133 - / 4733 - / 4733 - / 4733 - / 4733 - / 4733
5000us 388135 / 392868 317134 / 321868 151467 / 142000 108867 / 113600 75734 / 80467 - / 4733
10000us 392868 / 397601 359735 / 364468 265068 / 269801 231934 / 227201 142000 / 118334 - / 4733
25000us 402335 / 407068 378668 / 383401 326601 / 331334 307668 / 302934 170401 / 156201 14200 / 9467
50000us 402335 / 407068 383401 / 388135 340801 / 345535 321868 / 317134 217734 / 184601 14200 / 9467
75000us 402335 / 407068 388135 / 392868 355001 / 359735 326601 / 331334 265068 / 250868 33133 / 18933
100000us 402335 / 407068 392868 / 397601 364468 / 359735 340801 / 345535 307668 / 302934 75734 / 42600
200000us 407068 / 411801 392868 / 397601 378668 / 383401 364468 / 369201 355001 / 317134 260334 / 118334
500000us 411801 / - 402335 / 407068 392868 / 397601 392868 / 397601 378668 / 359735 340801 / 118334
1000000us 411801 / - 411801 / - 402335 / 407068 402335 / 407068 402335 / 407068 364468 / 118334

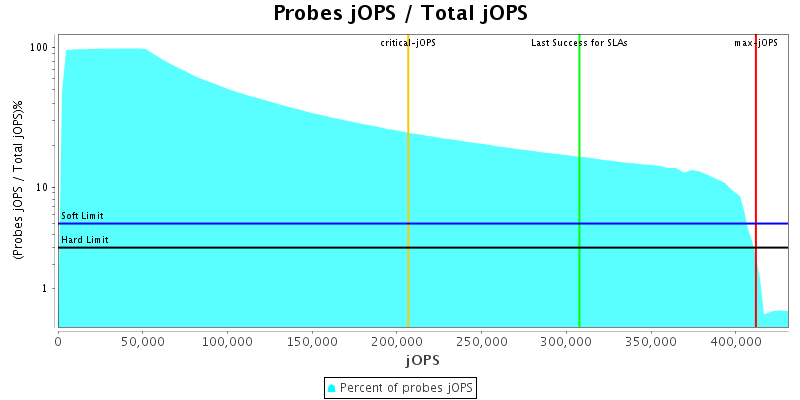

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 192
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 80
specjbb.controller.host localhost 192.168.0.1
specjbb.customerDriver.threads 64 {probe=64, saturate=64}
specjbb.forkjoin.workers 224 {Tier1=210, Tier2=70, Tier3=28}
specjbb.group.count 1 8
specjbb.mapreducer.pool.size 224 28
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 473335 IR
High-bound (settled) is 438744 IR
