SPECjbb2015 Report for jbb2015-20210224-00614 : 314676 max-jOPS ; 265519 critical-jOPS

SUT Description

Hardware hw_1
Name	ThinkSystem SR665
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Feb-2021
Model	ThinkSystem SR665
Form Factor	2U
CPU Name	AMD EPYC 7763
CPU Characteristics	64 core, 2.45GHz, 256MB L3 Cache (Max Boost Clock up to 3.50 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	128
Cores Per Chip	64
Threads Per System	256
Threads Per Core	2
Version	D8E115B
CPU Frequency (MHz)	2450
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	512 KB I+D on chip per core
Tertiary Cache	256 MB I+D on chip per chip
Other Cache	None
Disk	1 x 960GB SATA SSD
File System	NTFS
Memory Amount (GB)	2048
# and size of DIMM(s)	32 x 64 GB
Memory Details	64GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)	1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)	1 x 1800W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Windows Server 2019 Datacenter
Vendor	Microsoft
Vendor URL	https://www.microsoft.com/
Version	Version 1809(OS Build 17763.1790)
Available	Feb-2021
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 15.0.2
Vendor	Oracle Corporation
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-Bit Server VM, version 15.0.2
Available	Jan-2021
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	ThinkSystem SR860 V2
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Nov-2020
Model	ThinkSystem SR860 V2
Form Factor	4U
CPU Name	Intel Xeon Platinum 8380H
CPU Characteristics	28 Core, 2.9 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.3 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	4
Cores Per System	112
Cores Per Chip	28
Threads Per System	224
Threads Per Core	2
Version	M5E107I
CPU Frequency (MHz)	2900
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1 MB I+D on chip per core
Tertiary Cache	38.5 MB I+D on chip per chip
Other Cache	None
Disk	1 x 960GB SATA SSD
File System	NTFS
Memory Amount (GB)	768
# and size of DIMM(s)	48 x 16 GB
Memory Details	16 GB 2Rx8 PC4-3200AA-R
# and type of Network Interface Cards (NICs)	1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)	2 x 1800W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	Windows Server 2019 Datacenter
Vendor	Microsoft
Vendor URL	https://www.microsoft.com/
Version	Version 1809(OS Build 17763.1790)
Available	Feb-2021
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 15.0.2
Vendor	Oracle Corporation
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-Bit Server VM, version 15.0.2
Available	Jan-2021
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance and then set to Custom Mode SOC P-states set to P0 NUMA Nodes per sockert = NPS2 L1 Stream HW Prefetcher set to Disable L2 Stream HW Prefetcher set to Disable 4-Link xGMI Max Speed set to 16Gbps
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(4)
OS Image Description	os_1
Tuning	Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534 Power Options is set to High performance Processor scheduling is set to Programs Visual Effects Adjust for best performance Lock Pages in Memory is Enabled
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-server -Xms480g -Xmx480g -Xmn450g -XX:AllocatePrefetchInstr=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseParallelGC -XX:SurvivorRatio=50 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=64 -Xnoclassgc
Tuning	Affinitized each Backend JVM to a single memory node. start /b /NODE 0 start /b /NODE 1 start /b /NODE 2 start /b /NODE 3
Notes	None

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance Patrol Scrub set to Disabled
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(4)
OS Image Description	os_2
Tuning	Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534 Power Options is set to High performance Processor scheduling is set to Programs Visual Effects Adjust for best performance Lock Pages in Memory is Enabled
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	None
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	None
Notes	None

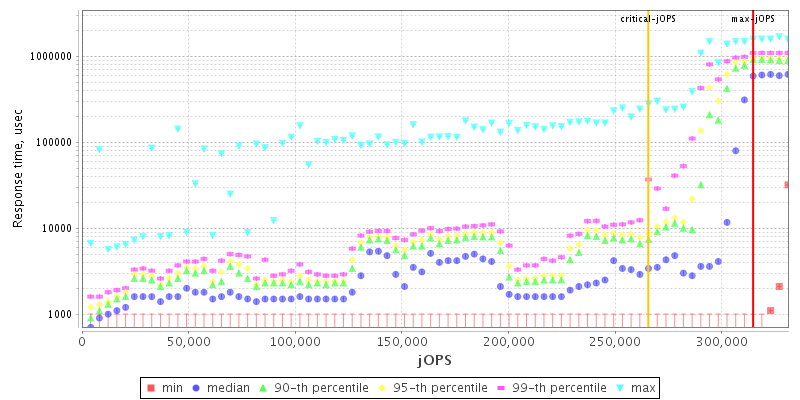

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	310589	314676	318763	322849	326936

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	217762	268359	279939	284025	284025	265519

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 4087	- / 4087	- / 4087	- / 4087	- / 4087	- / 4087
1000us	241115 / 130774	12260 / 16347	4087 / 8173	- / 4087	- / 4087	- / 4087
5000us	310589 / 314676	298329 / 134861	228855 / 130774	224768 / 130774	224768 / 126688	- / 4087
10000us	310589 / 314676	298329 / 302416	286069 / 273809	265635 / 269722	232942 / 179815	77647 / 8173
25000us	310589 / 314676	302416 / 306502	286069 / 290156	286069 / 290156	273809 / 265635	89907 / 8173
50000us	310589 / 314676	302416 / 306502	290156 / 294242	286069 / 290156	277896 / 281982	89907 / 8173
75000us	314676 / -	302416 / 306502	290156 / 294242	286069 / 290156	281982 / 286069	106254 / 8173
100000us	314676 / -	306502 / 310589	290156 / 294242	286069 / 290156	281982 / 286069	151208 / 44954
200000us	314676 / -	306502 / 310589	298329 / 294242	290156 / 294242	286069 / 290156	257462 / 249289
500000us	314676 / -	310589 / 314676	302416 / 306502	298329 / 302416	290156 / 294242	286069 / 290156
1000000us	314676 / -	314676 / -	314676 / -	314676 / -	310589 / 314676	298329 / 290156

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	196
specjbb.comm.connect.selector.runner.count	0	8
specjbb.comm.connect.timeouts.connect	60000	800000
specjbb.comm.connect.timeouts.read	60000	800000
specjbb.comm.connect.timeouts.write	60000	800000
specjbb.comm.connect.worker.pool.max	256	45
specjbb.comm.connect.worker.pool.min	1	30
specjbb.controller.host	localhost	192.168.5.4
specjbb.forkjoin.workers	56	{Tier1=192, Tier2=70, Tier3=28}
specjbb.group.count	1	4
specjbb.heartbeat.threshold	100000	600000
specjbb.mapreducer.pool.size	56	12
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 408670 IR

High-bound (settled) is 340625 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Lenovo Global Technology ThinkSystem SR665	314676 SPECjbb2015-Distributed max-jOPS 265519 SPECjbb2015-Distributed critical-jOPS
Tested by: Lenovo Global Technology	Test Sponsor: Lenovo Global Technology	Test location: Beijing, China	Test date: Feb 25, 2021
SPEC license #: 9017	Hardware Availability: Mar-2021	Software Availability: Feb-2021	Publication: Mon Mar 15 12:05:07 EDT 2021
