SPECjbb2015 Report for jbb2015-20210611-00680 : 252690 max-jOPS ; 198603 critical-jOPS

SUT Description

Hardware hw_1
Name	Supermicro SYS-620P-TRT Server
Vendor	Supermicro
Vendor URL	http://www.supermicro.com/
Available	April-2021
Model	X12DPI-NT6
Form Factor	2U
CPU Name	Intel(R) Xeon(R) Platinum 8380 CPU @ 2.30GHz
CPU Characteristics	40core, 2.3GHz, 60MB L3 Cache (Turbo Boost Technology up to 3.4GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	80
Cores Per Chip	40
Threads Per System	160
Threads Per Core	2
Version	1.1
CPU Frequency (MHz)	2300
Primary Cache	32KB(I)+48KB(D) per core
Secondary Cache	1.25MB (I+D) per core
Tertiary Cache	60MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 240GB SATA SSD
File System	XFS
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64GB
Memory Details	64GB 2Rx4 DDR4 3200MHz RDIMM
# and type of Network Interface Cards (NICs)	2 x 10 Gbit NICs
Power Supply Quantity and Rating (W)	2 x 1200w
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Red Hat Enterprise Linux release 8.2 (Ootpa)
Vendor	Red Hat
Vendor URL	http://redhat.com/
Version	4.18.0-193
Available	Apr-2020
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 16.0.1
Vendor	Oracle
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-bit Server VM, version 16.0.1
Available	Apr-2021
Bitness	64
Notes	note
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: MLC Streamer Prefetching = Enabled MLC Spatial Prefetching = Enabled DCU Streamer Prefetching = Disabled DCU IP Prefetching = Enabled HT = Enabled Turbo = Enabled SNC = Disabled Memory Patrol Scrub = Disabled Energy Performance Bias CFG mode = Maximum Performance
Notes	notes

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description	os_1
Tuning	SELinux=disabled cpupower -c all frequency-set -g performance tuned-adm profile throughput-performance echo 250 > /sys/kernel/mm/hugepages/hugepages-1048576kB/nr_hugepages echo always > /sys/kernel/mm/transparent_hugepage/enabled ulimit -n 131072 sysctl net.core.wmem_max=12582912 sysctl net.core.rmem_max=12582912 sysctl net.ipv4.tcp_rmem='10240 87380 12582912' sysctl net.ipv4.tcp_wmem='10240 87380 12582912' sysctl net.core.netdev_max_backlog=655560 sysctl net.core.somaxconn=32768 sysctl net.ipv4.tcp_no_metrics_save=1 systemctl stop systemd-update-utmp-runlevel.service echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us echo 0 > /proc/sys/kernel/sched_child_runs_first echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 28000000 > /proc/sys/kernel/sched_min_granularity_ns echo 9 > /proc/sys/kernel/sched_nr_migrate echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms echo 1000000 > /proc/sys/kernel/sched_rt_period_us echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 0 > /proc/sys/kernel/sched_schedstats echo 1 > /proc/sys/kernel/sched_tunable_scaling echo 50000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 3000 > /proc/sys/vm/dirty_expire_centisecs echo 500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing ulimit -v 800000000 ulimit -m 800000000 ulimit -l 800000000
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:UseAVX=0 -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-showversion -XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -verbose:gc -XX:UseAVX=0 -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -XX:MaxGCPauseMillis=500 -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -server -XX:TargetSurvivorRatio=95 -XX:LargePageSizeInBytes=1G -XX:AllocatePrefetchLines=3 -XX:AllocateInstancePrefetchLines=2 -XX:AllocatePrefetchStepSize=128 -XX:AllocatePrefetchDistance=384 -Xms180g -Xmx180g -Xmn170g -XX:ParallelGCThreads=40 -XX:-PrintGCDetails
Tuning	numactl used to affinitize each Backend JVM to single memory node numactl --cpunodebind=0 --membind=0 numactl --cpunodebind=1 --membind=1 numactl --cpunodebind=0 --membind=0 numactl --cpunodebind=1 --membind=1
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:UseAVX=0 -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	numactl used to affinitize each Backend JVM to single memory node numactl --cpunodebind=0 --membind=0 numactl --cpunodebind=1 --membind=1 numactl --cpunodebind=0 --membind=0 numactl --cpunodebind=1 --membind=1
Notes	None

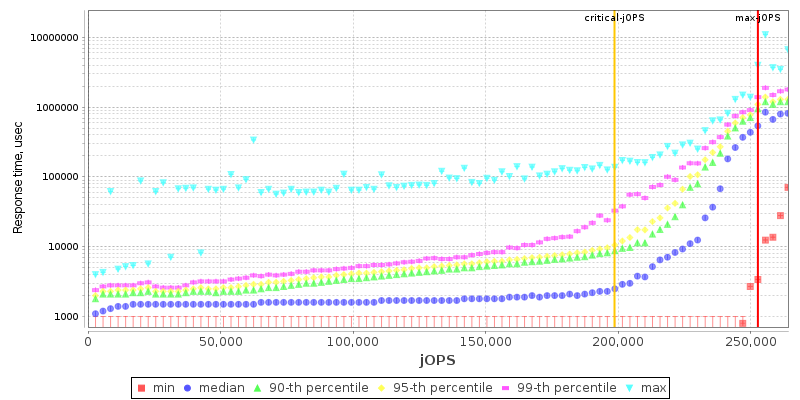

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	249850	252690	255529	258368	261207

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	163254	194485	206316	214360	220038	198603

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	- / 2839	- / 2839	- / 2839	- / 2839	- / 2839	- / 2839
1000us	193066 / 195905	- / 2839	- / 2839	- / 2839	- / 2839	- / 2839
5000us	232815 / 235654	210102 / 212941	144800 / 147639	127764 / 130604	99372 / 102212	11357 / 8518
10000us	238494 / 241333	224298 / 227137	204423 / 207262	195905 / 198745	161835 / 164674	42588 / 8518
25000us	238494 / 241333	229976 / 232815	218619 / 221458	212941 / 215780	195905 / 193066	42588 / 8518
50000us	241333 / 244172	235654 / 238494	224298 / 227137	221458 / 224298	210102 / 204423	42588 / 8518
75000us	241333 / 244172	238494 / 241333	227137 / 229976	224298 / 227137	212941 / 215780	119247 / 19874
100000us	244172 / 247011	238494 / 241333	229976 / 232815	224298 / 227137	221458 / 218619	164674 / 53945
200000us	247011 / 249850	241333 / 244172	235654 / 238494	232815 / 235654	229976 / 232815	212941 / 62463
500000us	252690 / -	249850 / 252690	241333 / 244172	241333 / 244172	238494 / 241333	232815 / 235654
1000000us	252690 / -	252690 / -	252690 / -	249850 / 252690	249850 / 252690	241333 / 244172

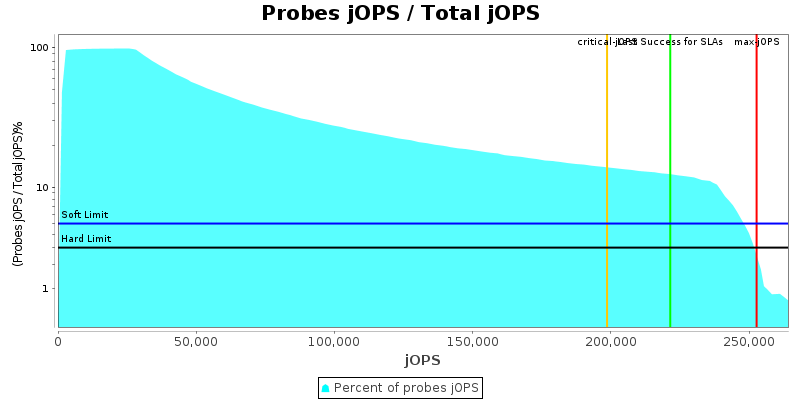

Number of probes

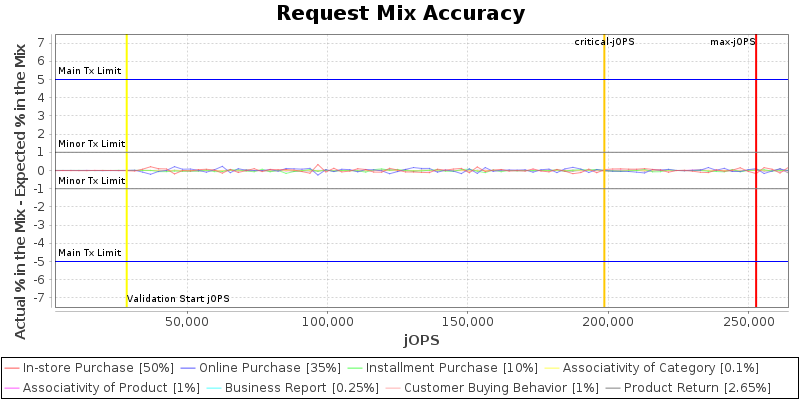

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

Delay between performance status pings during RT Curve (Response-Throughput Curve)

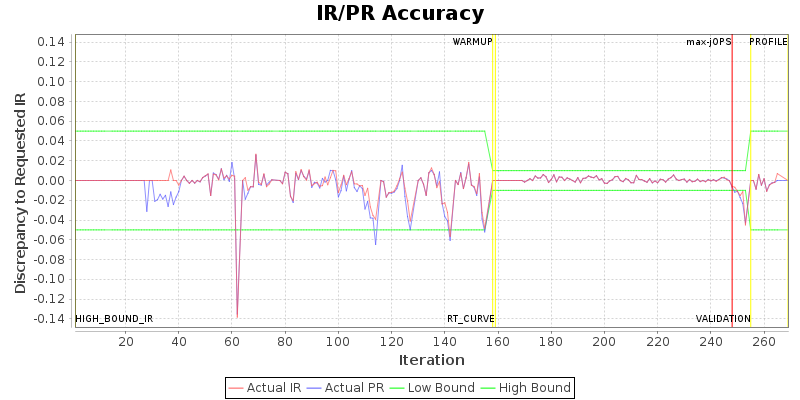

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller
specjbb.comm.connect.client.pool.size	256	232
specjbb.comm.connect.selector.runner.count	0	1
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	81
specjbb.comm.connect.worker.pool.min	1	24
specjbb.controller.rtcurve.start	0.0	0.0
specjbb.controller.type	HBIR_RT	HBIR_RT
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	160	{Tier1=248, Tier2=8, Tier3=50}
specjbb.group.count	1	4
specjbb.mapreducer.pool.size	160	223
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 283921 IR

High-bound (settled) is 268867 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Supermicro SYS-620P-TRT Server	252690 SPECjbb2015-MultiJVM max-jOPS 198603 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Supermicro	Test Sponsor: Supermicro	Test location: San Jose, California	Test date: June 11, 2021
SPEC license #: 001176	Hardware Availability: Apr-2021	Software Availability: Apr-2021	Publication: Thu Jul 8 20:30:53 EDT 2021
