Inspur Corporation NF5466M6 247090 SPECjbb2015-Composite max-jOPS
217954 SPECjbb2015-Composite critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Jinan, China Test date: Jun 22, 2021
SPEC license #: 3358 Hardware Availability: Apr-2021 Software Availability: Apr-2021 Publication: Thu Jul 15 13:09:44 EDT 2021
Benchmark Results Summary

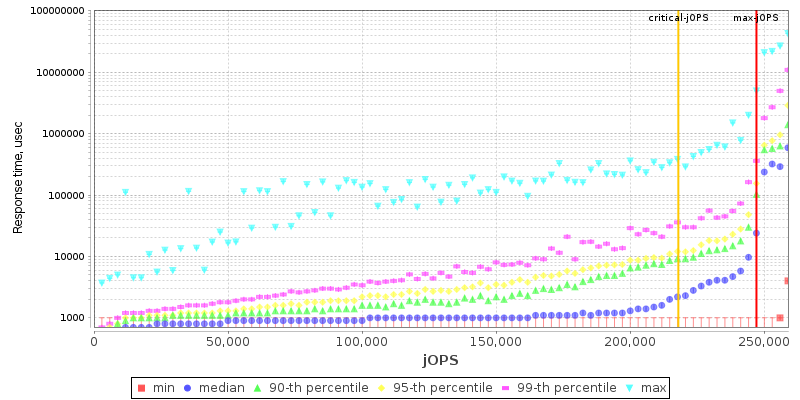

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores80
Total Threads160
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameInspur NF5466M6
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableApr-2021
ModelInspur NF5466M6
Form Factor4U
CPU NameIntel Xeon Platinum 8380
CPU Characteristics40 Core, 2.3 GHz, 60 MB L3 Cache (Turbo Boost Technology up to 3.4 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System80
Cores Per Chip40
Threads Per System160
Threads Per Core2
Version5.00.01 released May-2021
CPU Frequency (MHz)2300
Primary Cache32 KB(I)+48 KB(D)on chip per core
Secondary Cache1.25MB (I+D) per core
Tertiary Cache60MB (I+D) on chip per chip
Other CacheNone
Disk1x 4TB NVMe SSD
File Systemxfs
Memory Amount (GB)1024
# and size of DIMM(s)32 x 32GB
Memory Details32 x 32GB 2Rx4 PC4-3200AA-R; each slot populated
# and type of Network Interface Cards (NICs)1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 1300W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP2
VendorSUSE
Vendor URLhttps://www.suse.com/
Version5.3.18-22-default
AvailableJul-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 16.0.1
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 16.0.1
AvailableApr-2021
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance set to Performance
  • SNC Enabled
  • Memory Patrol Scrub Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(2)
OS Image Description os_1
Tuning
  • ulimit -n 655360
  • tuned-adm profile throughput-performance
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms650g -Xmx650g -Xmn600g -XX:+UseLargePages -XX:+UseParallelGC -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:+UseTransparentHugePages -XX:ParallelGCThreads=160 -XX:+UseHugeTLBFS -XX:-UseNUMAInterleaving -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=1 -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:+UseRTMLocking -XX:InlineSmallCode=13k -XX:UseAVX=0
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 244149 247090 250032 252973 255915
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 172816 207085 233363 242678 242678 217954
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 129428 / 123545 5883 / 8825 2942 / 5883 - / 2942 - / 2942 - / 2942
1000us 226499 / 229441 161785 / 164727 26474 / 29415 17649 / 20591 8825 / 11766 - / 2942
5000us 244149 / 247090 238266 / 241207 194142 / 197084 170610 / 173551 132370 / 117662 17649 / 11766
10000us 247090 / - 244149 / 247090 223558 / 226499 211792 / 214733 179435 / 170610 41182 / 11766
25000us 247090 / - 247090 / - 241207 / 244149 238266 / 241207 211792 / 200025 52948 / 11766
50000us 247090 / - 247090 / - 244149 / 247090 244149 / 247090 235324 / 229441 88246 / 11766
75000us 247090 / - 247090 / - 244149 / 247090 244149 / 247090 241207 / 244149 120604 / 11766
100000us 247090 / - 247090 / - 244149 / 247090 244149 / 247090 241207 / 244149 161785 / 11766
200000us 247090 / - 247090 / - 247090 / - 247090 / - 244149 / 247090 182376 / 170610
500000us 247090 / - 247090 / - 247090 / - 247090 / - 247090 / - 226499 / 229441
1000000us 247090 / - 247090 / - 247090 / - 247090 / - 247090 / - 241207 / 238266

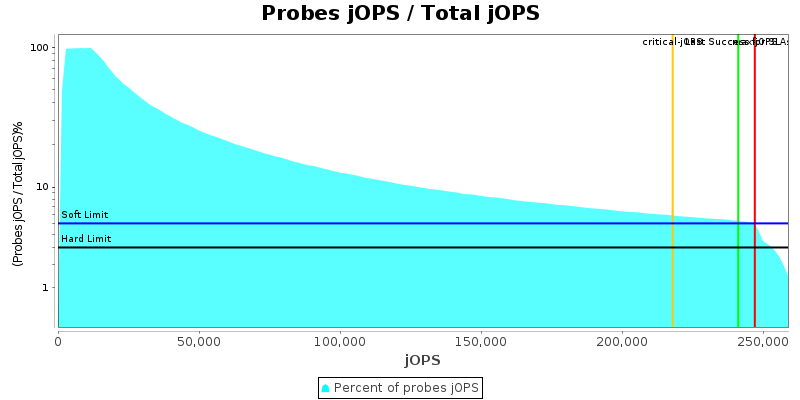

Probes jOPS / Total jOPS

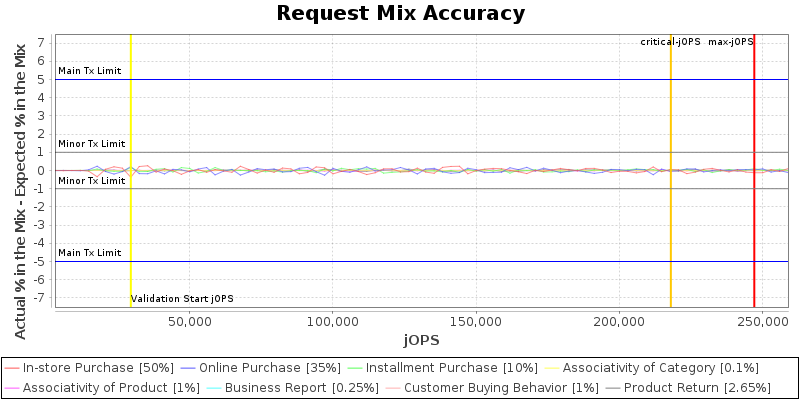

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

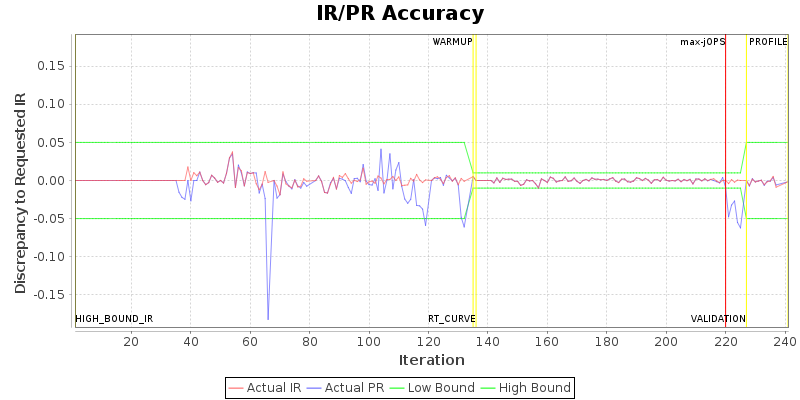

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 160 {Tier1=124, Tier2=1, Tier3=20}
specjbb.group.count 1 2
specjbb.mapreducer.pool.size 160 8
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 294155 IR
High-bound (settled) is 264241 IR
