Quanta Cloud Technology, QuantaGrid D43K-1U 397906 SPECjbb2015-MultiJVM max-jOPS
153139 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Quanta Computer Inc. Test Sponsor: Quanta Computer Inc. Test location: Taoyuan, TW, R.O.C Test date: Jul 7, 2021
SPEC license #: 9050 Hardware Availability: Mar-2021 Software Availability: Apr-2021 Publication: Fri Aug 13 11:52:56 EDT 2021
Benchmark Results Summary

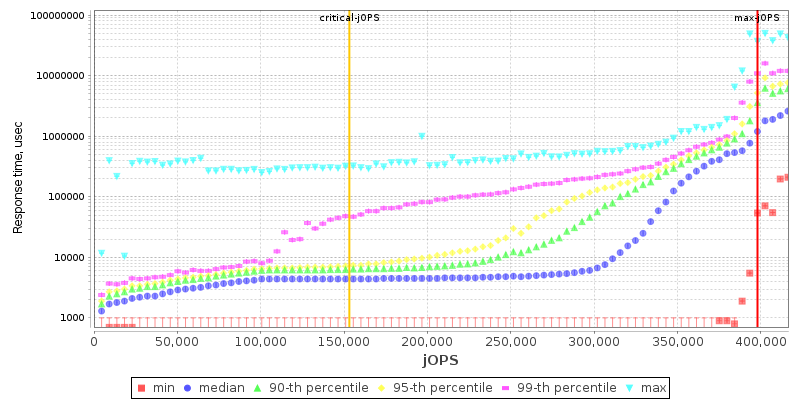

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorQuanta Cloud Technology
Vendor URLhttp://qct.io
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores128
Total Threads256
Total Memory Amount (GB)2048
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameQuantaGrid D43K-1U
VendorQuanta Cloud Technology
Vendor URLhttp://qct.io
AvailableMar-2021
ModelQuantaGrid D43K-1U
Form Factor1U
CPU NameAMD EPYC 7763
CPU Characteristics64-Core, 2.45GHz, 256MB L3 Cache (Max Boost Clock up to 3.5 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
Version3C05 released Jun-2021
CPU Frequency (MHz)2450
Primary Cache32 KB I+32 KB D per core
Secondary Cache512 KB I+D per core
Tertiary Cache256 MB I+D per chip
Other CacheNone
Disk1 x 480GB SSD SATA
File Systemext4
Memory Amount (GB)2048
# and size of DIMM(s)16 x 128 GB 4DRx4
Memory Details128 GB 4DRx4 PC4-3200AA-L
# and type of Network Interface Cards (NICs)1 x 10 GbE NIC
Power Supply Quantity and Rating (W)2 x 800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 8.3 (Ootpa)
VendorRed Hat
Vendor URLhttps://www.redhat.com/
Version4.18.0-240.el8.x86_64
AvailableNov-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 16.0.1
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM,version 16.0.1
AvailableApril-2021
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • ACPI SRAT L3 Cache As NUMA Domain = Disable
  • L1 Stream HW Prefetcher = Disable
  • L2 Stream HW Prefetcher = Disable
  • Enhanced REP MOVSB/STOSB = Disabled
  • Fast Short REP MOVSB = Disabled
  • Determinism Control = Manual
  • Determinism Slider = Power
  • NUMA nodes per socket = NPS4
  • APBDIS = 1
  • Fix SOC P-state = P0
Notes notes
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description os_1
Tuning
  • cpupower frequency-set -g performance
  • tuned-adm profile throughput-performance
  • echo 800000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 9000 > /proc/sys/kernel/sched_nr_migrate
  • echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 40000000 > /proc/sys/kernel/sched_latency_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning Used numactl to interleave memory on all CPUs
  • numactl --interleave=all
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms30g -Xmx30g -Xmn27g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=30 -XX:TargetSurvivorRatio=99 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=32 -XX:+UseTransparentHugePages -XX:MaxInlineSize=900 -XX:FreqInlineSize=900 -XX:LoopUnrollLimit=30 -XX:InlineSmallCode=3k -XX:AutoBoxCacheMax=5000
Tuning Used numactl to affinitize each Backend JVM to 8 Cores per 16 Threads. For example:
  • numactl --physcpubind=0-7,128-135 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning Used numactl to affinitize each Transaction Injector JVM to 8 Cores per 16 Threads. For example:
  • numactl --physcpubind=0-7,128-135 --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 393332 397906 402479 407053 411627
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 107480 120439 157790 189805 217247 153139
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 4574 - / 4574 - / 4574 - / 4574 - / 4574 - / 4574
1000us 4574 / 9147 - / 4574 - / 4574 - / 4574 - / 4574 - / 4574
5000us 333875 / 338449 265271 / 269844 73178 / 77752 68604 / 73178 41163 / 45736 - / 4574
10000us 343022 / 347596 311007 / 315580 237829 / 242402 196666 / 201240 105193 / 109767 - / 4574
25000us 347596 / 352170 329301 / 333875 278991 / 283565 256123 / 251550 123488 / 114341 18295 / 9147
50000us 352170 / 356743 333875 / 338449 297286 / 301860 269844 / 274418 155503 / 160077 18295 / 9147
75000us 356743 / 361317 338449 / 343022 306433 / 311007 278991 / 283565 187519 / 192092 18295 / 9147
100000us 356743 / 361317 343022 / 347596 311007 / 315580 288139 / 292712 214961 / 219534 18295 / 9147
200000us 365890 / 370464 352170 / 356743 333875 / 338449 324728 / 329301 292712 / 297286 18295 / 9147
500000us 393332 / 397906 375038 / 379611 361317 / 365890 356743 / 361317 347596 / 352170 283565 / 196666
1000000us 397906 / - 393332 / 397906 384185 / 388759 379611 / 384185 379611 / 384185 347596 / 352170

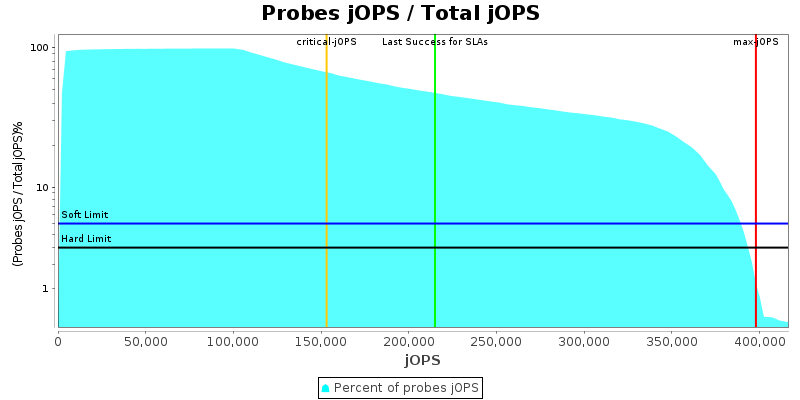

Probes jOPS / Total jOPS

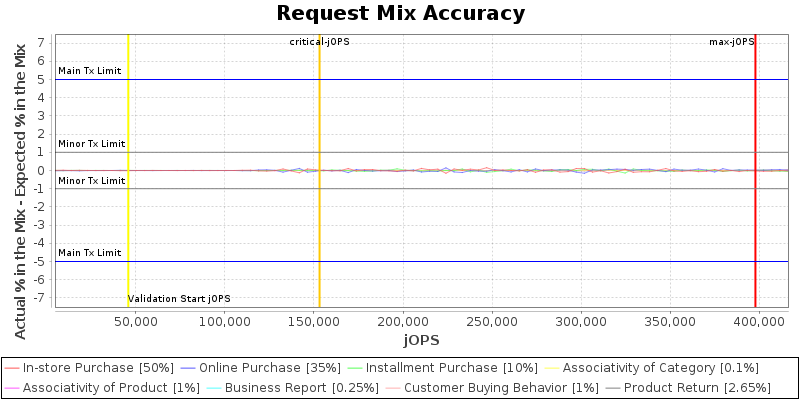

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

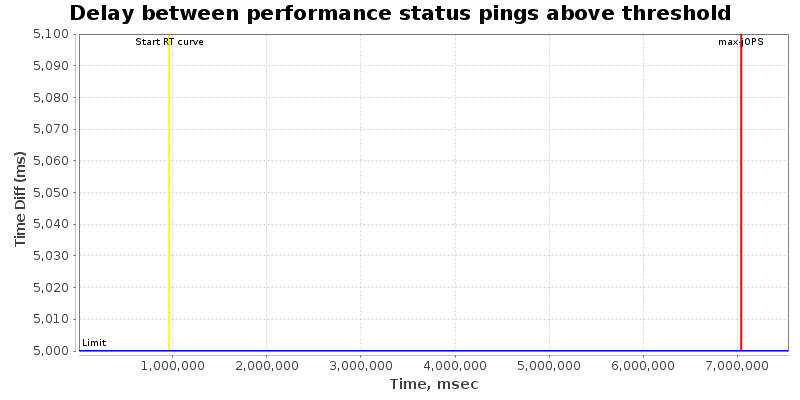

Delay between status pings

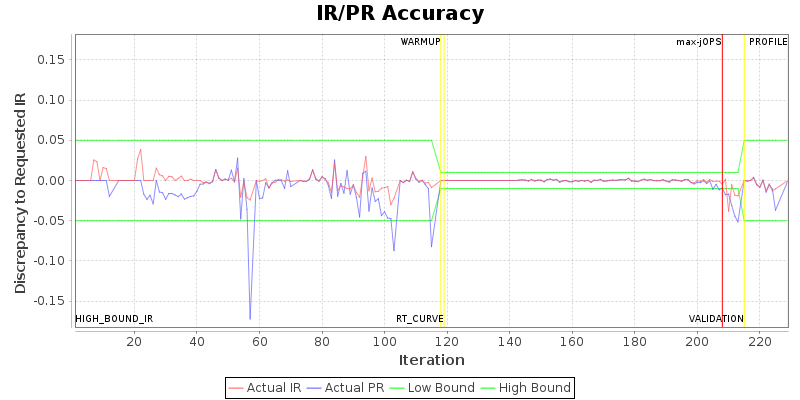

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group10.Backend.beJVM Group10.TxInjector.txiJVM1 Group11.Backend.beJVM Group11.TxInjector.txiJVM1 Group12.Backend.beJVM Group12.TxInjector.txiJVM1 Group13.Backend.beJVM Group13.TxInjector.txiJVM1 Group14.Backend.beJVM Group14.TxInjector.txiJVM1 Group15.Backend.beJVM Group15.TxInjector.txiJVM1 Group16.Backend.beJVM Group16.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1 Group9.Backend.beJVM Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 128 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256
specjbb.comm.connect.selector.runner.count 0 4 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
specjbb.comm.connect.timeouts.connect 60000 900000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000
specjbb.comm.connect.timeouts.read 60000 800000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000
specjbb.comm.connect.timeouts.write 60000 800000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000 600000
specjbb.comm.connect.worker.pool.max 256 128 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111 111
specjbb.comm.connect.worker.pool.min 1 32 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64 64
specjbb.forkjoin.workers 256 {Tier1=224, Tier2=72, Tier3=32}
specjbb.group.count 1 16
specjbb.mapreducer.pool.size 256 32
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 457363 IR
High-bound (settled) is 424000 IR
