GIGA-BYTE TECHNOLOGY CO., LTD. R282-Z90 359735 SPECjbb2015-MultiJVM max-jOPS
329073 SPECjbb2015-MultiJVM critical-jOPS
Tested by: GIGA-BYTE TECHNOLOGY CO., LTD. Test Sponsor: GIGA-BYTE TECHNOLOGY CO., LTD. Test location: New Taipei City 231, Taiwan Test date: Feb 8, 2022
SPEC license #: 9082 Hardware Availability: Mar-2022 Software Availability: Feb-2022 Publication: Mon Mar 21 09:38:43 EDT 2022
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorGIGA-BYTE TECHNOLOGY CO., LTD.
Vendor URLhttps://www.gigabyte.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores128
Total Threads256
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameR282-Z90
VendorGIGA-BYTE TECHNOLOGY CO., LTD.
Vendor URLhttps://www.gigabyte.com/
AvailableFeb-2022
ModelR282-Z90
Form Factor2U
CPU NameAMD EPYC 7773X
CPU Characteristics64 core, 2.2GHz, 768MB L3 Cache (Turbo Boost Technology up to 3.5 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
VersionM10 11/23/2021
CPU Frequency (MHz)2200
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache512KB (I+D) per core
Tertiary Cache768MB (I+D) on chip per chip
Other CacheNone
Disk1 x nvme 1.92TB
File Systemext4
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64GB
Memory Details64 GB 4Rx4 PC4-3200AA-L
# and type of Network Interface Cards (NICs)2 x 1 Gbit LOMs
Power Supply Quantity and Rating (W)2 x DELTA DPS-1200AB-4 1200w
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP2
VendorSUSE
Vendor URLhttps://urldefense.com/v3/__http://suse.com/__;!!DaQGe0nW977OPw!xHvpWFqeamWGrVPcua18asraFghDiKCOgsYnPpzTxPuz4-qVM0fqiTKrBQOYYH9kC-A$
Version5.3.18-22-default
AvailableJun-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.2
VendorOracle
Vendor URLhttps://urldefense.com/v3/__http://oracle.com/__;!!DaQGe0nW977OPw!xHvpWFqeamWGrVPcua18asraFghDiKCOgsYnPpzTxPuz4-qVM0fqiTKrBQOY_IdR7PU$
VersionJava HotSpot 64-bit Server VM, version 17.0.2
AvailableJan-2022
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning

BIOS Settings:

  • SMT Control set to Enable
  • IOMMU set to Enabled
  • NUMA nodes per socket set to NPS2
  • Determinism Control set to Manual
  • Determinism Slider set to Power
  • cTDP Control set to Manual
  • cTDP set to 280
  • Package Power Limit Control set to Manual
  • Package Power Limit set to 280
  • L1 Stream HW Prefetcher set to Disable
  • L2 Stream HW Prefetcher set to Disable

Notes notes
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • cpupower -c all frequency-set -g performance
  • tuned-adm profile throughput-performance

  • echo 400000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 40000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 128 > /proc/sys/kernel/sched_nr_migrate
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 400000 > /proc/sys/kernel/sched_latency_ns

  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness

  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled

  • Add cgroup_disable=memory,cpu,cpuacct,blkio,hugetlb,pids,cpuset,perf_event,freezer,devices,net_cls,net_prio to GRUB_CMDLINE_LINUX_DEFAULT
  • ulimit -n 1024000
  • UserTasksMax=970000
  • DefaultTasksMax=970000
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line

-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4

Tuning None
Notes

Used numactl to run on all available nodes

  • numactl --interleave=all
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-Xms120g -Xmx120g -Xmn117g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -XX:SurvivorRatio=65 -XX:TargetSurvivorRatio=80 -XX:ParallelGCThreads=32 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:+UseTransparentHugePages -XX:+UseUnalignedLoadStores -XX:-UseFastStosb -XX:+UseXMMForArrayCopy -XX:+UseXMMForObjInit -XX:+UseFPUForSpilling

Tuning None
Notes

Used numactl to affinitize two Backend JVM (2 Groups) to one NUMA node

  • Group1: numactl --cpunodebind=0 --localalloc
  • Group2: numactl --cpunodebind=0 --localalloc
  • Group3: numactl --cpunodebind=1 --localalloc
  • Group4: numactl --cpunodebind=1 --localalloc
  • Group5: numactl --cpunodebind=2 --localalloc
  • Group6: numactl --cpunodebind=2 --localalloc
  • Group7: numactl --cpunodebind=3 --localalloc
  • Group8: numactl --cpunodebind=3 --localalloc
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line

-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4

Tuning None
Notes

Used numactl to affinitize two Transaction Injector JVM (2 Groups) to one NUMA node

  • Group1: numactl --cpunodebind=0 --localalloc
  • Group2: numactl --cpunodebind=0 --localalloc
  • Group3: numactl --cpunodebind=1 --localalloc
  • Group4: numactl --cpunodebind=1 --localalloc
  • Group5: numactl --cpunodebind=2 --localalloc
  • Group6: numactl --cpunodebind=2 --localalloc
  • Group7: numactl --cpunodebind=3 --localalloc
  • Group8: numactl --cpunodebind=3 --localalloc
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 355001 359735 364468 369201 373935
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 286367 328967 338434 347901 347901 329073
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 4733 - / 4733 - / 4733 - / 4733 - / 4733 - / 4733
1000us 246134 / 250868 14200 / 18933 4733 / 9467 - / 4733 - / 4733 - / 4733
5000us 359735 / - 355001 / 359735 279268 / 269801 231934 / 236667 132534 / 137267 9467 / 14200
10000us 359735 / - 359735 / - 355001 / 359735 345535 / 350268 288734 / 284001 47333 / 23667
25000us 359735 / - 359735 / - 355001 / 359735 355001 / 359735 326601 / 331334 47333 / 23667
50000us 359735 / - 359735 / - 355001 / 359735 355001 / 359735 336068 / 340801 47333 / 23667
75000us 359735 / - 359735 / - 359735 / - 355001 / 359735 345535 / 350268 127800 / 23667
100000us 359735 / - 359735 / - 359735 / - 355001 / 359735 345535 / 350268 231934 / 23667
200000us 359735 / - 359735 / - 359735 / - 359735 / - 355001 / 359735 331334 / 274534
500000us 359735 / - 359735 / - 359735 / - 359735 / - 359735 / - 345535 / 350268
1000000us 359735 / - 359735 / - 359735 / - 359735 / - 359735 / - 359735 / -

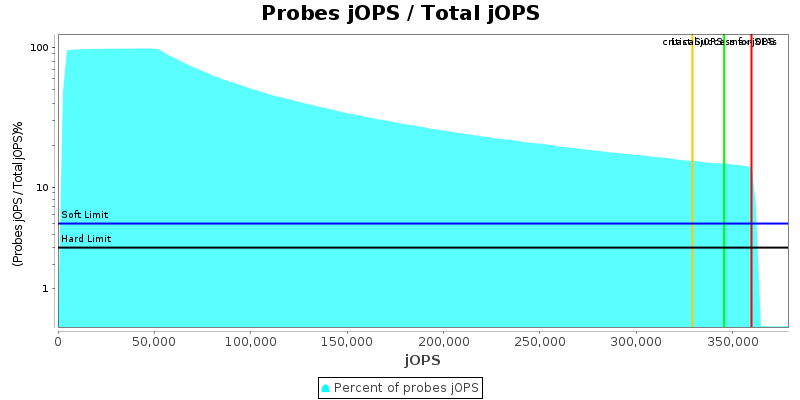

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

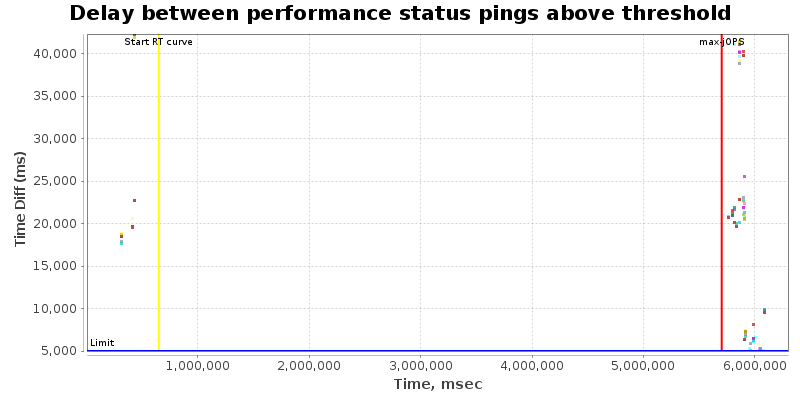

Delay between status pings

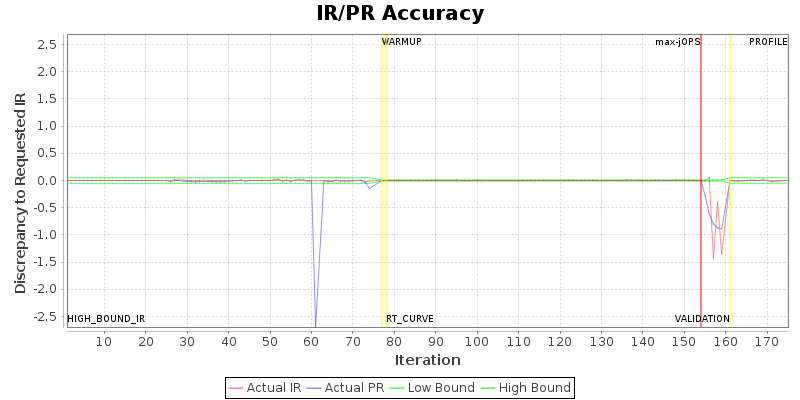

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 256 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150
specjbb.comm.connect.selector.runner.count 0 16 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8 8
specjbb.comm.connect.worker.pool.max 256 256 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150 150
specjbb.comm.connect.worker.pool.min 1 1 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4
specjbb.controller.handshake.period 5000 20000
specjbb.controller.handshake.timeout 600000 900000
specjbb.forkjoin.workers 256 {Tier1=124, Tier2=1, Tier3=15}
specjbb.group.count 1 8
specjbb.heartbeat.period 10000 2000
specjbb.heartbeat.threshold 100000 9000000
specjbb.mapreducer.pool.size 256 64
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 473335 IR
High-bound (settled) is 394579 IR
