ASUSTeK Computer Inc. RS700A-E11-RS12U 513161 SPECjbb2015-MultiJVM max-jOPS
179204 SPECjbb2015-MultiJVM critical-jOPS
Tested by: ASUSTeK Computer Inc. Test Sponsor: ASUSTeK Computer Inc. Test location: Taipei, Taiwan Test date: Feb 7, 2022
SPEC license #: 9016 Hardware Availability: Mar-2022 Software Availability: Oct-2021 Publication: Tue Mar 22 11:33:02 EDT 2022
Benchmark Results Summary

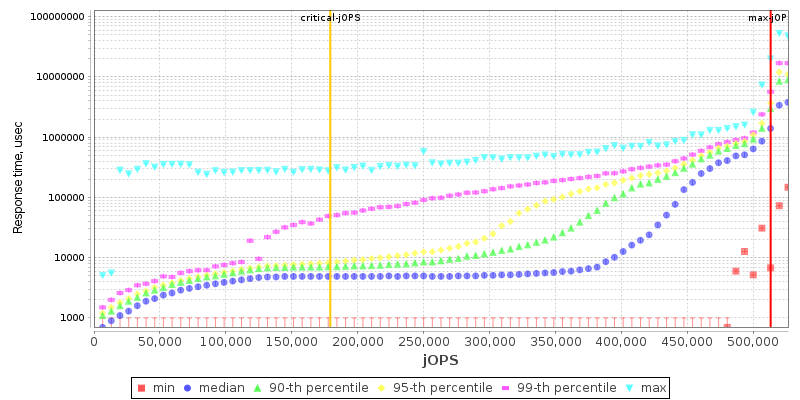

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorASUSTeK Computer Inc.
Vendor URLhttps://www.asus.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores128
Total Threads256
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameRS700A-E11-RS12U
VendorASUSTeK Computer Inc.
Vendor URLhttps://www.asus.com/
AvailableMar-2022
ModelRS700A-E11-RS12U
Form Factor1U
CPU NameAMD EPYC 7773X
CPU Characteristics64 Core, 2.20 GHz, 768 MB L3 Cache (Max Boost Clock up to 3.5 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
VersionVersion 0802
CPU Frequency (MHz)2200
Primary Cache32 KB(I) + 32 KB(D) per core
Secondary Cache512 KB (I+D) per core
Tertiary Cache768 MB (I+D) per chip
Other CacheNone
Disk1 x 1 TB SATA SSD
File Systemxfs
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64 GB 4Rx4 PC4-3200AA-L
# and type of Network Interface Cards (NICs)1 x 1 GbE NIC
Power Supply Quantity and Rating (W)2 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP2
VendorSUSE
Vendor URLhttps://www.suse.com/
Version5.3.18-22-default
AvailableJul-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.1
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 17.0.1
AvailableOct-2021
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Settings:
  • Engine Boost = Enabled
  • L1 Stream HW Prefetcher = Disable
  • L2 Stream HW Prefetcher = Disable
  • Enhanced REP MOVSB/STOSB = Disabled
  • Fast Short REP MOVSB = Disabled
  • DLWM Support = Disabled
  • NUMA nodes per socket = NPS4
  • Memory Interleaving = Disabled
  • ACPI SRAT L3 Cache as NUMA Domain = Enabled
  • APBDIS = 1
  • Fix SOC P-state = P0
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description os_1
Tuning
  • cpupower frequency-set -g performance
  • tuned-adm profile throughput-performance
  • ulimit -n 655360
  • echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 40000000 > /proc/sys/kernel/sched_latency_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 800000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 9000 > /proc/sys/kernel/sched_nr_migrate
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo 0 > /proc/sys/vm/numa_stat
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning Used numactl to interleave memory on all CPUs
  • numactl --interleave=all
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms30g -Xmx30g -Xmn27g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=300 -XX:LoopUnrollLimit=200 -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -XX:+UseTransparentHugePages -XX:+UseUnalignedLoadStores -XX:-UseFastStosb -XX:+UseXMMForArrayCopy -XX:+UseXMMForObjInit -XX:+UseFPUForSpilling -XX:TLABAllocationWeight=55 -XX:ThreadStackSize=512 -XX:CompileThresholdScaling=50
Tuning Used numactl to affinitize each Backend JVM to 8 Cores / 16 Threads
  • numactl --physcpubind=0-7,128-135 --localalloc
  • numactl --physcpubind=8-15,136-143 --localalloc
  • numactl --physcpubind=16-23,144-151 --localalloc
  • numactl --physcpubind=24-31,152-159 --localalloc
  • numactl --physcpubind=32-39,160-167 --localalloc
  • numactl --physcpubind=40-47,168-175 --localalloc
  • numactl --physcpubind=48-55,176-183 --localalloc
  • numactl --physcpubind=56-63,184-191 --localalloc
  • numactl --physcpubind=64-71,192-199 --localalloc
  • numactl --physcpubind=72-79,200-207 --localalloc
  • numactl --physcpubind=80-87,208-215 --localalloc
  • numactl --physcpubind=88-95,216-223 --localalloc
  • numactl --physcpubind=96-103,224-231 --localalloc
  • numactl --physcpubind=104-111,232-239 --localalloc
  • numactl --physcpubind=112-119,240-247 --localalloc
  • numactl --physcpubind=120-127,248-255 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning Used numactl to affinitize each TxInjector JVM to 8 Cores / 16 Threads
  • numactl --physcpubind=0-7,128-135 --localalloc
  • numactl --physcpubind=8-15,136-143 --localalloc
  • numactl --physcpubind=16-23,144-151 --localalloc
  • numactl --physcpubind=24-31,152-159 --localalloc
  • numactl --physcpubind=32-39,160-167 --localalloc
  • numactl --physcpubind=40-47,168-175 --localalloc
  • numactl --physcpubind=48-55,176-183 --localalloc
  • numactl --physcpubind=56-63,184-191 --localalloc
  • numactl --physcpubind=64-71,192-199 --localalloc
  • numactl --physcpubind=72-79,200-207 --localalloc
  • numactl --physcpubind=80-87,208-215 --localalloc
  • numactl --physcpubind=88-95,216-223 --localalloc
  • numactl --physcpubind=96-103,224-231 --localalloc
  • numactl --physcpubind=104-111,232-239 --localalloc
  • numactl --physcpubind=112-119,240-247 --localalloc
  • numactl --physcpubind=120-127,248-255 --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 500003 506582 513161 519740 526319
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 121711 134869 180922 233554 266449 179204
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 6579 / 13158 - / 6579 - / 6579 - / 6579 - / 6579 - / 6579
1000us 32895 / 39474 13158 / 19737 - / 6579 - / 6579 - / 6579 - / 6579
5000us 427634 / 434213 289476 / 296055 92106 / 98685 78948 / 85527 59211 / 65790 - / 6579
10000us 440792 / 447371 388160 / 394739 276318 / 282897 217107 / 223686 125001 / 118422 13158 / 19737
25000us 447371 / 453950 421055 / 427634 348686 / 355265 302634 / 309213 131580 / 138159 13158 / 19737
50000us 447371 / 453950 427634 / 434213 375002 / 381581 315792 / 322371 177633 / 184212 13158 / 19737
75000us 453950 / 460529 434213 / 440792 381581 / 388160 335528 / 342107 230265 / 236844 13158 / 19737
100000us 453950 / 460529 440792 / 447371 394739 / 401318 348686 / 355265 263160 / 269739 13158 / 19737
200000us 467108 / 473687 453950 / 460529 427634 / 434213 401318 / 407897 355265 / 361844 13158 / 19737
500000us 506582 / 513161 486845 / 493424 460529 / 467108 460529 / 467108 447371 / 453950 348686 / 250002
1000000us 513161 / - 506582 / 513161 500003 / 506582 493424 / 500003 493424 / 500003 447371 / 453950

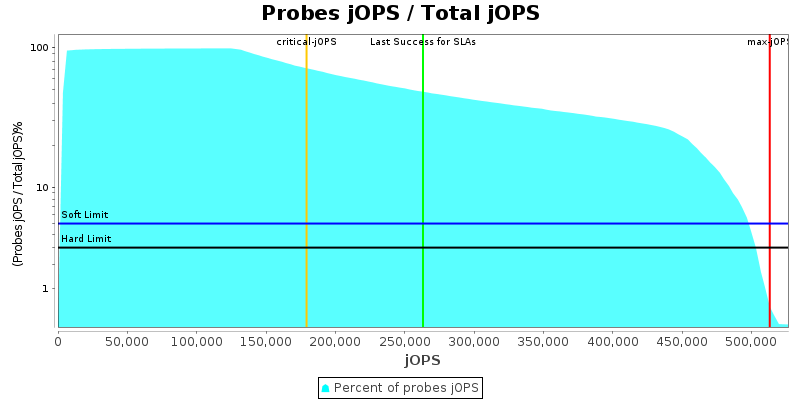

Probes jOPS / Total jOPS

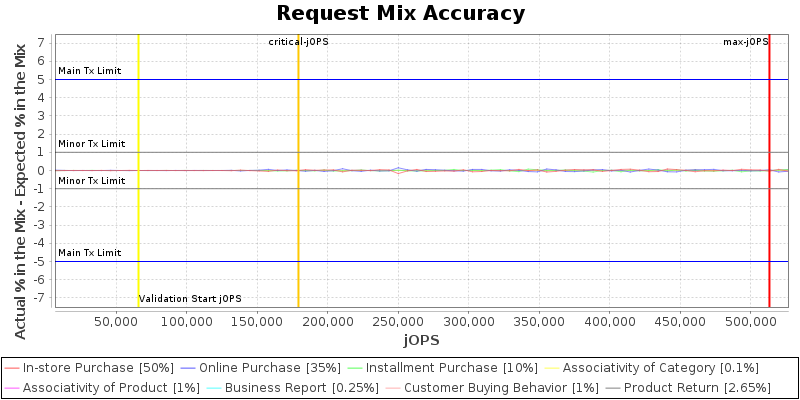

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group10.Backend.beJVM Group10.TxInjector.txiJVM1 Group11.Backend.beJVM Group11.TxInjector.txiJVM1 Group12.Backend.beJVM Group12.TxInjector.txiJVM1 Group13.Backend.beJVM Group13.TxInjector.txiJVM1 Group14.Backend.beJVM Group14.TxInjector.txiJVM1 Group15.Backend.beJVM Group15.TxInjector.txiJVM1 Group16.Backend.beJVM Group16.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1 Group9.Backend.beJVM Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 256 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 900000
specjbb.comm.connect.timeouts.read 60000 800000
specjbb.comm.connect.timeouts.write 60000 800000
specjbb.comm.connect.worker.pool.max 256 256 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180
specjbb.comm.connect.worker.pool.min 1 1 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.customerDriver.threads 64 {probe=80, saturate=80}
specjbb.forkjoin.workers 256 {Tier1=380, Tier2=64, Tier3=40}
specjbb.group.count 1 16
specjbb.mapreducer.pool.size 256 16
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 657899 IR
High-bound (settled) is 548516 IR
