Super Micro Computer, Inc Supermicro Model H12SSFF-AN6 112056 SPECjbb2015-Composite max-jOPS
78247 SPECjbb2015-Composite critical-jOPS
Tested by: Super Micro Computer, Inc Test Sponsor: Super Micro Computer, Inc Test location: San Jose, California Test date: February 23, 2022
SPEC license #: 001176 Hardware Availability: Feb-2021 Software Availability: Oct-2021 Publication: Mon Mar 21 09:10:57 EDT 2022
Benchmark Results Summary

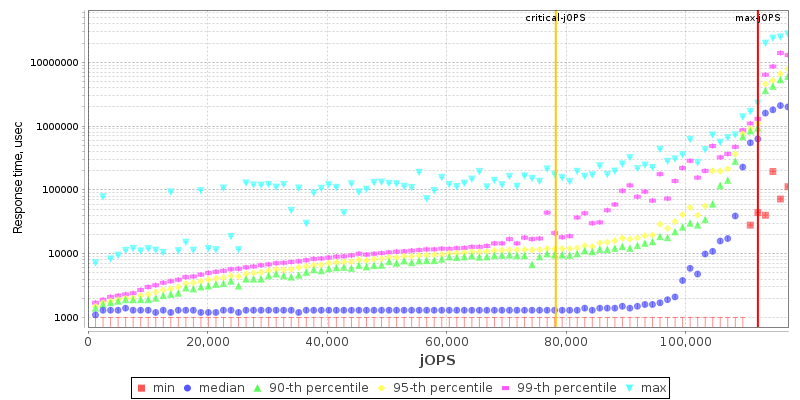

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorSuper Micro Computer, Inc
Vendor URLhttps://www.supermicro.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores24
Total Threads48
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameA+ Server F1114S-FT
VendorSuper Mciro Computer, Inc
Vendor URLhttp://www.supermicro.com/
AvailableMar-2022
ModelH12SSFF-AN6
Form Factor1U
CPU NameAMD EPYC 7473X
CPU Characteristics24 core, 2.80 GHz, 768 MB L3 Cache (Max Boost Clock up to 3.70 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System48
Cores Per Chip24
Threads Per System48
Threads Per Core48
Version2.3 (10/21/2021)
CPU Frequency (MHz)2800
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache512 KB I+D on chip per core
Tertiary Cache768 MB (I+D) on chip per chip
Other CacheNone
Disk1 x 240 GB SATA SSD
File Systemext4
Memory Amount (GB)512
# and size of DIMM(s)SK Hynix
Memory Details64GB 2Rx4 PC4-3200AA-RB4-12-DC1
# and type of Network Interface Cards (NICs)2 x 1 GbE NIC
Power Supply Quantity and Rating (W)1 x 2000w
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux 8.3
VendorRed Hat
Vendor URLhttps://access.redhat.com/
Version4.18.0-240.el8.x86_64
AvailableOct-2020
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle java SE 17.0.2
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJDK HotSpot 64-bit Server VM, version 17.0.2
AvailableDec-2021
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLnone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning

    BIOS Settings:
  • NUMA nodes per socket = NPS2
  • Determinism Control = Manual
  • Determinism Slider = Power
  • cTDP Control = Manual
  • cTDP = 280
  • Package Power Limit Control = Manual
  • Package Power Limit = 280

Notes notes
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning None
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line

-Xms490g -Xmx490g -Xmn480g -server -XX:+UseLargePages -XX:+UseParallelGC -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:+UseTransparentHugePages -XX:ParallelGCThreads=160 -XX:+UseHugeTLBFS -XX:-UseNUMAInterleaving -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=1 -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:InlineSmallCode=13k -XX:UseAVX=0

Tuning None
Notes

Used numactl to run on all available nodes

  • numactl --cpunodebind=0-1 --interleave=0-1

max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 110797 112056 113315 114574 115834
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 48473 79635 87504 91551 94849 78247
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 1259 - / 1259 - / 1259 - / 1259 - / 1259 - / 1259
1000us 101984 / 103243 - / 1259 - / 1259 - / 1259 - / 1259 - / 1259
5000us 108279 / 109538 101984 / 100725 35254 / 36513 27699 / 28958 20145 / 21404 - / 1259
10000us 108279 / 109538 103243 / 104502 81839 / 83098 59176 / 60435 47844 / 49103 5036 / 2518
25000us 109538 / 110797 107020 / 108279 98207 / 99466 96948 / 95689 80580 / 76803 25181 / 2518
50000us 109538 / 110797 108279 / 109538 103243 / 104502 101984 / 100725 86875 / 88134 42808 / 2518
75000us 109538 / 110797 108279 / 109538 104502 / 105761 103243 / 104502 96948 / 89393 56658 / 2518
100000us 109538 / 110797 108279 / 109538 104502 / 105761 103243 / 104502 96948 / 90652 57917 / 22663
200000us 109538 / 110797 108279 / 109538 107020 / 108279 105761 / 107020 103243 / 99466 88134 / 76803
500000us 112056 / - 109538 / 110797 108279 / 109538 108279 / 109538 108279 / 109538 103243 / 100725
1000000us 112056 / - 112056 / - 112056 / - 110797 / 112056 109538 / 110797 108279 / 109538
Probes jOPS / Total jOPS

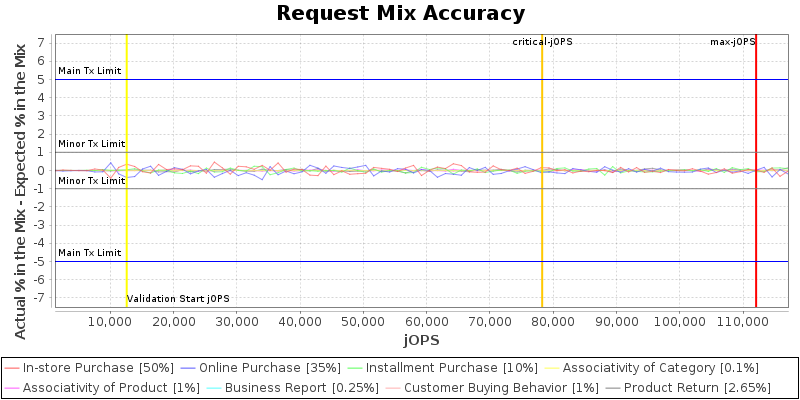

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

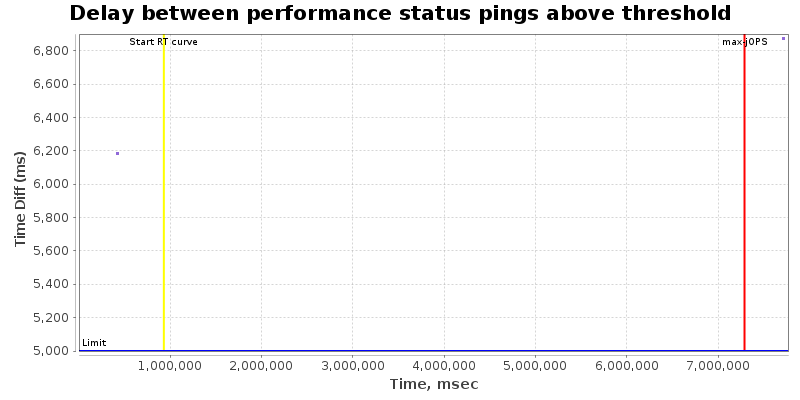

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
User did not set any property for this run

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 125906 IR
High-bound (settled) is 121949 IR
