SPECjbb2015 Report for jbb2015-20220223-00752 : 387357 max-jOPS ; 296200 critical-jOPS

SUT Description

Hardware hw_1
Name	ThinkSystem SR645
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	May-2022
Model	ThinkSystem SR645
Form Factor	1U
CPU Name	AMD EPYC 7773X
CPU Characteristics	64 core, 2.20GHz, 768 MB L3 Cache (Max Boost Clock up to 3.50 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	128
Cores Per Chip	64
Threads Per System	256
Threads Per Core	2
Version	D8E125A
CPU Frequency (MHz)	2200
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	512 KB I+D on chip per core
Tertiary Cache	768 MB I+D on chip per chip
Other Cache	None
Disk	1 x 960GB SATA SSD
File System	NTFS
Memory Amount (GB)	2048
# and size of DIMM(s)	32 x 64 GB
Memory Details	64GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)	1 x 10/25 GbE OCP NIC
Power Supply Quantity and Rating (W)	1 x 1800W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Windows Server 2019 Datacenter
Vendor	Microsoft
Vendor URL	https://www.microsoft.com/
Version	Version 1809(OS Build 17763.2628)
Available	Feb-2021
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.2
Vendor	Oracle Corporation
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-Bit Server VM, version 17.0.2
Available	Jan-2022
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Driver Description

Hardware hw_2
Name	ThinkSystem SR860 V2
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Nov-2020
Model	ThinkSystem SR860 V2
Form Factor	4U
CPU Name	Intel Xeon Platinum 8376H
CPU Characteristics	28 Core, 2.60 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.30 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	4
Cores Per System	112
Cores Per Chip	28
Threads Per System	224
Threads Per Core	2
Version	M5E113F
CPU Frequency (MHz)	2600
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1 MB I+D on chip per core
Tertiary Cache	38.5 MB I+D on chip per chip
Other Cache	None
Disk	1 x 960GB SATA SSD
File System	NTFS
Memory Amount (GB)	768
# and size of DIMM(s)	48 x 16 GB
Memory Details	16 GB 2Rx8 PC4-3200AA-R
# and type of Network Interface Cards (NICs)	1 x 10/25 GbE OCP NIC
Power Supply Quantity and Rating (W)	2 x 1800W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_2
Name	Windows Server 2019 Datacenter
Vendor	Microsoft
Vendor URL	https://www.microsoft.com/
Version	Version 1809(OS Build 17763.2628)
Available	Feb-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_2
Name	Oracle Java SE 17.0.2
Vendor	Oracle Corporation
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-Bit Server VM, version 17.0.2
Available	Jan-2022
Bitness	64
Notes	None
Other Software other_2
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Backend_1 : Backend
Driver
- Hardware config_2
  - OS Image os_Image_2
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance and then set to Custom Mode NUMA Nodes per Sockert set to NPS2 L1 Stream HW Prefetcher set to Disable L2 Stream HW Prefetcher set to Disable
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Backend_1(4)
OS Image Description	os_1
Tuning	Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534 Power Options is set to High performance Processor scheduling is set to Programs Visual Effects Adjust for best performance Lock Pages in Memory is Enabled
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-server -Xms480g -Xmx480g -Xmn450g -XX:AllocatePrefetchInstr=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseParallelGC -XX:SurvivorRatio=50 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=64 -Xnoclassgc
Tuning	Affinitized each Backend JVM to a single memory node. start /b /NODE 0 start /b /NODE 1 start /b /NODE 2 start /b /NODE 3
Notes	None

Driver config_2 Configuration

Hardware
OS Images	os_Image_2(1)
Hardware Description	hw_2
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Operating Mode set to Maximum Performance Patrol Scrub set to Disabled
Notes	None

OS Image os_Image_2
JVM Instances	jvm_Ctr_1(1), jvm_TxInjector_1(4)
OS Image Description	os_2
Tuning	Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534 Power Options is set to High performance Processor scheduling is set to Programs Visual Effects Adjust for best performance Lock Pages in Memory is Enabled
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	None
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_2
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	None
Notes	None

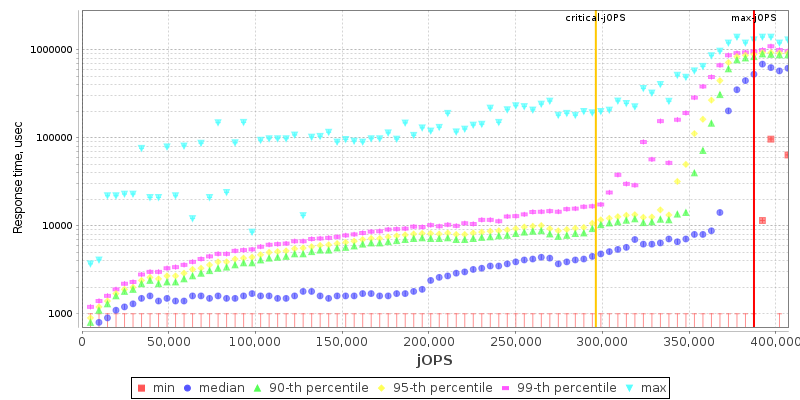

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	382453	387357	392260	397163	402066

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	208388	306453	321162	330969	335872	296200

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	4903 / 9806	- / 4903	- / 4903	- / 4903	- / 4903	- / 4903
1000us	210840 / 215743	14710 / 19613	4903 / 9806	4903 / 9806	- / 4903	- / 4903
5000us	367744 / 372647	299098 / 304001	127484 / 132388	107871 / 112775	83355 / 88258	9806 / 14710
10000us	367744 / 372647	362840 / 367744	294195 / 299098	289292 / 264775	215743 / 201033	98065 / 14710
25000us	372647 / 377550	367744 / 372647	348131 / 353034	338324 / 343227	304001 / 308905	127484 / 34323
50000us	377550 / 382453	367744 / 372647	353034 / 357937	348131 / 353034	318711 / 323614	127484 / 34323
75000us	377550 / 382453	367744 / 372647	357937 / 362840	348131 / 353034	338324 / 323614	127484 / 34323
100000us	377550 / 382453	367744 / 372647	357937 / 362840	348131 / 353034	338324 / 333421	181420 / 78452
200000us	382453 / 387357	367744 / 372647	362840 / 367744	357937 / 362840	348131 / 353034	299098 / 235356
500000us	387357 / -	382453 / 387357	367744 / 372647	367744 / 372647	362840 / 367744	348131 / 343227
1000000us	387357 / -	387357 / -	387357 / -	387357 / -	387357 / -	367744 / 372647

Number of probes

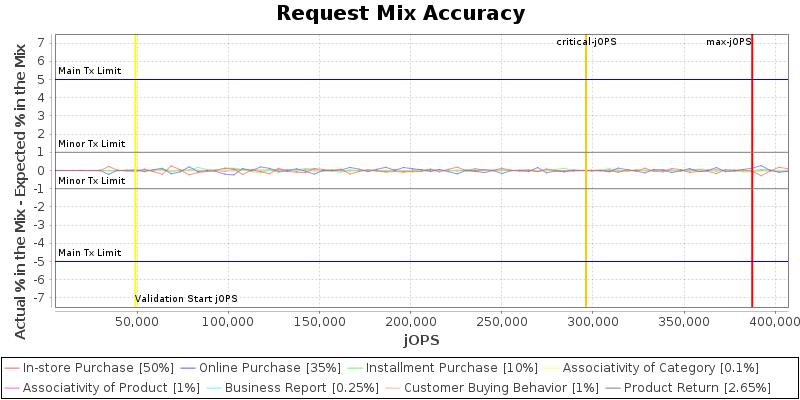

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

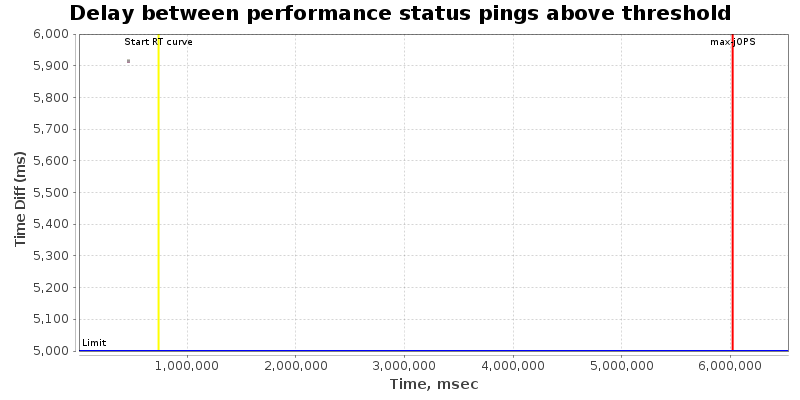

Delay between performance status pings during RT Curve (Response-Throughput Curve)

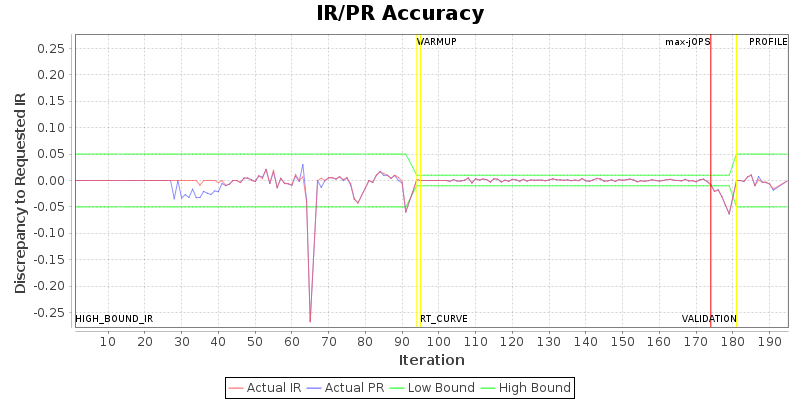

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group2.Backend.beJVM	Group3.Backend.beJVM	Group4.Backend.beJVM
specjbb.comm.connect.client.pool.size	256	196	256	256	256	256
specjbb.comm.connect.selector.runner.count	0	4	0	0	0	0
specjbb.comm.connect.timeouts.connect	60000	800000
specjbb.comm.connect.timeouts.read	60000	800000
specjbb.comm.connect.timeouts.write	60000	800000
specjbb.comm.connect.worker.pool.max	256	60	45	45	45	45
specjbb.comm.connect.worker.pool.min	1	10	30	30	30	30
specjbb.controller.host	localhost	192.168.5.4
specjbb.forkjoin.workers	56	{Tier1=210, Tier2=70, Tier3=28}
specjbb.group.count	1	4
specjbb.heartbeat.threshold	100000	600000
specjbb.mapreducer.pool.size	56	12
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 490325 IR

High-bound (settled) is 408670 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Lenovo Global Technology ThinkSystem SR645	387357 SPECjbb2015-Distributed max-jOPS 296200 SPECjbb2015-Distributed critical-jOPS
Tested by: Lenovo Global Technology	Test Sponsor: Lenovo Global Technology	Test location: Beijing, China	Test date: Feb 23, 2022
SPEC license #: 9017	Hardware Availability: May-2022	Software Availability: Feb-2022	Publication: Mon Mar 21 09:38:43 EDT 2022
