Lenovo Global Technology ThinkSystem SR645 203484 SPECjbb2015-Distributed max-jOPS
150594 SPECjbb2015-Distributed critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: Feb 20, 2022
SPEC license #: 9017 Hardware Availability: May-2022 Software Availability: Feb-2022 Publication: Mon Mar 21 09:38:43 EDT 2022
Benchmark Results Summary

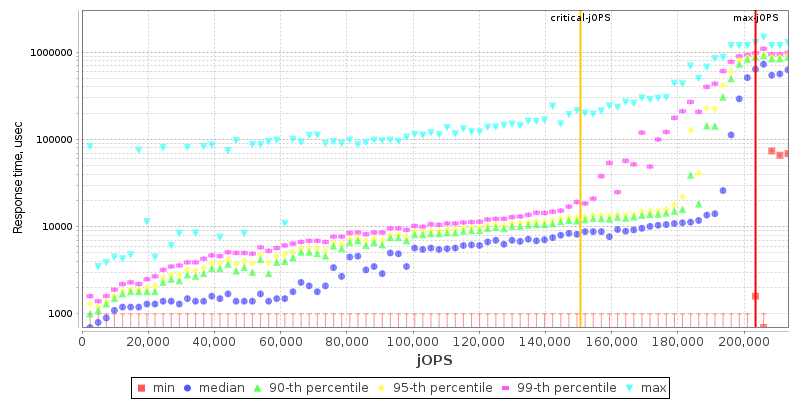

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores64
Total Threads128
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameThinkSystem SR645
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableMay-2022
ModelThinkSystem SR645
Form Factor1U
CPU NameAMD EPYC 7773X
CPU Characteristics64 core, 2.20GHz, 768 MB L3 Cache (Max Boost Clock up to 3.50 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System64
Cores Per Chip64
Threads Per System128
Threads Per Core2
VersionD8E125A
CPU Frequency (MHz)2200
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache512 KB I+D on chip per core
Tertiary Cache768 MB I+D on chip per chip
Other CacheNone
Disk1 x 960GB SATA SSD
File SystemNTFS
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)1 x 1800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2019 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 1809(OS Build 17763.2628)
AvailableFeb-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.2
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 17.0.2
AvailableJan-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware hw_2
NameThinkSystem SR860 V2
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableNov-2020
ModelThinkSystem SR860 V2
Form Factor4U
CPU NameIntel Xeon Platinum 8376H
CPU Characteristics28 Core, 2.60 GHz, 38.5 MB L3 Cache (Turbo Boost Technology up to 4.30 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System112
Cores Per Chip28
Threads Per System224
Threads Per Core2
VersionM5E113F
CPU Frequency (MHz)2600
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1 MB I+D on chip per core
Tertiary Cache38.5 MB I+D on chip per chip
Other CacheNone
Disk1 x 960GB SATA SSD
File SystemNTFS
Memory Amount (GB)768
# and size of DIMM(s)48 x 16 GB
Memory Details16 GB 2Rx8 PC4-3200AA-R
# and type of Network Interface Cards (NICs)1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)2 x 1800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameWindows Server 2019 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 1809(OS Build 17763.2628)
AvailableFeb-2022
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle Java SE 17.0.2
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 17.0.2
AvailableJan-2022
Bitness64
NotesNone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance and then set to Custom Mode
  • NUMA Nodes per Socket set to NPS2
  • SOC P-state set to P0
  • L1 Stream HW Prefetcher set to Disable
  • L2 Stream HW Prefetcher set to Disable
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(2)
OS Image Description os_1
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
  • Visual Effects Adjust for best performance
  • Lock Pages in Memory is Enabled
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms480g -Xmx480g -Xmn475g -XX:AllocatePrefetchInstr=2 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseParallelGC -XX:SurvivorRatio=50 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=64 -Xnoclassgc
Tuning Affinitized each Backend JVM to a single memory node.
  • start /b /NODE 0
  • start /b /NODE 1
Notes None
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance
  • Patrol Scrub set to Disabled
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(2)
OS Image Description os_2
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
  • Visual Effects Adjust for best performance
  • Lock Pages in Memory is Enabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 201033 203484 205936 208388 210839
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 101742 158538 163441 170387 172430 150594
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 2452 / 4903 - / 2452 - / 2452 - / 2452 - / 2452 - / 2452
1000us 90710 / 76000 7355 / 9806 2452 / 4903 - / 2452 - / 2452 - / 2452
5000us 183871 / 152000 98065 / 100516 73549 / 66194 61290 / 63742 51484 / 44129 22065 / 2452
10000us 193678 / 196130 169162 / 171613 127484 / 129936 120129 / 122581 102968 / 100516 49032 / 2452
25000us 198581 / 201033 191226 / 193678 186323 / 183871 181420 / 183871 161807 / 156904 61290 / 2452
50000us 198581 / 201033 193678 / 196130 186323 / 188775 186323 / 183871 171613 / 159355 61290 / 2452
75000us 198581 / 201033 193678 / 196130 186323 / 188775 186323 / 183871 171613 / 169162 61290 / 2452
100000us 198581 / 201033 193678 / 196130 186323 / 188775 186323 / 183871 174065 / 169162 95613 / 63742
200000us 198581 / 201033 196130 / 198581 191226 / 193678 186323 / 188775 178968 / 181420 154452 / 142194
500000us 203484 / - 198581 / 201033 196130 / 198581 193678 / 196130 191226 / 193678 181420 / 183871
1000000us 203484 / - 203484 / - 203484 / - 203484 / - 203484 / - 193678 / 196130

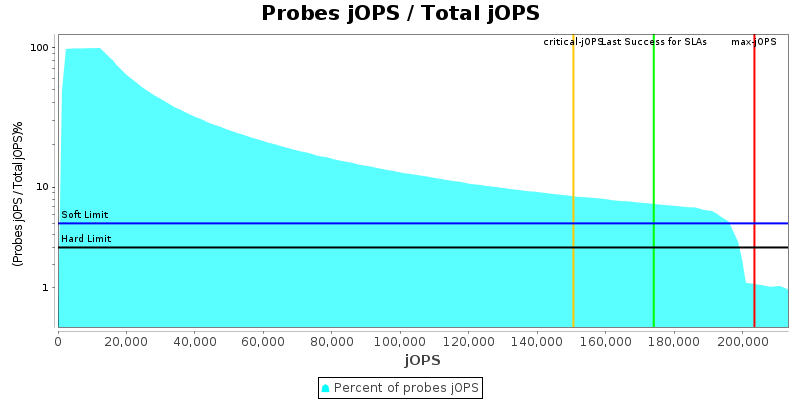

Probes jOPS / Total jOPS

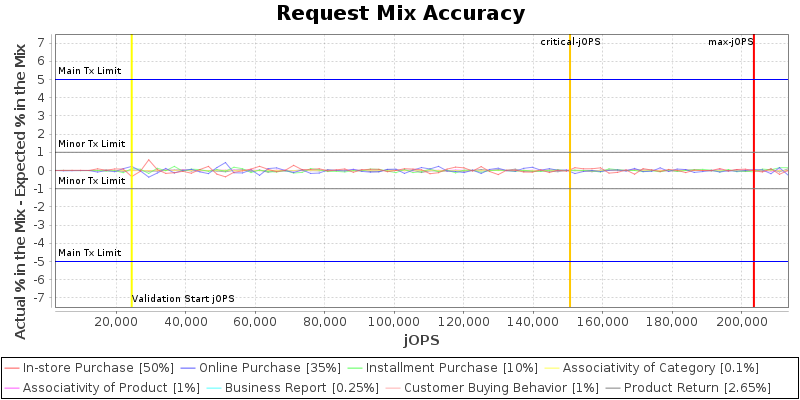

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 128
specjbb.comm.connect.selector.runner.count 0 2
specjbb.comm.connect.timeouts.connect 60000 800000
specjbb.comm.connect.timeouts.read 60000 800000
specjbb.comm.connect.timeouts.write 60000 800000
specjbb.comm.connect.worker.pool.max 256 45
specjbb.comm.connect.worker.pool.min 1 30
specjbb.controller.host localhost 192.168.5.4
specjbb.forkjoin.workers 56 {Tier1=210, Tier2=70, Tier3=28}
specjbb.group.count 1 2
specjbb.heartbeat.threshold 100000 600000
specjbb.mapreducer.pool.size 56 12
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 245162 IR
High-bound (settled) is 215022 IR
