Cisco Systems Cisco UCS C245 M6 482694 SPECjbb2015-MultiJVM max-jOPS
219940 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Cisco Systems Test Sponsor: Cisco Systems Test location: San Jose, CA Test date: Feb 20, 2022
SPEC license #: 9019 Hardware Availability: Mar-2022 Software Availability: June-2021 Publication: Mon Mar 21 09:38:43 EDT 2022
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorCisco Systems
Vendor URLhttps://www.cisco.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores128
Total Threads256
Total Memory Amount (GB)2048
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameCisco UCS C245 M6
VendorCisco Systems
Vendor URLhttp://www.cisco.com/
AvailableMar-2022
ModelCisco UCS C245 M6
Form Factor2U Rack
CPU NameAMD EPYC 7773X
CPU Characteristics64-Core, 2.2GHz, 768MB L3 Cache (Max Boost Clock up to 3.5 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
VersionC245M6.4.2.1.28
CPU Frequency (MHz)2200
Primary Cache32 KB I+32 KB D per core
Secondary Cache512 KB I+D per core
Tertiary Cache768 MB I+D per chip
Other CacheNone
Disk1 x 960 GB M.2 SSD SATA
File SystemXFS
Memory Amount (GB)2048
# and size of DIMM(s)16 x 128 GB 4Rx4
Memory Details128 GB 4Rx4 PC4-3200V-L
# and type of Network Interface Cards (NICs)2x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 2300W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP3
VendorSUSE
Vendor URLhttp://suse.com/
Version5.3.18-57-default
AvailableJune-2021
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.2
VendorOracle Corporation
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-Bit Server VM,version 17.0.2
AvailableJan-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • L1 Stream HW Prefetcher: Disable
  • L2 Stream HW Prefetcher: Disable
  • Global C-state Control: Enabled
  • Enhanced REP MOVSB/STOSB: Disabled
  • Fast Short REP MOVSB: Disabled
  • NUMA Nodes per socket: NPS4
  • ACPI SRAT L3 Cache As NUMA Domain: Disabled
  • 4 Link xGMI max speed: 18Gbps
  • Determinism Control: Manual
  • Determinism Slider: Power
  • EDC Control: Manual
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description os_1
Tuning
  • tuned-adm profile throughput-performance
  • ulimit -u 4078332
  • ulimit -n 1024000
  • echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 40000000 > /proc/sys/kernel/sched_latency_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 800000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/vm/numa_stat
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning Used numactl to interleave memory on all CPUs
  • numactl --interleave=all
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms30g -Xmx30g -Xmn27g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=30 -XX:TargetSurvivorRatio=99 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=16 -XX:+UseTransparentHugePages -XX:MaxInlineSize=900 -XX:FreqInlineSize=900 -XX:LoopUnrollLimit=30 -XX:InlineSmallCode=3k -XX:AutoBoxCacheMax=5000
Tuning Used numactl to affinitize each Backend JVM to 8 Cores per 16 Threads. For example:
  • numactl --physcpubind=0-7,128-135 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning Used numactl to affinitize each Transaction Injector JVM to 8 Cores per 16 Threads. For example:
  • numactl --physcpubind=0-7,128-135 --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 477209 482694 488179 493664 499150
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 145356 183752 233119 271515 304426 219940
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 5485 - / 5485 - / 5485 - / 5485 - / 5485 - / 5485
1000us 21941 / 27426 10970 / 16455 - / 5485 - / 5485 - / 5485 - / 5485
5000us 405902 / 411387 329110 / 334595 87763 / 93248 82277 / 87763 54852 / 60337 10970 / 5485
10000us 411387 / 416872 378476 / 383961 290713 / 296199 230377 / 235862 142614 / 148099 32911 / 5485
25000us 422357 / 427842 400417 / 405902 351050 / 356535 323624 / 329110 181010 / 186495 32911 / 5485
50000us 422357 / 427842 405902 / 411387 372991 / 378476 345565 / 351050 230377 / 235862 32911 / 5485
75000us 427842 / 433328 411387 / 416872 383961 / 389446 351050 / 356535 268773 / 274258 32911 / 5485
100000us 433328 / 438813 416872 / 422357 389446 / 394932 362021 / 367506 301684 / 307169 32911 / 5485
200000us 460753 / 449783 427842 / 433328 405902 / 411387 400417 / 405902 372991 / 378476 224892 / 38396
500000us 477209 / 482694 460753 / 466239 438813 / 444298 433328 / 438813 422357 / 427842 383961 / 367506
1000000us 482694 / - 477209 / 482694 471724 / 477209 466239 / 471724 460753 / 466239 422357 / 427842

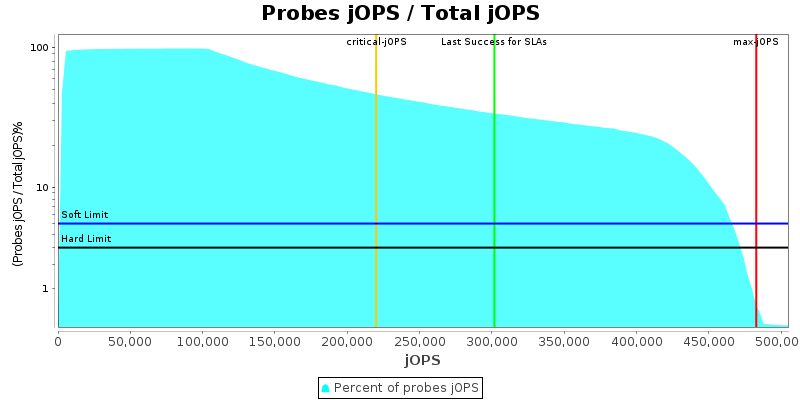

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

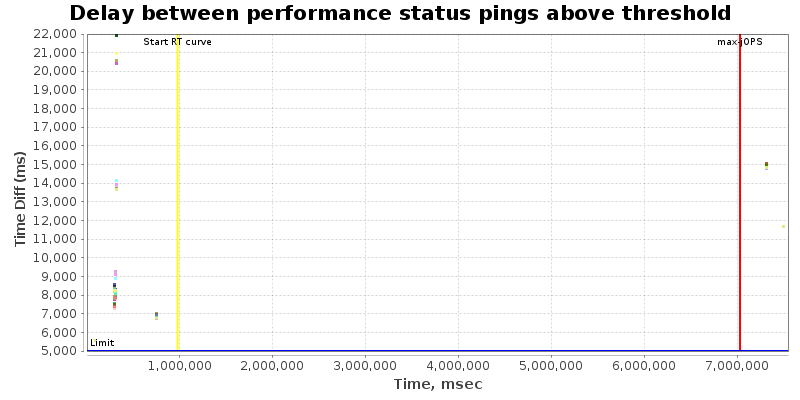

Delay between status pings

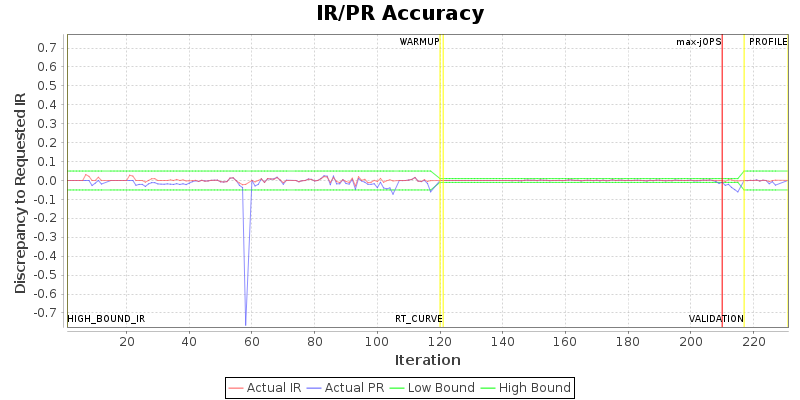

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group10.Backend.beJVM Group10.TxInjector.txiJVM1 Group11.Backend.beJVM Group11.TxInjector.txiJVM1 Group12.Backend.beJVM Group12.TxInjector.txiJVM1 Group13.Backend.beJVM Group13.TxInjector.txiJVM1 Group14.Backend.beJVM Group14.TxInjector.txiJVM1 Group15.Backend.beJVM Group15.TxInjector.txiJVM1 Group16.Backend.beJVM Group16.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1 Group9.Backend.beJVM Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 256 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170 170
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 900000
specjbb.comm.connect.timeouts.read 60000 800000
specjbb.comm.connect.timeouts.write 60000 800000
specjbb.comm.connect.worker.pool.max 256 256 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180 180
specjbb.comm.connect.worker.pool.min 1 1 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4
specjbb.customerDriver.threads 64 {probe=64, saturate=64}
specjbb.forkjoin.workers 256 {Tier1=364, Tier2=64, Tier3=41}
specjbb.group.count 1 16
specjbb.mapreducer.pool.size 256 16
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 548516 IR
High-bound (settled) is 508480 IR
