Dell Inc. PowerEdge R7525 351501 SPECjbb2015-Composite max-jOPS
315115 SPECjbb2015-Composite critical-jOPS
Tested by: Dell Inc. Test Sponsor: Dell Inc. Test location: Round Rock, TX Test date: Mar 09, 2022
SPEC license #: 55 Hardware Availability: Mar-2022 Software Availability: Jan-2022 Publication: Thu May 5 14:00:59 EDT 2022
Benchmark Results Summary

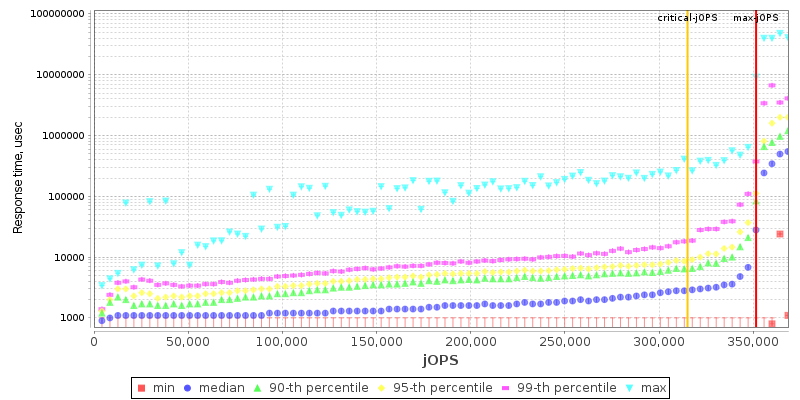

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorDell Inc.
Vendor URLhttp://dell.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores128
Total Threads256
Total Memory Amount (GB)2048
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameDell Inc. PowerEdge R7525
VendorDell Inc.
Vendor URLhttp://dell.com
AvailableMar-2022
ModelR7525
Form Factor2U Rack.
CPU NameAMD EPYC 7773x
CPU Characteristics64 core, 2.20 GHz, 768 MB L3 Cache (MaxBoost up to 3.50 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
Version2.6.5 released Dec-2021
CPU Frequency (MHz)2200
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache512KB (I+D) per core
Tertiary Cache768MB (I+D) on chip per chip
Other CacheNone
Disk1 x Dell Express Flash NVMe SM1715 1.6TB AIC
File Systemxfs
Memory Amount (GB)2048
# and size of DIMM(s)16 x 128GB
Memory Details128GB 4Rx4 PC4-3200AA-L; slots A1-7, B1-7 populated
# and type of Network Interface Cards (NICs)Broadcom 5720 Dual Port 1Gb LOM
Power Supply Quantity and Rating (W)1 x 2400
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
Bitnessn/a
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP3
VendorSUSE
Vendor URLhttp://suse.com/
Version5.3.18-57-default
AvailableJun-2021
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.2
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 17.0.2
AvailableJan-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • L1 Stream HW Prefetcher disabled
  • L2 Stream HW Prefetcher disabled
  • MADT Core Enumeration set to Linear
  • CCX as NUMA Domain enabled
  • NUMA Nodes per socket set to 2
  • Cstates enabled
  • Determinism slider set to Power Determinism
  • Memory Interleaving disabled
Notes notes
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • echo 400000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 40000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 128 > /proc/sys/kernel/sched_nr_migrate
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 400000 > /proc/sys/kernel/sched_latency_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 1 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -Xms970g -Xmx970g -Xmn965g -server -XX:+UseParallelGC -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:MaxTenuringThreshold=5 -XX:-UseAdaptiveSizePolicy -XX:ParallelGCThreads=128 -XX:SurvivorRatio=200 -XX:TargetSurvivorRatio=99 -XX:+UseNUMA -XX:-UseNUMAInterleaving -XX:+UseTransparentHugePages
Tuning affinity note 1
  • note 2
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 347266 351501 355736 359971 364206
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 239274 319738 340913 345148 345148 315115
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 4235 - / 4235 - / 4235 - / 4235 - / 4235 - / 4235
1000us 296446 / 300681 8470 / 12705 - / 4235 - / 4235 - / 4235 - / 4235
5000us 347266 / 351501 343031 / 347266 262567 / 258332 173633 / 177868 105874 / 110109 8470 / 12705
10000us 351501 / - 347266 / 351501 338796 / 343031 321856 / 326091 237157 / 241392 50819 / 16940
25000us 351501 / - 347266 / 351501 347266 / 351501 338796 / 343031 317621 / 321856 80464 / 16940
50000us 351501 / - 351501 / - 347266 / 351501 347266 / 351501 338796 / 343031 131283 / 16940
75000us 351501 / - 351501 / - 347266 / 351501 347266 / 351501 343031 / 347266 173633 / 16940
100000us 351501 / - 351501 / - 351501 / - 347266 / 351501 343031 / 347266 190573 / 84699
200000us 351501 / - 351501 / - 351501 / - 351501 / - 347266 / 351501 292212 / 237157
500000us 351501 / - 351501 / - 351501 / - 351501 / - 351501 / - 343031 / 338796
1000000us 351501 / - 351501 / - 351501 / - 351501 / - 351501 / - 347266 / 351501
Probes jOPS / Total jOPS

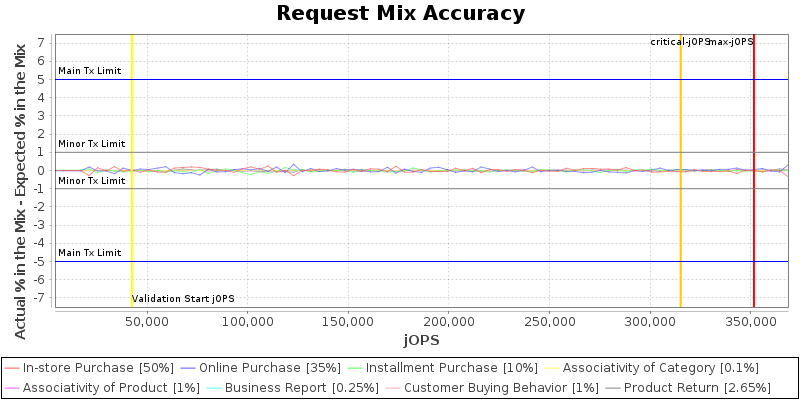

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

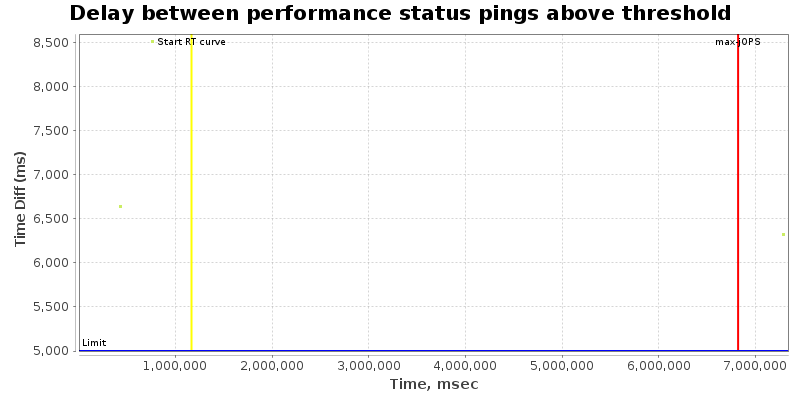

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 10
specjbb.comm.connect.timeouts.connect 60000 800000
specjbb.comm.connect.timeouts.read 60000 800000
specjbb.comm.connect.timeouts.write 60000 800000
specjbb.customerDriver.threads 64 {probe=72, saturate=256}
specjbb.forkjoin.workers 256 {Tier1=112, Tier2=1, Tier3=18}
specjbb.group.count 1 2
specjbb.mapreducer.pool.size 256 8
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 423495 IR
High-bound (settled) is 380620 IR
