Inspur Corporation NF5180M6 203534 SPECjbb2015-MultiJVM max-jOPS
91560 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Jinan, China Test date: May 14, 2022
SPEC license #: 3358 Hardware Availability: Apr-2022 Software Availability: May-2022 Publication: Thu Jun 2 14:25:26 EDT 2022
Benchmark Results Summary

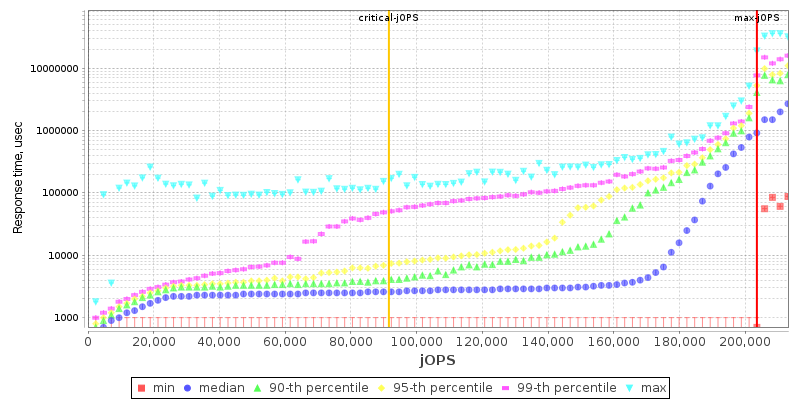

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores64
Total Threads128
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameInspur NF5180M6
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableApr-2022
ModelInspur NF5180M6
Form Factor1U
CPU NameIntel Xeon Gold 6338
CPU Characteristics32 Core, 2.00 GHz, 48 MB L3 Cache (Turbo Boost Technology up to 3.20 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System64
Cores Per Chip32
Threads Per System128
Threads Per Core2
Version6.00.03 released Apr-2022
CPU Frequency (MHz)2000
Primary Cache32 KB(I)+48 KB(D)on chip per core
Secondary Cache1.25MB (I+D) per core
Tertiary Cache48MB (I+D) on chip per chip
Other CacheNone
Disk1x 4TB NVMe SSD
File Systemxfs
Memory Amount (GB)1024
# and size of DIMM(s)32 x 32GB
Memory Details32 x 32GB 2Rx4 PC4-3200AA-R; each slot populated
# and type of Network Interface Cards (NICs)1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 8.5 (Ootpa)
VendorRed Hat
Vendor URLhttp://redhat.com/
Version4.18.0-348
AvailableNov-2021
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 18.0.1.1
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 18.0.1.1
AvailableMay-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance set to Performance
  • SNC Enabled
  • Memory Patrol Scrub Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • ulimit -n 655360
  • echo 15000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 80000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 16 > /proc/sys/kernel/sched_nr_migrate
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 10000000 > /proc/sys/kernel/sched_latency_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xmx30g -Xms30g -Xmn27g -XX:+UseParallelGC -XX:ParallelGCThreads=32 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+AlwaysPreTouch -XX:InlineSmallCode=10k -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:LoopUnrollLimit=20 -XX:MaxTenuringThreshold=15 -XX:TargetSurvivorRatio=95 -XX:AllocatePrefetchInstr=2 -XX:UseAVX=0
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 201168 203534 205901 208268 210635
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 65083 72183 91117 112417 133717 91560
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 2367 / 4733 - / 2367 - / 2367 - / 2367 - / 2367 - / 2367
1000us 59167 / 61534 9467 / 11833 4733 / 7100 4733 / 7100 2367 / 4733 - / 2367
5000us 186968 / 189334 170401 / 172768 108867 / 106501 68634 / 71000 35500 / 37867 7100 / 4733
10000us 189334 / 191701 175134 / 177501 137267 / 139634 113601 / 115967 63900 / 66267 7100 / 4733
25000us 194068 / 196434 182234 / 184601 158568 / 160934 142001 / 144367 71000 / 73367 7100 / 4733
50000us 194068 / 196434 184601 / 186968 163301 / 165668 146734 / 149101 89934 / 92301 7100 / 4733
75000us 194068 / 196434 186968 / 189334 168034 / 170401 153834 / 156201 111234 / 113601 7100 / 4733
100000us 196434 / 198801 186968 / 189334 170401 / 172768 158568 / 160934 132534 / 134901 59167 / 9467
200000us 198801 / 201168 189334 / 191701 179868 / 182234 175134 / 177501 163301 / 165668 142001 / 18933
500000us 203534 / - 196434 / 198801 189334 / 191701 189334 / 191701 184601 / 186968 175134 / 177501
1000000us 203534 / - 203534 / - 198801 / 201168 194068 / 196434 194068 / 196434 186968 / 189334
Probes jOPS / Total jOPS

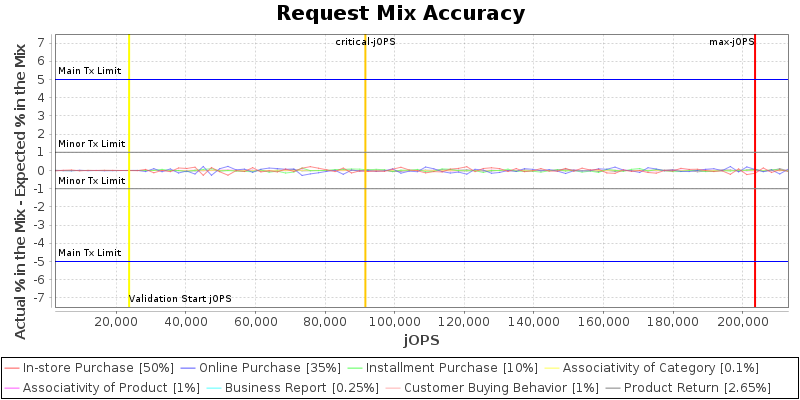

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

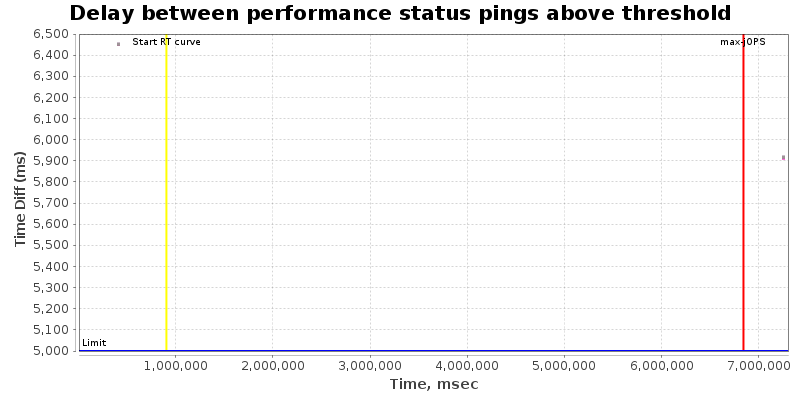

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 224
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.worker.pool.max 256 112
specjbb.comm.connect.worker.pool.min 1 64
specjbb.forkjoin.workers 128 {Tier1=100, Tier2=1, Tier3=16}
specjbb.group.count 1 4
specjbb.mapreducer.pool.size 128 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 236668 IR
High-bound (settled) is 212625 IR
