Inspur Corporation NF5180M6 169398 SPECjbb2015-Composite max-jOPS
115234 SPECjbb2015-Composite critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Jinan, China Test date: Apr 27, 2022
SPEC license #: 3358 Hardware Availability: Apr-2022 Software Availability: Mar-2022 Publication: Thu Jun 2 14:25:26 EDT 2022
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores52
Total Threads104
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameInspur NF5180M6
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableApr-2022
ModelInspur NF5180M6
Form Factor1U
CPU NameIntel Xeon Gold 5320
CPU Characteristics26 Core, 2.20 GHz, 39 MB L3 Cache (Turbo Boost Technology up to 3.40 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System52
Cores Per Chip26
Threads Per System104
Threads Per Core2
Version6.00.03 released Apr-2022
CPU Frequency (MHz)2200
Primary Cache32 KB(I)+48 KB(D)on chip per core
Secondary Cache1.25MB (I+D) per core
Tertiary Cache39MB (I+D) on chip per chip
Other CacheNone
Disk1x 4TB NVMe SSD
File Systemxfs
Memory Amount (GB)1024
# and size of DIMM(s)32 x 32GB
Memory Details32 x 32GB 2Rx4 PC4-3200AA-R; each slot populated; running at 2933MHz
# and type of Network Interface Cards (NICs)1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 8.5 (Ootpa)
VendorRed Hat
Vendor URLhttp://redhat.com/
Version4.18.0-348
AvailableNov-2021
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 18
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 18
AvailableMar-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance set to Performance
  • SNC Enabled
  • Memory Patrol Scrub Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • ulimit -n 655360
  • tuned-adm profile throughput-performance
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms650g -Xmx650g -Xmn600g -XX:+UseLargePages -XX:+UseParallelGC -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:+UseTransparentHugePages -XX:ParallelGCThreads=104 -XX:+UseHugeTLBFS -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=1 -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:InlineSmallCode=13k -XX:UseAVX=0
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 167280 169398 171515 173633 175750
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 96345 111167 117872 125636 128107 115234
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 80464 / 78346 2117 / 4235 - / 2117 - / 2117 - / 2117 - / 2117
1000us 160928 / 163045 118578 / 116461 14822 / 16940 10587 / 12705 4235 / 6352 - / 2117
5000us 163045 / 165163 152458 / 154575 107991 / 101639 69877 / 71994 55054 / 57172 16940 / 8470
10000us 165163 / 167280 152458 / 154575 118578 / 120696 112226 / 114343 95286 / 97404 40232 / 8470
25000us 165163 / 167280 156693 / 158810 141870 / 143988 135518 / 137636 110108 / 112226 61407 / 8470
50000us 165163 / 167280 158810 / 160928 141870 / 143988 135518 / 137636 120696 / 116461 78346 / 8470
75000us 165163 / 167280 160928 / 163045 146105 / 148223 141870 / 143988 127048 / 122813 93169 / 8470
100000us 165163 / 167280 160928 / 163045 148223 / 150340 141870 / 143988 127048 / 129166 107991 / 8470
200000us 165163 / 167280 163045 / 165163 154575 / 156693 152458 / 154575 141870 / 137636 135518 / 112226
500000us 169398 / - 167280 / 169398 160928 / 163045 158810 / 160928 154575 / 156693 150340 / 143988
1000000us 169398 / - 169398 / - 169398 / - 167280 / 169398 167280 / 169398 160928 / 163045
Probes jOPS / Total jOPS

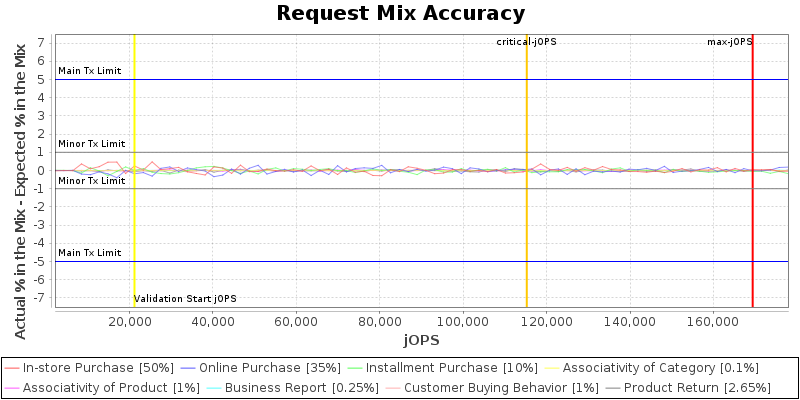

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

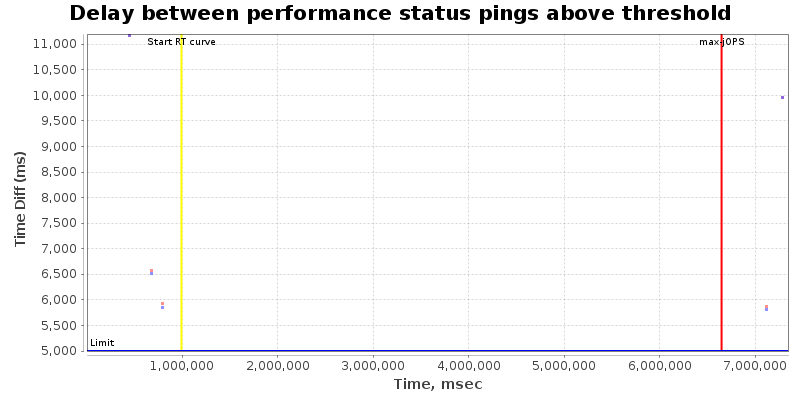

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 104 {Tier1=100, Tier2=1, Tier3=16}
specjbb.group.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 211747 IR
High-bound (settled) is 181074 IR
