Nettrix R620 G40 232382 SPECjbb2015-Composite max-jOPS
211518 SPECjbb2015-Composite critical-jOPS
Tested by: Nettrix Test Sponsor: Nettrix Test location: Beijing,China Test date: May 18, 2022
SPEC license #: 6138 Hardware Availability: Apr-2021 Software Availability: Jan-2022 Publication: Thu Jun 16 10:39:15 EDT 2022
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorNettrix
Vendor URLhttps://www.nettrix.com.cn
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores80
Total Threads160
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameR620 G40
VendorNettrix
Vendor URLhttps://www.nettrix.com.cn
AvailableApr-2021
ModelR620 G40
Form Factor2U
CPU NameIntel(R) Xeon(R) Platinum 8380 CPU @ 2.30GHz
CPU Characteristics40core, 2.3GHz, 60MB L3 Cache (Turbo Boost Technology up to 3.4GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System80
Cores Per Chip40
Threads Per System160
Threads Per Core2
Version0PYH001029
CPU Frequency (MHz)2300
Primary Cache32 KB I + 48 KB D on chip per core
Secondary Cache1.25 MB I+D on chip per core
Tertiary Cache60 MB I+D on chip per chip
Other CacheNone
Disk1x512GB SATA SSD
File Systembtrfs
Memory Amount (GB)1024
# and size of DIMM(s)32 x 32GB
Memory Details32 x 32GB 2Rx4 PC4-3200AA-R; each slot populated
# and type of Network Interface Cards (NICs)2 x 10 Gbit NICs
Power Supply Quantity and Rating (W)2 x 800W
Other Hardware1 x OCP with 2 x 10 Gbit NICs
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP3
VendorSUSE
Vendor URLhttps://www.suse.com
Version5.3.18-57-default
AvailableJun-2021
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.2
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 17.0.2
AvailableJan-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • SNC = Enable SNC2 (2-clusters)
  • Patrol Scrub = Disabled
  • DCU Streamer Prefetcher = Disabled
  • DCU IP Prefetcher = Disabled
  • UPI Prefetcher = Disbaled
  • LLC Prefetch = Disabled
  • XPT Prefetch = Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Composite_1(1)
OS Image Description os_1
Tuning
  • cpupower frequency-set -g performance
  • tuned-adm profile throughput-performance
  • echo always > /sys/kernel/mm/transparent_hugepage/dafrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes None
JVM Instance jvm_Composite_1
Parts of Benchmark Composite
JVM Instance Description jvm_1
Command Line -server -Xms650g -Xmx650g -Xmn600g -XX:+UseLargePages -XX:+UseParallelGC -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:+UseTransparentHugePages -XX:ParallelGCThreads=160 -XX:+UseHugeTLBFS -XX:-UseNUMAInterleaving -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=1 -XX:+UseNUMA -XX:+AlwaysPreTouch -XX:+UseRTMLocking -XX:InlineSmallCode=13k -XX:UseAVX=0
Tuning numactl used to interleave the controller amongst all available nodes, eg:
  • numactl --cpunodebind=0-3 --interleave=0-3
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 229441 232382 235324 238266 241207
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 175022 207379 221596 227970 230911 211518
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 100013 / 102954 5883 / 8825 2942 / 5883 2942 / 5883 - / 2942 - / 2942
1000us 208850 / 211792 132370 / 135311 35299 / 23532 20591 / 17649 14708 / 17649 5883 / 8825
5000us 229441 / 232382 226499 / 229441 197084 / 200025 179435 / 182376 138253 / 141194 41182 / 8825
10000us 229441 / 232382 229441 / 232382 214733 / 211792 205908 / 208850 176493 / 173551 41182 / 8825
25000us 229441 / 232382 229441 / 232382 226499 / 229441 226499 / 229441 208850 / 205908 73539 / 8825
50000us 232382 / - 229441 / 232382 229441 / 232382 229441 / 232382 226499 / 211792 111779 / 8825
75000us 232382 / - 229441 / 232382 229441 / 232382 229441 / 232382 226499 / 229441 120604 / 8825
100000us 232382 / - 229441 / 232382 229441 / 232382 229441 / 232382 229441 / 232382 135311 / 82363
200000us 232382 / - 229441 / 232382 229441 / 232382 229441 / 232382 229441 / 232382 158844 / 147077
500000us 232382 / - 232382 / - 229441 / 232382 229441 / 232382 229441 / 232382 208850 / 197084
1000000us 232382 / - 232382 / - 232382 / - 232382 / - 229441 / 232382 229441 / 211792

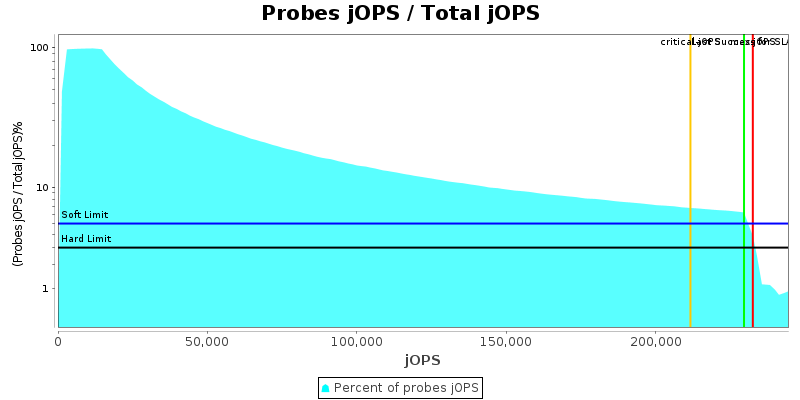

Probes jOPS / Total jOPS

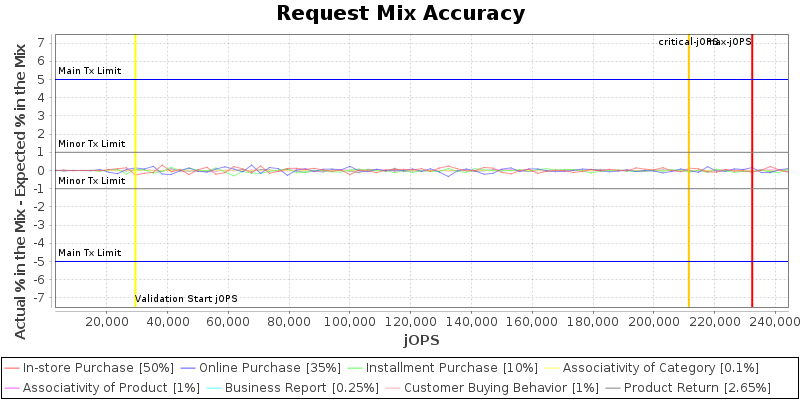

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 10
specjbb.comm.connect.timeouts.connect 60000 800000
specjbb.comm.connect.timeouts.read 60000 800000
specjbb.comm.connect.timeouts.write 60000 800000
specjbb.controller.rtcurve.start 0.0 0.0
specjbb.controller.rtcurve.step 0.01 0.01
specjbb.customerDriver.threads 64 {probe=72, saturate=256}
specjbb.forkjoin.workers 160 {Tier1=124, Tier2=1, Tier3=20}
specjbb.group.count 1 2
specjbb.mapreducer.pool.size 160 8
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 294155 IR
High-bound (settled) is 251552 IR
