Dell Inc. PowerEdge R6525 471724 SPECjbb2015-Distributed max-jOPS
175775 SPECjbb2015-Distributed critical-jOPS
Tested by: Dell Inc. Test Sponsor: Dell Inc. Test location: Round Rock, TX Test date: May, 2022
SPEC license #: 55 Hardware Availability: Mar-2022 Software Availability: Jun-2022 Publication: Thu Jun 16 10:39:15 EDT 2022
Benchmark Results Summary

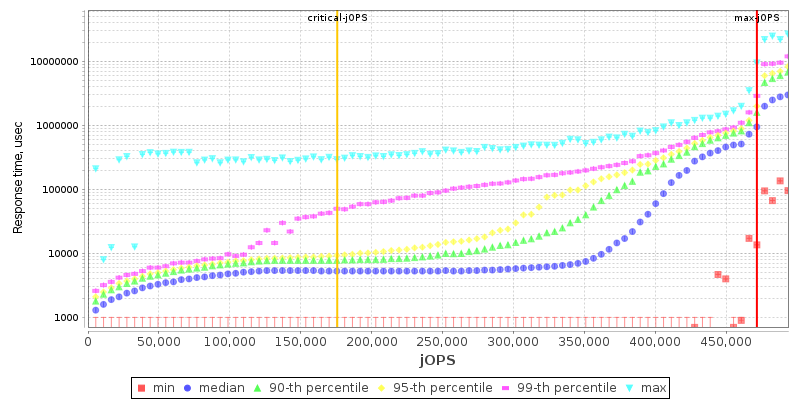

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorDell Inc.
Vendor URLhttp://www.dell.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores128
Total Threads256
Total Memory Amount (GB)2048
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameDell Inc. PowerEdge R6525
VendorDell Inc.
Vendor URLhttp://www.dell.com
AvailableJun-2022
ModelR6525
Form Factor1U Rack
CPU NameAMD EPYC 7773x
CPU Characteristics64 core, 2.20 GHz, 768 L3 Cache (MaxBoost up to 3.50 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
Version2.7.2 released Jun-2022
CPU Frequency (MHz)2200
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache512KB (I+D) per core
Tertiary Cache768MB (I+D) on chip per chip
Other CacheNone
Disk1 x Dell Express Flash NVMe SM1715 1.6TB AIC
File Systemxfs
Memory Amount (GB)2048
# and size of DIMM(s)16 x 128GB
Memory Details128GB 4Rx4 PC4-3200AA-L; slots A1-8 and B1-8 populated
# and type of Network Interface Cards (NICs)Broadcom 5720 Dual Port 1Gb LOM
Power Supply Quantity and Rating (W)2 x 1100
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Hardware hw_2
NameDell Inc. PowerEdge R6525
VendorDell Inc.
Vendor URLhttp://www.dell.com
AvailableJun-2022
ModelR6525
Form Factor1U Rack
CPU NameAMD EPYC 7773x
CPU Characteristics64 core, 2.20 GHz, 768 L3 Cache (MaxBoost up to 3.50 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
Version2.7.2 released Jun-2022
CPU Frequency (MHz)2200
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache512KB (I+D) per core
Tertiary Cache768MB (I+D) on chip per chip
Other CacheNone
Disk1 x Dell Express Flash NVMe SM1715 1.6TB AIC
File Systemxfs
Memory Amount (GB)2048
# and size of DIMM(s)16 x 128GB
Memory Details128GB 4Rx4 PC4-3200AA-L; slots A1-8 and B1-8 populated
# and type of Network Interface Cards (NICs)Broadcom 5720 Dual Port 1Gb LOM
Power Supply Quantity and Rating (W)2 x 1100
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
Bitnessn/a
NotesNone
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
Bitnessn/a
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP3
VendorSUSE
Vendor URLhttp://suse.com/
Version5.3.18-57-default
AvailableJun-2021
Bitness64
NotesNone
Operating System os_2
NameSUSE Linux Enterprise Server 15 SP3
VendorSUSE
Vendor URLhttp://suse.com/
Version5.3.18-57-default
AvailableJun-2021
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle Java SE 17.0.2
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 17.0.2
AvailableJan-2022
Bitness64
Notesnote
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.2
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 17.0.2
AvailableJan-2022
Bitness64
Notesnote
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • L1 Stream HW Prefetcher disabled
  • L2 Stream HW Prefetcher disabled
  • MADT Core Enumeration set to Linear
  • CCX as NUMA Domain enabled
  • NUMA Nodes per socket set to 4
  • Cstates enabled
  • Determinism slider set to Power Determinism
  • Memory Interleaving disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(16)
OS Image Description os_1
Tuning
  • cpupower frequency-set -g performance
  • echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 40000000 > /proc/sys/kernel/sched_latency_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 800000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 9000 > /proc/sys/kernel/sched_nr_migrate
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo 0 > /proc/sys/vm/numa_stat
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
a
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms31g -Xmx31g -Xmn30g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=26 -XX:TargetSurvivorRatio=99 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=32 -XX:-UseDynamicNumberOfCompilerThreads -XX:-UseDynamicNumberOfGCThreads -XX:+UseTransparentHugePages -XX:MaxInlineSize=900 -XX:FreqInlineSize=900 -XX:LoopUnrollLimit=30 -XX:InlineSmallCode=3k -XX:AutoBoxCacheMax=5000 -XX:AllocatePrefetchDistance=128 -XX:AllocatePrefetchLines=9 -XX:AllocateInstancePrefetchLines=3 -XX:TLABAllocationWeight=5 -XX:ThreadStackSize=512 -XX:TLABSize=4m -XX:CompileThresholdScaling=50
Tuning numactl used to affinitize each TxInjector JVM to a single CPU memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment non-virtual
Tuning
  • L1 Stream HW Prefetcher disabled
  • L2 Stream HW Prefetcher disabled
  • MADT Core Enumeration set to Linear
  • CCX as NUMA Domain enabled
  • NUMA Nodes per socket set to 4
  • Cstates enabled
  • Determinism slider set to Power Determinism
  • Memory Interleaving disabled
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(16)
OS Image Description os_2
Tuning
  • cpupower frequency-set -g performance
  • echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 40000000 > /proc/sys/kernel/sched_latency_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 800000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 9000 > /proc/sys/kernel/sched_nr_migrate
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo 0 > /proc/sys/vm/numa_stat
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:CICompilerCount=2 -XX:ParallelGCThreads=2
Tuning numactl used to interleave the controller amongst all available nodes, eg:
  • numactl --interleave=all
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:CICompilerCount=2 -XX:ParallelGCThreads=2
Tuning numactl used to affinitize each TxInjector JVM to a single CPU memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 466239 471724 477209 482694 488179
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 112445 139871 183752 227634 255060 175775
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 5485 - / 5485 - / 5485 - / 5485 - / 5485 - / 5485
1000us 5485 / 10970 - / 5485 - / 5485 - / 5485 - / 5485 - / 5485
5000us 389446 / 394932 104218 / 109703 54852 / 60337 49366 / 54852 32911 / 38396 - / 5485
10000us 400417 / 405902 362021 / 367506 263288 / 268773 186495 / 191981 109703 / 115188 10970 / 5485
25000us 405902 / 411387 383961 / 389446 334595 / 340080 296199 / 301684 142614 / 137129 32911 / 5485
50000us 411387 / 416872 394932 / 400417 351050 / 356535 312654 / 318139 181010 / 186495 32911 / 5485
75000us 422357 / 427842 400417 / 405902 362021 / 367506 318139 / 323624 224892 / 230377 32911 / 5485
100000us 422357 / 427842 405902 / 411387 372991 / 378476 345565 / 351050 252317 / 257803 32911 / 5485
200000us 438813 / 444298 422357 / 427842 394932 / 400417 378476 / 383961 351050 / 356535 32911 / 5485
500000us 466239 / 471724 455268 / 460753 427842 / 433328 422357 / 427842 416872 / 422357 329110 / 334595
1000000us 471724 / - 471724 / - 460753 / 466239 460753 / 466239 455268 / 460753 416872 / 411387

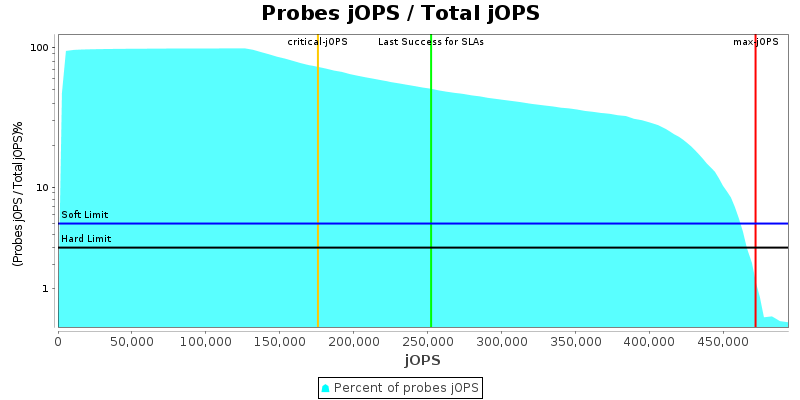

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

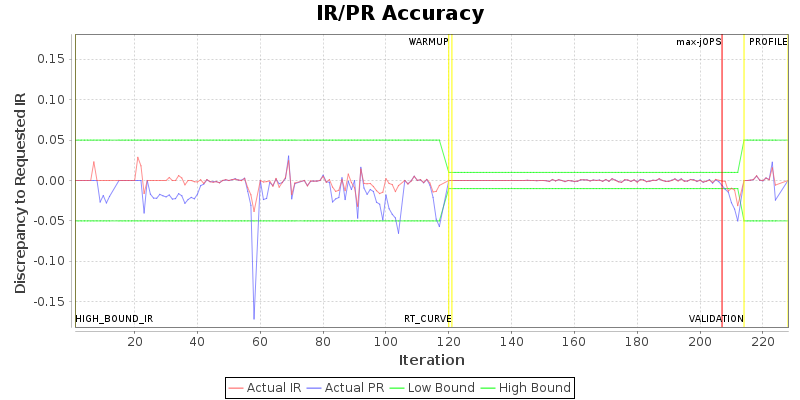

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group10.Backend.beJVM Group10.TxInjector.txiJVM1 Group11.Backend.beJVM Group11.TxInjector.txiJVM1 Group12.Backend.beJVM Group12.TxInjector.txiJVM1 Group13.Backend.beJVM Group13.TxInjector.txiJVM1 Group14.Backend.beJVM Group14.TxInjector.txiJVM1 Group15.Backend.beJVM Group15.TxInjector.txiJVM1 Group16.Backend.beJVM Group16.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1 Group9.Backend.beJVM Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 256 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128
specjbb.comm.connect.selector.runner.count 0 16 0 4 0 4 0 4 0 4 0 4 0 4 0 4 0 4 0 4 0 4 0 4 0 4 0 4 0 4 0 4 0 4
specjbb.comm.connect.timeouts.connect 60000 900000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.read 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.write 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.worker.pool.max 256 256 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128 128
specjbb.comm.connect.worker.pool.min 1 1 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32 32
specjbb.controller.host localhost 127.0.0.1
specjbb.customerDriver.threads 64 {probe=80, saturate=80}
specjbb.forkjoin.workers 256 {Tier1=226, Tier2=72, Tier3=34}
specjbb.group.count 1 16
specjbb.mapreducer.pool.size 256 32
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 548516 IR
High-bound (settled) is 499960 IR
