xFusion xFusion 1288H V6 282896 SPECjbb2015-MultiJVM max-jOPS
156446 SPECjbb2015-MultiJVM critical-jOPS
Tested by: xFusion Test Sponsor: xFusion Test location: Shenzhen, China Test date: May 25, 2022
SPEC license #: 6488 Hardware Availability: Apr-2021 Software Availability: May-2022 Publication: Fri Jul 29 10:57:54 EDT 2022
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorxFusion
Vendor URLhttp://xfusion.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores80
Total Threads160
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NamexFusion 1288H V6
VendorxFusion
Vendor URLhttp://xfusion.com/
AvailableApr-2021
ModelxFusion 1288H V6
Form Factor1U
CPU NameIntel Xeon Platinum 8380
CPU Characteristics40 Core, 2.3 GHz, 60 MB L3 Cache (Turbo Boost Technology up to 3.4 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System80
Cores Per Chip40
Threads Per System160
Threads Per Core2
Version0.95 released Dec-2021
CPU Frequency (MHz)2300
Primary Cache32 KB(I)+48 KB(D)on chip per core
Secondary Cache1.25MB (I+D) per core
Tertiary Cache60MB (I+D) on chip per chip
Other CacheNone
Disk1x 480GB SATA SSD
File Systemxfs
Memory Amount (GB)512
# and size of DIMM(s)16 x 32GB
Memory Details16 x 32GB 2Rx4 PC4-3200AA-R;
# and type of Network Interface Cards (NICs)1x 1 Gbit NIC
Power Supply Quantity and Rating (W)2 x 2000w
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 8.4 (Ootpa)
VendorRed Hat
Vendor URLhttp://redhat.com/
Version4.18.0-305.el8.x86_64
AvailableMay-2021
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.3.1
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM, version 17.0.3.1
AvailableMay-2022
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Performance Profile Set to Performance
  • SNC Set to Enabled SNC2 (2-clusters)
  • Memory Patrol Scrub Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • ulimit -n 655360
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xmx30g -Xms30g -Xmn29g -XX:+UseParallelGC -XX:ParallelGCThreads=40 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+AlwaysPreTouch -XX:InlineSmallCode=10k -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:LoopUnrollLimit=20 -XX:MaxTenuringThreshold=15 -XX:TargetSurvivorRatio=95 -XX:+UseRTMDeopt -XX:AllocatePrefetchInstr=2 -XX:UseAVX=0
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 279607 282896 286186 289475 292765
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 100329 123356 166119 202303 225330 156446
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 9868 / 13158 3289 / 6579 - / 3289 - / 3289 - / 3289 - / 3289
1000us 197369 / 200659 26316 / 29605 13158 / 16447 13158 / 16447 6579 / 9868 - / 3289
5000us 250001 / 253291 220396 / 223685 134869 / 138159 115132 / 118422 75658 / 78948 3289 / 6579
10000us 256580 / 259870 240133 / 243422 194080 / 197369 164474 / 167764 98685 / 101974 3289 / 6579
25000us 263159 / 266449 250001 / 253291 223685 / 226975 200659 / 203948 121711 / 125001 3289 / 6579
50000us 263159 / 266449 256580 / 259870 236843 / 240133 220396 / 223685 164474 / 167764 26316 / 6579
75000us 266449 / 269738 256580 / 259870 240133 / 243422 233554 / 236843 200659 / 203948 98685 / 19737
100000us 266449 / 269738 259870 / 263159 250001 / 253291 240133 / 243422 223685 / 226975 148027 / 69079
200000us 273028 / 276317 263159 / 266449 256580 / 259870 256580 / 259870 253291 / 256580 226975 / 194080
500000us 282896 / - 273028 / 276317 269738 / 273028 266449 / 269738 263159 / 266449 256580 / 259870
1000000us 282896 / - 282896 / - 279607 / 282896 276317 / 279607 276317 / 279607 269738 / 273028
Probes jOPS / Total jOPS

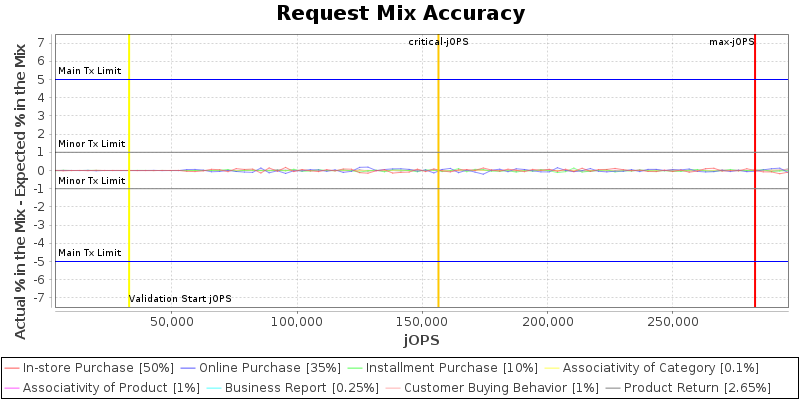

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

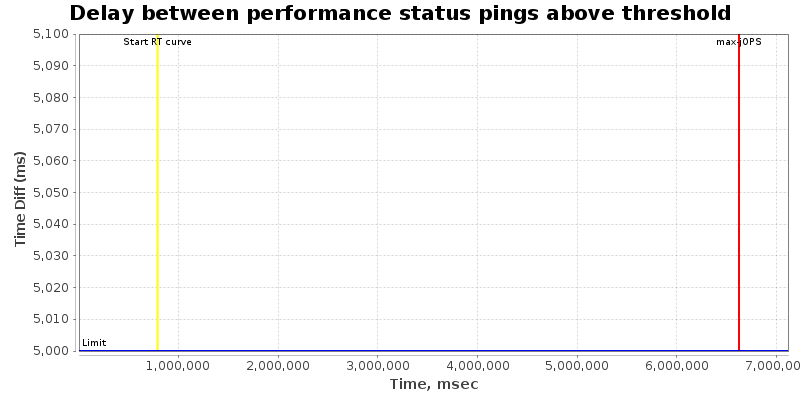

Delay between status pings

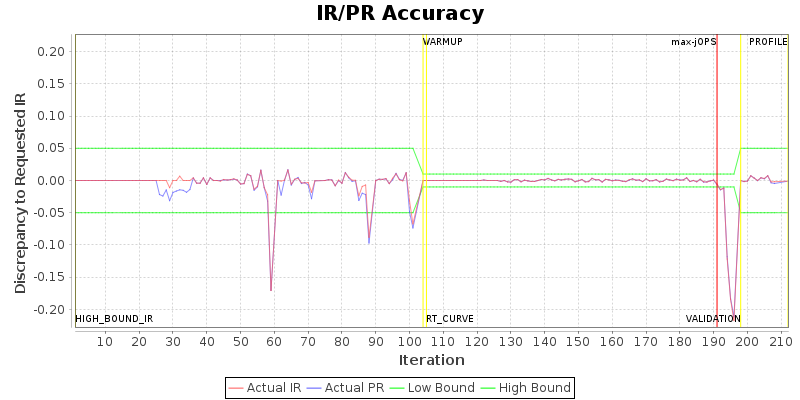

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 60000
specjbb.comm.connect.timeouts.read 60000 60000
specjbb.comm.connect.timeouts.write 60000 60000
specjbb.comm.connect.worker.pool.max 256 80
specjbb.comm.connect.worker.pool.min 1 20
specjbb.customerDriver.threads 64 {probe=64, saturate=192, service=64}
specjbb.forkjoin.workers 160 {Tier1=180, Tier2=60, Tier3=30}
specjbb.group.count 1 4
specjbb.mapreducer.pool.size 160 20
specjbb.txi.pergroup.count 1 2
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 328949 IR
High-bound (settled) is 275218 IR
