Super Micro Computer, Inc Supermicro A+ AS-1115CS-TNR 185232 SPECjbb2015-MultiJVM max-jOPS
86392 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Super Micro Computer, Inc Test Sponsor: Super Micro Computer, Inc Test location: San Jose, California Test date: October 05, 2022
SPEC license #: 001176 Hardware Availability: Nov-2022 Software Availability: Aug-2022 Publication: Thu Nov 17 17:19:03 EST 2022
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorSuper Micro Computer, Inc
Vendor URLhttps://www.supermicro.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores32
Total Threads64
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSupermicro A+ AS-1115CS-TNR
VendorSuper Micro Computer, Inc
Vendor URLhttps://www.supermicro.com
AvailableNov-2022
ModelH13SSW
Form Factor1U
CPU NameAMD EPYC 9374F
CPU Characteristics32 core, 3.5GHz, 256MB L3 Cache (Max. Boost Clock up to 4.1GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System32
Cores Per Chip32
Threads Per System64
Threads Per Core2
Version0.10 09/13/2022
CPU Frequency (MHz)3500
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache1MB (I+D) per core
Tertiary Cache256MB (I+D) on chip per chip
Other CacheNone
Disk10 x 1.92 TB NVMe PCIe Gen4.0
File Systembtrfs
Memory Amount (GB)768
# and size of DIMM(s)12 x 64GB
Memory Details64GB 2Rx4 PC5-38400R , running @ 4800 MHz
# and type of Network Interface Cards (NICs)1 x 1 GbE NIC
Power Supply Quantity and Rating (W)2 x 860w
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttp://suse.com/
Version5.14.21-150400.24.21-default
AvailableJuly-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 18.0.2.1
VendorOracle
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-bit Server VM, version 18.0.2.1
AvailableAug-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning

BIOS Settings:

  • NUMA nodes per socket = NPS4
  • Determinism Control = Manual
  • Determinism Slider = Power
  • L1 Stream HW Prefetcher = Disable
  • L2 Stream HW Prefetcher = Disable
  • TDP Control = Manual
  • TDP = 400
  • PPT Control = Manual
  • PPT = 400

Notes notes
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning

  • cpupower -c all frequency-set -g performance
  • tuned-adm profile throughput-performance

  • echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 40000000 > /proc/sys/kernel/sched_latency_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 800000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 9000 > /proc/sys/kernel/sched_nr_migrate
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo 0 > /proc/sys/vm/numa_stat
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag

  • ulimit -n 1024000
  • UserTasksMax=970000
  • DefaultTasksMax=970000

Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line

-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2

Tuning None
Notes

Used numactl to interleave memory on all CPUs

  • numactl --interleave=all

JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-Xms31g -Xmx31g -Xmn29g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=8 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=300 -XX:LoopUnrollLimit=200 -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=55 -XX:ThreadStackSize=512

Tuning None
Notes

Used numactl to affinitize each Backend JVM to 4 Core / 8 Threads

  • Group1: --physcpubind=0-3,32-35 --localalloc
  • Group2: --physcpubind=4-7,36-39 --localalloc
  • Group3: --physcpubind=8-11,40-43 --localalloc
  • Group4: --physcpubind=12-15,44-47 --localalloc
  • Group5: --physcpubind=16-19,48-51 --localalloc
  • Group6: --physcpubind=20-23,52-55 --localalloc
  • Group7: --physcpubind=24-27,56-59 --localalloc
  • Group8: --physcpubind=28-31,60-63 --localalloc

JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line

-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2

Tuning None
Notes

Used numactl to affinitize each Transaction Injector JVM to 4 Core / 8 Threads

  • Group1: --physcpubind=0-3,32-35 --localalloc
  • Group2: --physcpubind=4-7,36-39 --localalloc
  • Group3: --physcpubind=8-11,40-43 --localalloc
  • Group4: --physcpubind=12-15,44-47 --localalloc
  • Group5: --physcpubind=16-19,48-51 --localalloc
  • Group6: --physcpubind=20-23,52-55 --localalloc
  • Group7: --physcpubind=24-27,56-59 --localalloc
  • Group8: --physcpubind=28-31,60-63 --localalloc

max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 180659 182946 185232 187519 189806
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 53740 74321 92616 106337 122344 86392
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 2287 / 4574 - / 2287 - / 2287 - / 2287 - / 2287 - / 2287
1000us 27442 / 29729 6860 / 9147 2287 / 4574 2287 / 4574 - / 2287 - / 2287
5000us 153217 / 155504 64031 / 66318 41163 / 43450 36589 / 38876 32015 / 34302 - / 2287
10000us 157791 / 160077 144070 / 146356 102907 / 105194 82326 / 84612 52597 / 54884 9147 / 6860
25000us 160077 / 162364 153217 / 155504 132636 / 134922 121201 / 123488 75465 / 73178 13721 / 6860
50000us 162364 / 164651 157791 / 160077 141783 / 144070 132636 / 134922 91473 / 93760 13721 / 6860
75000us 164651 / 166938 160077 / 162364 146356 / 148643 139496 / 141783 105194 / 107481 13721 / 6860
100000us 164651 / 166938 160077 / 162364 150930 / 153217 141783 / 144070 121201 / 123488 13721 / 6860
200000us 171511 / 173798 164651 / 166938 160077 / 162364 155504 / 157791 146356 / 148643 75465 / 6860
500000us 180659 / 182946 173798 / 176085 169225 / 171511 166938 / 169225 164651 / 166938 155504 / 153217
1000000us 185232 / - 182946 / 185232 180659 / 182946 178372 / 180659 178372 / 180659 166938 / 169225

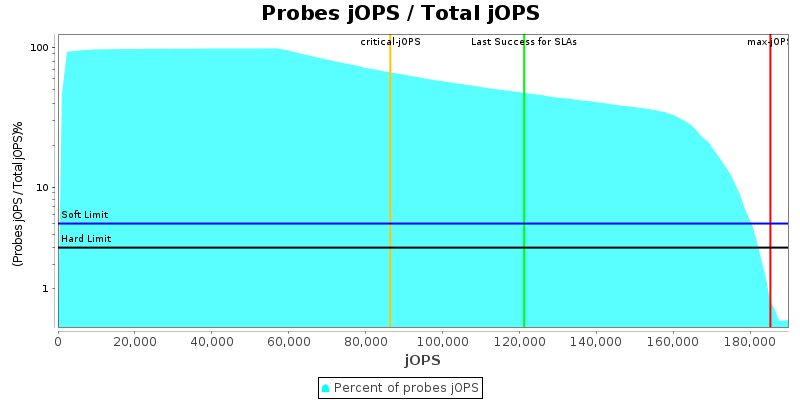

Probes jOPS / Total jOPS

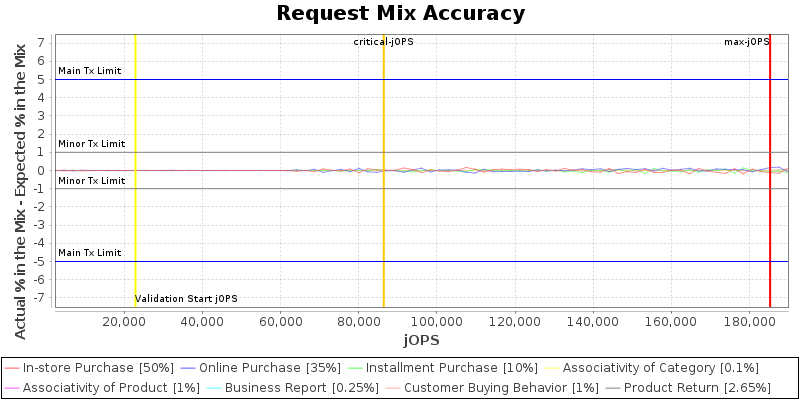

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 256 200 100 200 100 200 100 200 100 200 100 200 100 200 100 200 100
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.timeouts.connect 60000 900000
specjbb.comm.connect.timeouts.read 60000 800000
specjbb.comm.connect.timeouts.write 60000 800000
specjbb.comm.connect.worker.pool.max 256 256 200 100 200 100 200 100 200 100 200 100 200 100 200 100 200 100
specjbb.comm.connect.worker.pool.min 1 1 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.customerDriver.threads 64 {probe=72, saturate=80}
specjbb.forkjoin.workers 64 {Tier1=90, Tier2=12, Tier3=20}
specjbb.group.count 1 8
specjbb.mapreducer.pool.size 64 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 228682 IR
High-bound (settled) is 190701 IR
