Lenovo Global Technology ThinkSystem SR665 V3 670220 SPECjbb2015-Distributed max-jOPS
310603 SPECjbb2015-Distributed critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: Oct 19, 2022
SPEC license #: 9017 Hardware Availability: Dec-2022 Software Availability: Oct-2022 Publication: Thu Nov 10 10:32:32 EST 2022
Benchmark Results Summary

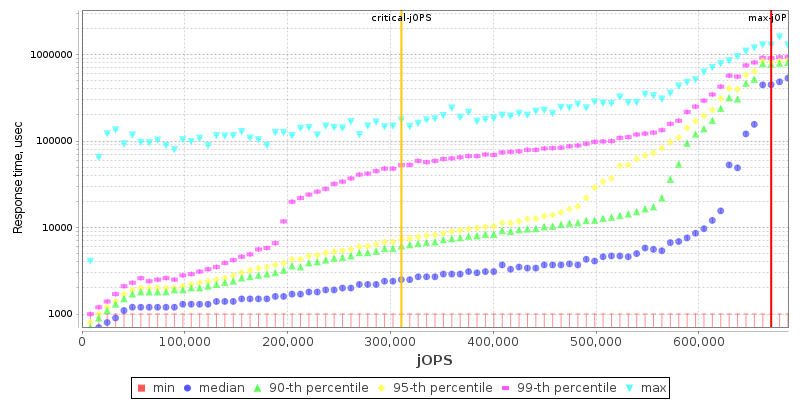

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores192
Total Threads384
Total Memory Amount (GB)1536
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameThinkSystem SR665 V3
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableDec-2022
ModelThinkSystem SR665 V3
Form Factor2U
CPU NameAMD EPYC 9654
CPU Characteristics96 core, 2.40GHz, 384 MB L3 Cache (Max Boost Clock up to 3.70GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System192
Cores Per Chip96
Threads Per System384
Threads Per Core2
VersionKAE103A
CPU Frequency (MHz)2400
Primary Cache32KB(I)+32KB(D) on chip per core
Secondary Cache1MB (I+D) on chip per core
Tertiary Cache384MB (I+D) on chip per chip
Other CacheNone
Disk1 x 480GB SATA SSD
File SystemNTFS
Memory Amount (GB)1536
# and size of DIMM(s)24 x 64 GB
Memory Details64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)1 x 1800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2022 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 21H2(OS Build 20348.1129)
AvailableOct-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.4.1
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 17.0.4.1
AvailableAug-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware hw_2
NameThinkSystem SR665
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableAug-2022
ModelThinkSystem SR665
Form Factor2U
CPU NameAMD EPYC 7773X
CPU Characteristics64 core, 2.20GHz, 768 MB L3 Cache (Max Boost Clock up to 3.50GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
VersionD8E125J
CPU Frequency (MHz)2200
Primary Cache32KB(I)+32KB(D) on chip per core
Secondary Cache512KB (I+D) on chip per core
Tertiary Cache768MB (I+D) on chip per chip
Other CacheNone
Disk1 x 960GB SATA SSD
File SystemNTFS
Memory Amount (GB)2048
# and size of DIMM(s)32 x 64 GB
Memory Details64GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)1 x 1800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameWindows Server 2022 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 21H2(OS Build 20348.1129)
AvailableOct-2022
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle Java SE 17.0.4.1
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 17.0.4.1
AvailableAug-2022
Bitness64
NotesNone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance and then set to Custom Mode
  • Global C-state Control set to Disabled
  • NUMA Nodes per Socket set to NPS4
  • L1 Stream HW Prefetcher set to Disabled
  • L2 Stream HW Prefetcher set to Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(8)
OS Image Description os_1
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Visual Effects Adjust for best performance
  • Lock Pages in Memory is Enabled
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:+UseParallelGC -XX:ParallelGCThreads=48 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -Xnoclassgc -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:TLABAllocationWeight=2
Tuning Affinitized each Backend JVM to a single memory node.
  • start /b /NODE 0
  • start /b /NODE 1
  • start /b /NODE 2
  • start /b /NODE 3
  • start /b /NODE 4
  • start /b /NODE 5
  • start /b /NODE 6
  • start /b /NODE 7
Notes None
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance and then set to Custom Mode
  • NUMA Nodes per Socket set to NPS4
  • L1 Stream HW Prefetcher set to Disable
  • L2 Stream HW Prefetcher set to Disable
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(8)
OS Image Description os_2
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Visual Effects Adjust for best performance
  • Lock Pages in Memory is Enabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning None
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 653873 662046 670220 678393 686566
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 192075 224768 306503 420930 519011 310603
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 16347 / 24520 - / 8173 - / 8173 - / 8173 - / 8173 - / 8173
1000us 286069 / 294243 32694 / 40867 16347 / 24520 16347 / 24520 8173 / 16347 - / 8173
5000us 637526 / 645699 539445 / 547618 261549 / 269723 228855 / 237029 163468 / 171642 8173 / 16347
10000us 653873 / 662046 604832 / 613006 441364 / 449538 384150 / 392324 187988 / 196162 8173 / 16347
25000us 653873 / 662046 621179 / 629353 563965 / 572139 490405 / 498578 220682 / 228855 8173 / 16347
50000us 653873 / 662046 637526 / 629353 572139 / 580312 514925 / 523098 302416 / 310590 8173 / 16347
75000us 653873 / 662046 637526 / 645699 580312 / 588486 555792 / 563965 416844 / 425017 16347 / 24520
100000us 662046 / 670220 637526 / 645699 588486 / 596659 572139 / 580312 514925 / 523098 179815 / 24520
200000us 670220 / - 653873 / 662046 613006 / 621179 604832 / 613006 580312 / 588486 433191 / 359630
500000us 670220 / - 670220 / - 645699 / 653873 637526 / 645699 621179 / 629353 588486 / 596659
1000000us 670220 / - 670220 / - 670220 / - 670220 / - 670220 / - 637526 / 645699
Probes jOPS / Total jOPS

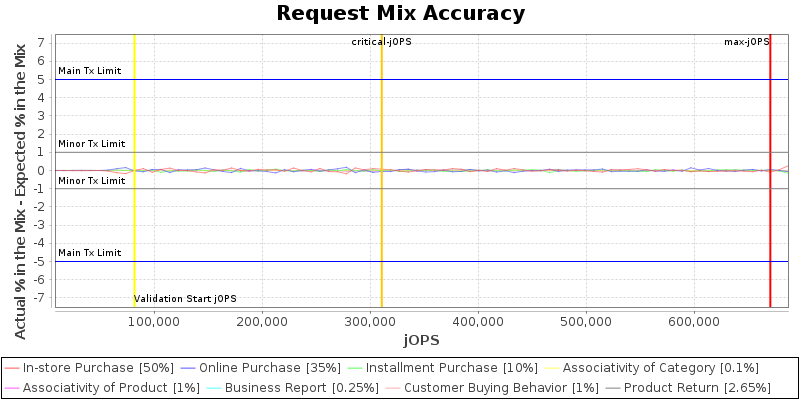

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

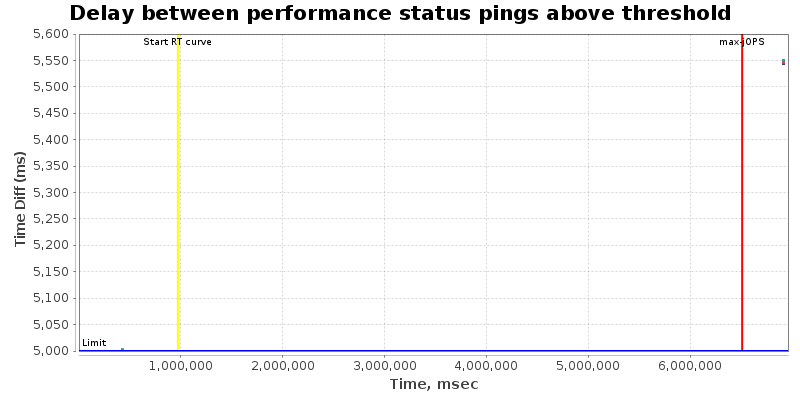

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group2.Backend.beJVM Group3.Backend.beJVM Group4.Backend.beJVM Group5.Backend.beJVM Group6.Backend.beJVM Group7.Backend.beJVM Group8.Backend.beJVM
specjbb.comm.connect.client.pool.size 256 192 64 64 64 64 64 64 64 64
specjbb.comm.connect.selector.runner.count 0 4 1 1 1 1 1 1 1 1
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 45
specjbb.comm.connect.worker.pool.min 1 40
specjbb.controller.host localhost 192.168.5.4
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.forkjoin.workers 64 {Tier1=210, Tier2=18, Tier3=32}
specjbb.group.count 1 8
specjbb.heartbeat.threshold 100000 600000
specjbb.mapreducer.pool.size 64 12
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 817341 IR
High-bound (settled) is 706809 IR
