Lenovo Global Technology ThinkSystem SR665 V3 633563 SPECjbb2015-MultiJVM max-jOPS
447004 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: Oct 18, 2022
SPEC license #: 9017 Hardware Availability: Dec-2022 Software Availability: Oct-2022 Publication: Thu Nov 10 10:32:32 EST 2022
Benchmark Results Summary

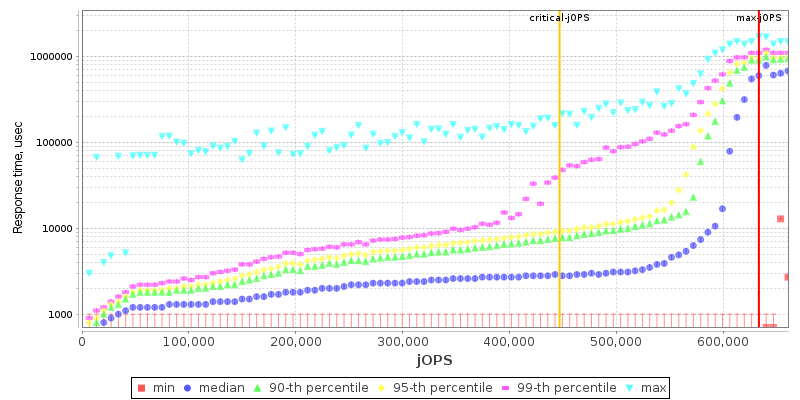

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores192
Total Threads384
Total Memory Amount (GB)1536
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameThinkSystem SR665 V3
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableDec-2022
ModelThinkSystem SR665 V3
Form Factor2U
CPU NameAMD EPYC 9654
CPU Characteristics96 core, 2.40GHz, 384MB L3 Cache (Max Boost Clock up to 3.70GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System192
Cores Per Chip96
Threads Per System384
Threads Per Core2
VersionKAE103A
CPU Frequency (MHz)2400
Primary Cache32KB(I)+32KB(D) on chip per core
Secondary Cache1MB (I+D) on chip per core
Tertiary Cache384MB (I+D) on chip per chip
Other CacheNone
Disk1 x 480GB SATA SSD
File SystemNTFS
Memory Amount (GB)1536
# and size of DIMM(s)24 x 64 GB
Memory Details64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)1 x 1800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2022 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 21H2(OS Build 20348.1129)
AvailableOct-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 19
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 19
AvailableSep-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance and then set to Custom Mode
  • Global C-state Control set to Disabled
  • NUMA Nodes per Socket set to NPS4
  • L1 Stream HW Prefetcher set to Disabled
  • L2 Stream HW Prefetcher set to Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
  • Visual Effects Adjust for best performance
  • Lock Pages in Memory is Enabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms120g -Xmx120g -Xmn118g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -XX:SurvivorRatio=100 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=32 -XX:MaxTenuringThreshold=15 -Xnoclassgc -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:TLABAllocationWeight=55 -XX:ThreadStackSize=512 -XX:CompileThresholdScaling=120
Tuning Affinitized each Backend JVM to a single memory node.
  • start /b /NODE 0
  • start /b /NODE 1
  • start /b /NODE 2
  • start /b /NODE 3
  • start /b /NODE 4
  • start /b /NODE 5
  • start /b /NODE 6
  • start /b /NODE 7
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning Affinitize each TxInjector JVM to a single memory node.
  • start /b /NODE 0
  • start /b /NODE 1
  • start /b /NODE 2
  • start /b /NODE 3
  • start /b /NODE 4
  • start /b /NODE 5
  • start /b /NODE 6
  • start /b /NODE 7
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 626751 633563 640376 647188 654001
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 364469 425782 453032 487094 521157 447004
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 13625 / 20438 6813 / 13625 - / 6813 - / 6813 - / 6813 - / 6813
1000us 252063 / 258875 34063 / 40875 20438 / 27250 13625 / 20438 6813 / 13625 - / 6813
5000us 606313 / 613126 558626 / 565438 320188 / 327000 265688 / 258875 204375 / 190750 27250 / 13625
10000us 613126 / 619938 585876 / 592688 510938 / 517751 463251 / 470063 361063 / 367876 40875 / 13625
25000us 619938 / 626751 599501 / 606313 572251 / 579063 551813 / 558626 429188 / 422376 40875 / 13625
50000us 619938 / 626751 599501 / 606313 572251 / 579063 565438 / 572251 449626 / 456438 40875 / 13625
75000us 619938 / 626751 599501 / 606313 579063 / 585876 565438 / 572251 483688 / 490501 204375 / 74938
100000us 619938 / 626751 606313 / 613126 579063 / 585876 572251 / 579063 517751 / 524563 286125 / 74938
200000us 626751 / 633563 613126 / 619938 592688 / 599501 579063 / 585876 565438 / 572251 476876 / 449626
500000us 633563 / - 619938 / 626751 606313 / 613126 599501 / 606313 585876 / 592688 572251 / 579063
1000000us 633563 / - 633563 / - 633563 / - 633563 / - 619938 / 626751 585876 / 592688
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

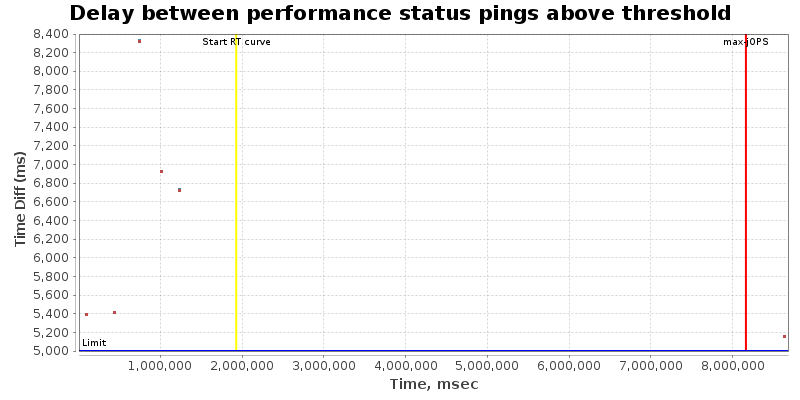

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group2.Backend.beJVM Group3.Backend.beJVM Group4.Backend.beJVM Group5.Backend.beJVM Group6.Backend.beJVM Group7.Backend.beJVM Group8.Backend.beJVM
specjbb.comm.connect.client.pool.size 256 256 160 160 160 160 160 160 160 160
specjbb.comm.connect.selector.runner.count 0 1
specjbb.comm.connect.worker.pool.max 256 45
specjbb.comm.connect.worker.pool.min 1 30
specjbb.forkjoin.workers 48 {Tier1=124, Tier2=10, Tier3=28}
specjbb.group.count 1 8
specjbb.mapreducer.pool.size 48 12
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 681251 IR
High-bound (settled) is 665691 IR
