SPECjbb2015 Report for jbb2015-20221019-00906 : 811237 max-jOPS ; 345838 critical-jOPS

SUT Description

Hardware hw_1
Name	ProLiant DL385 Gen11
Vendor	Hewlett Packard Enterprise
Vendor URL	http://hpe.com/
Available	Nov-2022
Model	ProLiant DL385 Gen11
Form Factor	2U Rack
CPU Name	AMD EPYC 9654
CPU Characteristics	96 Core, 2.4 GHz, 384 MB L3 Cache(Max. Boost Clock Up to 3.7 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	192
Cores Per Chip	96
Threads Per System	384
Threads Per Core	2
Version	A55 v1.10 10/06/2022
CPU Frequency (MHz)	2400
Primary Cache	32 KB I + 32 KB D on chip per core
Secondary Cache	1024 KB I+D on chip per core
Tertiary Cache	384 MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 3.2 TB NVMe SSD
File System	XFS
Memory Amount (GB)	1536
# and size of DIMM(s)	24 x 64 GB
Memory Details	64GB 2Rx4 PC5-38400R , running at 4800 MHz
# and type of Network Interface Cards (NICs)	HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)	2 x 1600
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented Cabled the 4th xGMI (xGMI3)
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	http://suse.com/
Version	5.14.21-150400.22-default
Available	Jul-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 18.0.2.1
Vendor	Oracle
Vendor URL	http://www.oracle.com/
Version	Java HotSpot 64-bit Server VM, version 18.0.2.1
Available	Aug-2022
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	Non-virtual
Tuning	Workload Profile=High Performance Compute(HPC) Thermal Configuration=Maximum Cooling Determinism Control=Manual Performance Determinism=Power Deterministic Memory Patrol Scrubbing=Disabled Numa Memory Domains Per Socket(NPS)=Four Memory Domains Per Socket Last-Level Cache(LLC) As NUMA Node=Enabled L1 Stream HW Prefetcher=Disabled L2 Stream HW Prefetcher=Disabled Minimum Processor Idle Power Core C-State=No C-states xGMI Link Bandwidth=32Gbps Package Power Limit=400
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(24), jvm_TxInjector_1(24)
OS Image Description	os_1
Tuning	ulimit -n 1024000 UserTasksMax=970000 DefaultTasksMax=970000 tuned-adm profile throughput-performance write_schedstat rt_runtime_us 960000 write_schedstat latency_ns 20000000 write_schedstat migration_cost_ns 40000 write_schedstat min_granularity_ns 810000000 write_schedstat wakeup_granularity_ns 200000000 write_schedstat nr_migrate 9000 echo 10000 > /proc/sys/vm/dirty_expire_centisecs echo 1500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing echo 0 > /proc/sys/vm/numa_stat echo always > /sys/kernel/mm/transparent_hugepage/enabled echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms8g -Xmx8g -Xmn6g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	Used numactl to interleave memory on all CPUs numactl --interleave=all
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms31g -Xmx31g -Xmn29g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=12 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100 -XX:TLABSize=1m -XX:MinTLABSize=1m -XX:-ResizeTLAB -XX:TLABWasteTargetPercent=1 -XX:TLABWasteIncrement=1 -XX:YoungPLABSize=1m -XX:OldPLABSize=1m
Tuning	Used numactl to affinitize each Backend JVM to physical cores in a NUMA node. numactl --physcpubind=0-7,192-199 --localalloc numactl --physcpubind=8-15,200-207 --localalloc numactl --physcpubind=16-23,208-215 --localalloc numactl --physcpubind=24-31,216-223 --localalloc numactl --physcpubind=32-39,224-231 --localalloc numactl --physcpubind=40-47,232-239 --localalloc numactl --physcpubind=48-55,240-247 --localalloc numactl --physcpubind=56-63,248-255 --localalloc numactl --physcpubind=64-71,256-263 --localalloc numactl --physcpubind=72-79,264-271 --localalloc numactl --physcpubind=80-87,272-279 --localalloc numactl --physcpubind=88-95,280-287 --localalloc numactl --physcpubind=96-103,288-295 --localalloc numactl --physcpubind=104-111,296-303 --localalloc numactl --physcpubind=112-119,304-311 --localalloc numactl --physcpubind=120-127,312-319 --localalloc numactl --physcpubind=128-135,320-327 --localalloc numactl --physcpubind=136-143,328-335 --localalloc numactl --physcpubind=144-151,336-343 --localalloc numactl --physcpubind=152-159,344-351 --localalloc numactl --physcpubind=160-167,352-359 --localalloc numactl --physcpubind=168-175,360-367 --localalloc numactl --physcpubind=176-183,368-375 --localalloc numactl --physcpubind=184-191,376-383 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms8g -Xmx8g -Xmn6g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2
Tuning	Used numactl to affinitize each Transaction Injector JVM to physical cores in a NUMA node. numactl --physcpubind=0-7,192-199 --localalloc numactl --physcpubind=8-15,200-207 --localalloc numactl --physcpubind=16-23,208-215 --localalloc numactl --physcpubind=24-31,216-223 --localalloc numactl --physcpubind=32-39,224-231 --localalloc numactl --physcpubind=40-47,232-239 --localalloc numactl --physcpubind=48-55,240-247 --localalloc numactl --physcpubind=56-63,248-255 --localalloc numactl --physcpubind=64-71,256-263 --localalloc numactl --physcpubind=72-79,264-271 --localalloc numactl --physcpubind=80-87,272-279 --localalloc numactl --physcpubind=88-95,280-287 --localalloc numactl --physcpubind=96-103,288-295 --localalloc numactl --physcpubind=104-111,296-303 --localalloc numactl --physcpubind=112-119,304-311 --localalloc numactl --physcpubind=120-127,312-319 --localalloc numactl --physcpubind=128-135,320-327 --localalloc numactl --physcpubind=136-143,328-335 --localalloc numactl --physcpubind=144-151,336-343 --localalloc numactl --physcpubind=152-159,344-351 --localalloc numactl --physcpubind=160-167,352-359 --localalloc numactl --physcpubind=168-175,360-367 --localalloc numactl --physcpubind=176-183,368-375 --localalloc numactl --physcpubind=184-191,376-383 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	794337	802787	811237	819688	828138

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	223935	289426	375197	433786	468996	345838

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	16901 / 25351	8450 / 16901	- / 8450	- / 8450	- / 8450	- / 8450
1000us	101405 / 109855	25351 / 33802	8450 / 16901	8450 / 16901	8450 / 16901	- / 8450
5000us	540825 / 549275	245061 / 253512	169008 / 177458	152107 / 160557	126756 / 135206	25351 / 16901
10000us	557726 / 566176	507023 / 515474	338016 / 346466	295764 / 304214	219710 / 228161	25351 / 16901
25000us	574627 / 583077	549275 / 557726	490123 / 498573	439420 / 447871	295764 / 270412	25351 / 16901
50000us	583077 / 591527	566176 / 574627	515474 / 523924	490123 / 498573	388718 / 354916	25351 / 16901
75000us	591527 / 599978	574627 / 583077	540825 / 549275	507023 / 515474	439420 / 422519	25351 / 16901
100000us	599978 / 608428	583077 / 591527	557726 / 566176	540825 / 549275	473222 / 464771	25351 / 16901
200000us	642230 / 650680	599978 / 608428	574627 / 583077	574627 / 583077	557726 / 566176	312664 / 67603
500000us	785886 / 794337	676031 / 684482	642230 / 650680	625329 / 633779	616878 / 625329	473222 / 270412
1000000us	811237 / -	811237 / -	752085 / 760535	735184 / 743634	709833 / 718283	599978 / 456321

Number of probes

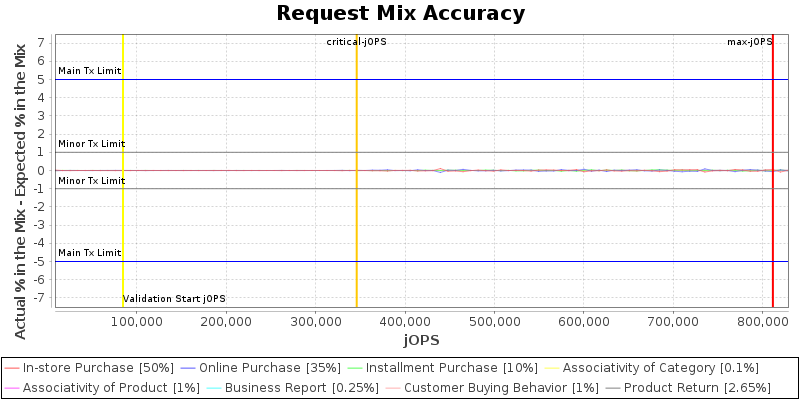

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

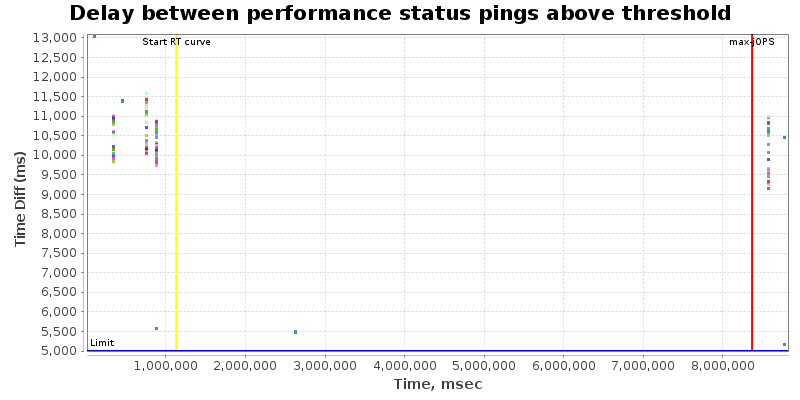

Delay between performance status pings during RT Curve (Response-Throughput Curve)

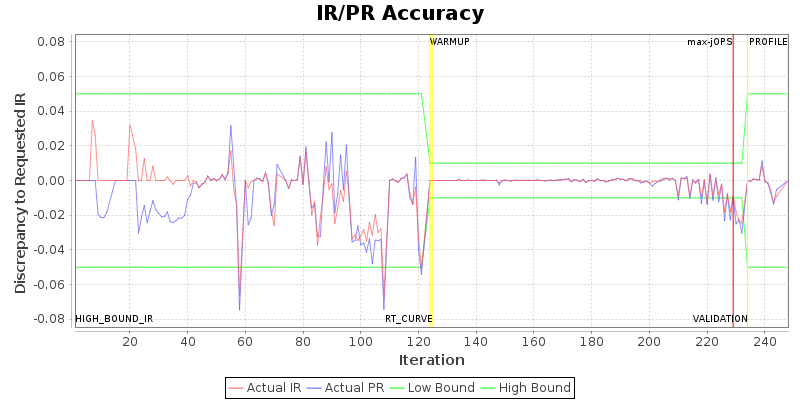

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group10.Backend.beJVM	Group10.TxInjector.txiJVM1	Group11.Backend.beJVM	Group11.TxInjector.txiJVM1	Group12.Backend.beJVM	Group12.TxInjector.txiJVM1	Group13.Backend.beJVM	Group13.TxInjector.txiJVM1	Group14.Backend.beJVM	Group14.TxInjector.txiJVM1	Group15.Backend.beJVM	Group15.TxInjector.txiJVM1	Group16.Backend.beJVM	Group16.TxInjector.txiJVM1	Group17.Backend.beJVM	Group17.TxInjector.txiJVM1	Group18.Backend.beJVM	Group18.TxInjector.txiJVM1	Group19.Backend.beJVM	Group19.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group20.Backend.beJVM	Group20.TxInjector.txiJVM1	Group21.Backend.beJVM	Group21.TxInjector.txiJVM1	Group22.Backend.beJVM	Group22.TxInjector.txiJVM1	Group23.Backend.beJVM	Group23.TxInjector.txiJVM1	Group24.Backend.beJVM	Group24.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1	Group9.Backend.beJVM	Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	150	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170	256	170
specjbb.comm.connect.selector.runner.count	0	10	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5	20	5
specjbb.comm.connect.timeouts.connect	60000	900000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.read	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.timeouts.write	60000	800000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000	60000
specjbb.comm.connect.worker.pool.max	256	150	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200	256	200
specjbb.comm.connect.worker.pool.min	1	16	32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32		32
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.customerDriver.threads	64	{probe=130, saturate=300, service=160}
specjbb.forkjoin.workers	384	{Tier1=800, Tier2=45, Tier3=160}
specjbb.group.count	1	24
specjbb.mapreducer.pool.size	384	10
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 845039 IR

High-bound (settled) is 818540 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Hewlett Packard Enterprise ProLiant DL385 Gen11	811237 SPECjbb2015-MultiJVM max-jOPS 345838 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise	Test Sponsor: Hewlett Packard Enterprise	Test location: Houston, TX	Test date: October 15, 2022
SPEC license #: 3	Hardware Availability: Nov-2022	Software Availability: Aug-2022	Publication: Thu Nov 10 10:29:34 EST 2022
