Hewlett Packard Enterprise ProLiant DL325 Gen11 409542 SPECjbb2015-MultiJVM max-jOPS
219603 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Hewlett Packard Enterprise Test Sponsor: Hewlett Packard Enterprise Test location: Houston, TX Test date: October 13, 2022
SPEC license #: 3 Hardware Availability: Nov-2022 Software Availability: Aug-2022 Publication: Thu Nov 10 10:29:34 EST 2022
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorHewlett Packard Enterprise
Vendor URLhttp://www.hpe.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores96
Total Threads192
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameProLiant DL325 Gen11
VendorHewlett Packard Enterprise
Vendor URLhttp://hpe.com/
AvailableNov-2022
ModelProLiant DL325 Gen11
Form Factor1U Rack
CPU NameAMD EPYC 9654P
CPU Characteristics96 Core, 2.4 GHz, 384 MB L3 Cache(Max. Boost Clock Up to 3.7 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System96
Cores Per Chip96
Threads Per System192
Threads Per Core2
VersionA56 v1.10 10/06/2022
CPU Frequency (MHz)2400
Primary Cache32 KB I + 32 KB D on chip per core
Secondary Cache1024 KB I+D on chip per core
Tertiary Cache384 MB (I+D) on chip per chip
Other CacheNone
Disk1 x 1.6 TB NVMe SSD
File SystemXFS
Memory Amount (GB)768
# and size of DIMM(s)12 x 64 GB
Memory Details64GB 2Rx4 PC5-38400R , running at 4800 MHz
# and type of Network Interface Cards (NICs)HPE Ethernet 10Gb 2-port
Power Supply Quantity and Rating (W)2 x 800
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttp://suse.com/
Version5.14.21-150400.22-default
AvailableJul-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 18.0.2.1
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 18.0.2.1
AvailableAug-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment Non-virtual
Tuning
  • Workload Profile=High Performance Compute(HPC)
  • Thermal Configuration=Maximum Cooling
  • Determinism Control=Manual
  • Performance Determinism=Power Deterministic
  • Memory Patrol Scrubbing=Disabled
  • Numa Memory Domains Per Socket(NPS)=Four Memory Domains Per Socket
  • Last-Level Cache(LLC) As NUMA Node=Enabled
  • L1 Stream HW Prefetcher=Disabled
  • L2 Stream HW Prefetcher=Disabled
  • Minimum Processor Idle Power Core C-State=No C-states
  • Package Power Limit=400
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(12), jvm_TxInjector_1(12)
OS Image Description os_1
Tuning
  • tuned-adm profile throughput-performance
  • ulimit -n 1024000
  • UserTasksMax=970000
  • DefaultTasksMax=970000
  • write_schedstat rt_runtime_us 960000
  • write_schedstat latency_ns 40000000
  • write_schedstat migration_cost_ns 40000
  • write_schedstat min_granularity_ns 900000000
  • write_schedstat wakeup_granularity_ns 200000000
  • write_schedstat nr_migrate 9000
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo 0 > /proc/sys/vm/numa_stat
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line

-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=2

Tuning

Used numactl to interleave memory on all CPUs

  • numactl --interleave=all
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-Xms30g -Xmx30g -Xmn29g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=20 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4

Tuning

Used numactl to affinitize each Backend JVM to physcical cores in a NUMA node.

  • numactl --physcpubind=0-7,96-103 --localalloc
  • numactl --physcpubind=8-15,104-111 --localalloc
  • numactl --physcpubind=16-23,112-119 --localalloc
  • numactl --physcpubind=24-31,120-127 --localalloc
  • numactl --physcpubind=32-39,128-135 --localalloc
  • numactl --physcpubind=40-47,136-143 --localalloc
  • numactl --physcpubind=48-55,144-151 --localalloc
  • numactl --physcpubind=56-63,152-159 --localalloc
  • numactl --physcpubind=64-71,160-167 --localalloc
  • numactl --physcpubind=72-79,168-175 --localalloc
  • numactl --physcpubind=80-87,176-183 --localalloc
  • numactl --physcpubind=88-95,184-191 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line

-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=2

Tuning

Used numactl to affinitize each Transaction Injector JVM to physical cores in a NUMA node.

  • numactl --physcpubind=0-7,96-103 --localalloc
  • numactl --physcpubind=8-15,104-111 --localalloc
  • numactl --physcpubind=16-23,112-119 --localalloc
  • numactl --physcpubind=24-31,120-127 --localalloc
  • numactl --physcpubind=32-39,128-135 --localalloc
  • numactl --physcpubind=40-47,136-143 --localalloc
  • numactl --physcpubind=48-55,144-151 --localalloc
  • numactl --physcpubind=56-63,152-159 --localalloc
  • numactl --physcpubind=64-71,160-167 --localalloc
  • numactl --physcpubind=72-79,168-175 --localalloc
  • numactl --physcpubind=80-87,176-183 --localalloc
  • numactl --physcpubind=88-95,184-191 --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 399673 404608 409542 414476 419410
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 150494 180100 234376 273850 293587 219603
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 9868 / 14803 4934 / 9868 - / 4934 - / 4934 - / 4934 - / 4934
1000us 64145 / 69079 14803 / 19737 9868 / 14803 4934 / 9868 4934 / 9868 - / 4934
5000us 350331 / 355265 291120 / 296054 98685 / 103619 93751 / 98685 83882 / 88816 - / 4934
10000us 355265 / 360200 330594 / 335528 251646 / 256580 217107 / 222041 148027 / 152961 14803 / 4934
25000us 360200 / 365134 340463 / 345397 300989 / 305923 286186 / 291120 177633 / 182567 14803 / 4934
50000us 365134 / 370068 350331 / 355265 320726 / 325660 300989 / 305923 231909 / 236844 14803 / 4934
75000us 370068 / 375002 355265 / 360200 330594 / 335528 315791 / 320726 271383 / 276317 14803 / 4934
100000us 370068 / 375002 360200 / 365134 335528 / 340463 325660 / 330594 291120 / 296054 103619 / 4934
200000us 384871 / 379936 370068 / 375002 355265 / 360200 350331 / 355265 330594 / 335528 217107 / 202304
500000us 404608 / 409542 389805 / 394739 375002 / 379936 370068 / 375002 370068 / 375002 330594 / 320726
1000000us 409542 / - 404608 / 409542 394739 / 399673 394739 / 399673 394739 / 399673 365134 / 370068

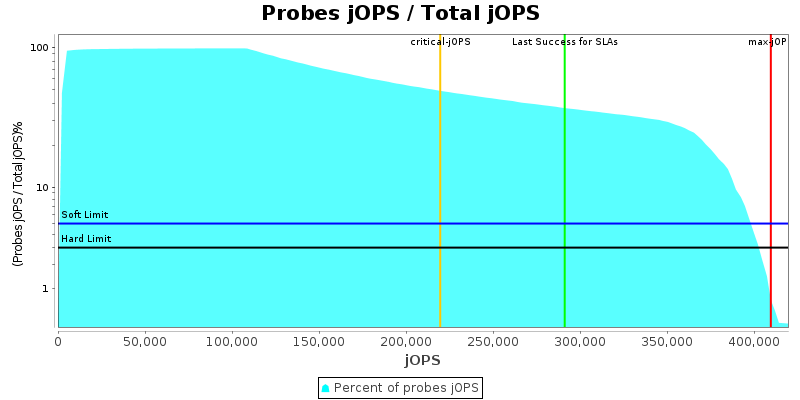

Probes jOPS / Total jOPS

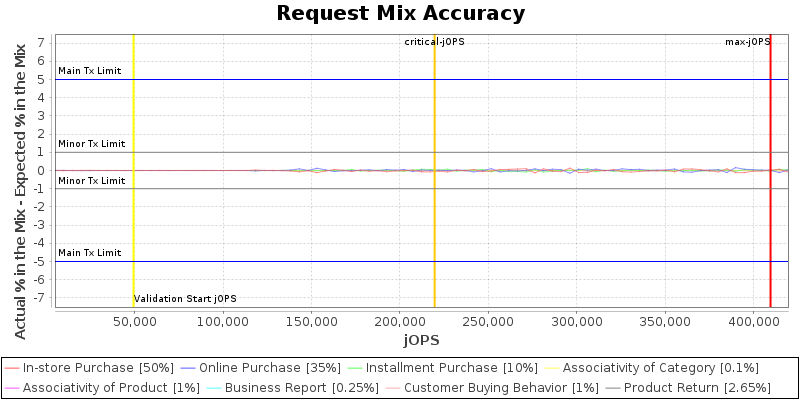

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

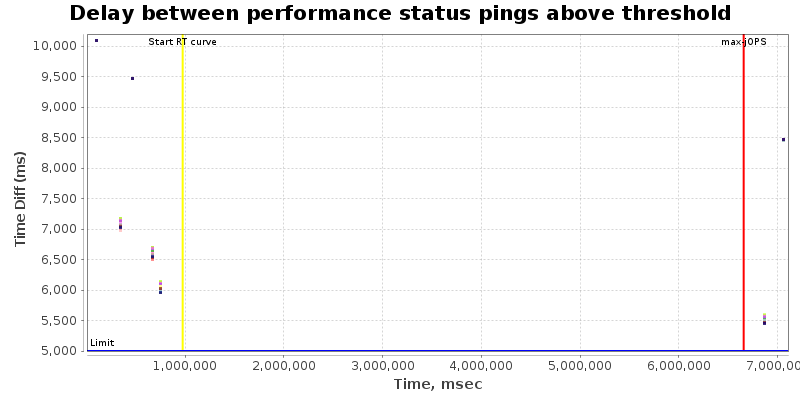

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group10.Backend.beJVM Group10.TxInjector.txiJVM1 Group11.Backend.beJVM Group11.TxInjector.txiJVM1 Group12.Backend.beJVM Group12.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1 Group9.Backend.beJVM Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 256 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150
specjbb.comm.connect.selector.runner.count 0 2 4 4 4 4 4 4 4 4 4 4 4 4
specjbb.comm.connect.timeouts.connect 60000 900000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.read 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.write 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.worker.pool.max 256 256 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150
specjbb.comm.connect.worker.pool.min 1 1 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.customerDriver.threads 64 {probe=90, saturate=140, service=90}
specjbb.forkjoin.workers 192 {Tier1=150, Tier2=6, Tier3=20}
specjbb.group.count 1 12
specjbb.mapreducer.pool.size 192 6
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 493424 IR
High-bound (settled) is 429875 IR
