Dell Inc. PowerEdge R7625 403345 SPECjbb2015-MultiJVM max-jOPS
187269 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Dell Inc. Test Sponsor: Dell Inc. Test location: Round Rock, TX Test date: Oct 15, 2022
SPEC license #: 55 Hardware Availability: Nov-2022 Software Availability: Aug-2022 Publication: Thu Nov 10 10:32:32 EST 2022
Benchmark Results Summary

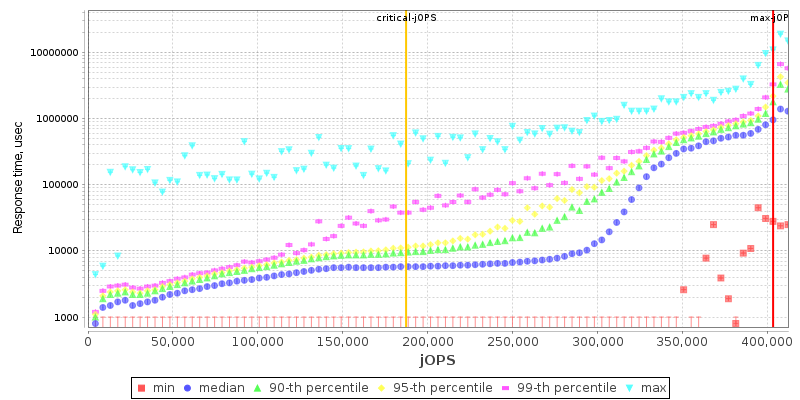

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorDell Inc.
Vendor URLhttp://www.dell.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores96
Total Threads192
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameDell Inc. PowerEdge R7625
VendorDell Inc.
Vendor URLhttp://www.dell.com
AvailableNov-2022
ModelPowerEdge R7625
Form Factor2U
CPU NameAMD EPYC 9654
CPU Characteristics96 core, 2.4GHz, 384MB L3 Cache (Max. Boost Clock up to 3.7GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System96
Cores Per Chip96
Threads Per System192
Threads Per Core2
Version1.0.0, 09/28/2022
CPU Frequency (MHz)2400
Primary Cache32 KB(I)+32 KB(D) per core
Secondary Cache1 MB (I+D) per core
Tertiary Cache384 MB (I+D) on chip per chip
Other CacheNone
Disk1 x SAS SSD 600GB
File Systembtrfs
Memory Amount (GB)768
# and size of DIMM(s)12 x 64 GB
Memory Details64 GB 2Rx4 PC5-38400R (slots A1-12 populated)
# and type of Network Interface Cards (NICs)1 x Broadcom Gigabit Ethernet BCM5720
Power Supply Quantity and Rating (W)2 X 2400
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented
  • The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttp://suse.com/
Version5.14.21-150400.22-default
AvailableJun-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 18.0.2.1
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 18.0.2.1
AvailableAug-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Logical Processor : Enabled
  • L1 Stream HW Prefetcher : Disabled
  • L2 Stream HW Prefetcher : Disabled
  • MADT Core Enumeration : Linear
  • NUMA Nodes Per Socket : 4
  • L3 cache as NUMA Domain : Enabled
  • System Profile : Custom
  • Determinism Slider : Power Determinism
  • Algorithm Performance Boost Disable (ApbDis) : Enabled
  • ApbDis Fixed Socket P-State : P0
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(12), jvm_TxInjector_1(12)
OS Image Description os_1
Tuning
  • echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 40000000 > /proc/sys/kernel/sched_latency_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 900000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 9000 > /proc/sys/kernel/sched_nr_migrate
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo 0 > /proc/sys/vm/numa_stat
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag

  • ulimit -n 1024000
  • UserTasksMax=970000
  • DefaultTasksMax=970000
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=2
Tuning Used numactl to interleave memory on all CPUs
  • numactl --interleave=all
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms31g -Xmx31g -Xmn29g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=18 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100 -XX:TLABSize=1m -XX:MinTLABSize=1m -XX:-ResizeTLAB -XX:TLABWasteTargetPercent=1 -XX:TLABWasteIncrement=1 -XX:YoungPLABSize=1m -XX:OldPLABSize=1m
Tuning Used numactl to affinitize each Backend JVM to 8 Core / 16 Threads
    • Group1: --physcpubind=0-7,96-103 --localalloc
    • Group2: --physcpubind=8-15,104-111 --localalloc
    • Group3: --physcpubind=16-23,112-119 --localalloc
    • Group4: --physcpubind=24-31,120-127 --localalloc
    • Group5: --physcpubind=32-39,128-135 --localalloc
    • Group6: --physcpubind=40-47,136-143 --localalloc
    • Group7: --physcpubind=48-55,144-151 --localalloc
    • Group8: --physcpubind=56-63,152-159 --localalloc
    • Group9: --physcpubind=64-71,160-167 --localalloc
    • Group10: --physcpubind=72-79,168-175 --localalloc
    • Group11: --physcpubind=80-87,176-183 --localalloc
    • Group12: --physcpubind=88-95,184-191 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=2
Tuning Used numactl to affinitize each Transaction Injector JVM to 8 Core / 16 Threads
    • Group1: --physcpubind=0-7,96-103 --localalloc
    • Group2: --physcpubind=8-15,104-111 --localalloc
    • Group3: --physcpubind=16-23,112-119 --localalloc
    • Group4: --physcpubind=24-31,120-127 --localalloc
    • Group5: --physcpubind=32-39,128-135 --localalloc
    • Group6: --physcpubind=40-47,136-143 --localalloc
    • Group7: --physcpubind=48-55,144-151 --localalloc
    • Group8: --physcpubind=56-63,152-159 --localalloc
    • Group9: --physcpubind=64-71,160-167 --localalloc
    • Group10: --physcpubind=72-79,168-175 --localalloc
    • Group11: --physcpubind=80-87,176-183 --localalloc
    • Group12: --physcpubind=88-95,184-191 --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 394576 398960 403345 407729 412113
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 120565 150941 203426 238499 260858 187269
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 4384 / 8768 - / 4384 - / 4384 - / 4384 - / 4384 - / 4384
1000us 56994 / 13153 4384 / 8768 4384 / 8768 - / 4384 - / 4384 - / 4384
5000us 306893 / 311277 127141 / 131525 87684 / 92068 83299 / 87684 70147 / 74531 4384 / 8768
10000us 315661 / 320045 289356 / 293740 197288 / 201672 166599 / 170983 122757 / 118373 17537 / 13153
25000us 324429 / 328813 306893 / 311277 271819 / 276203 245514 / 249898 162215 / 135910 17537 / 13153
50000us 328813 / 333198 315661 / 320045 289356 / 293740 271819 / 276203 210441 / 192904 17537 / 13153
75000us 328813 / 333198 320045 / 324429 298124 / 302508 280588 / 284972 245514 / 227977 17537 / 13153
100000us 333198 / 337582 324429 / 328813 306893 / 311277 298124 / 302508 271819 / 249898 43842 / 13153
200000us 355119 / 350734 333198 / 337582 324429 / 328813 320045 / 324429 306893 / 302508 175367 / 56994
500000us 398960 / 403345 368271 / 372655 350734 / 355119 346350 / 350734 337582 / 341966 254282 / 135910
1000000us 403345 / - 403345 / - 394576 / 398960 390192 / 394576 381424 / 385808 311277 / 298124

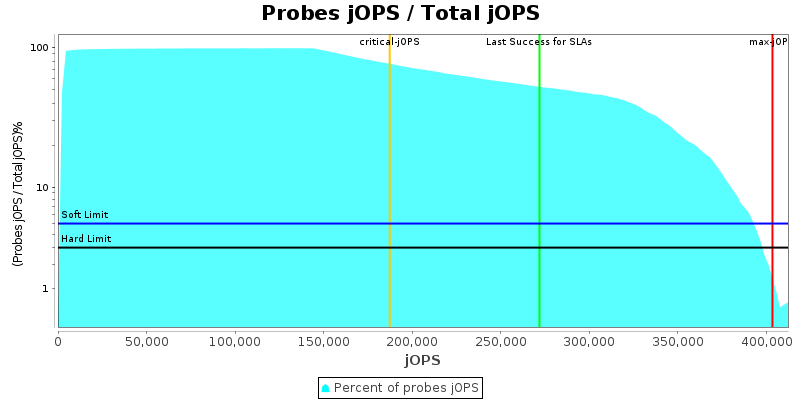

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

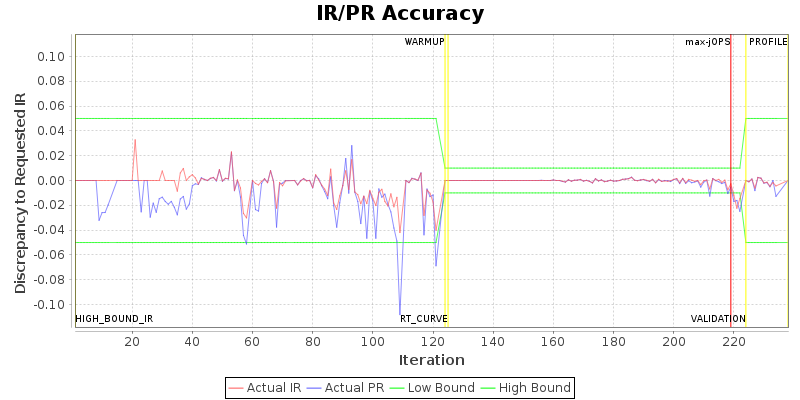

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group10.Backend.beJVM Group10.TxInjector.txiJVM1 Group11.Backend.beJVM Group11.TxInjector.txiJVM1 Group12.Backend.beJVM Group12.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1 Group9.Backend.beJVM Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 150 400 180 400 180 400 180 400 180 400 180 400 180 400 180 400 180 400 180 400 180 400 180 400 180
specjbb.comm.connect.selector.runner.count 0 10 15 5 15 5 15 5 15 5 15 5 15 5 15 5 15 5 15 5 15 5 15 5 15 5
specjbb.comm.connect.timeouts.connect 60000 900000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.read 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.write 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.worker.pool.max 256 150 400 180 400 180 400 180 400 180 400 180 400 180 400 180 400 180 400 180 400 180 400 180 400 180
specjbb.comm.connect.worker.pool.min 1 16 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1 32 1
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.controller.rtcurve.warmup.step 0.1 0.25
specjbb.customerDriver.threads 64 {probe=120, saturate=180, service=80}
specjbb.forkjoin.workers 192 {Tier1=507, Tier2=15, Tier3=70}
specjbb.group.count 1 12
specjbb.mapreducer.pool.size 192 10
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 438418 IR
High-bound (settled) is 422519 IR
