Inspur Corporation NF5280M6 131580 SPECjbb2015-MultiJVM max-jOPS
69925 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Inspur Corporation Test Sponsor: Inspur Corporation Test location: Jinan, China Test date: Nov 30, 2022
SPEC license #: 3358 Hardware Availability: Apr-2021 Software Availability: Nov-2022 Publication: Thu Dec 15 11:19:54 EST 2022
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores32
Total Threads64
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameInspur NF5280M6
VendorInspur Corporation
Vendor URLhttp://www.inspur.com/
AvailableApr-2021
ModelInspur NF5280M6
Form Factor2U
CPU NameIntel Xeon Gold 6326
CPU Characteristics16 Core, 2.90 GHz, 24 MB L3 Cache (Turbo Boost Technology up to 3.50 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System32
Cores Per Chip16
Threads Per System64
Threads Per Core2
Version6.01.00 released Nov-2022
CPU Frequency (MHz)2900
Primary Cache32 KB(I)+48 KB(D)on chip per core
Secondary Cache1.25MB (I+D) per core
Tertiary Cache24MB (I+D) on chip per chip
Other CacheNone
Disk1x 4TB NVMe SSD
File Systemxfs
Memory Amount (GB)1024
# and size of DIMM(s)32 x 32GB
Memory Details32 x 32GB 2Rx4 PC4-3200AA-R; each slot populated
# and type of Network Interface Cards (NICs)1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 1300W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 8.6 (Ootpa)
VendorRed Hat
Vendor URLhttp://redhat.com/
Version4.18.0-372.9.1
AvailableMay-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.5
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 17.0.5
AvailableOct-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Energy Performance set to Performance
  • SNC Enabled
  • Memory Patrol Scrub Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • ulimit -n 655360
  • tuned-adm profile throughput-performance
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xmx30g -Xms30g -Xmn27g -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+AlwaysPreTouch -XX:InlineSmallCode=10k -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:LoopUnrollLimit=20 -XX:MaxTenuringThreshold=15 -XX:TargetSurvivorRatio=95 -XX:AllocatePrefetchInstr=2 -XX:UseAVX=0
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xmn1536m -Xms2g -Xmx2g
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 129935 131580 133225 134869 136514
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 48520 61678 69901 83059 96217 69925
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 3289 / 4934 1645 / 3289 - / 1645 - / 1645 - / 1645 - / 1645
1000us 21382 / 23026 6579 / 8224 3289 / 4934 3289 / 4934 1645 / 3289 - / 1645
5000us 129935 / 131580 108553 / 110198 50987 / 52632 31250 / 32895 23026 / 24671 8224 / 4934
10000us 131580 / - 115132 / 116777 92106 / 93751 78948 / 80593 47698 / 49342 8224 / 4934
25000us 131580 / - 123356 / 125001 103619 / 105264 97040 / 98685 60856 / 62500 8224 / 4934
50000us 131580 / - 126646 / 128290 106909 / 108553 101974 / 103619 69079 / 70724 8224 / 4934
75000us 131580 / - 126646 / 128290 110198 / 111843 106909 / 108553 82237 / 83882 8224 / 4934
100000us 131580 / - 128290 / 129935 110198 / 111843 108553 / 110198 95395 / 97040 24671 / 4934
200000us 131580 / - 131580 / - 113488 / 115132 111843 / 113488 110198 / 111843 95395 / 18092
500000us 131580 / - 131580 / - 120067 / 121711 118422 / 120067 115132 / 116777 110198 / 111843
1000000us 131580 / - 131580 / - 123356 / 125001 123356 / 125001 120067 / 121711 118422 / 120067

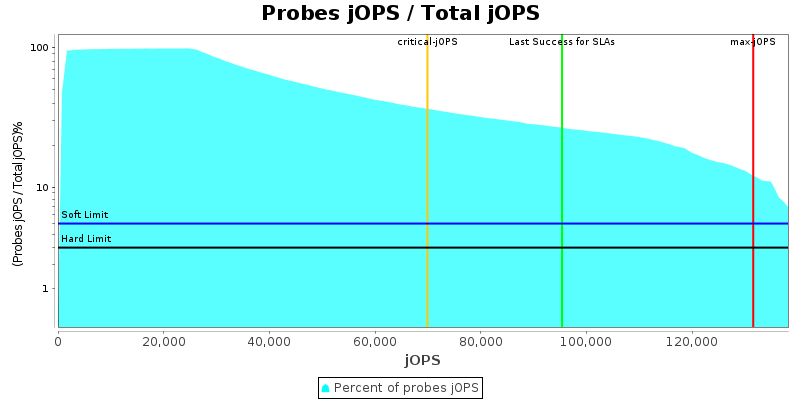

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

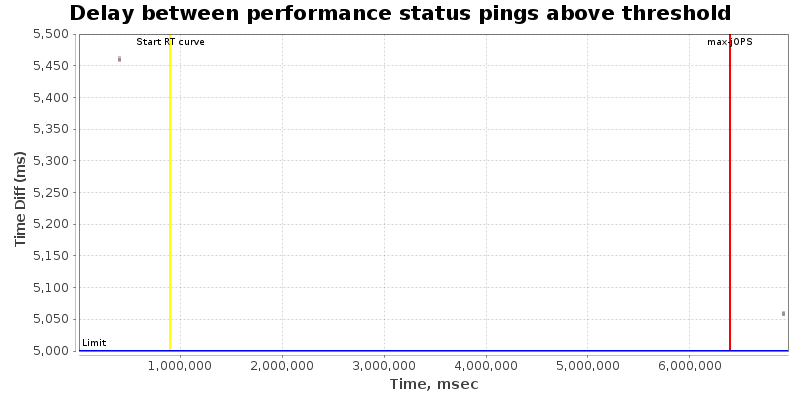

Delay between status pings

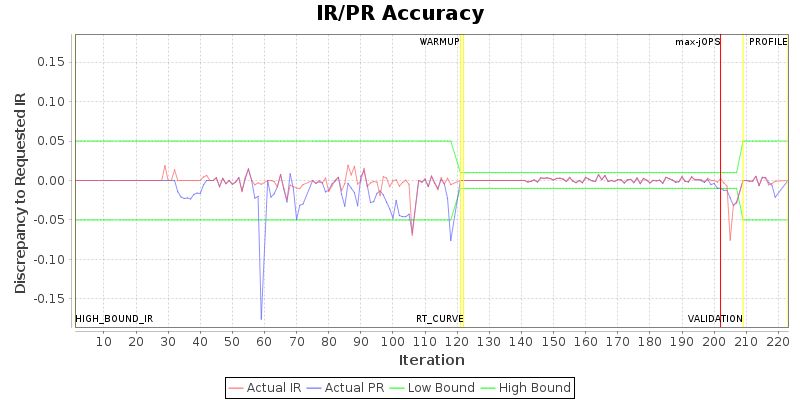

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 224
specjbb.comm.connect.selector.runner.count 0 4
specjbb.comm.connect.worker.pool.max 256 112
specjbb.comm.connect.worker.pool.min 1 64
specjbb.forkjoin.workers 64 {Tier1=120, Tier2=40, Tier3=20}
specjbb.group.count 1 4
specjbb.mapreducer.pool.size 64 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 164475 IR
High-bound (settled) is 149908 IR
