SPECjbb2015 Report for jbb2015-20221214-00945 : 447266 max-jOPS ; 226734 critical-jOPS

SUT Description

Hardware hw_1
Name	R620 G50
Vendor	Nettrix
Vendor URL	https://www.nettrix.com.cn
Available	Nov-2022
Model	R620 G50
Form Factor	2U
CPU Name	Intel(R) Xeon(R) Platinum 8490H CPU @ 1.9GHz
CPU Characteristics	60 Core, 1.90 GHz, 112.5 MB L3 Cache (Turbo Boost Technology up to 3.5 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	120
Cores Per Chip	60
Threads Per System	240
Threads Per Core	2
Version	NNH1041018-U00-1
CPU Frequency (MHz)	1900
Primary Cache	32 KB I + 48 KB D on chip per core
Secondary Cache	2048 KB I+D on chip per core
Tertiary Cache	112.5 MB I+D on chip per chip
Other Cache	None
Disk	1 x 1920GB SATA SSD
File System	xfs
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64GB
Memory Details	16 x 64GB-Samsung-DDR5-4800-2Rx4
# and type of Network Interface Cards (NICs)	4 x 1 Gbit NICs
Power Supply Quantity and Rating (W)	2 x 1300W
Other Hardware	1 x OCP with 4 x 1 Gbit NICs
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP4
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	5.14.21-150400.22-default
Available	Jun-2022
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.5
Vendor	Oracle
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-bit Server VM, version 17.0.5
Available	Oct-2022
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	SNC = Disabled Patrol Scrub = Disabled DCU IP Prefetcher = Enabled Hardware Prefetch = Disabled L2 FRO Prefetch Disable = Disabled Adjacent Cache Prefetch = Diasbled LLC Prefetch = Enabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description	os_1
Tuning	cpupower frequency-set -g performance ulimit -n 1048576 ulimit -i unlimited ulimit -s unlimited ulimit -u unlimited ulimit -l unlimited ulimit -v unlimited ulimit -m unlimited systemctl stop systemd-update-utmp-runlevel.service echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us echo 0 > /proc/sys/kernel/sched_child_runs_first echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 28000000 > /proc/sys/kernel/sched_min_granularity_ns echo 9 > /proc/sys/kernel/sched_nr_migrate echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms echo 1000000 > /proc/sys/kernel/sched_rt_period_us echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 0 > /proc/sys/kernel/sched_schedstats echo 1 > /proc/sys/kernel/sched_tunable_scaling echo 50000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 3000 > /proc/sys/vm/dirty_expire_centisecs echo 500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 0 > /proc/sys/kernel/numa_balancing UserTasksMax=970000 DefaultTasksMax=970000 echo 274877906944 > /proc/sys/kernel/shmmax echo 274877906944 > /proc/sys/kernel/shmall echo 3 > /proc/sys/vm/drop_caches sync
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:UseAVX=0 -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	Used numactl to affinitize Ctrl JVM to CPU node0 numactl --cpunodebind=0 --localalloc
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-server -XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -verbose:gc -XX:UseAVX=0 -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -XX:MaxGCPauseMillis=500 -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -XX:TargetSurvivorRatio=95 -XX:LargePageSizeInBytes=1G -XX:AllocatePrefetchLines=3 -XX:AllocateInstancePrefetchLines=2 -XX:AllocatePrefetchStepSize=128 -XX:AllocatePrefetchDistance=384 -Xms31744m -Xmx31744m -Xmn29696m -XX:ParallelGCThreads=40
Tuning	Used numactl to affinitize each Backend JVM to one CPU numa node numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc numactl --cpunodebind=4 --localalloc numactl --cpunodebind=5 --localalloc numactl --cpunodebind=6 --localalloc numactl --cpunodebind=7 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:UseAVX=0 -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	Used numactl to affinitize each Backend JVM to one CPU numa node numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc numactl --cpunodebind=4 --localalloc numactl --cpunodebind=5 --localalloc numactl --cpunodebind=6 --localalloc numactl --cpunodebind=7 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	442405	447266	452128	456989	461851

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	148278	182309	240648	289264	318434	226734

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	9723 / 14585	4862 / 9723	- / 4862	- / 4862	- / 4862	- / 4862
1000us	150709 / 155571	24308 / 29170	14585 / 19446	9723 / 14585	9723 / 14585	- / 4862
5000us	413235 / 418097	374342 / 379204	252803 / 228495	179879 / 175017	92370 / 97232	9723 / 14585
10000us	418097 / 422958	384066 / 388927	296557 / 301419	252803 / 257664	145848 / 150709	9723 / 14585
25000us	422958 / 427820	398650 / 403512	350034 / 354896	316003 / 320865	184740 / 179879	9723 / 14585
50000us	422958 / 427820	403512 / 408374	364619 / 369481	340311 / 345173	238218 / 243079	9723 / 14585
75000us	427820 / 432682	408374 / 413235	374342 / 379204	350034 / 354896	286834 / 291695	9723 / 14585
100000us	427820 / 432682	413235 / 418097	384066 / 388927	364619 / 369481	316003 / 320865	136125 / 24308
200000us	437543 / 442405	422958 / 427820	403512 / 408374	393789 / 398650	374342 / 379204	281972 / 272249
500000us	447266 / -	437543 / 442405	422958 / 427820	418097 / 422958	408374 / 413235	379204 / 384066
1000000us	447266 / -	447266 / -	442405 / 447266	437543 / 442405	437543 / 442405	408374 / 413235

Number of probes

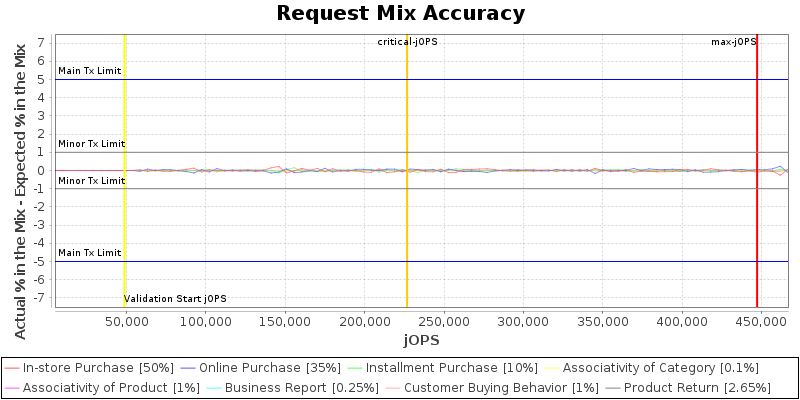

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

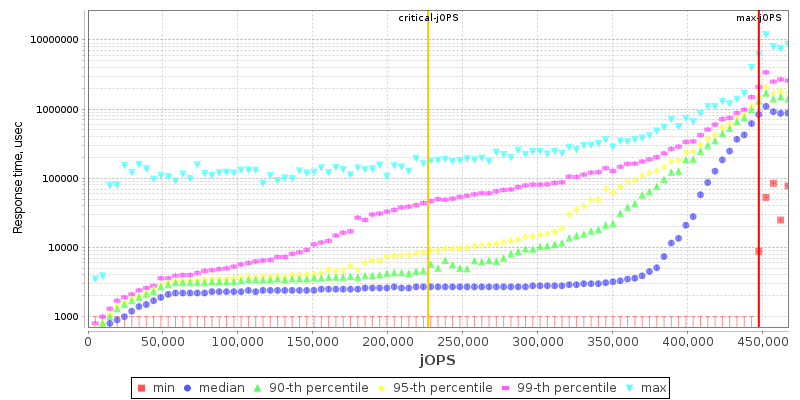

Delay between performance status pings during RT Curve (Response-Throughput Curve)

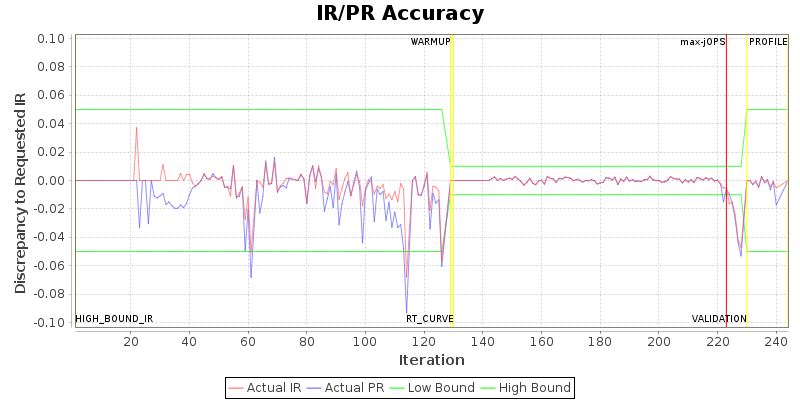

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM1	Group1.TxInjector.txiJVM1	Group2.Backend.beJVM2	Group2.TxInjector.txiJVM2	Group3.Backend.beJVM3	Group3.TxInjector.txiJVM3	Group4.Backend.beJVM4	Group4.TxInjector.txiJVM4	Group5.Backend.beJVM5	Group5.TxInjector.txiJVM5	Group6.Backend.beJVM6	Group6.TxInjector.txiJVM6	Group7.Backend.beJVM7	Group7.TxInjector.txiJVM7	Group8.Backend.beJVM8	Group8.TxInjector.txiJVM8
specjbb.comm.connect.client.pool.size	256	232	210	210	210	210	210	210	210	210	210	210	210	210	210	210	210	210
specjbb.comm.connect.selector.runner.count	0	1
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	81
specjbb.comm.connect.worker.pool.min	1	24
specjbb.controller.rtcurve.start	0.0	0.0
specjbb.controller.rtcurve.step	0.01	0.01
specjbb.controller.type	HBIR_RT	HBIR_RT
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	30	{Tier1=248, Tier2=8, Tier3=50}
specjbb.group.count	1	8
specjbb.mapreducer.pool.size	30	223
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 486159 IR

High-bound (settled) is 470896 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Nettrix R620 G50	447266 SPECjbb2015-MultiJVM max-jOPS 226734 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Nettrix	Test Sponsor: Nettrix	Test location: Beijing, China	Test date: Dec 14, 2022
SPEC license #: 6138	Hardware Availability: Jan-2023	Software Availability: Oct-2022	Publication: Thu Jan 12 11:42:47 EST 2023
