SPECjbb2015
Copyright © 2015-2023 Standard Performance Evaluation Corporation
Cisco Systems UCS X210c M7 406558 SPECjbb2015-MultiJVM max-jOPS
197979 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Cisco Systems Test Sponsor: Cisco Systems Test location: Santa Monica, CA Test date: Dec 14, 2022
SPEC license #: 50 Hardware Availability: Mar-2023 Software Availability: Nov-2022 Publication: Thu Jan 12 11:42:47 EST 2023
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 8)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorCisco Systems
Vendor URLhttps://www.cisco.com/
System SourceSingle Supplier
System DesignationServer Blade
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores120
Total Threads240
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameCisco UCS X210c M7
VendorNone
Vendor URLNone
AvailableNov-2022
ModelCisco UCS X210c M7
Form FactorBlade
CPU NameIntel Xeon Platinum 8490H
CPU Characteristics60-Core, 1.90GHz, 112.5MB L3 Cache (Turbo Boost Technology up to 3.50 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System120
Cores Per Chip60
Threads Per System240
Threads Per Core2
VersionX210M7.4.2.600.539
CPU Frequency (MHz)1900
Primary Cache32KB(I)+48KB(D) on chip per core
Secondary Cache2 MB (I+D) on chip per core
Tertiary Cache112.5MB (I+D) on chip per chip
Other CacheNone
Disk1x 960 GB M.2 SSD SATA
File SystemNTFS
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64GB 2Rx4
Memory Details64GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)2x 100 Gbit NICs
Power Supply Quantity and Rating (W)4 x 2800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2022 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
Version21H2(OS Build 20348.1311)
AvailableAug-2021
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.5
VendorOracle Corporation
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-Bit Server VM,version 17.0.5
AvailableNov-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS tuning
  • Sub NUMA Clustering set to Enabled SNC 4
  • LLC Dead Line set to Disabled
  • UPI Link Enablement 1
  • UPI Link Power Management Enabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
  • Lock Pages in Memory is Enabled
  • HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters and add a new entry. Value Name: MaxUserPort Value Type: DWORD Value data: 65534
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xms29g -Xmx29g -Xmn27g -XX:SurvivorRatio=28 -XX:+UseParallelGC -XX:ParallelGCThreads=30 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -Xnoclassgc -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:+UseNUMA
Tuning
    Affinitized each Backend JVM to a NUMA node
  • start /NODE [0-7]
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=4
Tuning
    Affinitized each Tx Injector JVM to a NUMA node
  • start /NODE [0-7]
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 402233 406558 410884 415209 419534
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 127590 153540 209766 257342 287618 197979
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 4325 / 8650 - / 4325 - / 4325 - / 4325 - / 4325 - / 4325
1000us 30276 / 34601 8650 / 12975 4325 / 8650 4325 / 8650 - / 4325 - / 4325
5000us 220580 / 224905 142728 / 147053 90827 / 95152 77852 / 82177 64876 / 69201 - / 4325
10000us 341682 / 346007 276806 / 281131 207604 / 211929 181654 / 185979 125428 / 129753 - / 4325
25000us 376283 / 380608 354657 / 358982 315732 / 320057 285456 / 289781 151378 / 155703 8650 / 4325
50000us 376283 / 380608 358982 / 363308 324382 / 328707 302756 / 307081 211929 / 207604 8650 / 4325
75000us 376283 / 380608 363308 / 367633 333032 / 337357 315732 / 320057 255180 / 259505 8650 / 4325
100000us 384933 / 389258 367633 / 371958 341682 / 346007 324382 / 328707 285456 / 289781 112452 / 12975
200000us 393583 / 397908 376283 / 380608 358982 / 363308 354657 / 358982 333032 / 337357 216254 / 211929
500000us 406558 / - 393583 / 397908 380608 / 384933 376283 / 380608 367633 / 371958 350332 / 337357
1000000us 406558 / - 406558 / - 406558 / - 406558 / - 402233 / 406558 371958 / 376283
Number of probes
Probes jOPS / Total jOPS
Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

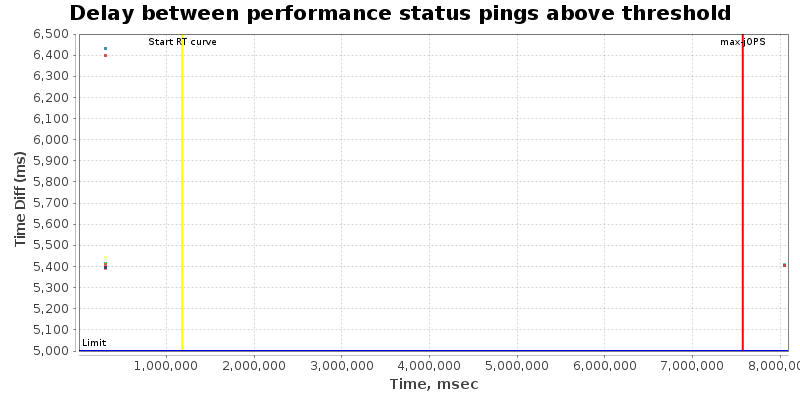

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings
IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 192
specjbb.comm.connect.selector.runner.count 0 8
specjbb.comm.connect.worker.pool.max 256 45
specjbb.comm.connect.worker.pool.min 1 40
specjbb.forkjoin.workers 60 {Tier1=210, Tier2=56, Tier3=32}
specjbb.group.count 1 8
specjbb.mapreducer.pool.size 60 12
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 432509 IR
High-bound (settled) is 423883 IR
Copyright © 2015-2023 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]
