Dell Inc. PowerEdge MX760c 363716 SPECjbb2015-MultiJVM max-jOPS
299820 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Dell Inc. Test Sponsor: Dell Inc. Test location: Round Rock, TX Test date: Jan 01,2023
SPEC license #: 6573 Hardware Availability: Feb-2023 Software Availability: Nov-2022 Publication: Thu Jan 26 16:09:08 EST 2023
Benchmark Results Summary

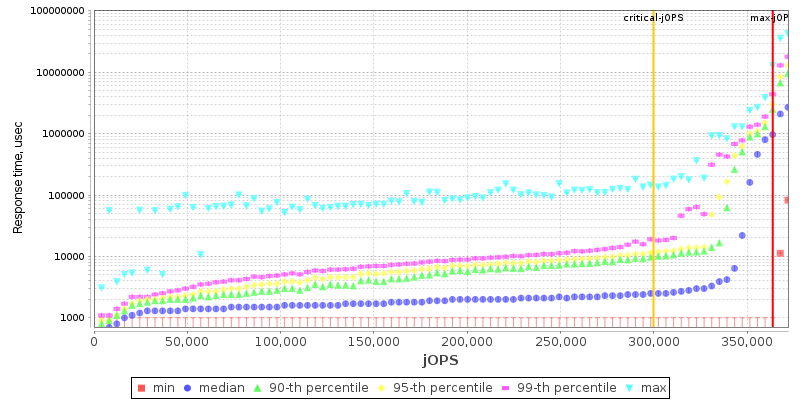

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorDell Inc.
Vendor URLhttp://www.dell.com/
System SourceSingle Supplier
System DesignationServer Modular
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores104
Total Threads208
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameDell Inc. PowerEdge MX760c
VendorDell Inc.
Vendor URLhttp://www.dell.com/
AvailableFeb-2023
ModelPowerEdge MX760c
Form Factor1U Modular
CPU NameIntel Xeon Platinum 8470Q
CPU Characteristics52 core, 2.10 GHz, 105 MB L3 Cache (Turbo boost Technology up to 3.80 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System104
Cores Per Chip52
Threads Per System208
Threads Per Core2
Version0.3.1
CPU Frequency (MHz)2100
Primary Cache32 KB(I) + 48 KB(D) per core
Secondary Cache2048 KB (I+D) per core
Tertiary Cache105 MB (I+D) on chip per chip
Other CacheNone
Disk1 x SATA SSD 480 GB
File Systemxfs
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64 GB RDIMM 2Rx8 PC5-4800B-R (slots A1-8, B1-8 populated)
# and type of Network Interface Cards (NICs)Broadcom NetXtreme BCM5720 Gigabit Ethernet PCIe 1Gb/s Dual Port
Power Supply Quantity and Rating (W)4 x 3000
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttp://www.suse.com/
Version5.14.21-150400.22-default
AvailableJun-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.5
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM, version 17.0.5
AvailableOct-2022
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Logical Processor : Enabled
  • Virtualization Technology : Disabled
  • DCU Streamer Prefetcher : Disabled
  • DCU IP Prefetcher : Enabled
  • Sub NUMA Cluster : 2-Way Clustering
  • System Profile : Custom
  • CPU Power Management : Maximum Performance
  • Turbo Boost : Enabled
  • C-States : Disabled
  • CPU Interconnect Bus Link Power Management : Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • ulimit -n 655350
  • echo 16000000 > /proc/sys/kernel/sched_latency_ns
  • echo 155000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 3000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 16 > /proc/sys/kernel/sched_nr_migrate
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m
Tuning Used numactl to interleave memory on all CPUs
  • numactl --interleave=all
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -Xms225g -Xmx225g -Xmn220g -XX:SurvivorRatio=34 -XX:MaxTenuringThreshold=15 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -Xnoclassgc -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:-UsePerfData -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=52 -XX:UseAVX=0
Tuning Used numactl to affinitize Backend JVM to one NUMA node
  • numactl --cpunodebind=$node --membind=$node
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m
Tuning Used numactl to affinitize TxInjector JVM to one NUMA node
  • numactl --cpunodebind=$node --membind=$node
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 355543 359630 363716 367803 371890
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 222725 312632 321487 328979 328979 299820
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 8173 / 12260 - / 4087 - / 4087 - / 4087 - / 4087 - / 4087
1000us 265635 / 269722 16347 / 20433 8173 / 12260 8173 / 12260 - / 4087 - / 4087
5000us 351456 / 355543 339196 / 343283 179815 / 183901 138948 / 143034 98081 / 102167 12260 / 8173
10000us 355543 / 359630 343283 / 347369 298329 / 302416 277896 / 281982 220682 / 224768 36780 / 8173
25000us 355543 / 359630 347369 / 351456 335109 / 339196 326936 / 331023 310589 / 314676 57214 / 8173
50000us 355543 / 359630 347369 / 351456 335109 / 339196 331023 / 335109 326936 / 318763 57214 / 8173
75000us 355543 / 359630 347369 / 351456 339196 / 343283 331023 / 335109 326936 / 331023 155295 / 49040
100000us 355543 / 359630 347369 / 351456 339196 / 343283 335109 / 339196 326936 / 331023 245202 / 77647
200000us 355543 / 359630 351456 / 355543 339196 / 343283 339196 / 343283 326936 / 331023 326936 / 322849
500000us 363716 / - 355543 / 359630 343283 / 347369 343283 / 347369 339196 / 343283 326936 / 331023
1000000us 363716 / - 363716 / - 355543 / 359630 351456 / 355543 347369 / 351456 339196 / 343283
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1
specjbb.comm.connect.selector.runner.count 0 12 0 0 0 0 0 0 0 0
specjbb.comm.connect.timeouts.connect 60000 600000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.read 60000 600000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.write 60000 600000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.worker.pool.max 256 64 256 256 256 256 256 256 256 256
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.forkjoin.workers 208 {Tier1=198, Tier2=52, Tier3=20}
specjbb.group.count 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 408670 IR
High-bound (settled) is 389833 IR
