ASUSTeK Computer Inc. RS720A-E12-RS12 838821 SPECjbb2015-Distributed max-jOPS
361028 SPECjbb2015-Distributed critical-jOPS
Tested by: ASUSTeK Computer Inc. Test Sponsor: ASUSTeK Computer Inc. Test location: Taipei, Taiwan Test date: Feb 8, 2023
SPEC license #: 9016 Hardware Availability: Dec-2022 Software Availability: Jan-2023 Publication: Thu Feb 23 11:18:22 EST 2023
Benchmark Results Summary

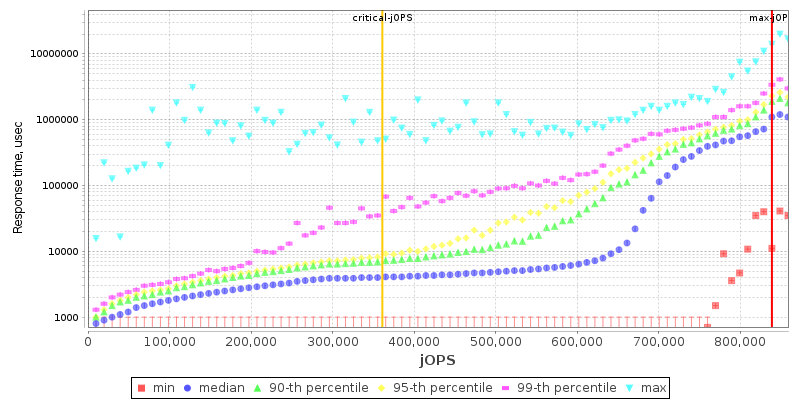

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorASUSTeK Computer Inc.
Vendor URLhttps://www.asus.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores192
Total Threads384
Total Memory Amount (GB)1536
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameRS720A-E12-RS12
VendorASUSTeK Computer Inc.
Vendor URLhttps://www.asus.com/
AvailableDec-2022
ModelRS720A-E12-RS12
Form Factor2U
CPU NameAMD EPYC 9654
CPU Characteristics96 Core, 2.40 GHz, 384 MB L3 Cache (Max Boost Clock up to 3.70 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System192
Cores Per Chip96
Threads Per System384
Threads Per Core2
Version0602
CPU Frequency (MHz)2400
Primary Cache32 KB(I) + 32 KB(D) per core
Secondary Cache1 MB (I+D) per core
Tertiary Cache384 MB (I+D) per chip
Other CacheNone
Disk1 x 4 TB PCIE NVMe SSD
File Systemxfs
Memory Amount (GB)1536
# and size of DIMM(s)24 x 64 GB
Memory Details64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)1 x 2 ports Intel X710 10GbE
Power Supply Quantity and Rating (W)2 x 1600
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttps://www.suse.com/
Version5.14.21-150400.22-default
AvailableJun-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.6
VendorOracle
Vendor URLhttps://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 17.0.6
AvailableJan-2023
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware hw_2
NameRS520A-E12-RS12U
VendorASUSTeK Computer Inc.
Vendor URLhttps://www.asus.com/
AvailableDec-2022
ModelRS520A-E12-RS12U
Form Factor2U
CPU NameAMD EPYC 9654
CPU Characteristics96 Core, 2.40 GHz, 384 MB L3 Cache (Max Boost Clock up to 3.70 GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System96
Cores Per Chip96
Threads Per System192
Threads Per Core2
Version0602
CPU Frequency (MHz)2400
Primary Cache32 KB (I) + 32 KB (D) on chip per core
Secondary Cache512 KB (I+D) on chip per core
Tertiary Cache768 MB (I+D) on chip per chip
Other CacheNone
Disk1 x 256 GB PCIE NVMe SSD
File Systemxfs
Memory Amount (GB)768
# and size of DIMM(s)12 x 64 GB
Memory Details64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)1 x 2 ports Intel X710 10GbE
Power Supply Quantity and Rating (W)2 x 1600
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttps://www.suse.com/
Version5.14.21-150400.22-default
AvailableJun-2022
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle Java SE 17.0.6
VendorOracle
Vendor URLhttps://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 17.0.6
AvailableJan-2023
Bitness64
NotesNone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Settings:
  • SVM Mode = Disabled
  • SR-IOV Support = Disabled
  • Engine Boost = Aggressive
  • NUMA nodes per socket = NPS4
  • L1 Stream HW Prefetcher = Disable
  • L2 Stream HW Prefetcher = Disable
  • TDP Control = Manual
  • TDP = 400
  • PPT Control = Manual
  • PPT = 400
  • Determinism Control = Manual
  • Determinism Slider = Power
  • ACPI SRAT L3 Cache as NUMA Domain = Enabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(24)
OS Image Description os_1
Tuning
  • cpupower frequency-set -g performance
  • tuned-adm profile throughput-performance
  • ulimit -n 1024000
  • echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 40000000 > /proc/sys/kernel/sched_latency_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 800000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo 0 > /proc/sys/vm/numa_stat
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms31g -Xmx31g -Xmn29g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=18 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100 -XX:TLABSize=1m -XX:MinTLABSize=1m -XX:-ResizeTLAB -XX:TLABWasteTargetPercent=1 -XX:TLABWasteIncrement=1 -XX:YoungPLABSize=1m -XX:OldPLABSize=1m
Tuning Used numactl to affinitize each Backend JVM to 8 Cores / 16 Threads
  • numactl --physcpubind=0-7,192-199 --localalloc
  • numactl --physcpubind=8-15,200-207 --localalloc
  • numactl --physcpubind=16-23,208-215 --localalloc
  • numactl --physcpubind=24-31,216-223 --localalloc
  • numactl --physcpubind=32-39,224-231 --localalloc
  • numactl --physcpubind=40-47,232-239 --localalloc
  • numactl --physcpubind=48-55,240-247 --localalloc
  • numactl --physcpubind=56-63,248-255 --localalloc
  • numactl --physcpubind=64-71,256-263 --localalloc
  • numactl --physcpubind=72-79,264-271 --localalloc
  • numactl --physcpubind=80-87,272-279 --localalloc
  • numactl --physcpubind=88-95,280-287 --localalloc
  • numactl --physcpubind=96-103,288-295 --localalloc
  • numactl --physcpubind=104-111,296-303 --localalloc
  • numactl --physcpubind=112-119,304-311 --localalloc
  • numactl --physcpubind=120-127,312-319 --localalloc
  • numactl --physcpubind=128-135,320-327 --localalloc
  • numactl --physcpubind=136-143,328-335 --localalloc
  • numactl --physcpubind=144-151,336-343 --localalloc
  • numactl --physcpubind=152-159,344-351 --localalloc
  • numactl --physcpubind=160-167,352-359 --localalloc
  • numactl --physcpubind=168-175,360-367 --localalloc
  • numactl --physcpubind=176-183,368-375 --localalloc
  • numactl --physcpubind=184-191,376-383 --localalloc
Notes None
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Settings:
  • SVM Mode = Disabled
  • SR-IOV Support = Disabled
  • Engine Boost = Aggressive
  • NUMA nodes per socket = NPS4
  • L1 Stream HW Prefetcher = Disable
  • L2 Stream HW Prefetcher = Disable
  • TDP Control = Manual
  • TDP = 400
  • PPT Control = Manual
  • PPT = 400
  • Determinism Control = Manual
  • Determinism Slider = Power
  • ACPI SRAT L3 Cache as NUMA Domain = Enabled
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(24)
OS Image Description os_2
Tuning
  • cpupower frequency-set -g performance
  • tuned-adm profile throughput-performance
  • ulimit -n 1024000
  • echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 40000000 > /proc/sys/kernel/sched_latency_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 800000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo 0 > /proc/sys/vm/numa_stat
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line -Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=2
Tuning Used numactl to interleave memory on all CPUs
  • numactl --interleave=all
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line -Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=2
Tuning Used numactl to affinitize two TxInjector JVMs to each NUMA node
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
  • numactl --cpunodebind=3 --localalloc
  • numactl --cpunodebind=4 --localalloc
  • numactl --cpunodebind=4 --localalloc
  • numactl --cpunodebind=5 --localalloc
  • numactl --cpunodebind=5 --localalloc
  • numactl --cpunodebind=6 --localalloc
  • numactl --cpunodebind=6 --localalloc
  • numactl --cpunodebind=7 --localalloc
  • numactl --cpunodebind=7 --localalloc
  • numactl --cpunodebind=8 --localalloc
  • numactl --cpunodebind=8 --localalloc
  • numactl --cpunodebind=9 --localalloc
  • numactl --cpunodebind=9 --localalloc
  • numactl --cpunodebind=10 --localalloc
  • numactl --cpunodebind=10 --localalloc
  • numactl --cpunodebind=11 --localalloc
  • numactl --cpunodebind=11 --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 819084 828952 838821 848689 858558
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 220396 278784 388818 468753 547700 361028
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 9868 - / 9868 - / 9868 - / 9868 - / 9868 - / 9868
1000us 197370 / 207238 29605 / 39474 9868 / 19737 9868 / 19737 - / 9868 - / 9868
5000us 680925 / 690794 513161 / 523029 226975 / 236844 207238 / 217107 157896 / 148027 - / 9868
10000us 690794 / 700662 641451 / 651320 463819 / 473687 404608 / 394739 226975 / 207238 - / 9868
25000us 700662 / 710531 671057 / 680925 572372 / 582240 493424 / 503292 286186 / 256580 39474 / 19737
50000us 710531 / 720399 680925 / 690794 611846 / 621714 572372 / 582240 404608 / 365134 39474 / 19737
75000us 720399 / 730268 690794 / 700662 631583 / 641451 601977 / 611846 483556 / 453950 39474 / 19737
100000us 720399 / 730268 690794 / 700662 641451 / 651320 621714 / 631583 552635 / 542766 39474 / 19737
200000us 750004 / 759873 720399 / 730268 680925 / 690794 661188 / 671057 621714 / 631583 59211 / 19737
500000us 828952 / 838821 789478 / 799347 740136 / 750004 720399 / 730268 671057 / 680925 414476 / 78948
1000000us 838821 / - 828952 / 838821 809215 / 819084 809215 / 819084 759873 / 769741 661188 / 78948

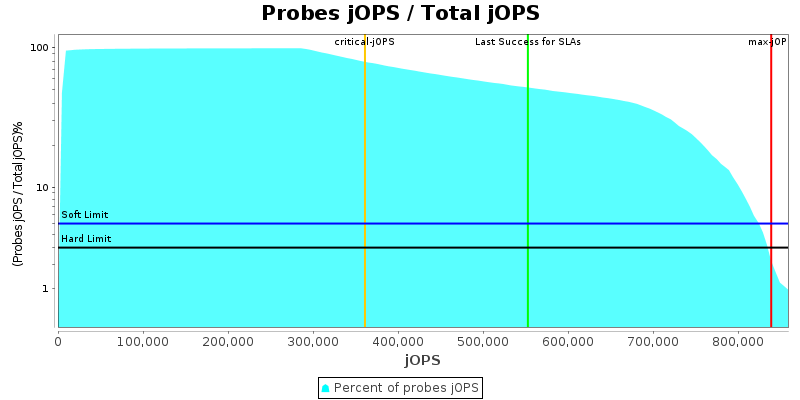

Probes jOPS / Total jOPS

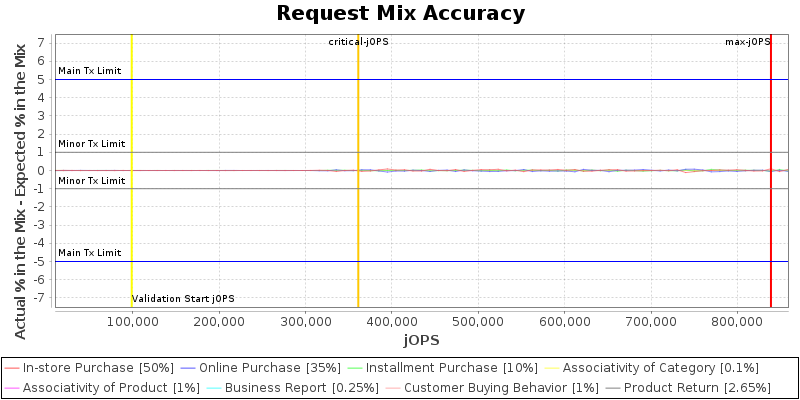

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

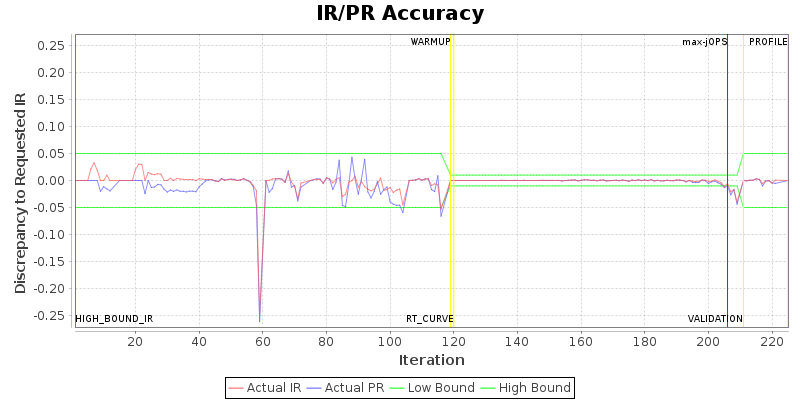

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group10.Backend.beJVM Group10.TxInjector.txiJVM1 Group11.Backend.beJVM Group11.TxInjector.txiJVM1 Group12.Backend.beJVM Group12.TxInjector.txiJVM1 Group13.Backend.beJVM Group13.TxInjector.txiJVM1 Group14.Backend.beJVM Group14.TxInjector.txiJVM1 Group15.Backend.beJVM Group15.TxInjector.txiJVM1 Group16.Backend.beJVM Group16.TxInjector.txiJVM1 Group17.Backend.beJVM Group17.TxInjector.txiJVM1 Group18.Backend.beJVM Group18.TxInjector.txiJVM1 Group19.Backend.beJVM Group19.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group20.Backend.beJVM Group20.TxInjector.txiJVM1 Group21.Backend.beJVM Group21.TxInjector.txiJVM1 Group22.Backend.beJVM Group22.TxInjector.txiJVM1 Group23.Backend.beJVM Group23.TxInjector.txiJVM1 Group24.Backend.beJVM Group24.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1 Group9.Backend.beJVM Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 256 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150
specjbb.comm.connect.selector.runner.count 0 2 4 0 4 0 4 0 4 0 4 0 4 0 4 0 4 0 4 0 4 0 4 0 4 0 4 0 4 0 4 0 4 0 4 0 4 0 4 0 4 0 4 0 4 0 4 0 4 0
specjbb.comm.connect.timeouts.connect 60000 900000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.read 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.write 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.worker.pool.max 256 256 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150
specjbb.comm.connect.worker.pool.min 1 1 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16
specjbb.controller.host localhost 192.168.0.3
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.customerDriver.threads 64 {probe=120, saturate=200, service=160}
specjbb.forkjoin.workers 192 {Tier1=553, Tier2=25, Tier3=90}
specjbb.group.count 1 24
specjbb.mapreducer.pool.size 192 6
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 986848 IR
High-bound (settled) is 876021 IR
