SPECjbb2015
Copyright © 2015-2023 Standard Performance Evaluation Corporation
Inspur Electronic Information Industry Co., Ltd. (IEI) NF5270M7 221203 SPECjbb2015-MultiJVM max-jOPS
125008 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Inspur Electronic Information Industry Co., Ltd. (IEI) Test Sponsor: Inspur Electronic Information Industry Co., Ltd. (IEI) Test location: Jinan, China Test date: Apr 4, 2023
SPEC license #: 3358 Hardware Availability: Jan-2023 Software Availability: Jan-2023 Publication: Fri May 5 10:56:45 EDT 2023
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 4)

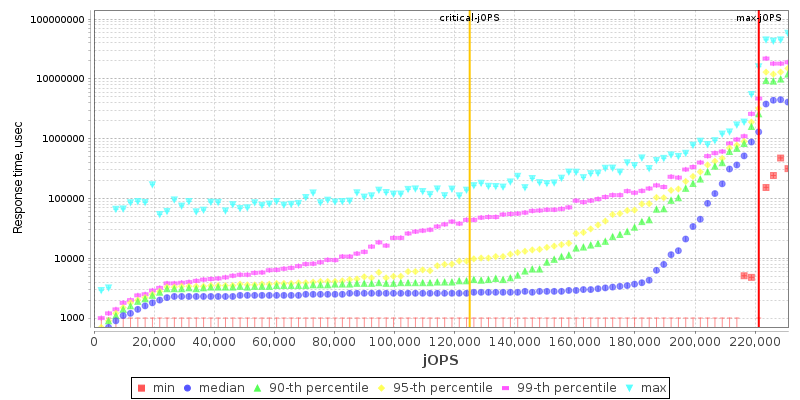

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorInspur Electronic Information Industry Co., Ltd. (IEI)
Vendor URLhttps://www.ieisystem.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores48
Total Threads96
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameNF5270M7
VendorInspur Electronic Information Industry Co., Ltd. (IEI)
Vendor URLhttps://www.ieisystem.com/
AvailableJan-2023
ModelNF5270M7
Form Factor2U
CPU NameIntel Xeon Gold 6442Y
CPU Characteristics48 Core, 2.60 GHz, 60 MB L3 Cache (Turbo Boost Technology up to 4.00 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System48
Cores Per Chip24
Threads Per System96
Threads Per Core2
Version04.01.00
CPU Frequency (MHz)2600
Primary Cache32 KB(I)+48 KB(D)on chip per core
Secondary Cache2MB (I+D) per core
Tertiary Cache60MB (I+D) on chip per chip
Other CacheNone
Disk1x 4TB NVMe SSD
File Systemxfs
Memory Amount (GB)512
# and size of DIMM(s)16 x 32GB
Memory Details16 x 32 GB 2Rx8 PC5-4800B-R
# and type of Network Interface Cards (NICs)1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 1300W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 9.0 (Plow)
VendorRed Hat
Vendor URLhttp://redhat.com/
Version5.14.0-70.13.1
AvailableMay-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.6
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 17.0.6
AvailableJan-2023
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • SNC set to SNC4
  • Memory Patrol Scrub Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • ulimit -n 131072
  • cpupower frequency-set -g performance
  • tuned-adm profile throughput-performance
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -server -XX:TargetSurvivorRatio=99 -XX:SurvivorRatio=28 -XX:LargePageSizeInBytes=1g -XX:UseAVX=0 -Xms31744m -Xmx31744m -Xmn29696m -XX:ParallelGCThreads=24
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 218772 221203 223634 226064 228495
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 81431 103309 134909 159217 168940 125008
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 2431 / 4862 2431 / 4862 - / 2431 - / 2431 - / 2431 - / 2431
1000us 150710 / 153140 7292 / 9723 4862 / 7292 4862 / 7292 2431 / 4862 - / 2431
5000us 204187 / 206618 184741 / 187172 138556 / 140986 102094 / 94801 43754 / 46185 4862 / 7292
10000us 206618 / 209049 189602 / 192033 153140 / 155571 126402 / 128832 80216 / 82647 4862 / 7292
25000us 206618 / 209049 196895 / 199326 175018 / 177448 158002 / 160433 102094 / 104524 4862 / 7292
50000us 209049 / 211480 201756 / 204187 184741 / 187172 170156 / 172587 133694 / 136125 4862 / 7292
75000us 209049 / 211480 201756 / 204187 189602 / 192033 179879 / 182310 158002 / 160433 51047 / 12154
100000us 209049 / 211480 204187 / 206618 192033 / 194464 184741 / 187172 167725 / 170156 85078 / 19446
200000us 213910 / 216341 209049 / 211480 199326 / 201756 196895 / 199326 189602 / 192033 153140 / 140986
500000us 218772 / 221203 213910 / 216341 209049 / 211480 209049 / 211480 201756 / 204187 189602 / 192033
1000000us 221203 / - 218772 / 221203 216341 / 218772 216341 / 218772 213910 / 216341 206618 / 209049
Number of probes
Probes jOPS / Total jOPS

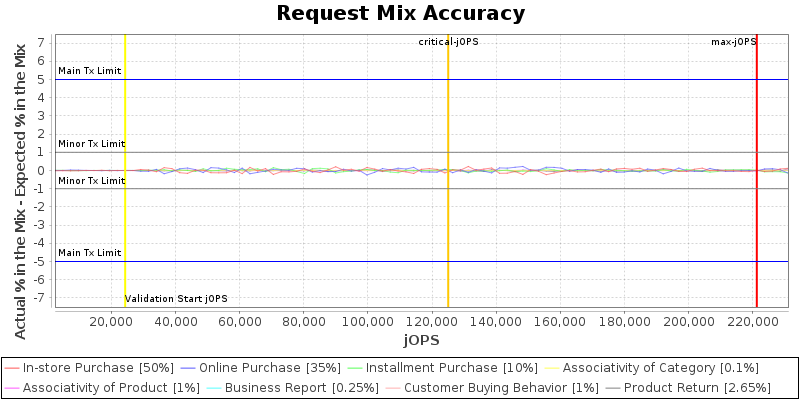

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

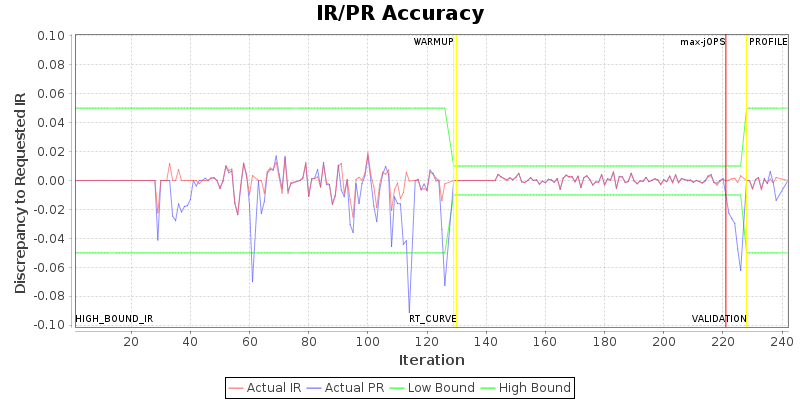

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.forkjoin.workers 96 {Tier1=120, Tier2=7, Tier3=24}
specjbb.group.count 1 4
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 243080 IR
High-bound (settled) is 235449 IR
Copyright © 2015-2023 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]
