Supermicro Hyper A+ Server AS -2125HS-TNR 878137 SPECjbb2015-MultiJVM max-jOPS
372253 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Supermicro Test Sponsor: Supermicro Test location: San Jose, California Test date: May 17, 2023
SPEC license #: 001176 Hardware Availability: Jun-2023 Software Availability: Apr-2023 Publication: Tue Jun 13 11:34:16 EDT 2023
Benchmark Results Summary

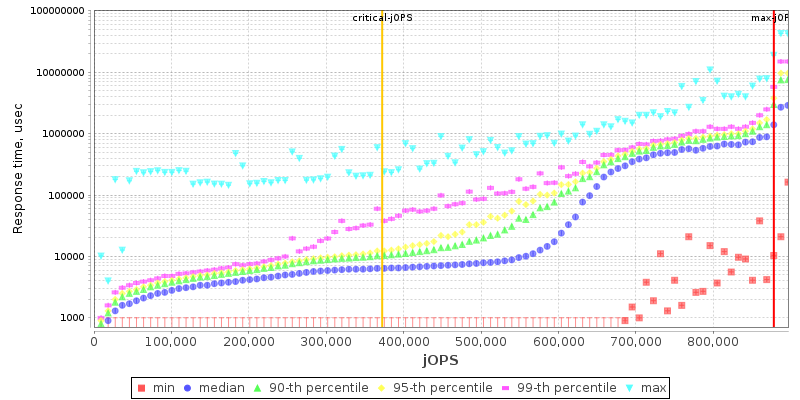

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorSupermicro
Vendor URLhttps://www.supermicro.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores256
Total Threads512
Total Memory Amount (GB)1536
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameHyper A+ Server AS-2125HS-TNR
VendorSupermicro
Vendor URLhttps://www.supermicro.com
AvailableJun-2023
ModelH13DSH
Form Factor2U
CPU NameAMD EPYC 9754
CPU Characteristics128 Core, 2.25 GHz, 256MB L3 Cache (Max. Boost Clock up to 3.1GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System256
Cores Per Chip128
Threads Per System512
Threads Per Core2
Version1.4 (04/19/2023)
CPU Frequency (MHz)2250
Primary Cache32 KB(I) + 32 KB(D) per core
Secondary Cache1 MB (I+D) per core
Tertiary Cache256 MB (I+D) on chip per chip
Other CacheNone
Disk1 x 256GB NVMe PCIe Gen3.0
File Systemxfs
Memory Amount (GB)1536
# and size of DIMM(s)24 x 64 GB
Memory Details64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)2 x 10 Gbit NICs
Power Supply Quantity and Rating (W)2 x 1600W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttps://www.suse.com/
Version5.14.21-150400.22-default
AvailableJun-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle JDK v17.0.7
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 17.0.7
AvailableApr-2023
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning

BIOS Settings:

  • NUMA nodes per socket = NPS4
  • Determinism Control = Manual
  • Determinism Slider = Disable Performance Determinism
  • L1 Stream HW Prefetcher = Disable
  • L2 Stream HW Prefetcher = Disable
  • TDP Control = Manual
  • TDP = 400
  • PPT Control = Manual
  • PPT = 400

Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(32), jvm_TxInjector_1(32)
OS Image Description os_1
Tuning

  • cpupower -c all frequency-set -g performance
  • tuned-adm profile throughput-performance

  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo 0 > /proc/sys/vm/numa_stat
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag

Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line

-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2

Tuning None
Notes

numactl --interleave=all

JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-Xms28g -Xmx28g -Xmn25g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=20 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=2 -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4 -XX:AutoBoxCacheMax=32 -XX:OnStackReplacePercentage=100 -XX:TLABSize=1m -XX:MinTLABSize=1m -XX:-ResizeTLAB -XX:TLABWasteTargetPercent=1 -XX:TLABWasteIncrement=1 -XX:YoungPLABSize=1m -XX:OldPLABSize=1m

Tuning None
Notes

Used numactl to affinitize each Backend JVM to 8 Core / 16 Threads

  • Group1: --physcpubind=0-7,256-263 --localalloc
  • Group2: --physcpubind=8-15,264-271 --localalloc
  • Group3: --physcpubind=16-23,272-279 --localalloc
  • Group4: --physcpubind=24-31,280-287 --localalloc
  • Group5: --physcpubind=32-39,288-295 --localalloc
  • Group6: --physcpubind=40-47,296-303 --localalloc
  • Group7: --physcpubind=48-55,304-311 --localalloc
  • Group8: --physcpubind=56-63,312-319 --localalloc
  • Group9: --physcpubind=64-71,320-327 --localalloc
  • Group10: --physcpubind=72-79,328-335 --localalloc
  • Group11: --physcpubind=80-87,336-343 --localalloc
  • Group12: --physcpubind=88-95,344-351 --localalloc
  • Group13: --physcpubind=96-103,352-359 --localalloc
  • Group14: --physcpubind=104-111,360-367 --localalloc
  • Group15: --physcpubind=112-119,368-375 --localalloc
  • Group16: --physcpubind=120-127,376-383 --localalloc
  • Group17: --physcpubind=128-135,384-391 --localalloc
  • Group18: --physcpubind=136-143,392-399 --localalloc
  • Group19: --physcpubind=144-151,400-407 --localalloc
  • Group20: --physcpubind=152-159,408-415 --localalloc
  • Group21: --physcpubind=160-167,416-423 --localalloc
  • Group22: --physcpubind=168-175,424-431 --localalloc
  • Group23: --physcpubind=176-183,432-439 --localalloc
  • Group24: --physcpubind=184-191,440-447 --localalloc
  • Group25: --physcpubind=192-199,448-455 --localalloc
  • Group26: --physcpubind=200-207,456-463 --localalloc
  • Group27: --physcpubind=208-215,464-471 --localalloc
  • Group28: --physcpubind=216-223,472-479 --localalloc
  • Group29: --physcpubind=224-231,480-487 --localalloc
  • Group30: --physcpubind=232-239,488-495 --localalloc
  • Group31: --physcpubind=240-247,496-503 --localalloc
  • Group32: --physcpubind=248-255,504-511 --localalloc

JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line

-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=2

Tuning None
Notes

Used numactl to affinitize each Transaction Injector JVM to 8 Core / 16 Threads

  • Group1: --physcpubind=0-7,256-263 --localalloc
  • Group2: --physcpubind=8-15,264-271 --localalloc
  • Group3: --physcpubind=16-23,272-279 --localalloc
  • Group4: --physcpubind=24-31,280-287 --localalloc
  • Group5: --physcpubind=32-39,288-295 --localalloc
  • Group6: --physcpubind=40-47,296-303 --localalloc
  • Group7: --physcpubind=48-55,304-311 --localalloc
  • Group8: --physcpubind=56-63,312-319 --localalloc
  • Group9: --physcpubind=64-71,320-327 --localalloc
  • Group10: --physcpubind=72-79,328-335 --localalloc
  • Group11: --physcpubind=80-87,336-343 --localalloc
  • Group12: --physcpubind=88-95,344-351 --localalloc
  • Group13: --physcpubind=96-103,352-359 --localalloc
  • Group14: --physcpubind=104-111,360-367 --localalloc
  • Group15: --physcpubind=112-119,368-375 --localalloc
  • Group16: --physcpubind=120-127,376-383 --localalloc
  • Group17: --physcpubind=128-135,384-391 --localalloc
  • Group18: --physcpubind=136-143,392-399 --localalloc
  • Group19: --physcpubind=144-151,400-407 --localalloc
  • Group20: --physcpubind=152-159,408-415 --localalloc
  • Group21: --physcpubind=160-167,416-423 --localalloc
  • Group22: --physcpubind=168-175,424-431 --localalloc
  • Group23: --physcpubind=176-183,432-439 --localalloc
  • Group24: --physcpubind=184-191,440-447 --localalloc
  • Group25: --physcpubind=192-199,448-455 --localalloc
  • Group26: --physcpubind=200-207,456-463 --localalloc
  • Group27: --physcpubind=208-215,464-471 --localalloc
  • Group28: --physcpubind=216-223,472-479 --localalloc
  • Group29: --physcpubind=224-231,480-487 --localalloc
  • Group30: --physcpubind=232-239,488-495 --localalloc
  • Group31: --physcpubind=240-247,496-503 --localalloc
  • Group32: --physcpubind=248-255,504-511 --localalloc

max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 859842 868990 878137 887284 896431
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 251549 315580 386471 468797 497001 372253
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 9147 / 18295 9147 / 18295 - / 9147 - / 9147 - / 9147 - / 9147
1000us 27442 / 36589 18295 / 27442 9147 / 18295 9147 / 18295 9147 / 18295 - / 9147
5000us 594572 / 603719 246976 / 256123 155503 / 164651 146356 / 155503 100620 / 109767 18295 / 9147
10000us 622014 / 631161 548836 / 557983 356743 / 365890 311007 / 320154 246976 / 256123 18295 / 9147
25000us 631161 / 640308 603719 / 612866 521394 / 530541 475658 / 484805 311007 / 320154 36589 / 27442
50000us 640308 / 649455 622014 / 631161 567130 / 576277 530541 / 539688 393332 / 365890 36589 / 27442
75000us 649455 / 658603 622014 / 631161 585425 / 594572 557983 / 548836 475658 / 448216 36589 / 27442
100000us 649455 / 658603 640308 / 649455 594572 / 603719 585425 / 576277 503099 / 484805 36589 / 27442
200000us 686044 / 695192 658603 / 667750 640308 / 649455 622014 / 631161 594572 / 576277 301860 / 54884
500000us 868990 / 859842 750075 / 759223 695192 / 704339 686044 / 695192 667750 / 676897 530541 / 256123
1000000us 878137 / - 868990 / 878137 841548 / 850695 832401 / 841548 768370 / 777517 640308 / 631161

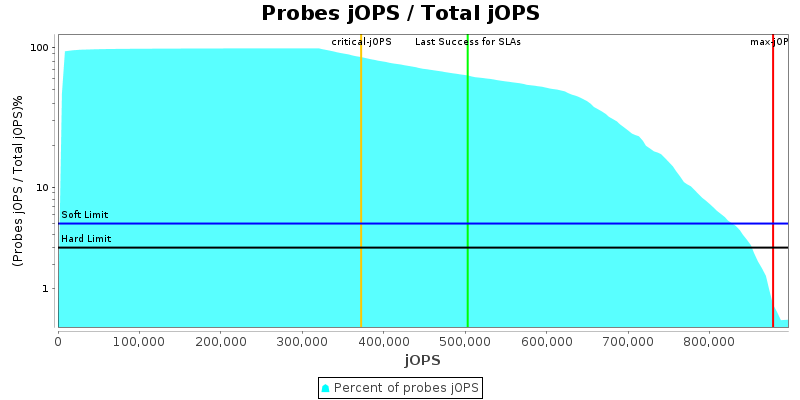

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

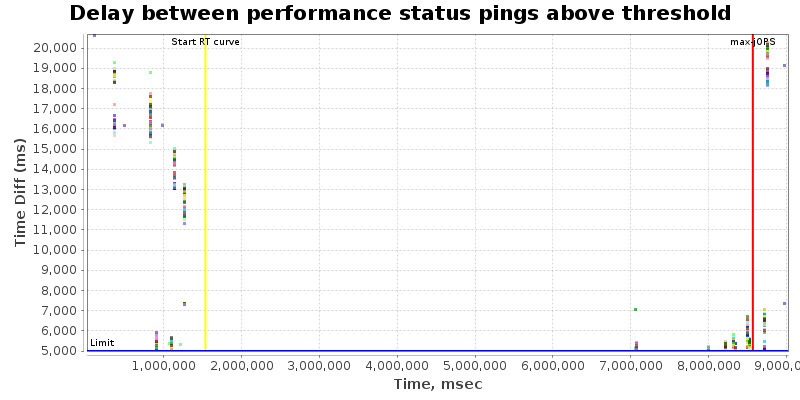

Delay between status pings

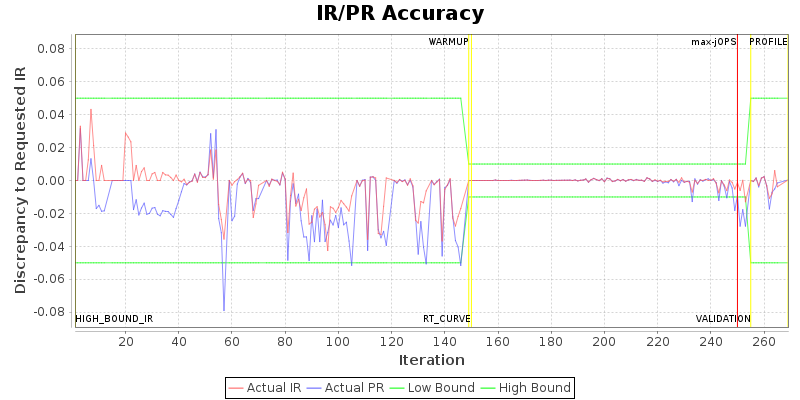

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group10.Backend.beJVM Group10.TxInjector.txiJVM1 Group11.Backend.beJVM Group11.TxInjector.txiJVM1 Group12.Backend.beJVM Group12.TxInjector.txiJVM1 Group13.Backend.beJVM Group13.TxInjector.txiJVM1 Group14.Backend.beJVM Group14.TxInjector.txiJVM1 Group15.Backend.beJVM Group15.TxInjector.txiJVM1 Group16.Backend.beJVM Group16.TxInjector.txiJVM1 Group17.Backend.beJVM Group17.TxInjector.txiJVM1 Group18.Backend.beJVM Group18.TxInjector.txiJVM1 Group19.Backend.beJVM Group19.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group20.Backend.beJVM Group20.TxInjector.txiJVM1 Group21.Backend.beJVM Group21.TxInjector.txiJVM1 Group22.Backend.beJVM Group22.TxInjector.txiJVM1 Group23.Backend.beJVM Group23.TxInjector.txiJVM1 Group24.Backend.beJVM Group24.TxInjector.txiJVM1 Group25.Backend.beJVM Group25.TxInjector.txiJVM1 Group26.Backend.beJVM Group26.TxInjector.txiJVM1 Group27.Backend.beJVM Group27.TxInjector.txiJVM1 Group28.Backend.beJVM Group28.TxInjector.txiJVM1 Group29.Backend.beJVM Group29.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group30.Backend.beJVM Group30.TxInjector.txiJVM1 Group31.Backend.beJVM Group31.TxInjector.txiJVM1 Group32.Backend.beJVM Group32.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1 Group9.Backend.beJVM Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 700 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256
specjbb.comm.connect.selector.runner.count 0 10 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
specjbb.comm.connect.timeouts.connect 60000 900000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.read 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.write 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.worker.pool.max 256 700 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256
specjbb.comm.connect.worker.pool.min 1 16 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.customerDriver.threads 64 {probe=100, saturate=200, service=120}
specjbb.forkjoin.workers 512 {Tier1=525, Tier2=65, Tier3=140}
specjbb.group.count 1 32
specjbb.mapreducer.pool.size 512 10
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 914726 IR
High-bound (settled) is 888685 IR
