Supermicro CloudDC A+ Server AS -1115CS-TNR 439147 SPECjbb2015-MultiJVM max-jOPS
215316 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Supermicro Test Sponsor: Supermicro Test location: San Jose, California Test date: May 15, 2023
SPEC license #: 001176 Hardware Availability: Jun-2023 Software Availability: Apr-2023 Publication: Tue Jun 13 11:34:16 EDT 2023
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorSupermicro
Vendor URLhttps://www.supermicro.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores96
Total Threads192
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSupermicro A+ AS-1115CS-TNR
VendorSupermicro
Vendor URLhttps://www.supermicro.com
AvailableJun-2023
ModelH13SSW
Form Factor1U
CPU NameAMD EPYC 9684X
CPU Characteristics96 core, 2.55GHz, 1152MB L3 Cache (Max. Boost Clock up to 3.7GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System96
Cores Per Chip96
Threads Per System192
Threads Per Core2
Version1.4 (05/12/2023)
CPU Frequency (MHz)2550
Primary Cache32KB(I)+32KB(D) per core
Secondary Cache1MB (I+D) per core
Tertiary Cache1152MB (I+D) on chip per chip
Other CacheNone
Disk2 x 3.2 TB NVMe PCIe Gen4.0
File Systembtrfs
Memory Amount (GB)768
# and size of DIMM(s)12 x 64GB
Memory Details64GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)1 x 1 GbE NIC
Power Supply Quantity and Rating (W)2 x 860w
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttp://suse.com/
Version5.14.21-150400.24.63-default
AvailableMay-2023
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.7
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 17.0.7
AvailableApr-2023
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning

BIOS Settings:

  • NUMA nodes per socket = NPS4
  • Determinism Control = Manual
  • Determinism Slider = Power
  • L1 Stream HW Prefetcher = Disable
  • L2 Stream HW Prefetcher = Disable
  • TDP Control = Manual
  • TDP = 400
  • PPT Control = Manual
  • PPT = 400

Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(12), jvm_TxInjector_1(12)
OS Image Description os_1
Tuning

  • cpupower -c all frequency-set -g performance
  • tuned-adm profile throughput-performance

  • echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 40000000 > /proc/sys/kernel/sched_latency_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 900000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 9000 > /proc/sys/kernel/sched_nr_migrate
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo 0 > /proc/sys/vm/numa_stat
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag

  • ulimit -n 1024000
  • UserTasksMax=970000
  • DefaultTasksMax=970000

Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line

-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=2

Tuning None
Notes

Used numactl to interleave memory on all CPUs

  • numactl --interleave=all

JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-Xms30g -Xmx30g -Xmn29g -XX:AllocatePrefetchInstr=2 -XX:+UseParallelGC -XX:ParallelGCThreads=16 -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:SurvivorRatio=20 -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -XX:MaxGCPauseMillis=100 -XX:LoopUnrollLimit=200 -XX:+UseTransparentHugePages -XX:ThreadStackSize=140 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4

Tuning None
Notes

Used numactl to affinitize each Backend JVM to 8 Core / 16 Threads

    • Group1: --physcpubind=0-7,96-103 --localalloc
    • Group2: --physcpubind=8-15,104-111 --localalloc
    • Group3: --physcpubind=16-23,112-119 --localalloc
    • Group4: --physcpubind=24-31,120-127 --localalloc
    • Group5: --physcpubind=32-39,128-135 --localalloc
    • Group6: --physcpubind=40-47,136-143 --localalloc
    • Group7: --physcpubind=48-55,144-151 --localalloc
    • Group8: --physcpubind=56-63,152-159 --localalloc
    • Group9: --physcpubind=64-71,160-167 --localalloc
    • Group10: --physcpubind=72-79,168-175 --localalloc
    • Group11: --physcpubind=80-87,176-183 --localalloc
    • Group12: --physcpubind=88-95,184-191 --localalloc

JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line

-Xms3g -Xmx3g -Xmn2g -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=2

Tuning None
Notes

Used numactl to affinitize each Transaction Injector JVM to 8 Core / 16 Threads

    • Group1: --physcpubind=0-7,96-103 --localalloc
    • Group2: --physcpubind=8-15,104-111 --localalloc
    • Group3: --physcpubind=16-23,112-119 --localalloc
    • Group4: --physcpubind=24-31,120-127 --localalloc
    • Group5: --physcpubind=32-39,128-135 --localalloc
    • Group6: --physcpubind=40-47,136-143 --localalloc
    • Group7: --physcpubind=48-55,144-151 --localalloc
    • Group8: --physcpubind=56-63,152-159 --localalloc
    • Group9: --physcpubind=64-71,160-167 --localalloc
    • Group10: --physcpubind=72-79,168-175 --localalloc
    • Group11: --physcpubind=80-87,176-183 --localalloc
    • Group12: --physcpubind=88-95,184-191 --localalloc

max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Pass Fail Fail
jOPS 429279 434213 439147 444082 449016
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 150494 180100 224508 259047 293587 215316
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 4934 - / 4934 - / 4934 - / 4934 - / 4934 - / 4934
1000us 78948 / 14803 4934 / 9868 - / 4934 - / 4934 - / 4934 - / 4934
5000us 370068 / 375002 300989 / 305923 103619 / 108553 98685 / 103619 83882 / 88816 - / 4934
10000us 375002 / 379936 345397 / 350331 266449 / 271383 222041 / 226975 148027 / 152961 9868 / 4934
25000us 389805 / 394739 365134 / 370068 325660 / 330594 296054 / 300989 177633 / 182567 9868 / 4934
50000us 389805 / 394739 375002 / 379936 340463 / 345397 315791 / 320726 222041 / 226975 9868 / 4934
75000us 394739 / 399673 375002 / 379936 350331 / 355265 325660 / 330594 256580 / 261515 9868 / 4934
100000us 399673 / 404608 384871 / 389805 355265 / 360200 340463 / 345397 291120 / 296054 69079 / 4934
200000us 414476 / 419410 394739 / 399673 375002 / 379936 370068 / 375002 355265 / 360200 231909 / 24671
500000us 439147 / - 419410 / 424345 404608 / 409542 394739 / 399673 389805 / 394739 365134 / 355265
1000000us 439147 / - 439147 / - 429279 / 434213 424345 / 429279 419410 / 424345 399673 / 394739

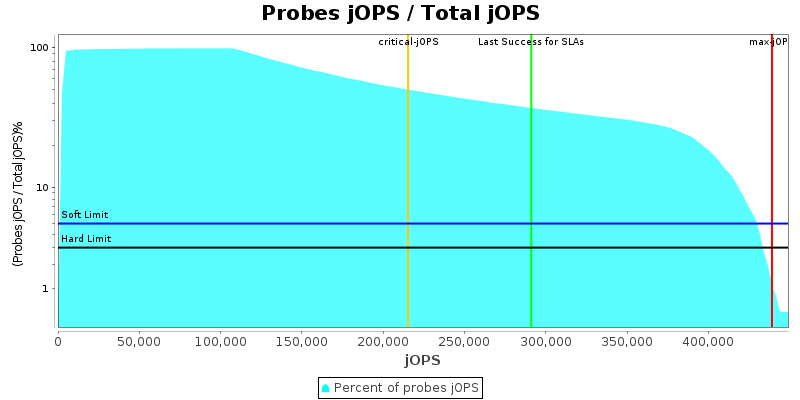

Probes jOPS / Total jOPS

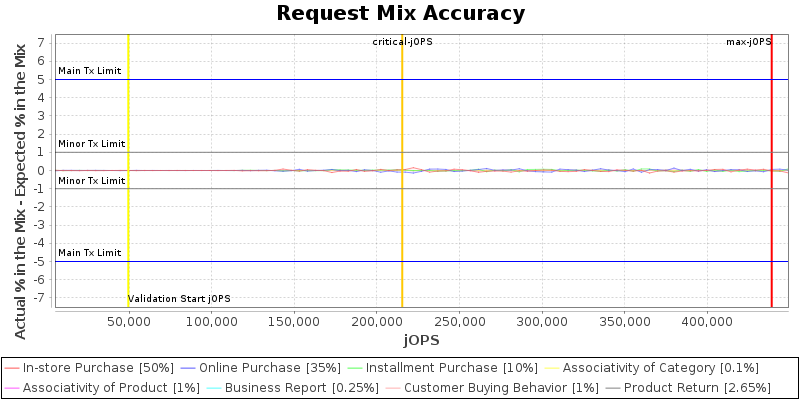

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

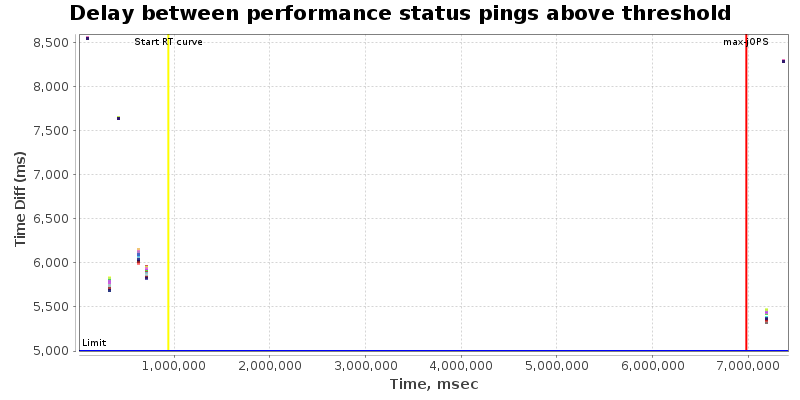

Delay between status pings

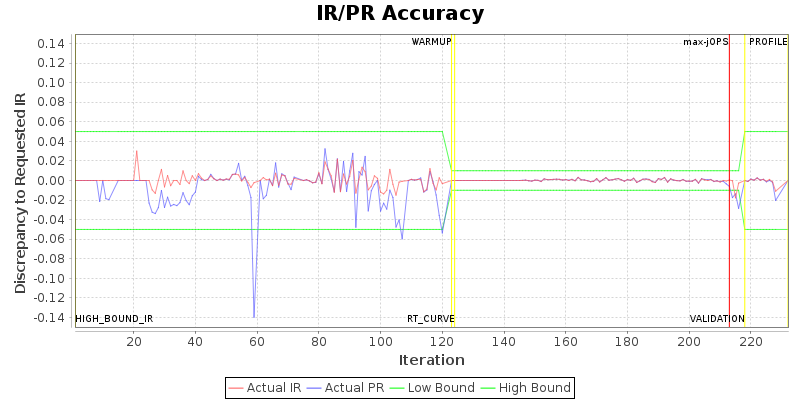

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group10.Backend.beJVM Group10.TxInjector.txiJVM1 Group11.Backend.beJVM Group11.TxInjector.txiJVM1 Group12.Backend.beJVM Group12.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1 Group9.Backend.beJVM Group9.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 256 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150
specjbb.comm.connect.selector.runner.count 0 2 4 4 4 4 4 4 4 4 4 4 4 4
specjbb.comm.connect.timeouts.connect 60000 900000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.read 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.write 60000 800000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.worker.pool.max 256 256 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150 200 150
specjbb.comm.connect.worker.pool.min 1 1 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16 16
specjbb.controller.maxir.maxFailedPoints 3 1
specjbb.customerDriver.threads 64 {probe=90, saturate=140, service=90}
specjbb.forkjoin.workers 192 {Tier1=147, Tier2=6, Tier3=17}
specjbb.group.count 1 12
specjbb.mapreducer.pool.size 192 6
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 493424 IR
High-bound (settled) is 457392 IR
