Dell Inc. PowerEdge R750xs 203484 SPECjbb2015-MultiJVM max-jOPS
154921 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Dell Inc. Test Sponsor: Dell Inc. Test location: Round Rock, TX Test date: May 23,2023
SPEC license #: 6573 Hardware Availability: Jul-2021 Software Availability: Jan-2023 Publication: Thu Jun 15 12:31:48 EDT 2023
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorDell Inc.
Vendor URLhttp://www.dell.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores64
Total Threads128
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameDell Inc. PowerEdge R750xs
VendorDell Inc.
Vendor URLhttp://www.dell.com/
AvailableJul-2021
ModelPowerEdge R750xs
Form Factor2U Rack
CPU NameIntel Xeon Gold 6338
CPU Characteristics32 core, 2.00 GHz, 48 MB L3 Cache (Turbo boost Technology up to 3.20 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System64
Cores Per Chip32
Threads Per System128
Threads Per Core2
Version1.6.5
CPU Frequency (MHz)2000
Primary Cache32 KB (I) + 48 KB (D) per core
Secondary Cache1.25 MB (I+D) per core
Tertiary Cache48 MB (I+D) on chip per chip
Other CacheNone
Disk1 x Seagate 600GB SAS 2.5" HDD
File Systembtrfs
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64 GB RDIMM 2Rx4 PC4-3200AA-R (slots A1-8, B1-8 populated)
# and type of Network Interface Cards (NICs)1 x Broadcom NetXtreme BCM5720 Gigabit Ethernet PCIe 1Gb/s Dual Port
Power Supply Quantity and Rating (W)1 x 1400
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttp://www.suse.com/
Version5.14.21-150400.22-default
AvailableJun-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.6
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 17.0.6
AvailableJan-2023
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning
  • Logical Processor : Enabled
  • Virtualization Technology : Disabled
  • DCU Streamer Prefetcher : Disabled
  • MADT Core Enumeration : Linear
  • Sub NUMA Cluster : Disabled
  • System Profile : Custom
  • CPU Power Management : Maximum Performance
  • Turbo Boost : Enabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning
  • echo 950000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 100000000 > /proc/sys/kernel/sched_latency_ns
  • echo 80000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 600000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 100000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo 0 > /proc/sys/vm/numa_stat
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:CICompilerCount=2 -XX:ParallelGCThreads=2
Tuning Used numactl to interleave memory on all CPUs
  • numactl --interleave=all
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -server -XX:AllocatePrefetchLines=3 -XX:+UseParallelGC -XX:ParallelGCThreads=32 -XX:LargePageSizeInBytes=2m -XX:+AlwaysPreTouch -XX:+UseLargePages -Xms225g -Xmx225g -Xmn215g -XX:SurvivorRatio=28 -XX:TargetSurvivorRatio=99 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=500 -XX:UseAVX=0 -XX:LoopUnrollLimit=20 -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -XX:AllocatePrefetchDistance=384 -XX:AllocatePrefetchStepSize=128 -XX:AllocateInstancePrefetchLines=2
Tuning numactl used to affinitize each Backend JVM to a single CPU memory node
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:CICompilerCount=2 -XX:ParallelGCThreads=2
Tuning numactl used to affinitize each jvm_TxInjector_1 JVM to a single CPU memory node
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 201033 203484 205936 208388 210839
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 123806 150774 155678 171000 179581 154921
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 2452 - / 2452 - / 2452 - / 2452 - / 2452 - / 2452
1000us 107871 / 110323 7355 / 2452 - / 2452 - / 2452 - / 2452 - / 2452
5000us 196130 / 198581 188775 / 191226 107871 / 110323 88258 / 90710 56387 / 58839 - / 2452
10000us 201033 / 203484 193678 / 196130 181420 / 183871 164259 / 166710 127484 / 120129 - / 2452
25000us 201033 / 203484 196130 / 198581 186323 / 188775 181420 / 183871 152000 / 149549 19613 / 7355
50000us 201033 / 203484 196130 / 198581 188775 / 191226 183871 / 186323 156904 / 154452 19613 / 12258
75000us 201033 / 203484 196130 / 198581 191226 / 193678 186323 / 188775 176517 / 169162 66194 / 41678
100000us 201033 / 203484 196130 / 198581 191226 / 193678 186323 / 188775 181420 / 174065 100516 / 41678
200000us 201033 / 203484 196130 / 198581 191226 / 193678 191226 / 193678 186323 / 188775 166710 / 159355
500000us 203484 / - 201033 / 203484 193678 / 196130 191226 / 193678 191226 / 193678 188775 / 191226
1000000us 203484 / - 203484 / - 201033 / 203484 198581 / 201033 193678 / 196130 191226 / 193678

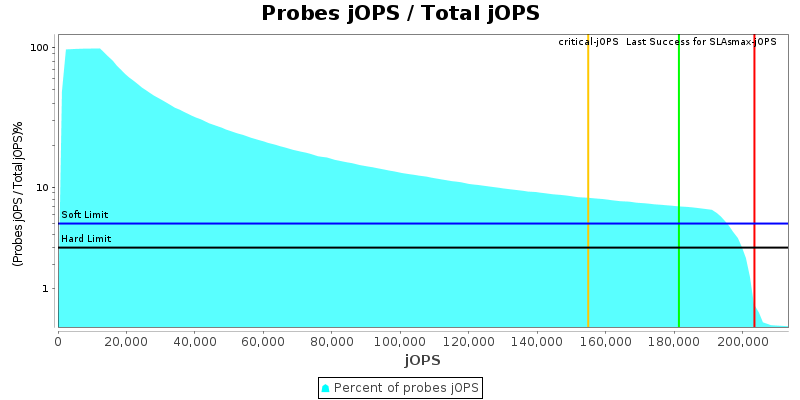

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

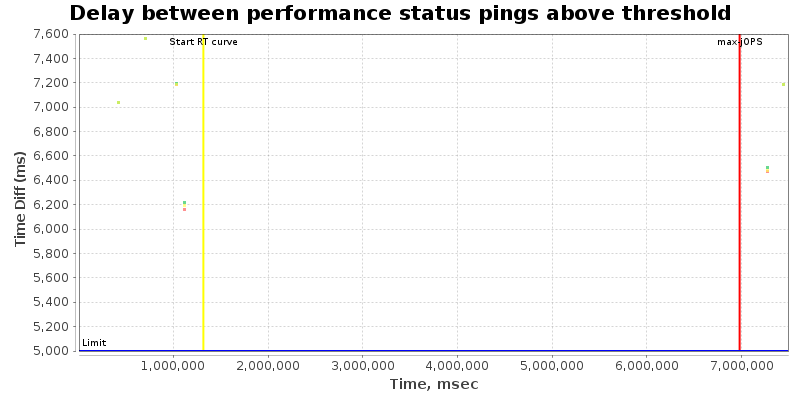

Delay between status pings

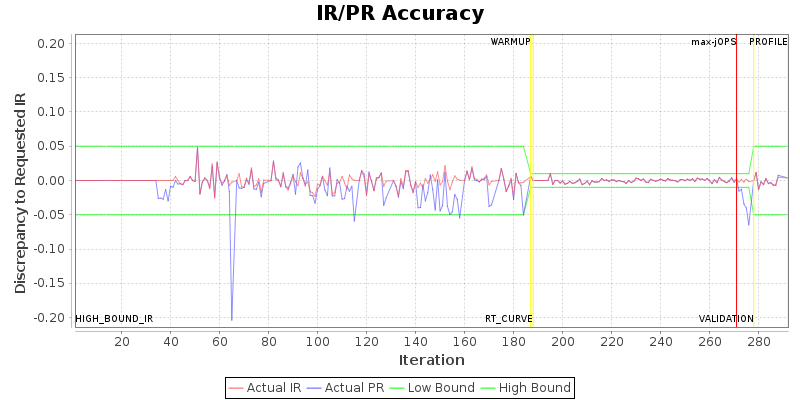

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 256 128 150 128 150
specjbb.comm.connect.selector.runner.count 0 16 4 4 4 4
specjbb.comm.connect.timeouts.connect 60000 600000 900000 900000 900000 900000
specjbb.comm.connect.timeouts.read 60000 600000 800000 800000 800000 800000
specjbb.comm.connect.timeouts.write 60000 600000 800000 800000 800000 800000
specjbb.comm.connect.worker.pool.max 256 256 128 150 128 150
specjbb.comm.connect.worker.pool.min 1 1 128 4 128 4
specjbb.controller.handshake.period 5000 20000
specjbb.controller.handshake.timeout 600000 900000
specjbb.forkjoin.workers 128 {Tier1=210, Tier2=48, Tier3=24}
specjbb.group.count 1 2
specjbb.heartbeat.period 10000 2000
specjbb.heartbeat.threshold 100000 9000000
specjbb.mapreducer.pool.size 128 26
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 245162 IR
High-bound (settled) is 218457 IR
