Lenovo Global Technology ThinkSystem SR655 V3 337219 SPECjbb2015-MultiJVM max-jOPS
322955 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: May 14, 2023
SPEC license #: 9017 Hardware Availability: Aug-2023 Software Availability: Apr-2023 Publication: Wed Jul 5 10:41:44 EDT 2023
Benchmark Results Summary

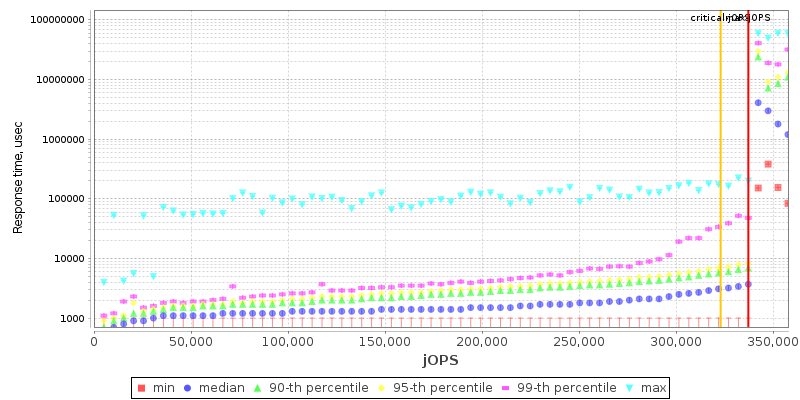

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores128
Total Threads256
Total Memory Amount (GB)768
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameThinkSystem SR655 V3
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableAug-2023
ModelThinkSystem SR655 V3
Form Factor2U
CPU NameAMD EPYC 9754
CPU Characteristics128 core, 2.25GHz, 256MB L3 Cache (Max Boost Clock up to 3.10GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System128
Cores Per Chip128
Threads Per System256
Threads Per Core2
VersionKAE111I
CPU Frequency (MHz)2250
Primary Cache32KB(I)+32KB(D) on chip per core
Secondary Cache1MB (I+D) on chip per core
Tertiary Cache256MB (I+D) on chip per chip
Other CacheNone
Disk1 x 960GB SATA SSD
File SystemXFS
Memory Amount (GB)768
# and size of DIMM(s)12 x 64 GB
Memory Details64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)1 x 1800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttp://suse.com/
Version5.14.21-150400.22-default
AvailableJun-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.7
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 17.0.7
AvailableApr-2023
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance and then set to Custom Mode
  • NUMA Nodes per Socket set to NPS2
  • L1 Stream HW Prefetcher set to Disabled
  • L2 Stream HW Prefetcher set to Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(6), jvm_TxInjector_1(6)
OS Image Description os_1
Tuning
  • cpupower frequency-set -g performance
  • tuned-adm profile throughput-performance
  • echo 800000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 200000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 40000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 64 > /proc/sys/kernel/sched_nr_migrate
  • echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 400000 > /proc/sys/kernel/sched_latency_ns
  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/vm/numa_stat
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • ulimit -n 1024000
  • UserTasksMax=970000
  • DefaultTasksMax=970000
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning numactl --interleave=all
Notes "Notes here"
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms120g -Xmx120g -Xmn117g -server -XX:MetaspaceSize=512m -XX:AllocatePrefetchInstr=2 -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseParallelGC -XX:SurvivorRatio=100 -XX:TargetSurvivorRatio=95 -XX:ParallelGCThreads=42 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=32 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=55 -XX:ThreadStackSize=512 -XX:CompileThresholdScaling=120
Tuning Used numactl to affinitize three TxInjector JVM (3 Groups) to one NUMA node
  • Group1: numactl --cpunodebind=0 --localalloc
  • Group2: numactl --cpunodebind=0 --localalloc
  • Group3: numactl --cpunodebind=0 --localalloc
  • Group4: numactl --cpunodebind=1 --localalloc
  • Group5: numactl --cpunodebind=1 --localalloc
  • Group6: numactl --cpunodebind=1 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning Used numactl to affinitize three TxInjector JVM (3 Groups) to one NUMA node
  • Group1: numactl --cpunodebind=0 --localalloc
  • Group2: numactl --cpunodebind=0 --localalloc
  • Group3: numactl --cpunodebind=0 --localalloc
  • Group4: numactl --cpunodebind=1 --localalloc
  • Group5: numactl --cpunodebind=1 --localalloc
  • Group6: numactl --cpunodebind=1 --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 332110 337219 342328 347438 352547
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 293789 314227 334664 337219 337219 322955
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 5109 / 10219 - / 5109 - / 5109 - / 5109 - / 5109 - / 5109
1000us 275907 / 281016 30656 / 35766 15328 / 20438 10219 / 15328 - / 5109 - / 5109
5000us 337219 / - 337219 / - 306563 / 311672 291235 / 296344 224813 / 229922 30656 / 10219
10000us 337219 / - 337219 / - 337219 / - 337219 / - 291235 / 296344 30656 / 10219
25000us 337219 / - 337219 / - 337219 / - 337219 / - 311672 / 316782 30656 / 10219
50000us 337219 / - 337219 / - 337219 / - 337219 / - 337219 / 332110 30656 / 10219
75000us 337219 / - 337219 / - 337219 / - 337219 / - 337219 / - 163500 / 71531
100000us 337219 / - 337219 / - 337219 / - 337219 / - 337219 / - 250360 / 71531
200000us 337219 / - 337219 / - 337219 / - 337219 / - 337219 / - 337219 / 332110
500000us 337219 / - 337219 / - 337219 / - 337219 / - 337219 / - 337219 / -
1000000us 337219 / - 337219 / - 337219 / - 337219 / - 337219 / - 337219 / -
Probes jOPS / Total jOPS

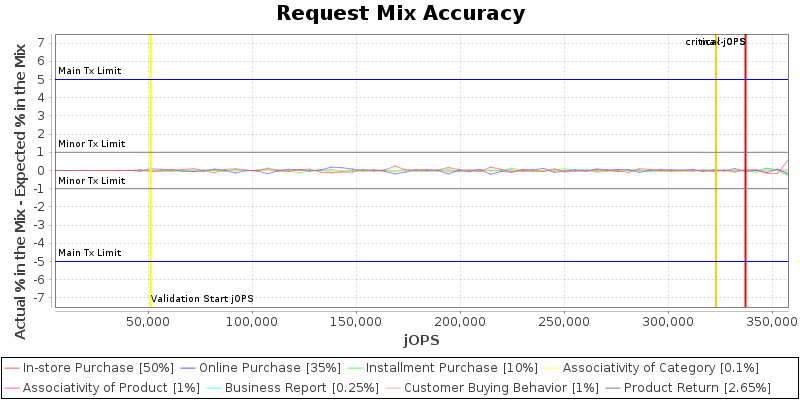

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

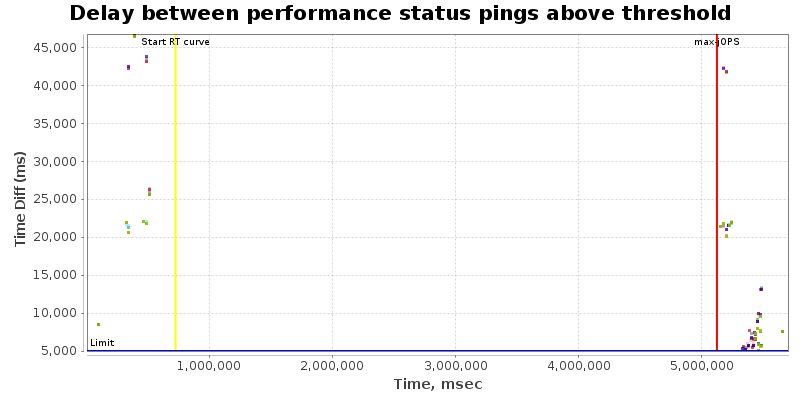

Delay between status pings

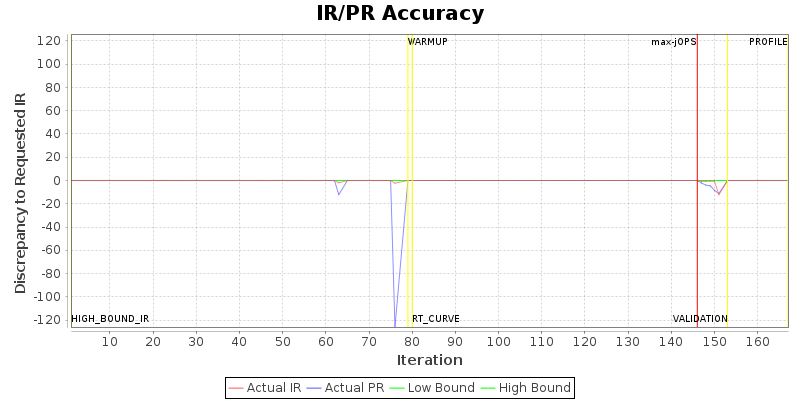

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 256 120 120 120 120 120 120 120 120 120 120 120 120
specjbb.comm.connect.selector.runner.count 0 8 4 4 4 4 4 4 4 4 4 4 4 4
specjbb.comm.connect.worker.pool.max 256 256 120 120 120 120 120 120 120 120 120 120 120 120
specjbb.comm.connect.worker.pool.min 1 1 24 24 24 24 24 24 24 24 24 24 24 24
specjbb.controller.handshake.period 5000 20000
specjbb.controller.handshake.timeout 600000 900000
specjbb.forkjoin.workers 256 {Tier1=127, Tier2=1, Tier3=6}
specjbb.group.count 1 6
specjbb.heartbeat.period 10000 2000
specjbb.heartbeat.threshold 100000 9000000
specjbb.mapreducer.pool.size 256 16
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 510938 IR
High-bound (settled) is 425882 IR
