SPECjbb2015
Copyright © 2015-2023 Standard Performance Evaluation Corporation
Lenovo Global Technology ThinkSystem SR860 V3 666841 SPECjbb2015-Distributed max-jOPS
601436 SPECjbb2015-Distributed critical-jOPS
Tested by: Lenovo Global Technology Test Sponsor: Lenovo Global Technology Test location: Beijing, China Test date: Jul 25, 2023
SPEC license #: 9017 Hardware Availability: Jun-2023 Software Availability: Jul-2023 Publication: Thu Aug 10 15:32:25 EDT 2023
Benchmark Results Summary

SPECjbb2015-Distributed: Distributed JVMs/Single or Multi Hosts
(# of groups: 8)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores240
Total Threads480
Total Memory Amount (GB)2048
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameThinkSystem SR860 V3
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableJun-2023
ModelThinkSystem SR860 V3
Form Factor4U
CPU NameIntel Xeon Platinum 8490H
CPU Characteristics60 Core, 1.90 GHz, 112.5 MB L3 Cache (Turbo Boost Technology up to 3.50 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System240
Cores Per Chip60
Threads Per System480
Threads Per Core2
VersionRSE105E
CPU Frequency (MHz)1900
Primary Cache32 KB(I)+48 KB(D)on chip per core
Secondary Cache2MB (I+D) per core
Tertiary Cache112.5MB (I+D) on chip per chip
Other CacheNone
Disk1 x 800 GB NVME SSD
File SystemNTFS
Memory Amount (GB)2048
# and size of DIMM(s)32 x 64 GB
Memory Details64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)2 x 2400W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameWindows Server 2019 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 1809(OS Build 17763.4645)
AvailableJul-2023
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.8
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 17.0.8
AvailableJul-2023
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Driver Description
Hardware hw_2
NameThinkSystem SR665
VendorLenovo Global Technology
Vendor URLhttp://www.lenovo.com
AvailableAug-2022
ModelThinkSystem SR665
Form Factor2U
CPU NameAMD EPYC 7773X
CPU Characteristics64 core, 2.20GHz, 768 MB L3 Cache (Max Boost Clock up to 3.50GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
VersionD8E129G
CPU Frequency (MHz)2200
Primary Cache32KB(I)+32KB(D) on chip per core
Secondary Cache512KB (I+D) on chip per core
Tertiary Cache768MB (I+D) on chip per chip
Other CacheNone
Disk1 x 960GB SATA SSD
File SystemNTFS
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64GB 2Rx4 PC4-3200AA-R
# and type of Network Interface Cards (NICs)1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)1 x 1800W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_2
NameWindows Server 2019 Datacenter
VendorMicrosoft
Vendor URLhttps://www.microsoft.com/
VersionVersion 1809(OS Build 17763.4645)
AvailableJul-2023
Bitness64
NotesNone
Java Virtual Machine jvm_2
NameOracle Java SE 17.0.8
VendorOracle Corporation
Vendor URLhttp://oracle.com/
VersionJava HotSpot 64-Bit Server VM, version 17.0.8
AvailableJul-2023
Bitness64
NotesNone
Other Software other_2
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance and then set to Custom Mode
  • C-state set to Legacy
  • UPI Link Disable set to Disabled 1 Link
  • SNC set to SNC2
  • LLC Prefetch set to Disabled
  • DCU Streamer Prefetcher set to Disabled
  • Adjacent Cache Prefetch set to Disabled
Notes None
OS Image os_Image_1
JVM Instances jvm_Backend_1(8)
OS Image Description os_1
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
  • Visual Effects Adjust for best performance
  • Lock Pages in Memory is Enabled
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -Xms240g -Xmx240g -Xmn238g -XX:SurvivorRatio=100 -XX:+UseParallelGC -XX:ParallelGCThreads=60 -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:TargetSurvivorRatio=95 -XX:MaxTenuringThreshold=15 -Xnoclassgc -XX:InlineSmallCode=11k -XX:+UseNUMA -XX:UseAVX=0
Tuning Affinitized each Backend JVM to a single memory node.
  • start /b /NODE 0
  • start /b /NODE 1
  • start /b /NODE 2
  • start /b /NODE 3
  • start /b /NODE 4
  • start /b /NODE 5
  • start /b /NODE 6
  • start /b /NODE 7
Notes None
Driver config_2 Configuration
Hardware
OS Images os_Image_2(1)
Hardware Description hw_2
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Configuration:
  • Operating Mode set to Maximum Performance and then set to Custom Mode
  • NUMA Nodes per Socket set to NPS4
  • L1 Stream HW Prefetcher set to Disable
  • L2 Stream HW Prefetcher set to Disable
Notes None
OS Image os_Image_2
JVM Instances jvm_Ctr_1(1), jvm_TxInjector_1(8)
OS Image Description os_2
Tuning
  • Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534
  • Power Options is set to High performance
  • Processor scheduling is set to Programs
  • Visual Effects Adjust for best performance
  • Lock Pages in Memory is Enabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m
Tuning None
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_2
Command Line -Xms2g -Xmx2g -Xmn1536m
Tuning None
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 657035 666841 676648 686454 696261
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 485421 603099 622712 652131 661938 601436
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 19613 / 29419 - / 9806 - / 9806 - / 9806 - / 9806 - / 9806
1000us 657035 / 666841 39226 / 49032 19613 / 29419 9806 / 19613 - / 9806 - / 9806
5000us 666841 / - 666841 / - 362840 / 372647 304001 / 313808 225549 / 235356 39226 / 9806
10000us 666841 / - 666841 / - 637422 / 647228 578583 / 588389 480518 / 490324 98065 / 9806
25000us 666841 / - 666841 / - 666841 / - 666841 / - 598196 / 608002 98065 / 9806
50000us 666841 / - 666841 / - 666841 / - 666841 / - 617809 / 627615 98065 / 9806
75000us 666841 / - 666841 / - 666841 / - 666841 / - 647228 / 657035 323614 / 78452
100000us 666841 / - 666841 / - 666841 / - 666841 / - 657035 / 666841 500131 / 235356
200000us 666841 / - 666841 / - 666841 / - 666841 / - 666841 / - 617809 / 608002
500000us 666841 / - 666841 / - 666841 / - 666841 / - 666841 / - 666841 / -
1000000us 666841 / - 666841 / - 666841 / - 666841 / - 666841 / - 666841 / -
Number of probes
Probes jOPS / Total jOPS

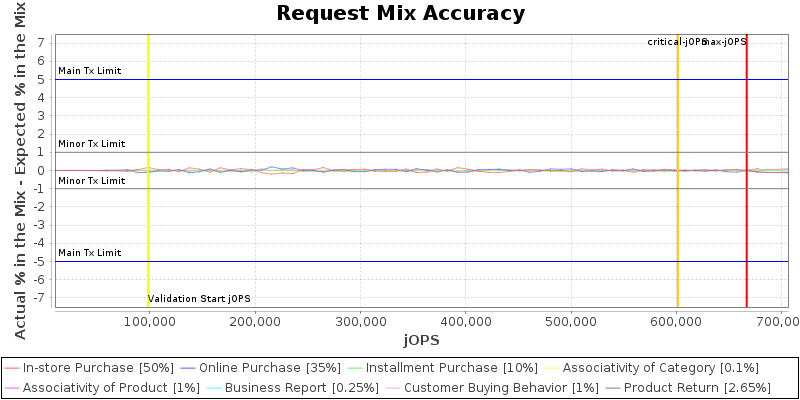

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building
Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

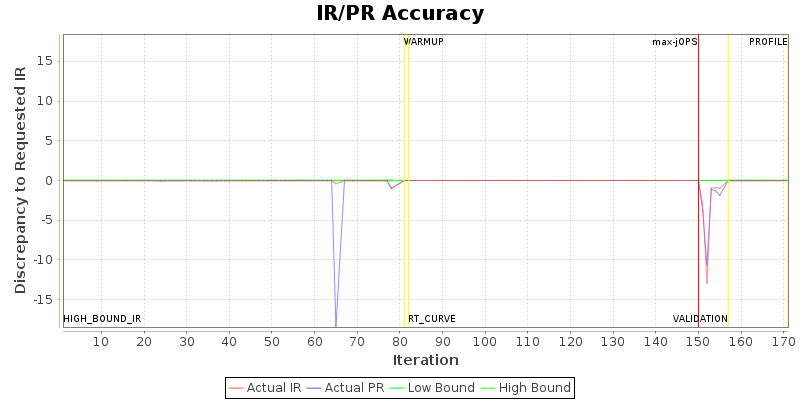

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 192 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48 48
specjbb.comm.connect.selector.runner.count 0 1
specjbb.comm.connect.timeouts.connect 60000 900000
specjbb.comm.connect.timeouts.read 60000 800000
specjbb.comm.connect.timeouts.write 60000 800000
specjbb.comm.connect.worker.pool.max 256 45
specjbb.comm.connect.worker.pool.min 1 40
specjbb.controller.host localhost 192.168.5.4
specjbb.forkjoin.workers 64 {Tier1=80, Tier2=18, Tier3=5}
specjbb.group.count 1 8
specjbb.mapreducer.pool.size 64 10
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 980649 IR
High-bound (settled) is 817341 IR
Copyright © 2015-2023 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]
