Supermicro SuperServer SYS-741GE-TNRT 528093 SPECjbb2015-MultiJVM max-jOPS
296367 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Supermicro Test Sponsor: Supermicro Test location: San Jose, California Test date: Nov 29, 2023
SPEC license #: 001176 Hardware Availability: Dec-2023 Software Availability: Nov-2023 Publication: Thu Dec 14 10:44:19 EST 2023
Benchmark Results Summary

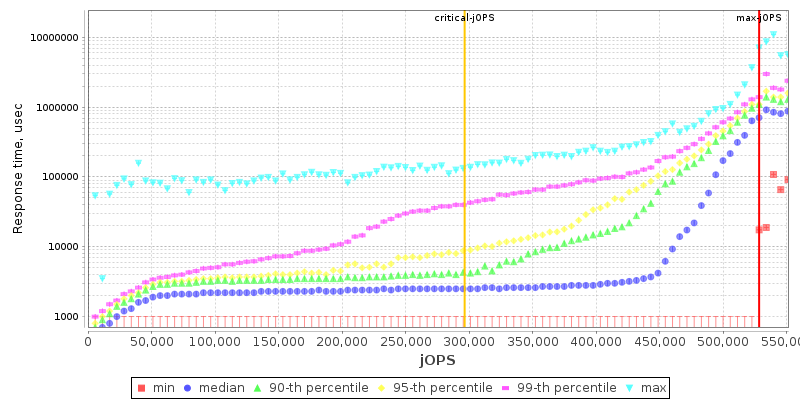

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorSupermicro
Vendor URLhttps://www.supermicro.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores128
Total Threads256
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameSuperServer SYS-741GE-TNRT
VendorSupermicro
Vendor URLhttps://www.supermicro.com
AvailableDec-2023
ModelX13DEG-QT
Form Factor2U
CPU NameIntel Xeon Platinum 8592+
CPU Characteristics64 Core, 1.90 GHz, 320 MB L3 Cache (Turbo Boost Technology up to 3.90 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
Version2.0 11/13/2023
CPU Frequency (MHz)1900
Primary Cache32 KB(I) + 48 KB(D) per core
Secondary Cache2 MB (I+D) per core
Tertiary Cache320 MB (I+D) on chip per chip
Other CacheNone
Disk1 x 480 GB M.2 NVMe SSD
File Systemxfs
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64 GB 2Rx4 PC5-5600B-R
# and type of Network Interface Cards (NICs)2 x 10 Gbit NICs
Power Supply Quantity and Rating (W)2 x 2000W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameUbuntu 22.04.3 LTS server-amd64
VendorUbuntu
Vendor URLhttps://ubuntu.com/
Version5.15.0-89-generic
AvailableAug-2023
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.9
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 17.0.9
AvailableOct-2023
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning

BIOS Settings:

  • Intel HT Technology=Enable
  • Hardware Prefetcher=Enabled
  • Turbo Mode=Enable
  • SNC=Enable SNC2(2- Clusters)
  • Power Performance Tuning=BIOS Controls EPB
  • ENERGY_PERF_BIAS_CFG mode=Extreme Performance

Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning

  • cpupower -c all frequency-set -g performance
  • tuned-adm profile throughput-performance

  • ulimit -n 1024000
  • echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us
  • echo 0 > /proc/sys/kernel/sched_child_runs_first
  • echo 56000000 > /sys/kernel/debug/sched/latency_ns
  • echo 1000 > /sys/kernel/debug/sched/migration_cost_ns
  • echo 16000000 > /sys/kernel/debug/sched/min_granularity_ns
  • echo 9 > /sys/kernel/debug/sched/nr_migrate
  • echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms
  • echo 1000000 > /proc/sys/kernel/sched_rt_period_us
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 0 > /proc/sys/kernel/sched_schedstats
  • echo 1 > /sys/kernel/debug/sched/tunable_scaling
  • echo 50000000 > /sys/kernel/debug/sched/wakeup_granularity_ns
  • echo 3000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • ulimit -v 800000000
  • ulimit -m 800000000
  • ulimit -l 800000000
  • echo 300 > /sys/kernel/mm/hugepages/hugepages-1048576kB/nr_hugepages
  • echo 8000 > /sys/kernel/mm/hugepages/hugepages-2048kb/nr_hugepages
  • systemctl stop systemed-update-utmp-runlevel.service
  • echo 274877906944 > /proc/sys/kernel/shmmax
  • echo 274877906944 > /proc/sys/kernel/shmall

Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line

-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2

Tuning

Used numactl to interleave memory on all CPUs

  • numactl --interleave=all

Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -verbose:gc -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -server -XX:TargetSurvivorRatio=95 -XX:SurvivorRatio=28 -XX:LargePageSizeInBytes=1G -XX:MaxGCPauseMillis=500 -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -XX:AllocatePrefetchLines=3 -XX:AllocateInstancePrefetchLines=2 -XX:AllocatePrefetchStepSize=128 -XX:AllocatePrefetchDistance=384 -Xms29g -Xmx29g -Xmn27g -XX:UseAVX=0 -XX:ParallelGCThreads=32 -XX:+UseHugeTLBFS

Tuning

Used numactl to affinitize each Backend JVM to physcical cores in a NUMA node

    • Group1: numactl --physcpubind=0-15,128-143 --localalloc
    • Group2:numactl --physcpubind=16-31,144-159 --localalloc
    • Group3:numactl --physcpubind=32-47,160-175 --localalloc
    • Group4:numactl --physcpubind=48-63,176-191 --localalloc
    • Group5: numactl --physcpubind=64-79,192-207 --localalloc
    • Group6:numactl --physcpubind=80-95,208-223 --localalloc
    • Group7:numactl --physcpubind=96-111,224-239 --localalloc
    • Group8:numactl --physcpubind=112-127,240-255 --localalloc

Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line

-server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2

Tuning

Used numactl to affinitize each Injector JVM to physcical cores in a NUMA node

    • Group1: numactl --physcpubind=0-15,128-143 --localalloc
    • Group2:numactl --physcpubind=16-31,144-159 --localalloc
    • Group3:numactl --physcpubind=32-47,160-175 --localalloc
    • Group4:numactl --physcpubind=48-63,176-191 --localalloc
    • Group5: numactl --physcpubind=64-79,192-207 --localalloc
    • Group6:numactl --physcpubind=80-95,208-223 --localalloc
    • Group7:numactl --physcpubind=96-111,224-239 --localalloc
    • Group8:numactl --physcpubind=112-127,240-255 --localalloc

Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 522415 528093 533771 539450 545128
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 190227 241333 320831 371936 417364 296367
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 11357 / 17035 5678 / 11357 - / 5678 - / 5678 - / 5678 - / 5678
1000us 300956 / 232815 22714 / 28392 11357 / 17035 11357 / 17035 5678 / 11357 - / 5678
5000us 488344 / 494023 448595 / 454274 317992 / 312313 215780 / 204423 96533 / 102212 11357 / 5678
10000us 494023 / 499701 459952 / 465630 369097 / 374776 306635 / 312313 187388 / 193066 11357 / 5678
25000us 499701 / 505379 476987 / 482666 425881 / 431560 386133 / 391811 238494 / 244172 11357 / 5678
50000us 499701 / 505379 482666 / 488344 442917 / 448595 420203 / 425881 317992 / 323670 11357 / 5678
75000us 505379 / 511058 488344 / 494023 448595 / 454274 431560 / 437238 369097 / 374776 107890 / 22714
100000us 505379 / 511058 488344 / 494023 459952 / 465630 442917 / 448595 420203 / 414525 210102 / 39749
200000us 516736 / 522415 499701 / 505379 482666 / 488344 471309 / 476987 459952 / 465630 380454 / 352062
500000us 528093 / - 516736 / 522415 505379 / 511058 499701 / 505379 488344 / 494023 471309 / 459952
1000000us 528093 / - 528093 / - 522415 / 528093 516736 / 522415 511058 / 516736 499701 / 505379

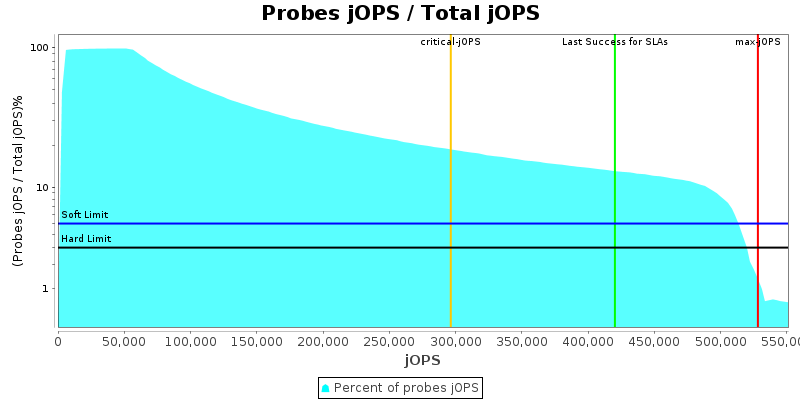

Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 232
specjbb.comm.connect.selector.runner.count 0 1
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 81
specjbb.comm.connect.worker.pool.min 1 24
specjbb.controller.host localhost localhost
specjbb.controller.port 24000 24000
specjbb.controller.type HBIR_RT HBIR_RT
specjbb.customerDriver.threads 64 {=75, probe=69, saturate=85}
specjbb.forkjoin.workers 256 {Tier1=310, Tier2=7, Tier3=32}
specjbb.group.count 1 8
specjbb.mapreducer.pool.size 256 223
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 567842 IR
High-bound (settled) is 549652 IR
