ASUSTeK Computer Inc. RS720-E11-RS12U 558626 SPECjbb2015-MultiJVM max-jOPS
273767 SPECjbb2015-MultiJVM critical-jOPS
Tested by: ASUSTeK Computer Inc. Test Sponsor: ASUSTeK Computer Inc. Test location: Taipei, Taiwan Test date: Nov 28, 2023
SPEC license #: 9016 Hardware Availability: Dec-2023 Software Availability: Oct-2023 Publication: MMM DD, YYYY
Benchmark Results Summary

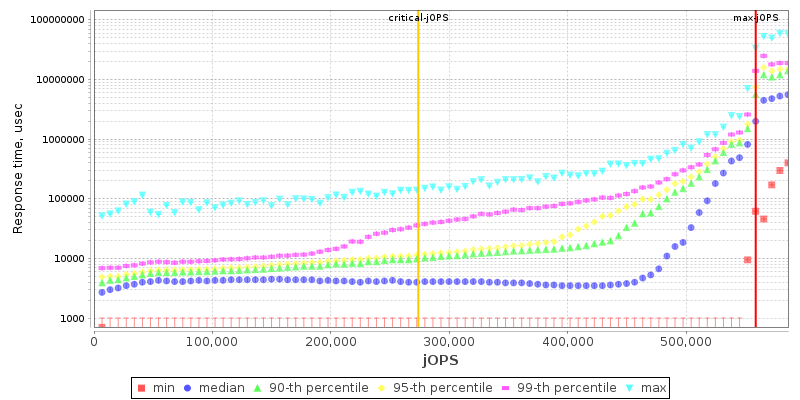

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorASUSTeK Computer Inc.
Vendor URLhttps://www.asus.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores128
Total Threads256
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameRS720-E11-RS12U
VendorASUSTeK Computer Inc.
Vendor URLhttps://www.asus.com/
AvailableDec-2023
ModelRS720-E11-RS12U
Form Factor2U
CPU NameIntel Xeon Platinum 8592+
CPU Characteristics64 Core, 1.90 GHz, 320 MB L3 Cache (Turbo Boost Technology up to 3.90 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
Version2001
CPU Frequency (MHz)1900
Primary Cache32 KB (I) + 48 KB (D) on chip per core
Secondary Cache2 MB (I+D) per core
Tertiary Cache320 MB (I+D) on chip per chip
Other CacheNone
Disk1 x 1.6 TB PCIE NVMe SSD
File Systemxfs
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64 GB 2Rx4 PC5-4800B-R
# and type of Network Interface Cards (NICs)1 x 2 ports Intel X710 10GbE
Power Supply Quantity and Rating (W)2 x 1600
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttps://www.suse.com/
Version5.14.21-150400.22-default
AvailableJun-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.9
VendorOracle
Vendor URLhttps://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 17.0.9
AvailableOct-2023
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Settings:
  • Engine Boost = Aggressive
  • SNC = Enable SNC2 (2-clusters)
  • Patrol Scrub = Disabled
  • SR-IOV Support = Disabled
  • DCU Streamer Prefetching = Disabled
  • ENERGY_PERF_BIAS_CFG mode = Performance
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description os_1
Tuning
  • tuned-adm profile throughput-performance
  • cpupower frequency-set -g performance
  • systemctl stop systemd-update-utmp-runlevel.service
  • ulimit -n 1024000
  • echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us
  • echo 0 > /proc/sys/kernel/sched_child_runs_first
  • echo 56000000 > /proc/sys/kernel/sched_latency_ns
  • echo 1000 > /proc/sys/kernel/sched_migration_cost_ns
  • echo 16000000 > /proc/sys/kernel/sched_min_granularity_ns
  • echo 9 > /proc/sys/kernel/sched_nr_migrate
  • echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms
  • echo 1000000 > /proc/sys/kernel/sched_rt_period_us
  • echo 990000 > /proc/sys/kernel/sched_rt_runtime_us
  • echo 0 > /proc/sys/kernel/sched_schedstats
  • echo 1 > /proc/sys/kernel/sched_tunable_scaling
  • echo 50000000 > /proc/sys/kernel/sched_wakeup_granularity_ns
  • echo 3000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • echo 300 > /sys/kernel/mm/hugepages/hugepages-1048576kB/nr_hugepages
  • echo 300 > /sys/kernel/mm/hugepages/hugepages-2048kB/nr_hugepages
  • ulimit -v 800000000
  • ulimit -m 800000000
  • ulimit -l 800000000
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:LargePageSizeInBytes=1G
Tuning Used numactl to interleave memory on all CPUs
  • numactl --interleave=all
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -server -XX:TargetSurvivorRatio=99 -XX:SurvivorRatio=28 -XX:LargePageSizeInBytes=1g -XX:UseAVX=0 -Xms31744m -Xmx31744m -Xmn29696m -XX:ParallelGCThreads=32
Tuning Used numactl to affinitize each Backend JVM to 16 Cores / 32 Threads
  • numactl --physcpubind=0-15,128-143 --localalloc
  • numactl --physcpubind=16-31,144-159 --localalloc
  • numactl --physcpubind=32-47,160-175 --localalloc
  • numactl --physcpubind=48-63,176-191 --localalloc
  • numactl --physcpubind=64-79,192-207 --localalloc
  • numactl --physcpubind=80-95,208-223 --localalloc
  • numactl --physcpubind=96-111,224-239 --localalloc
  • numactl --physcpubind=112-127,240-255 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:LargePageSizeInBytes=1G
Tuning Used numactl to affinitize each TxInjector JVM to 16 Cores / 32 Threads
  • numactl --physcpubind=0-15,128-143 --localalloc
  • numactl --physcpubind=16-31,144-159 --localalloc
  • numactl --physcpubind=32-47,160-175 --localalloc
  • numactl --physcpubind=48-63,176-191 --localalloc
  • numactl --physcpubind=64-79,192-207 --localalloc
  • numactl --physcpubind=80-95,208-223 --localalloc
  • numactl --physcpubind=96-111,224-239 --localalloc
  • numactl --physcpubind=112-127,240-255 --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 551813 558626 565438 572251 579063
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 126031 235031 316781 384907 425782 273767
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 6813 - / 6813 - / 6813 - / 6813 - / 6813 - / 6813
1000us - / 6813 - / 6813 - / 6813 - / 6813 - / 6813 - / 6813
5000us 510938 / 517751 463251 / 470063 34063 / 40875 20438 / 27250 - / 6813 - / 6813
10000us 517751 / 524563 476876 / 483688 272500 / 279313 224813 / 231625 122625 / 129438 - / 6813
25000us 524563 / 531376 497313 / 504126 442813 / 449626 401938 / 408751 231625 / 238438 - / 6813
50000us 524563 / 531376 504126 / 510938 456438 / 463251 422376 / 429188 313375 / 320188 - / 6813
75000us 531376 / 538188 510938 / 517751 476876 / 483688 449626 / 456438 381501 / 388313 102188 / 27250
100000us 531376 / 538188 517751 / 524563 483688 / 490501 470063 / 476876 422376 / 429188 190750 / 40875
200000us 545001 / 551813 524563 / 531376 504126 / 510938 497313 / 504126 476876 / 483688 374688 / 327000
500000us 551813 / 558626 545001 / 551813 524563 / 531376 517751 / 524563 510938 / 517751 476876 / 483688
1000000us 558626 / - 551813 / 558626 545001 / 551813 545001 / 551813 531376 / 538188 510938 / 517751
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building
Delay between status pings

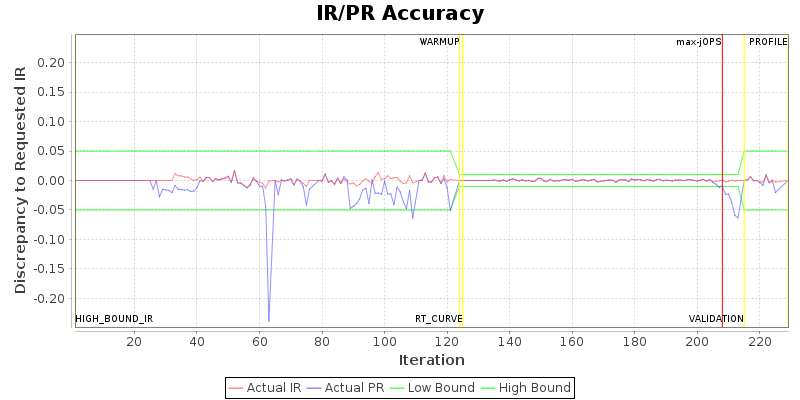

IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1 Group5.Backend.beJVM Group5.TxInjector.txiJVM1 Group6.Backend.beJVM Group6.TxInjector.txiJVM1 Group7.Backend.beJVM Group7.TxInjector.txiJVM1 Group8.Backend.beJVM Group8.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 232 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256
specjbb.comm.connect.selector.runner.count 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
specjbb.comm.connect.timeouts.connect 60000 600000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.read 60000 600000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.timeouts.write 60000 600000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000 60000
specjbb.comm.connect.worker.pool.max 256 81 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256 256
specjbb.comm.connect.worker.pool.min 1 24 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
specjbb.customerDriver.threads 64 {=75, probe=69, saturate=85}
specjbb.forkjoin.workers 256 {Tier1=234, Tier2=6, Tier3=32}
specjbb.group.count 1 8
specjbb.mapreducer.pool.size 256 223
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 681251 IR
High-bound (settled) is 589141 IR
