SPECjbb2015
Copyright © 2015-2024 Standard Performance Evaluation Corporation
xFusion FusionServer 2488H V7 884811 SPECjbb2015-MultiJVM max-jOPS
469922 SPECjbb2015-MultiJVM critical-jOPS
Tested by: xFusion Test Sponsor: xFusion Test location: Shenzhen, China Test date: Feb 23, 2024
SPEC license #: 6488 Hardware Availability: Jan-2023 Software Availability: Jan-2024 Publication: Thu Mar 28 10:41:49 EDT 2024
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 16)

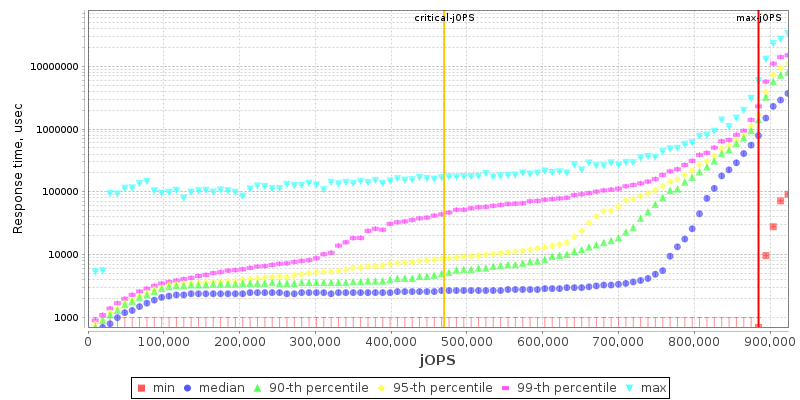

Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorxFusion
Vendor URLhttp://xfusion.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips4
Total Cores240
Total Threads480
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameFusionServer 2488H V7
VendorxFusion
Vendor URLhttp://xfusion.com/
AvailableJan-2023
ModelFusionServer 2488H V7
Form Factor2U
CPU NameIntel Xeon Platinum 8490H
CPU Characteristics60 Core, 1.9 GHz, 112.5 MB L3 Cache (Turbo Boost Technology up to 3.5 GHz)
Number of Systems1
Nodes Per System1
Chips Per System4
Cores Per System240
Cores Per Chip60
Threads Per System480
Threads Per Core2
Version01.02.01.03 released Jan-2024
CPU Frequency (MHz)1900
Primary Cache32KB(I)+ 48KB(D) per core
Secondary Cache2MB (I+D) per core
Tertiary Cache112.5MB (I+D) on chip per chip
Other CacheNone
Disk1 x 480 GB SATA SSD
File Systemxfs
Memory Amount (GB)1024
# and size of DIMM(s)32 x 32GB
Memory Details32 x 32 GB 2Rx8 PC5-4800B-R;
# and type of Network Interface Cards (NICs)1x 1 Gbit NIC
Power Supply Quantity and Rating (W)2 x 2000W
Other Hardware1x MegaRAID 9560-8i
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameRed Hat Enterprise Linux release 9.0 (Plow)
VendorRed Hat
Vendor URLhttp://redhat.com/
Version5.14.0-70.13.1.el9_0.x86_64
AvailableMay-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 17.0.10
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot(TM) 64-Bit Server VM, version 17.0.10
AvailableJan-2024
Bitness64
Notesnote
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • Performance Profile Set to Performance
  • SNC Set to Enabled SNC4 (4-clusters)
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(16), jvm_TxInjector_1(16)
OS Image Description os_1
Tuning
  • echo 30000 > /sys/kernel/mm/hugepages/hugepages-2048kB/nr_hugepages
  • echo 16000000 > /sys/kernel/debug/sched/latency_ns
  • ulimit -n 131072
  • echo 50000000 > /sys/kernel/debug/sched/wakeup_granularity_ns
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=2m -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -showversion -XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -server -XX:TargetSurvivorRatio=96 -XX:SurvivorRatio=28 -XX:LargePageSizeInBytes=1G -XX:UseAVX=0 -Xms31744m -Xmx31744m -Xmn29696m -XX:ParallelGCThreads=30
Tuning numactl used to affinitize each Backend JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning numactl used to affinitize each TxInjector JVM to a single memory node, eg:
  • numactl --cpunodebind=$node --localalloc
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 875088 884811 894534 904258 913981
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 306280 384066 481298 607700 666039 469922
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 19446 / 29170 9723 / 19446 - / 9723 - / 9723 - / 9723 - / 9723
1000us 340312 / 213910 38893 / 48616 19446 / 29170 19446 / 29170 9723 / 19446 - / 9723
5000us 816749 / 826472 748686 / 758410 466714 / 476437 281973 / 291696 155571 / 165294 - / 9723
10000us 816749 / 826472 768133 / 777856 622285 / 632008 525053 / 534776 301419 / 311142 19446 / 29170
25000us 836195 / 845918 787579 / 797302 709794 / 719517 651454 / 661178 388928 / 379205 19446 / 29170
50000us 836195 / 845918 807026 / 816749 738963 / 748686 690347 / 700070 476437 / 486160 19446 / 29170
75000us 845918 / 855642 807026 / 816749 748686 / 758410 709794 / 719517 602838 / 612562 19446 / 29170
100000us 855642 / 865365 816749 / 826472 758410 / 768133 738963 / 748686 661178 / 670901 204187 / 48616
200000us 865365 / 875088 836195 / 845918 797302 / 807026 787579 / 797302 758410 / 768133 632008 / 602838
500000us 884811 / - 865365 / 875088 845918 / 855642 836195 / 845918 816749 / 826472 777856 / 787579
1000000us 884811 / - 884811 / - 875088 / 884811 865365 / 875088 865365 / 875088 826472 / 836195

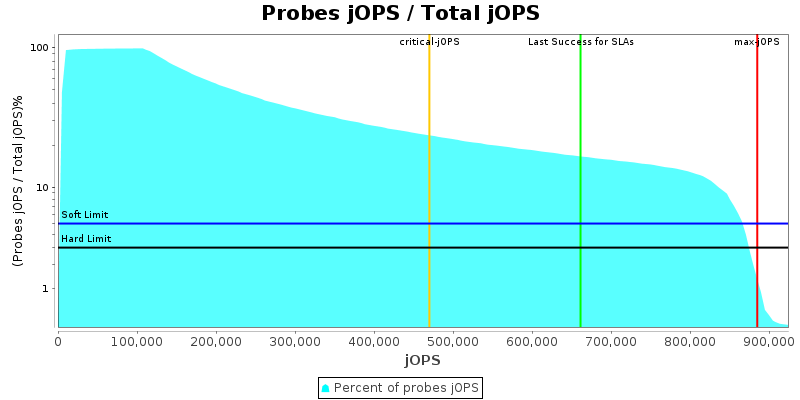

Number of probes
Probes jOPS / Total jOPS

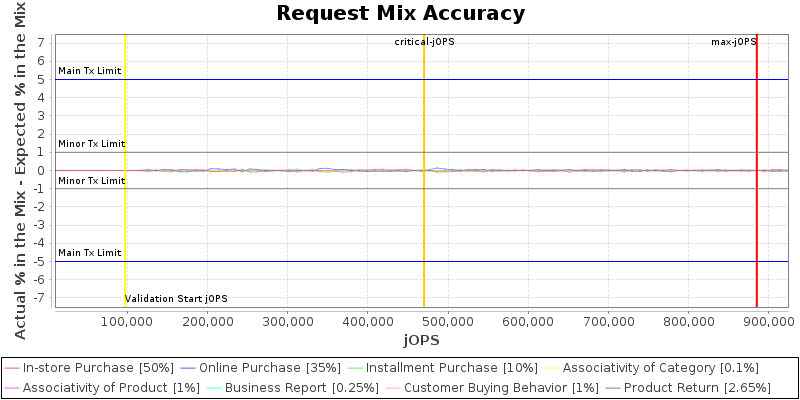

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

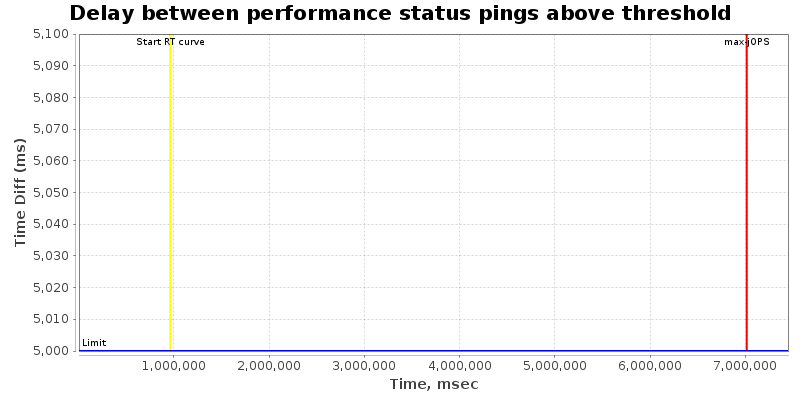

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

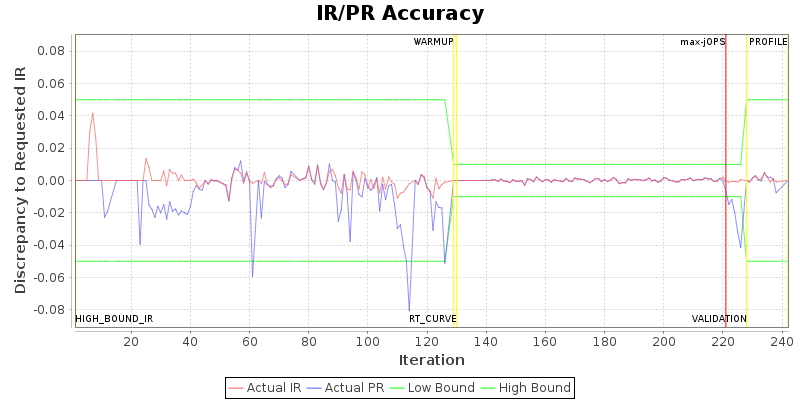

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 480
specjbb.comm.connect.selector.runner.count 0 1
specjbb.comm.connect.timeouts.connect 60000 650000
specjbb.comm.connect.timeouts.read 60000 650000
specjbb.comm.connect.timeouts.write 60000 650000
specjbb.comm.connect.worker.pool.max 256 168
specjbb.comm.connect.worker.pool.min 1 64
specjbb.customerDriver.threads 64 {=75, probe=69, saturate=85}
specjbb.forkjoin.workers 480 {Tier1=234, Tier2=7, Tier3=30}
specjbb.group.count 1 16
specjbb.mapreducer.pool.size 480 225
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 972320 IR
High-bound (settled) is 941793 IR
