IEIT Systems Co., Ltd. NF5180G7 173685 SPECjbb2015-MultiJVM max-jOPS
122580 SPECjbb2015-MultiJVM critical-jOPS
Tested by: IEIT Systems Co., Ltd. Test Sponsor: IEIT Systems Co., Ltd. Test location: Jinan, China Test date: Mar 13, 2024
SPEC license #: 3358 Hardware Availability: Dec-2023 Software Availability: Jan-2024 Publication: Thu Apr 4 12:04:19 EDT 2024
Benchmark Results Summary

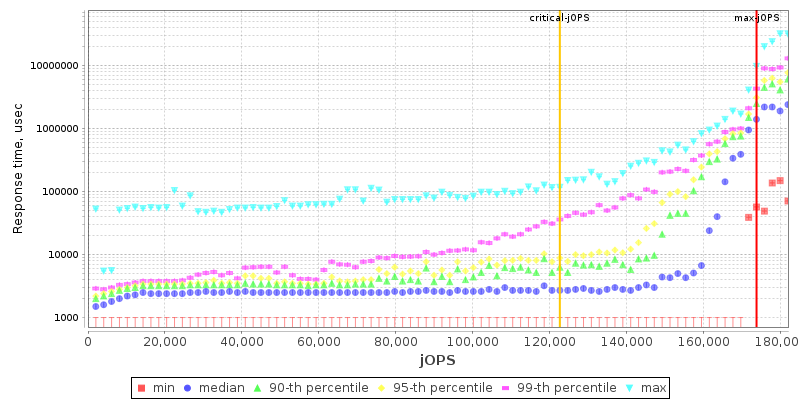

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorIEIT Systems Co., Ltd.
Vendor URLhttps://www.ieisystem.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores32
Total Threads64
Total Memory Amount (GB)512
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameNF5180G7
VendorIEIT Systems Co., Ltd.
Vendor URLhttps://www.ieisystem.com/
AvailableDec-2023
ModelNF5180G7
Form Factor1U
CPU NameIntel Xeon Gold 6544Y
CPU Characteristics16 Core, 3.60 GHz, 45 MB L3 Cache (Turbo Boost Technology up to 4.10 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System32
Cores Per Chip16
Threads Per System64
Threads Per Core2
Version05.13.00
CPU Frequency (MHz)3600
Primary Cache32 KB(I)+48 KB(D)on chip per core
Secondary Cache2 MB (I+D) on chip per core
Tertiary Cache45 MB (I+D) on chip per chip
Other CacheNone
Disk1x 4TB NVMe SSD
File Systemxfs
Memory Amount (GB)512
# and size of DIMM(s)16 x 32GB
Memory Details16 x 32 GB 2Rx8 PC5-5600B-R
# and type of Network Interface Cards (NICs)1 x 10 Gbit NIC
Power Supply Quantity and Rating (W)2 x 1300W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameSUSE Linux Enterprise Server 15 SP4
VendorSUSE
Vendor URLhttps://www.suse.com/
Version5.14.21-150400.22-default
AvailableJun-2022
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 21.0.2
VendorOracle
Vendor URLhttp://www.oracle.com
VersionJava HotSpot 64-bit Server VM, version 21.0.2
AvailableJan-2024
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Tuning
  • SNC=Disabled
  • Memory Patrol Scrub=Disabled
  • Power Performance Tuning=BIOS Controls EPB
  • ENERGY_PERF_BIAS_CFG mode=Performance
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(2), jvm_TxInjector_1(2)
OS Image Description os_1
Tuning
  • ulimit -n 131072
  • cpupower frequency-set -g performance
  • tuned-adm profile throughput-performance
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=2m
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=11k -server -XX:TargetSurvivorRatio=95 -XX:SurvivorRatio=28 -XX:LargePageSizeInBytes=2m -Xms29g -Xmx29g -Xmn27g -XX:UseAVX=0 -XX:ParallelGCThreads=32
Tuning numactl used to affinitize each Backend JVM to one NUMA node, eg:
  • Group1:numactl --cpunodebind=0 --localalloc
  • Group2:numactl --cpunodebind=1 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=2m
Tuning numactl used to affinitize each TxInjector JVM to one NUMA node, eg:
  • Group1:numactl --cpunodebind=0 --localalloc
  • Group2:numactl --cpunodebind=1 --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 171641 173685 175728 177771 179815
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 88885 115449 133839 137926 146099 122580
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 2043 - / 2043 - / 2043 - / 2043 - / 2043 - / 2043
1000us 2043 / 4087 - / 2043 - / 2043 - / 2043 - / 2043 - / 2043
5000us 165511 / 167555 155295 / 157338 106254 / 87864 93994 / 75604 59257 / 30650 - / 2043
10000us 165511 / 167555 159381 / 161425 147121 / 149165 130774 / 118514 89907 / 87864 6130 / 2043
25000us 167555 / 169598 161425 / 163468 149165 / 151208 143034 / 145078 114428 / 116471 6130 / 2043
50000us 167555 / 169598 163468 / 165511 155295 / 157338 147121 / 149165 134861 / 132818 34737 / 2043
75000us 167555 / 169598 163468 / 165511 155295 / 157338 149165 / 151208 136904 / 138948 85821 / 22477
100000us 169598 / 171641 163468 / 165511 155295 / 157338 155295 / 157338 147121 / 145078 112384 / 22477
200000us 169598 / 171641 165511 / 167555 159381 / 161425 157338 / 159381 147121 / 149165 138948 / 130774
500000us 169598 / 171641 169598 / 171641 163468 / 165511 163468 / 165511 159381 / 161425 155295 / 153251
1000000us 173685 / - 171641 / 173685 169598 / 171641 169598 / 171641 169598 / 171641 161425 / 163468

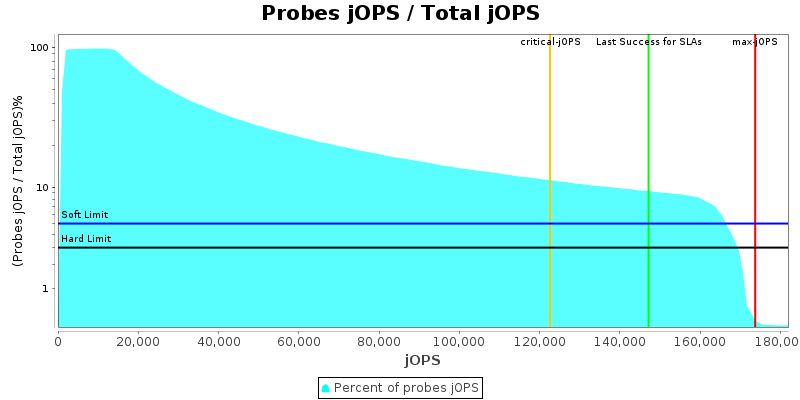

Probes jOPS / Total jOPS

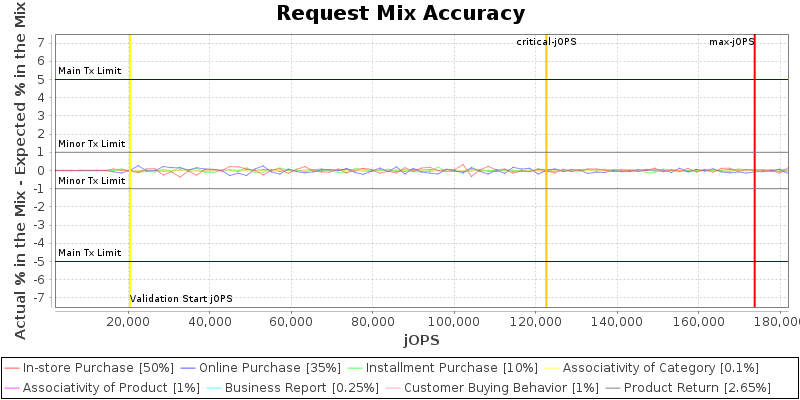

Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

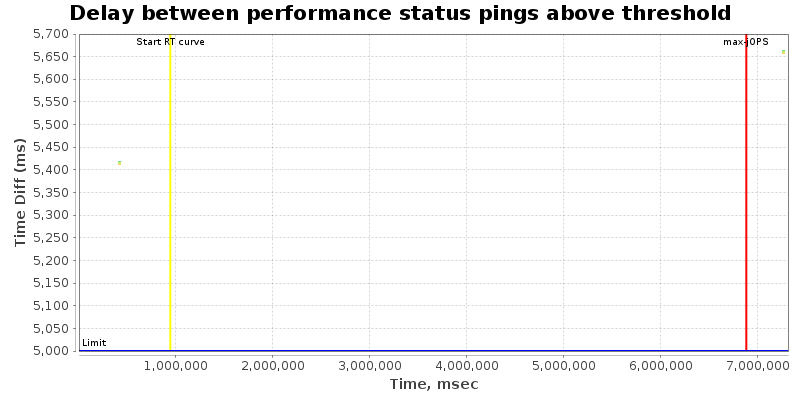

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller
specjbb.comm.connect.client.pool.size 256 232
specjbb.comm.connect.selector.runner.count 0 1
specjbb.comm.connect.timeouts.connect 60000 600000
specjbb.comm.connect.timeouts.read 60000 600000
specjbb.comm.connect.timeouts.write 60000 600000
specjbb.comm.connect.worker.pool.max 256 81
specjbb.comm.connect.worker.pool.min 1 24
specjbb.customerDriver.threads 64 {=75, probe=69, saturate=85}
specjbb.forkjoin.workers 64 {Tier1=70, Tier2=3, Tier3=8}
specjbb.group.count 1 2
specjbb.mapreducer.pool.size 64 223
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 204335 IR
High-bound (settled) is 186212 IR
