H3C UniServer R4900 G6 447116 SPECjbb2015-MultiJVM max-jOPS
409146 SPECjbb2015-MultiJVM critical-jOPS
Tested by: H3C Test Sponsor: H3C Test location: Hangzhou, Zhejiang, China Test date: April 03, 2024
SPEC license #: 9066 Hardware Availability: Dec-2023 Software Availability: Jan-2024 Publication: Thu Apr 25 10:18:08 EDT 2024
Benchmark Results Summary

Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorH3C
Vendor URLhttps://www.h3c.com/
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips2
Total Cores128
Total Threads256
Total Memory Amount (GB)1024
Total OS Images1
SW EnvironmentNon-virtual

Hardware hw_1
NameUniServer R4900 G6
VendorH3C
Vendor URLhttps://www.h3c.com/
AvailableDec-2023
ModelUniServer R4900 G6
Form Factor2U
CPU NameINTEL(R) XEON(R) PLATINUM 8592+
CPU Characteristics64 Core, 1.90GHz, 320MB L3 Cache (Turbo Boost Technology up to 3.90 GHz)
Number of Systems1
Nodes Per System1
Chips Per System2
Cores Per System128
Cores Per Chip64
Threads Per System256
Threads Per Core2
Version6.10.37
CPU Frequency (MHz)1900
Primary Cache32 KB(I)+48 KB(D) on chip per core
Secondary Cache2 MB (I+D) on chip per core
Tertiary Cache320 MB (I+D) on chip per chip
Other CacheNone
Disk1 x 3.2 TB PCIe NVMe SSD
File Systemext4
Memory Amount (GB)1024
# and size of DIMM(s)16 x 64 GB
Memory Details64 GB 2Rx4 DDR5 5600B
# and type of Network Interface Cards (NICs)4 x 1 Gbit NICs
Power Supply Quantity and Rating (W)2 x 1300
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameUbuntu 22.04.3 LTS
VendorUbuntu
Vendor URLhttp://www.ubuntu.com/
Version5.15.0-97-generic
AvailableAug-2023
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle Java SE 21.0.2
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 21.0.2
AvailableJan-2024
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning BIOS Settings:
  • DCU Streamer Prefetcher = Disabled
  • SNC = Enable SNC2 (2-clusters)
  • Patrol Scrub = Disabled
  • SR-IOV Support = Disabled
  • ENERGY_PERF_BIAS_CFG mode = Performance
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description os_1
Tuning
  • tuned-adm profile latency-performance
  • cpupower frequency-set -g performance
  • ulimit -n 1024000
  • echo 18000000 > /sys/kernel/debug/sched/latency_ns
  • echo 750 > /sys/kernel/debug/sched/migration_cost_ns
  • echo 180000 > /sys/kernel/debug/sched/min_granularity_ns
  • echo 12 > /sys/kernel/debug/sched/nr_migrate
  • echo 1000000 > /sys/kernel/debug/sched/wakeup_granularity_ns
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
  • ulimit -v 800000000
  • ulimit -m 800000000
  • ulimit -l 800000000
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning None
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line -XX:-UsePerfData -Xnoclassgc -XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:MaxTenuringThreshold=15 -server -XX:TargetSurvivorRatio=90 -XX:SurvivorRatio=34 -XX:LargePageSizeInBytes=2m -Xms225g -Xmx225g -Xmn220g -XX:ParallelGCThreads=64 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=11k
Tuning
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line -server -Xms2g -Xmx2g -Xmn1536m -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning
  • numactl --cpunodebind=0 --localalloc
  • numactl --cpunodebind=1 --localalloc
  • numactl --cpunodebind=2 --localalloc
  • numactl --cpunodebind=3 --localalloc
Notes None
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 441232 447116 452999 458882 464765
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 361810 402992 420641 426524 438290 409146
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us 11766 / 17649 5883 / 11766 - / 5883 - / 5883 - / 5883 - / 5883
1000us 447116 / - 17649 / 23532 11766 / 17649 11766 / 17649 5883 / 11766 - / 5883
5000us 447116 / - 447116 / - 441232 / 405934 400051 / 405934 305921 / 294155 23532 / 17649
10000us 447116 / - 447116 / - 441232 / 447116 435349 / 441232 358869 / 364752 47065 / 17649
25000us 447116 / - 447116 / - 447116 / - 441232 / 447116 405934 / 400051 47065 / 17649
50000us 447116 / - 447116 / - 447116 / - 447116 / - 417700 / 423583 111779 / 35299
75000us 447116 / - 447116 / - 447116 / - 447116 / - 423583 / 429466 264739 / 35299
100000us 447116 / - 447116 / - 447116 / - 447116 / - 435349 / 441232 305921 / 270623
200000us 447116 / - 447116 / - 447116 / - 447116 / - 447116 / - 411817 / 417700
500000us 447116 / - 447116 / - 447116 / - 447116 / - 447116 / - 447116 / -
1000000us 447116 / - 447116 / - 447116 / - 447116 / - 447116 / - 447116 / -
Probes jOPS / Total jOPS
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
There were no non-critical failures in Response Time curve building

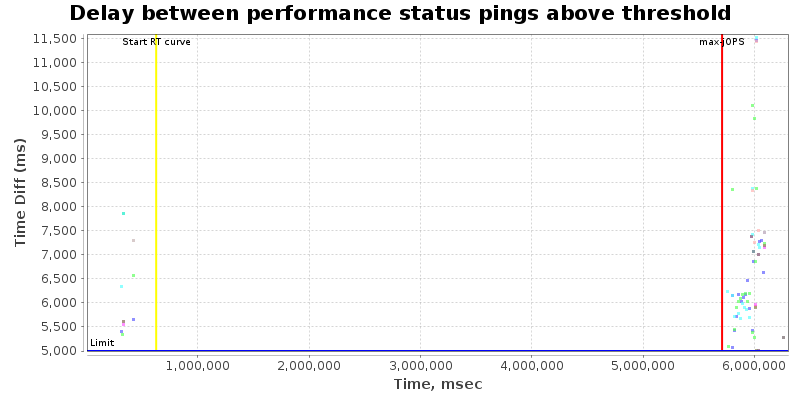

Delay between status pings
IR/PR Accuracy
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1 Group2.Backend.beJVM Group2.TxInjector.txiJVM1 Group3.Backend.beJVM Group3.TxInjector.txiJVM1 Group4.Backend.beJVM Group4.TxInjector.txiJVM1
specjbb.comm.connect.selector.runner.count 0 1 0 0 0 0 0 0 0 0
specjbb.comm.connect.worker.pool.max 256 81 256 256 256 256 256 256 256 256
specjbb.comm.connect.worker.pool.min 1 24 1 1 1 1 1 1 1 1
specjbb.customerDriver.threads 64 {=75, probe=69, saturate=85}
specjbb.forkjoin.workers 256 {Tier1=124, Tier2=1, Tier3=8}
specjbb.group.count 1 4
specjbb.mapreducer.pool.size 256 223
specjbb.txi.pergroup.count 1 1
View table in csv format

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
High-bound (max attempted) is 588310 IR
High-bound (settled) is 490325 IR
