SPECjbb2015
Copyright © 2015-2024 Standard Performance Evaluation Corporation
Supermicro A+ Server AS -1015A-MT 77492 SPECjbb2015-MultiJVM max-jOPS
40452 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Supermicro Test Sponsor: Supermicro Test location: San Jose, California Test date: Apr 30, 2024
SPEC license #: 001176 Hardware Availability: May-2024 Software Availability: Feb-2024 Publication: Wed May 22 12:55:10 EDT 2024
Benchmark Results Summary

SPECjbb2015-MultiJVM: Multiple JVMs/Single Host
(# of groups: 1)
Overall Throughput RT curve
Overall Throughput RT curve
Overall SUT (System Under Test) Description
VendorSupermicro
Vendor URLhttps://www.supermicro.com
System SourceSingle Supplier
System DesignationServer Rack
Total Systems1
All SUT Systems IdenticalYES
Total Nodes1
All Nodes IdenticalYES
Nodes Per System1
Total Chips1
Total Cores16
Total Threads32
Total Memory Amount (GB)64
Total OS Images1
SW EnvironmentNon-virtual

SUT Description
Hardware hw_1
NameA+ Server AS -1015A-MT
VendorSupermicro
Vendor URLhttps://www.supermicro.com
AvailableMay-2024
ModelH13SAE-MF
Form Factor1U
CPU NameAMD EPYC 4584PX
CPU Characteristics16 Core, 4.2 GHz, 128 MB L3 Cache (Max. Boost Clock up to 5.7GHz)
Number of Systems1
Nodes Per System1
Chips Per System1
Cores Per System16
Cores Per Chip16
Threads Per System32
Threads Per Core2
Versionv1.2a (02/15/2024)
CPU Frequency (MHz)4200
Primary Cache32 KB(I) + 32 KB(D) on chip per core
Secondary Cache1 MB (I+D) on chip per core
Tertiary Cache128 MB (I+D) on chip per chip
Other CacheNone
Disk1 x 900 GB NVMe PCIe Gen3.0
File Systemxfs
Memory Amount (GB)64
# and size of DIMM(s)2 x 32 GB
Memory Details32 GB 2Rx4 PC5-5200
# and type of Network Interface Cards (NICs)2 x 10 Gbit NICs
Power Supply Quantity and Rating (W)1 x 500W
Other HardwareNone
Cabinet/Housing/EnclosureNone
Shared DescriptionNone
Shared CommentNone
Notes
  • NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
  • Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Operating System os_1
NameUbuntu 22.04.3 LTS
VendorUbuntu
Vendor URLhttps://www.ubuntu.com
Version5.15.0-78-generic
AvailableAug-2023
Bitness64
NotesNone
Java Virtual Machine jvm_1
NameOracle JDK v21.0.2
VendorOracle
Vendor URLhttp://www.oracle.com/
VersionJava HotSpot 64-bit Server VM, version 21.0.2
AvailableJan-2024
Bitness64
NotesNone
Other Software other_1
NameNone
VendorNone
Vendor URLNone
VersionNone
AvailableNone
BitnessNone
NotesNone
Topology
SUT config_1 Configuration
Hardware
OS Images os_Image_1(1)
Hardware Description hw_1
Number of Systems 1
SW Environment non-virtual
Tuning None
Notes None
OS Image os_Image_1
JVM Instances jvm_Ctr_1(1), jvm_Backend_1(1), jvm_TxInjector_1(1)
OS Image Description os_1
Tuning

  • cpupower -c all frequency-set -g performance
  • tuned-adm profile throughput-performance

  • echo 10000 > /proc/sys/vm/dirty_expire_centisecs
  • echo 1500 > /proc/sys/vm/dirty_writeback_centisecs
  • echo 40 > /proc/sys/vm/dirty_ratio
  • echo 10 > /proc/sys/vm/dirty_background_ratio
  • echo 10 > /proc/sys/vm/swappiness
  • echo 0 > /proc/sys/vm/numa_stat
  • echo 0 > /proc/sys/kernel/numa_balancing
  • echo always > /sys/kernel/mm/transparent_hugepage/defrag
  • echo always > /sys/kernel/mm/transparent_hugepage/enabled
Notes None
JVM Instance jvm_Ctr_1
Parts of Benchmark Controller
JVM Instance Description jvm_1
Command Line

-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=4
Tuning

numactl --interleave=all
Notes None
JVM Instance jvm_Backend_1
Parts of Benchmark Backend
JVM Instance Description jvm_1
Command Line

-Xms50g -Xmx50g -Xmn48g -server -XX:MetaspaceSize=256m -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=32 -XX:MaxTenuringThreshold=15 -XX:InitialCodeCacheSize=25m -XX:InlineSmallCode=10k -XX:MaxGCPauseMillis=200 -XX:+UseCompressedOops -XX:ObjectAlignmentInBytes=16 -XX:+UseTransparentHugePages -XX:TLABAllocationWeight=55 -XX:ThreadStackSize=512 -XX:CompileThresholdScaling=120
Tuning

numactl --interleave=all
Notes None
JVM Instance jvm_TxInjector_1
Parts of Benchmark TxInjector
JVM Instance Description jvm_1
Command Line

-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=1 -XX:CICompilerCount=4
Tuning

numactl --interleave=all
Notes None
max-jOPS and critical-jOPS Details
max-jOPS = jOPS passed before the First Failure
Pass/Fail Pass Pass Fail Fail Fail
jOPS 76640 77492 78344 79195 80047
critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us) 10000 25000 50000 75000 100000 Geomean
jOPS 29520 32926 39597 48964 57480 40452
Last Success jOPS/First Failure jOPS for SLA points
  Percentile
  10-th 50-th 90-th 95-th 99-th 100-th
500us - / 852 - / 852 - / 852 - / 852 - / 852 - / 852
1000us 67273 / 18734 3406 / 4258 1703 / 2555 852 / 1703 - / 852 - / 852
5000us 72383 / 73234 68125 / 60461 63015 / 34062 54500 / 33211 18734 / 19586 1703 / 2555
10000us 74086 / 74937 70679 / 71531 63015 / 60461 56203 / 55351 30656 / 28953 1703 / 2555
25000us 74086 / 74937 70679 / 71531 63015 / 63867 60461 / 59609 34062 / 32359 1703 / 2555
50000us 74086 / 74937 71531 / 72383 63867 / 64719 62164 / 61312 39172 / 40023 1703 / 2555
75000us 74937 / 75789 72383 / 73234 63867 / 64719 63015 / 63867 48539 / 49390 10219 / 2555
100000us 74937 / 75789 72383 / 73234 67273 / 68125 63015 / 63867 58758 / 56203 27250 / 4258
200000us 76640 / 77492 72383 / 73234 69828 / 70679 67273 / 68125 63015 / 63867 60461 / 5109
500000us 77492 / - 74937 / 75789 72383 / 73234 71531 / 72383 68976 / 69828 63015 / 61312
1000000us 77492 / - 77492 / - 76640 / 77492 74937 / 75789 74086 / 74937 68976 / 69828

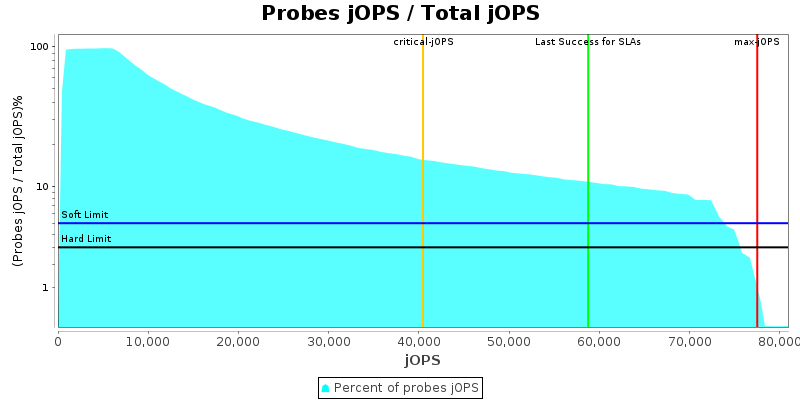

Number of probes
Probes jOPS / Total jOPS

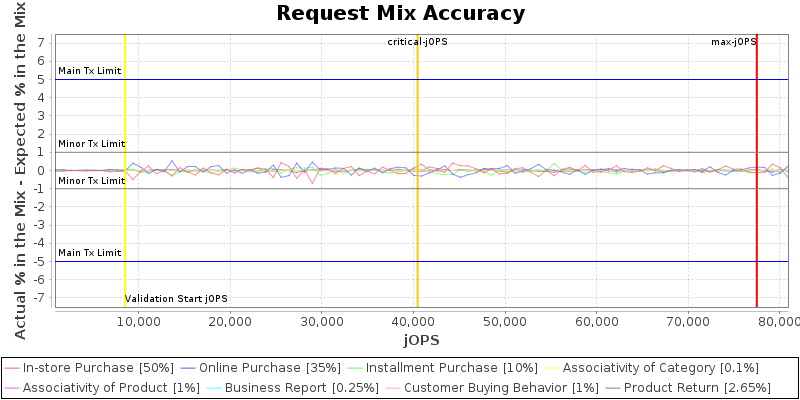

Request Mix Accuracy
Request Mix Accuracy
Note
(Actual % in the Mix - Expected % in the Mix) must be within:
'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%
'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%
Rate of Non-Critical Failures
There were no non-critical failures in Response Time curve building

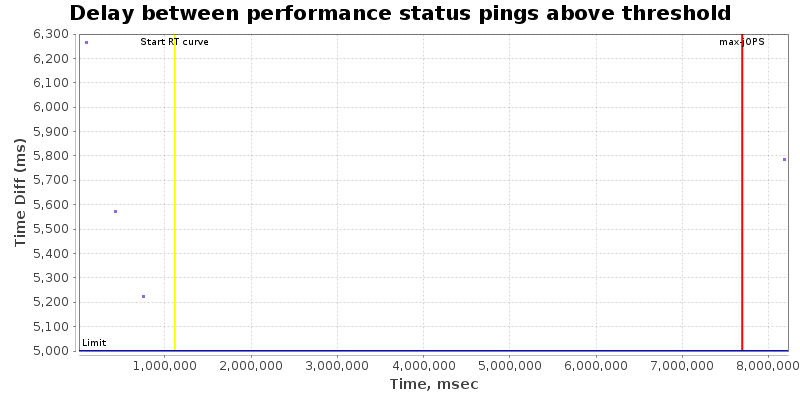

Delay between performance status pings during RT Curve (Response-Throughput Curve)
Delay between status pings

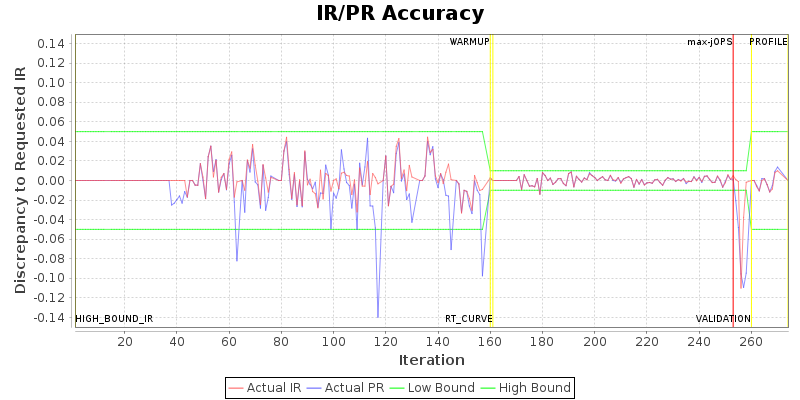

IR/PR Accuracy
IR/PR Accuracy
Run Properties
This section lists properties only set by user
Property Name Default Controller Group1.Backend.beJVM Group1.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size 256 256 120 120
specjbb.comm.connect.selector.runner.count 0 4 2 2
specjbb.comm.connect.worker.pool.max 256 256 120 120
specjbb.comm.connect.worker.pool.min 1 1 24 24
specjbb.controller.handshake.period 5000 20000
specjbb.controller.handshake.timeout 600000 900000
specjbb.forkjoin.workers 32 {Tier1=50, Tier2=1, Tier3=12}
specjbb.group.count 1 1
specjbb.heartbeat.period 10000 2000
specjbb.heartbeat.threshold 100000 9000000
specjbb.mapreducer.pool.size 32 8
specjbb.txi.pergroup.count 1 1
View table in csv format
Validation Details
Validation Reports

Level: COMPLIANCE
Check Agent Result
Check properties on compliance All PASSED

Level: CORRECTNESS
Check Agent Result
Compare SM and HQ Inventory All PASSED
Other Checks
High-bound (max attempted) is 85156 IR
High-bound (settled) is 82528 IR
Copyright © 2015-2024 Standard Performance Evaluation Corporation
http://www.spec.org - info@spec.org
SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]
