SPECjbb2015 Report for jbb2015-20240611-01289 : 464765 max-jOPS ; 254278 critical-jOPS

SUT Description

Hardware hw_1
Name	R620 G50
Vendor	Nettrix
Vendor URL	https://www.nettrix.com.cn
Available	Dec-2023
Model	R620 G50
Form Factor	2U
CPU Name	Intel(R) Xeon(R) Platinum 8580 CPU @ 2.0GHz
CPU Characteristics	60Core, 2.0GHz, 300MB L3 Cache (Turbo Boost Technology up to 4.0 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	2
Cores Per System	120
Cores Per Chip	60
Threads Per System	240
Threads Per Core	2
Version	NNH1041261
CPU Frequency (MHz)	2000
Primary Cache	32 KB I + 48 KB D on chip per core
Secondary Cache	2 MB I+D on chip per core
Tertiary Cache	300 MB I+D on chip per chip
Other Cache	None
Disk	1 x 16 TB SATA HDD (7200 rpm)
File System	xfs
Memory Amount (GB)	1024
# and size of DIMM(s)	16 x 64GB
Memory Details	16 x 64GB-Samsung-DDR5-5600-2Rx4
# and type of Network Interface Cards (NICs)	2 x 25 Gbit NICs
Power Supply Quantity and Rating (W)	2 x 1300W
Other Hardware	1 x OCP with 2 x 25 Gbit NICs
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	SUSE Linux Enterprise Server 15 SP5
Vendor	SUSE
Vendor URL	https://www.suse.com/
Version	5.14.21-150500.53-default
Available	Jun-2023
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 17.0.11
Vendor	Oracle
Vendor URL	http://www.oracle.com
Version	Java HotSpot 64-Bit Server VM, version 17.0.11
Available	Apr-2024
Bitness	64
Notes	Note
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	Patrol Scrub = Disabled DCU Streamer Prefetcher = Enabled DCU IP Prefetcher = Enabled Hardware Prefetch = Disabled L2 FRO Prefetch Disable = Disabled Adjacent Cache Prefetch = Disabled LLC Prefetch = Enabled
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(4), jvm_TxInjector_1(4)
OS Image Description	os_1
Tuning	cpupower frequency-set -g performance tuned-adm profile latency-performance ulimit -n 1048576 ulimit -i unlimited ulimit -s unlimited ulimit -u unlimited ulimit -l unlimited ulimit -v unlimited ulimit -m unlimited systemctl stop systemd-update-utmp-runlevel.service echo 10000 > /proc/sys/kernel/sched_cfs_bandwidth_slice_us echo 0 > /proc/sys/kernel/sched_child_runs_first echo 16000000 > /proc/sys/kernel/sched_latency_ns echo 1000 > /proc/sys/kernel/sched_migration_cost_ns echo 28000000 > /proc/sys/kernel/sched_min_granularity_ns echo 9 > /proc/sys/kernel/sched_nr_migrate echo 100 > /proc/sys/kernel/sched_rr_timeslice_ms echo 1000000 > /proc/sys/kernel/sched_rt_period_us echo 990000 > /proc/sys/kernel/sched_rt_runtime_us echo 0 > /proc/sys/kernel/sched_schedstats echo 1 > /proc/sys/kernel/sched_tunable_scaling echo 50000000 > /proc/sys/kernel/sched_wakeup_granularity_ns echo 3000 > /proc/sys/vm/dirty_expire_centisecs echo 500 > /proc/sys/vm/dirty_writeback_centisecs echo 40 > /proc/sys/vm/dirty_ratio echo 10 > /proc/sys/vm/dirty_background_ratio echo 10 > /proc/sys/vm/swappiness echo 1500 > /sys/kernel/mm/hugepages/hugepages-1048576kB/nr_hugepages echo always > /sys/kernel/mm/transparent_hugepage/defrag echo always > /sys/kernel/mm/transparent_hugepage/enabled echo 0 > /proc/sys/kernel/numa_balancing UserTasksMax=970000 DefaultTasksMax=970000 echo 274877906944 > /proc/sys/kernel/shmmax echo 274877906944 > /proc/sys/kernel/shmall echo 3 > /proc/sys/vm/drop_caches sync
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:UseAVX=0 -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	Used numactl to affinitize Ctrl JVM to cpu0 numactl --cpunodebind=0 --localalloc
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-server -XX:+UseParallelGC -XX:+UseLargePages -XX:+AlwaysPreTouch -XX:-UseAdaptiveSizePolicy -XX:SurvivorRatio=28 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=10k -verbose:gc -XX:UseAVX=0 -XX:-UseCountedLoopSafepoints -XX:LoopUnrollLimit=20 -XX:MaxGCPauseMillis=500 -XX:AdaptiveSizeMajorGCDecayTimeScale=12 -XX:AdaptiveSizeDecrementScaleFactor=2 -server -XX:TargetSurvivorRatio=95 -XX:LargePageSizeInBytes=1G -XX:AllocatePrefetchLines=3 -XX:AllocateInstancePrefetchLines=2 -XX:AllocatePrefetchStepSize=128 -XX:AllocatePrefetchDistance=384 -Xms31g -Xmx31g -Xmn29g -XX:ParallelGCThreads=40
Tuning	Used numactl to affinitize each Backend JVM to one CPU numa node numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-server -Xms2g -Xmx2g -Xmn1536m -XX:UseAVX=0 -XX:+UseLargePages -XX:LargePageSizeInBytes=1G -XX:+UseParallelGC -XX:ParallelGCThreads=2
Tuning	Used numactl to affinitize each Injector JVM to one CPU numa node numactl --cpunodebind=0 --localalloc numactl --cpunodebind=1 --localalloc numactl --cpunodebind=2 --localalloc numactl --cpunodebind=3 --localalloc
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Pass	Fail	Fail
jOPS	452999	458882	464765	470648	476531

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	150019	191200	279447	344161	385343	254278

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	11766 / 17649	5883 / 11766	- / 5883	- / 5883	- / 5883	- / 5883
1000us	435349 / 441232	23532 / 29415	11766 / 17649	11766 / 17649	5883 / 11766	- / 5883
5000us	458882 / 464765	429466 / 435349	229441 / 217675	164727 / 158844	105896 / 111779	- / 5883
10000us	458882 / 464765	435349 / 441232	347103 / 352986	294155 / 300038	147077 / 152961	- / 5883
25000us	458882 / 464765	435349 / 441232	394168 / 400051	341220 / 347103	188259 / 194142	- / 5883
50000us	458882 / 464765	441232 / 447116	400051 / 405934	370635 / 376518	276506 / 282389	94130 / 5883
75000us	458882 / 464765	441232 / 447116	417700 / 423583	394168 / 400051	341220 / 347103	205908 / 129428
100000us	458882 / 464765	447116 / 452999	423583 / 429466	405934 / 411817	382401 / 388285	205908 / 194142
200000us	458882 / 464765	452999 / 458882	435349 / 441232	429466 / 435349	417700 / 423583	352986 / 358869
500000us	464765 / -	458882 / 464765	441232 / 447116	441232 / 447116	435349 / 441232	429466 / 435349
1000000us	464765 / -	464765 / -	458882 / 464765	458882 / 464765	447116 / 452999	435349 / 441232

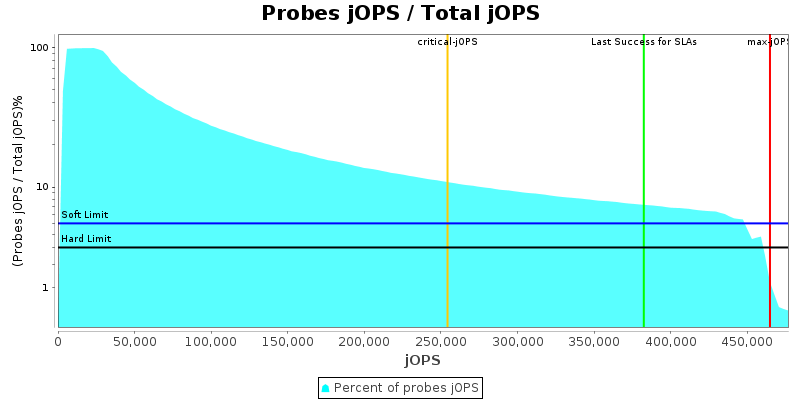

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

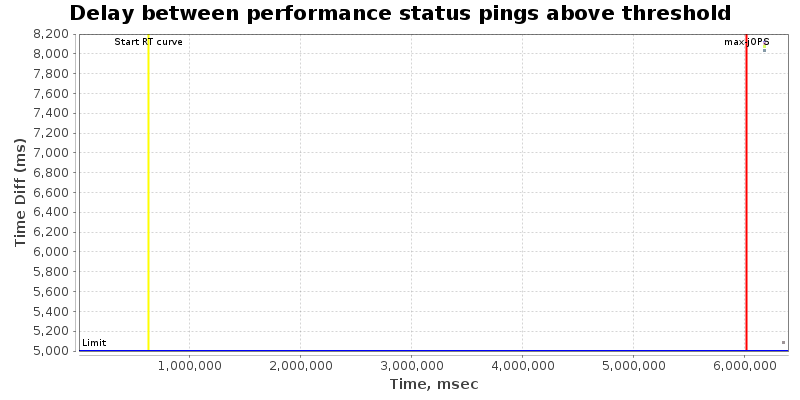

Delay between performance status pings during RT Curve (Response-Throughput Curve)

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM1	Group1.TxInjector.txiJVM1	Group2.Backend.beJVM2	Group2.TxInjector.txiJVM2	Group3.Backend.beJVM3	Group3.TxInjector.txiJVM3	Group4.Backend.beJVM4	Group4.TxInjector.txiJVM4
specjbb.comm.connect.client.pool.size	256	232	210	210	210	210	210	210	210	210
specjbb.comm.connect.selector.runner.count	0	1
specjbb.comm.connect.timeouts.connect	60000	600000
specjbb.comm.connect.timeouts.read	60000	600000
specjbb.comm.connect.timeouts.write	60000	600000
specjbb.comm.connect.worker.pool.max	256	81
specjbb.comm.connect.worker.pool.min	1	24
specjbb.controller.maxir.maxFailedPoints	3	1
specjbb.controller.rtcurve.start	0.0	0.0
specjbb.controller.rtcurve.step	0.01	0.01
specjbb.controller.type	HBIR_RT	HBIR_RT
specjbb.customerDriver.threads	64	{=75, probe=69, saturate=85}
specjbb.forkjoin.workers	60	{Tier1=180, Tier2=60, Tier3=30}
specjbb.group.count	1	4
specjbb.mapreducer.pool.size	60	223
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 588310 IR

High-bound (settled) is 490325 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.03, Nov 14, 2019]

Nettrix R620 G50	464765 SPECjbb2015-MultiJVM max-jOPS 254278 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Nettrix	Test Sponsor: Nettrix	Test location: Beijing, China	Test date: May 25, 2024
SPEC license #: 6138	Hardware Availability: Dec-2023	Software Availability: Apr-2024	Publication: Fri Jun 28 09:26:09 EDT 2024
