SPECjbb2015 Report for jbb2015-20250903-01644 : 1082489 max-jOPS ; 762923 critical-jOPS

SUT Description

Hardware hw_1
Name	ThinkSystem SR860 V4
Vendor	Lenovo Global Technology
Vendor URL	http://www.lenovo.com
Available	Nov-2025
Model	ThinkSystem SR860 V4
Form Factor	4U
CPU Name	Intel Xeon 6768P
CPU Characteristics	64 Core, 2.40 GHz, 336 MB L3 Cache(Max. Boost Clock Up to 3.90 GHz)
Number of Systems	1
Nodes Per System	1
Chips Per System	4
Cores Per System	256
Cores Per Chip	64
Threads Per System	512
Threads Per Core	2
Version	RVE103X
CPU Frequency (MHz)	2400
Primary Cache	64KB(I)+48KB(D) on chip per core
Secondary Cache	2MB (I+D) on chip per core
Tertiary Cache	336MB (I+D) on chip per chip
Other Cache	None
Disk	1 x 480 GB M.2 NVME SSD
File System	NTFS
Memory Amount (GB)	2048
# and size of DIMM(s)	32 x 64 GB
Memory Details	64 GB 2Rx4 PC5-6400B-R
# and type of Network Interface Cards (NICs)	1 x 10/25 GbE PCIE NIC
Power Supply Quantity and Rating (W)	4 x 2700W
Other Hardware	None
Cabinet/Housing/Enclosure	None
Shared Description	None
Shared Comment	None
Notes	NA: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented. Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Other Hardware network_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Operating System os_1
Name	Windows Server 2025 Datacenter
Vendor	Microsoft
Vendor URL	https://www.microsoft.com/
Version	Version 24H2(OS Build 26100.4946)
Available	Aug-2025
Bitness	64
Notes	None
Java Virtual Machine jvm_1
Name	Oracle Java SE 24.0.2
Vendor	Oracle Corporation
Vendor URL	http://oracle.com/
Version	Java HotSpot 64-Bit Server VM, version 24.0.2
Available	Jul-2025
Bitness	64
Notes	None
Other Software other_1
Name	None
Vendor	None
Vendor URL	None
Version	None
Available	None
Bitness	None
Notes	None

Topology

SUT
- Hardware config_1
  - OS Image os_Image_1
    - JVM jvm_Ctr_1 : Controller
    - JVM jvm_Backend_1 : Backend
    - JVM jvm_TxInjector_1 : TxInjector

SUT config_1 Configuration

Hardware
OS Images	os_Image_1(1)
Hardware Description	hw_1
Number of Systems	1
SW Environment	non-virtual
Tuning	BIOS Configuration: Workload Profile set to General Computing - Max Performance and then set to Custom Uncore Frequency Scaling set to Disabled Latency Optimized Mode set to Enabled Adjacent Cache Prefetch set to Disabled AMP Prefetch set to Disabled SNC set to Enabled UPI Prefetcher set to Disabled Page Policy set to Adaptive Patrol Scrub set to Disabled Workload Configuration set to I/O sensitive
Notes	None

OS Image os_Image_1
JVM Instances	jvm_Ctr_1(1), jvm_Backend_1(8), jvm_TxInjector_1(8)
OS Image Description	os_1
Tuning	Add DWORD registry HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\Tcpip\Parameters\MaxUserPort=65534 Power Options is set to High performance Processor scheduling is set to Programs Visual Effects Adjust for best performance Lock Pages in Memory is Enabled
Notes	None
JVM Instance jvm_Ctr_1
Parts of Benchmark	Controller
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	None
Notes	None
JVM Instance jvm_Backend_1
Parts of Benchmark	Backend
JVM Instance Description	jvm_1
Command Line	-Xms240g -Xmx240g -Xmn238g -server -XX:AllocatePrefetchInstr=2 -XX:LargePageSizeInBytes=2m -XX:-UsePerfData -XX:-UseAdaptiveSizePolicy -XX:+AlwaysPreTouch -XX:+UseLargePages -XX:+UseParallelGC -XX:SurvivorRatio=90 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=64 -XX:TLABAllocationWeight=2 -XX:CompileThresholdScaling=120 -XX:CICompilerCount=4
Tuning	Affinitized each Backend JVM to a single memory node. start /b /NODE 0 start /b /NODE 1 start /b /NODE 2 start /b /NODE 3 start /b /NODE 4 start /b /NODE 5 start /b /NODE 6 start /b /NODE 7
Notes	None
JVM Instance jvm_TxInjector_1
Parts of Benchmark	TxInjector
JVM Instance Description	jvm_1
Command Line	-Xms2g -Xmx2g -Xmn1536m -XX:+UseParallelGC -XX:ParallelGCThreads=2 -XX:CICompilerCount=4
Tuning	Affinitize each TxInjector JVM to a single memory node. start /b /NODE 0 start /b /NODE 1 start /b /NODE 2 start /b /NODE 3 start /b /NODE 4 start /b /NODE 5 start /b /NODE 6 start /b /NODE 7
Notes	None

max-jOPS and critical-jOPS Details

max-jOPS = jOPS passed before the First Failure
Pass/Fail	Pass	Pass	Fail	Fail	Fail
jOPS	1070723	1082489	1094256	1106022	1117788

critical-jOPS = Geomean ( jOPS @ 10000; 25000; 50000; 75000; 100000; SLAs )
Response time percentile is 99-th
SLA (us)	10000	25000	50000	75000	100000	Geomean
jOPS	590270	747153	805984	829516	876581	762923

Last Success jOPS/First Failure jOPS for SLA points

	Percentile
	10-th	50-th	90-th	95-th	99-th	100-th
500us	47065 / 58831	11766 / 23532	- / 11766	- / 11766	- / 11766	- / 11766
1000us	823633 / 811867	47065 / 58831	23532 / 35299	23532 / 35299	11766 / 23532	- / 11766
5000us	1023659 / 1035425	929529 / 941295	529479 / 517712	435349 / 364752	258856 / 188259	35299 / 47065
10000us	1035425 / 1047191	964828 / 976594	858932 / 870698	788335 / 800101	600076 / 541245	105896 / 47065
25000us	1047191 / 1058957	988360 / 1000126	905997 / 917763	870698 / 882464	741270 / 753036	105896 / 47065
50000us	1047191 / 1058957	1000126 / 1011892	905997 / 917763	894230 / 882464	800101 / 811867	294155 / 94130
75000us	1058957 / 1070723	1000126 / 1011892	929529 / 941295	905997 / 917763	823633 / 835399	494180 / 94130
100000us	1058957 / 1070723	1011892 / 1023659	941295 / 953061	905997 / 917763	870698 / 882464	600076 / 188259
200000us	1058957 / 1070723	1023659 / 1035425	953061 / 964828	941295 / 953061	905997 / 917763	800101 / 753036
500000us	1082489 / -	1058957 / 1070723	1000126 / 1011892	976594 / 988360	953061 / 964828	905997 / 882464
1000000us	1082489 / -	1082489 / -	1058957 / 1070723	1023659 / 1035425	1000126 / 1011892	953061 / 964828

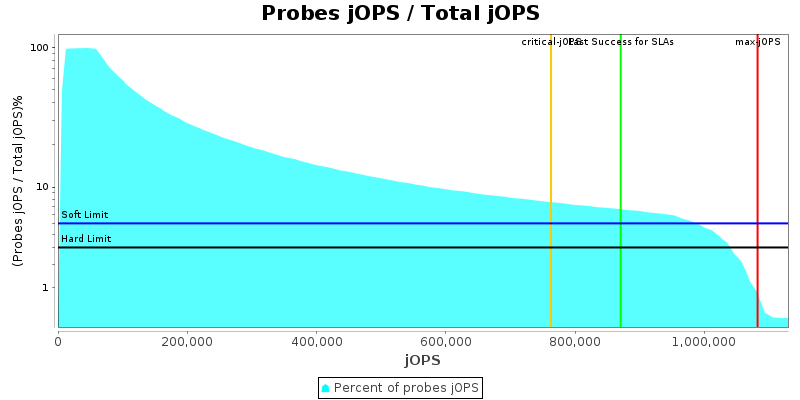

Number of probes

Request Mix Accuracy

Note

(Actual % in the Mix - Expected % in the Mix) must be within:

'Main Tx' limit of +/-5.0% for the requests whose expected % in the mix is >= 10.0%

'Minor Tx' limit of +/-1.0% for the requests whose expected % in the mix is < 10.0%

Rate of Non-Critical Failures

There were no non-critical failures in Response Time curve building

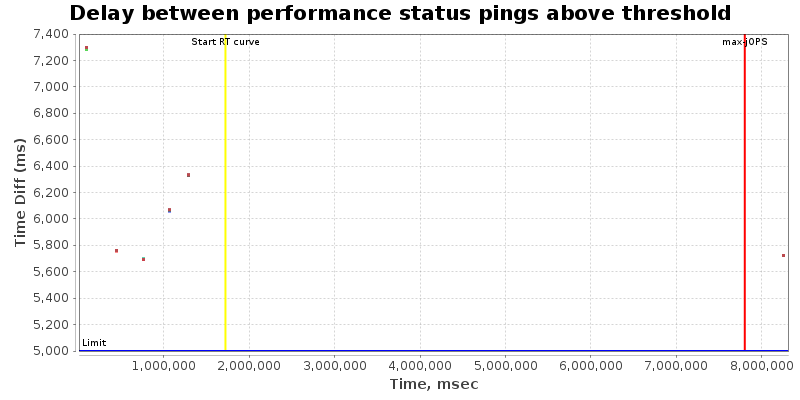

Delay between performance status pings during RT Curve (Response-Throughput Curve)

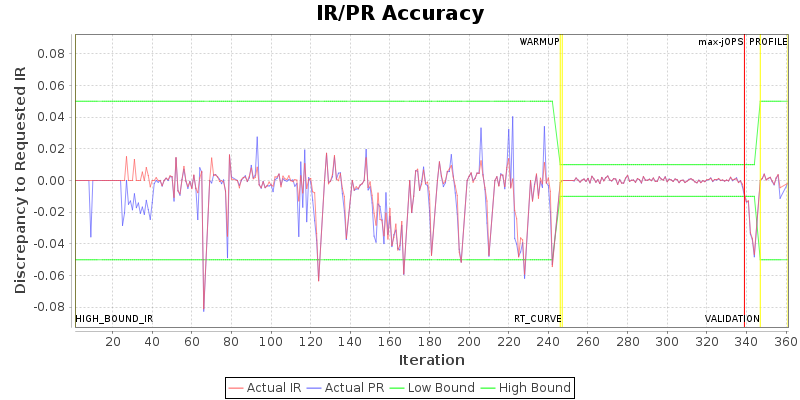

IR/PR Accuracy

Run Properties

This section lists properties only set by user

Property Name	Default	Controller	Group1.Backend.beJVM	Group1.TxInjector.txiJVM1	Group2.Backend.beJVM	Group2.TxInjector.txiJVM1	Group3.Backend.beJVM	Group3.TxInjector.txiJVM1	Group4.Backend.beJVM	Group4.TxInjector.txiJVM1	Group5.Backend.beJVM	Group5.TxInjector.txiJVM1	Group6.Backend.beJVM	Group6.TxInjector.txiJVM1	Group7.Backend.beJVM	Group7.TxInjector.txiJVM1	Group8.Backend.beJVM	Group8.TxInjector.txiJVM1
specjbb.comm.connect.client.pool.size	256	96
specjbb.comm.connect.selector.runner.count	0	8	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1	1
specjbb.comm.connect.worker.pool.max	256	40	60	60	60	60	60	60	60	60	60	60	60	60	60	60	60	60
specjbb.comm.connect.worker.pool.min	1	40
specjbb.customerDriver.threads	64	{probe=72, saturate=180, service=140}
specjbb.forkjoin.workers	64	{Tier1=64, Tier2=18, Tier3=7}
specjbb.group.count	1	8
specjbb.mapreducer.pool.size	64	8
specjbb.txi.pergroup.count	1	1

View table in csv format

Validation Details

Validation Reports


Level: COMPLIANCE
Check	Agent	Result
Check properties on compliance	All	PASSED


Level: CORRECTNESS
Check	Agent	Result
Compare SM and HQ Inventory	All	PASSED

Other Checks

High-bound (max attempted) is 1176619 IR

High-bound (settled) is 1151353 IR

http://www.spec.org - info@spec.org

SPECjbb2015 Version: [SPECjbb2015 1.04, Feb 16, 2024]

Lenovo Global Technology ThinkSystem SR860 V4	1082489 SPECjbb2015-MultiJVM max-jOPS 762923 SPECjbb2015-MultiJVM critical-jOPS
Tested by: Lenovo Global Technology	Test Sponsor: Lenovo Global Technology	Test location: Beijing, China	Test date: Sep 4, 2025
SPEC license #: 9017	Hardware Availability: Nov-2025	Software Availability: Aug-2025	Publication: Thu Sep 18 17:57:21 EDT 2025
