SPEC® MPIM2007 Result

Copyright 2006-2010 Standard Performance Evaluation Corporation

SGI

SGI Altix XE 1300
(Intel Xeon X5272, 3.4 GHz)

SPECmpiM_peak2007 = Not Run

MPI2007 license: 4 Test date: Jun-2008
Test sponsor: SGI Hardware Availability: Feb-2008
Tested by: SGI Software Availability: Apr-2008

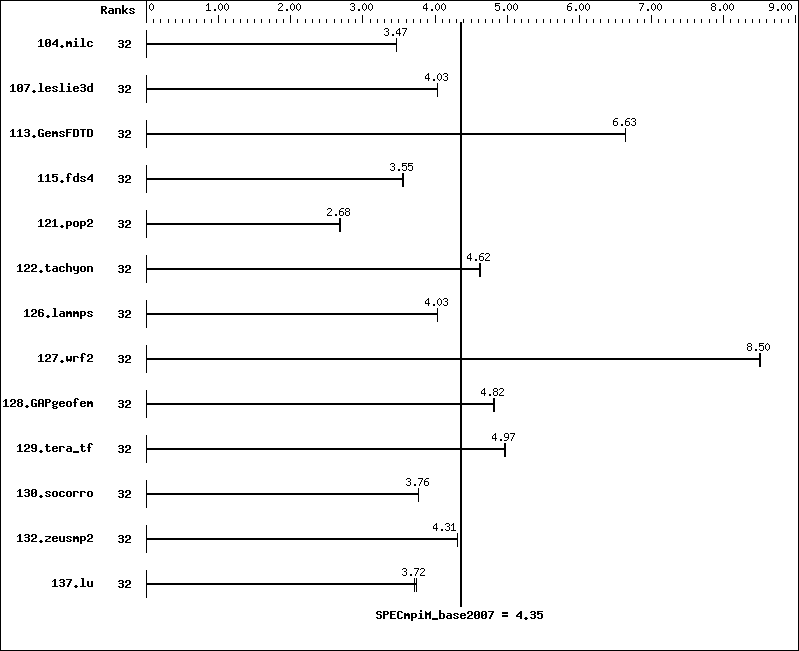

Benchmark results graph

Results Table

Benchmark Base Peak
Ranks Seconds Ratio Seconds Ratio Seconds Ratio Ranks Seconds Ratio Seconds Ratio Seconds Ratio
Results appear in the order in which they were run. Bold underlined text indicates a median measurement.
104.milc 32 452 3.47 452 3.47
107.leslie3d 32 1295 4.03 1296 4.03
113.GemsFDTD 32 951 6.63 950 6.64
115.fds4 32 548 3.56 550 3.55
121.pop2 32 1536 2.69 1541 2.68
122.tachyon 32 605 4.62 604 4.63
126.lammps 32 722 4.04 723 4.03
127.wrf2 32 917 8.50 915 8.52
128.GAPgeofem 32 429 4.82 429 4.82
129.tera_tf 32 557 4.97 557 4.97
130.socorro 32 1014 3.76 1014 3.76
132.zeusmp2 32 719 4.31 720 4.31
137.lu 32 982 3.74 989 3.72
Hardware Summary
Type of System: Homogeneous
Compute Node: SGI Altix XE 320 Compute Node
Interconnects: InfiniBand (MPI)
InfiniBand (I/O)
File Server Node: SGI InfiniteStorage NAS/SAN
Total Compute Nodes: 8
Total Chips: 16
Total Cores: 32
Total Threads: 32
Total Memory: 128 GB
Base Ranks Run: 32
Minimum Peak Ranks: --
Maximum Peak Ranks: --
Software Summary
C Compiler: Intel C Compiler for Linux
Version 10.1, Build 20080312
C++ Compiler: Intel C++ Compiler for Linux
Version 10.1, Build 20080312
Fortran Compiler: Intel Fortran Compiler for Linux
Version 10.1, Build 20080312
Base Pointers: 64-bit
Peak Pointers: 64-bit
MPI Library: Intel MPI 3.1.038
Other MPI Info: OFED 1.3
Pre-processors: None
Other Software: None

Node Description: SGI Altix XE 320 Compute Node

Hardware
Number of nodes: 8
Uses of the node: compute
Vendor: SGI
Model: SGI Altix XE 320 (Intel Xeon X5272, 3.4 GHz)
CPU Name: Intel Xeon X5272
CPU(s) orderable: 1-2 chips
Chips enabled: 2
Cores enabled: 4
Cores per chip: 2
Threads per core: 1
CPU Characteristics: Dual Core, 3.4 GHz
CPU MHz: 3392
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 6 MB I+D on chip per chip
L3 Cache: None
Other Cache: None
Memory: 16 GB (8*2GB PC2-6400 CL5-5-5 FB-DIMMs)
Disk Subsystem: None
Other Hardware: None
Adapter: Mellanox MT25204 InfiniHost III Lx IB DDR
(PCIe x8 Gen1 2.5 GT/s)
Number of Adapters: 1
Slot Type: PCIe x8 Gen1
Data Rate: InfiniBand 4x DDR
Ports Used: 1
Interconnect Type: InfiniBand
Software
Adapter: Mellanox MT25204 InfiniHost III Lx IB DDR
(PCIe x8 Gen1 2.5 GT/s)
Adapter Driver: OFED-1.3
Adapter Firmware: 1.2.0
Operating System: SUSE Linux Enterprise Server 10 (x86_64) SP1
Kernel 2.6.16.46-0.12-smp
Local File System: NFSv3
Shared File System: NFSv3 IPoIB
System State: Multi-user, run level 3
Other Software: SGI ProPack 5 for Linux Service Pack 5

Node Description: SGI InfiniteStorage NAS/SAN

Hardware
Number of nodes: 1
Uses of the node: fileserver
Vendor: SGI
Model: SGI Altix 450 Density System (Itanium 2
Processor 9030 1.6GHz/8M)
CPU Name: Dual-Core Intel Itanium 2 9030
CPU(s) orderable: 1-38 chips
Chips enabled: 2
Cores enabled: 4
Cores per chip: 2
Threads per core: 1
CPU Characteristics: 533 MHz FSB
CPU MHz: 1594
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 1 MB I + 256 KB D on chip per core
L3 Cache: 4 MB I+D on chip per core
Other Cache: None
Memory: 48 GB (24*2GB DDR2-400 DIMMS)
Disk Subsystem: 9.3 TB RAID 5
64 x 146 GB FibreChannel (Seagate Cheetah 15000
rpm)
Other Hardware: None
Adapter: Mellanox MT25208 InfiniHost III Ex
(PCIe x8 Gen1 2.5 GT/s)
Number of Adapters: 2
Slot Type: PCIe x8 Gen1
Data Rate: InfiniBand 4x DDR
Ports Used: 2
Interconnect Type: InfiniBand
Software
Adapter: Mellanox MT25208 InfiniHost III Ex
(PCIe x8 Gen1 2.5 GT/s)
Adapter Driver: OFED-1.3
Adapter Firmware: 5.3.0
Operating System: SUSE Linux Enterprise Server 10 (ia64) SP1
Kernel 2.6.16.54-0.2.5-default
Local File System: xfs
Shared File System: --
System State: Multi-user, run level 3
Other Software: SGI ProPack 5 for Linux Service Pack 5

Interconnect Description: InfiniBand (MPI)

Hardware
Vendor: Voltaire
Model: MT25204 InfiniHost III Lx
Switch Model: Voltaire ISR 9024D-M
Number of Switches: 1
Number of Ports: 24
Data Rate: InfiniBand 4x DDR
Firmware: 3.4.5
Topology: Single switch
Primary Use: MPI traffic

Interconnect Description: InfiniBand (I/O)

Hardware
Vendor: Voltaire
Model: MT25204 InfiniHost III Lx
Switch Model: Voltaire ISR 9024D-M
Number of Switches: 1
Number of Ports: 24
Data Rate: InfiniBand 4x DDR
Firmware: 3.4.5
Topology: Single switch
Primary Use: I/O traffic

General Notes

Required alternate sources:
   129.tera_tf: fixbuffer

Base Compiler Invocation

C benchmarks:

 mpiicc

C++ benchmarks:

126.lammps:  mpiicpc

Fortran benchmarks:

 mpiifort

Benchmarks using both Fortran and C:

 mpiicc   mpiifort

Base Portability Flags

121.pop2:  -DSPEC_MPI_CASE_FLAG
126.lammps:  -DMPICH_IGNORE_CXX_SEEK
127.wrf2:  -DSPEC_MPI_CASE_FLAG   -DSPEC_MPI_LINUX

Base Optimization Flags

C benchmarks:

 -O3   -ipo   -xT   -no-prec-div

C++ benchmarks:

126.lammps:  -O3   -ipo   -xT   -no-prec-div   -ansi-alias

Fortran benchmarks:

 -O3   -ipo   -xT   -no-prec-div

Benchmarks using both Fortran and C:

 -O3   -ipo   -xT   -no-prec-div

The flags file that was used to format this result can be browsed at
http://www.spec.org/mpi2007/flags/EM64T_Intel101_flags.20080618.html.

You can also download the XML flags source by saving the following link:
http://www.spec.org/mpi2007/flags/EM64T_Intel101_flags.20080618.xml.
